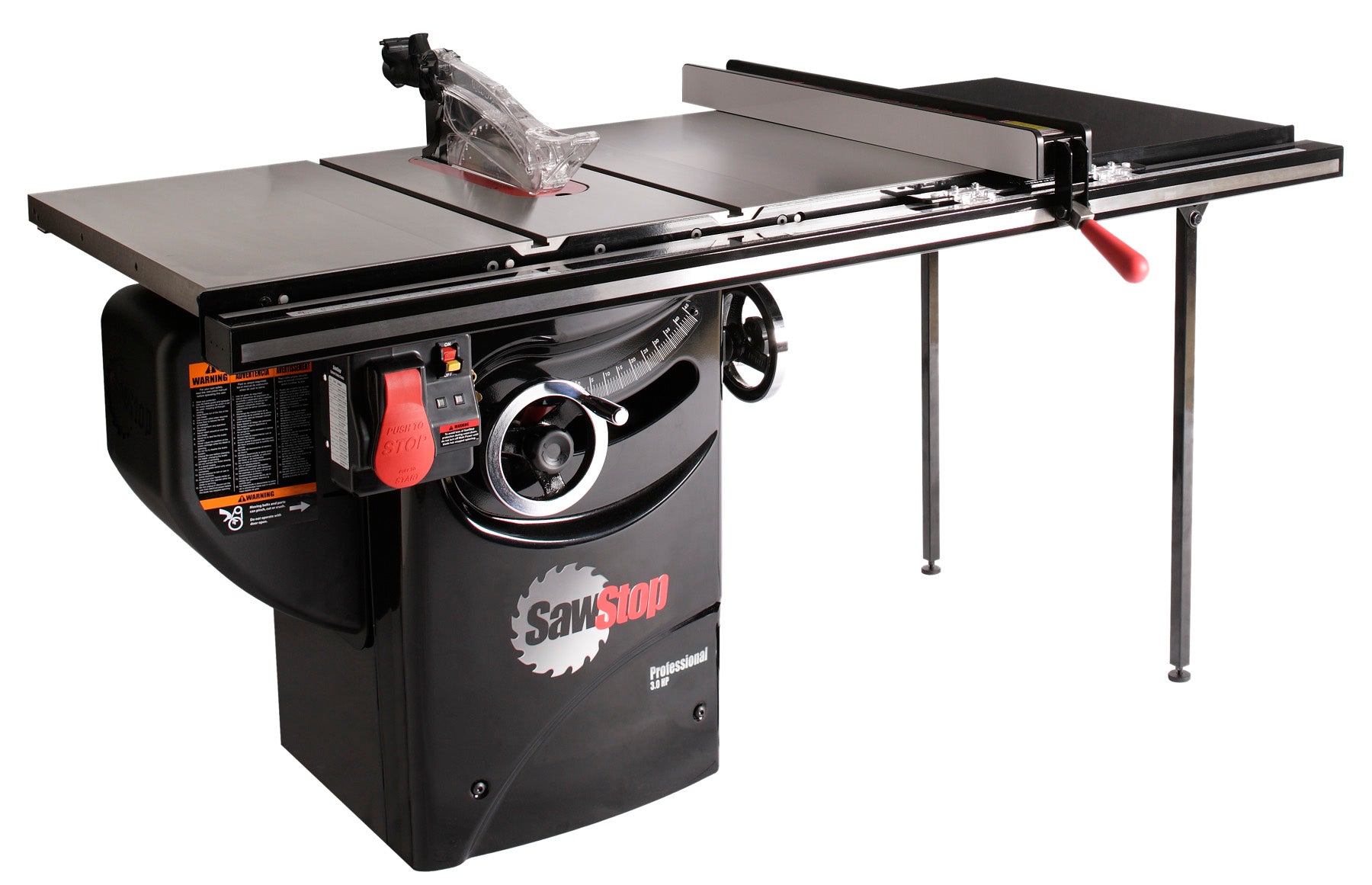

SawStop Professional Cabinet Saw with 36 in. Professional T-Glide Fence System, 3HP, 230V, 60Hz PCS31230-TGP236
SawStop Professional Cabinet Saw with 36 in. Professional T-Glide Fence System, 3HP, 230V, 60Hz PCS31230-TGP236
Couldn't load pickup availability
Details
Details
SawStop Professional Cabinet Saw with 36 in. Professional T-Glide Fence System, 3HP, 230V, 60Hz
The Professional Cabinet Saw is SawStop’s top selling cabinet saw, offering unmatched fit and finish and best-in-class cutting performance.
30-INCH T-GLIDE FENCE ASSEMBLY: The 30-inch T-Glide Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection.
UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability. The gas piston elevation delivers smooth and easy adjustability. Table flatness is measured diagonally at 0.010 in. maximum gap.

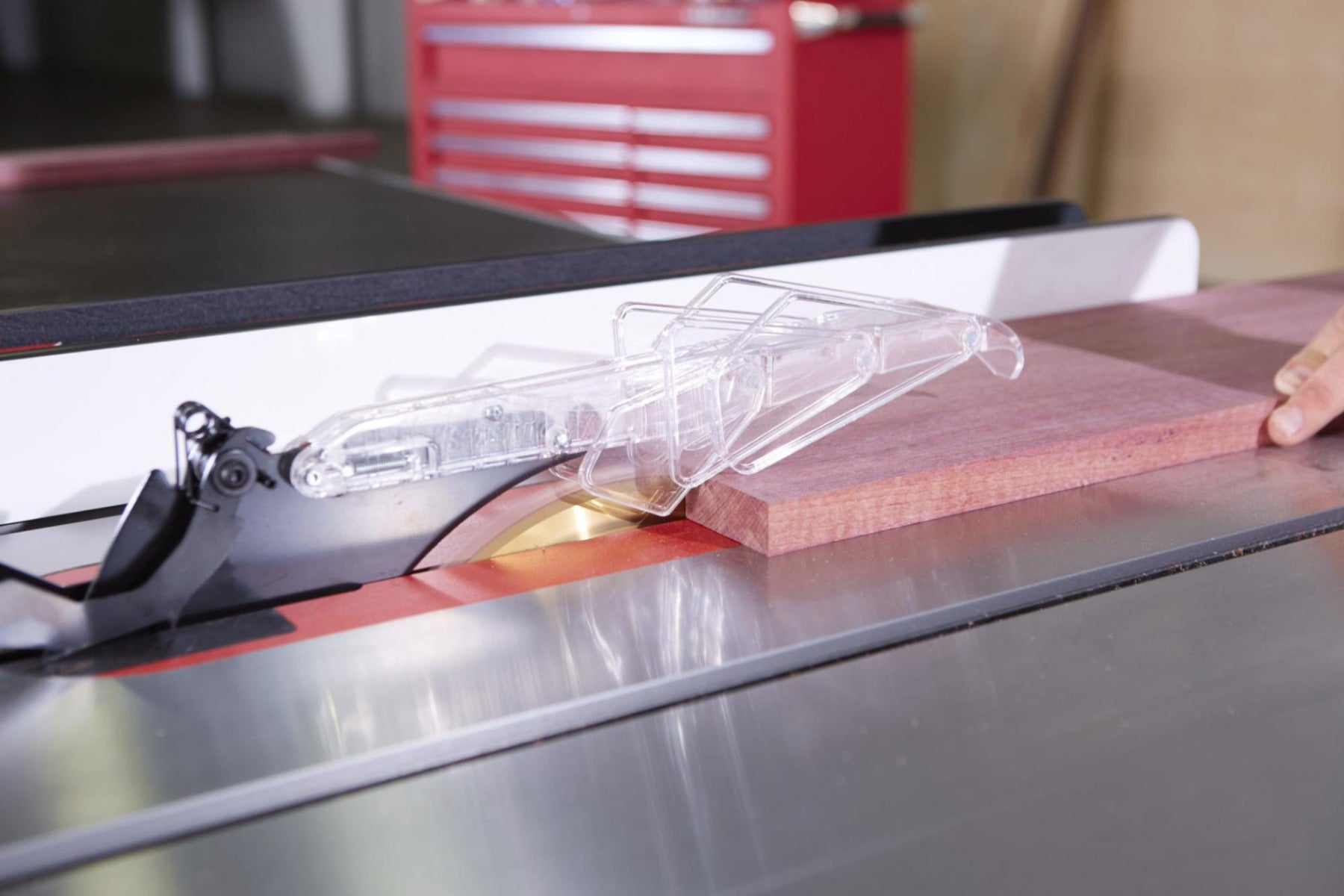

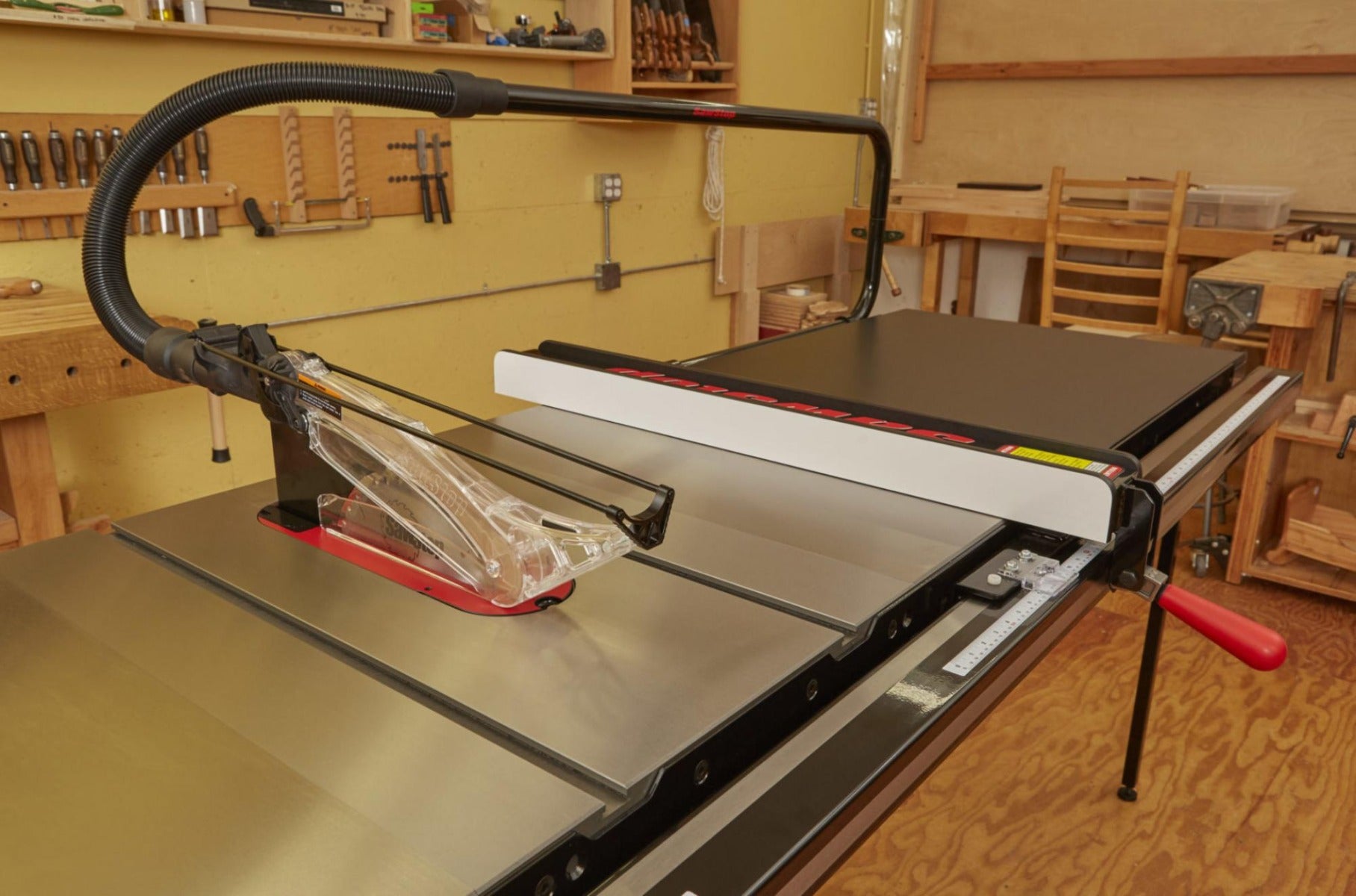

DUST COLLECTION: 99% dust collection is delivered above the table with the included dust collection blade guard, and below the table with advanced shrouding around the blade. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade and into the 4 in. port.
SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.
RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.
3HP MOTOR: The 3HP motor gives you the extra power you need to quickly rip most materials you come across
Features:
- 36 in. Professional T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection.
- Unmatched fit and finish with a keen attention to detail make the Professional Cabinet Saw SawStop's most popular saw.
- SawStop Safety System stops on contact with skin.
- ASSEMBLY: 3HP Professional Cabinet Saw with 36 in. Professional T-Glide fence system, rails & extension table
- Dimension (WxDxH): 69-1/8 x 33 x 34 in.
Specifications:
|
36" Rip Capacity: PCS175 or PCS31230 -TGP236: 36" T-Glide Fence Assembly Overall saw dimensions 36 in: 69 1/8" W x 33" D x 34" H Motor Option(s) (60Hz TEFC): 1.75 or 3 HP available Motor Configuration 2: PCS31230: 3 HP, 1 phase, 230v, 13 A, Plug: NEMA 6-15P w/9’ cord Saw body footprint: 19 3/8" W x 19 3/8" D (Cabinet) Extension wings: 12" W x 27" D each Extension table 36 in: 23 ¾” W x 27” D Cast iron table: 20" W x 27" D Cast iron table (w/ extension wings): 44" W x 27" D Shipping weights - w/ 36 in fence systems: 505 lbs / (4 Boxes) Shipping weight (approx.): (table saw only) 400 lbs Shipping dimensions (saw body only): 42”W x 31”D x 30”H Assembled weights - w/ 36 in fence systems: 426 lbs Weights - table saw only: 335 lbs
|
Blade: 40-tooth, prof. grade, 5/8" arbor Blade diameter: 10" Blade tilt: Left Blade kerf: 0.118" (3mm) Blade plate thickness: 0.078" (2mm) Max. depth of cut, blade at 0º: 3 1/8" Max. depth of cut, blade at 45º: 2 1/4" Max. rip, right of blade - 36 in: 36" (w/ 36" rails) Max. rip, left of blade: 12" Dado diameter: 8" (requires dado brake cartridge & insert) Dado max. width: 29/32” Arbor diameter at blade: 5/8" Main bearing size: 62mm OD x 30mm ID Second bearing size: 52mm OD x 25mm ID Table in front of blade (max. elevation): 10 1/4" Table behind blade (max. elevation): 7 1/2" Arbor Runout: 0.001" Maximum allowable runout Table flatness measured diagonally: 0.010" Maximum gap Blade alignment with miter slot: 0.010" Maximum displacement Deviation of miter gauge indexing stops from actual: ±0.25º Alignment between splitter and blade: 0.010" Maximum difference |
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep Miter slots center: 11 1/8" center-to-center Miter slots info: 5 1/2" (arbor flange to center of right slot) Dust collection port diameter: 4" Riving knife / splitter thickness: 0.090" (2.3 mm) Dust collection blade guard (standard on 3 HP saws): polycarbonate, extends 1-3/16" right of blade Blade guard: (dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside Insert: zero clearance, phenolic core, melamine surfaces Hand wheels: 7" diameter, cast iron w/ chrome handle Belts: 2 V-ribbed belts - arbor b. static dissipative
|
Includes:
- (2) Cast Iron Extension Wings
- (1) Miter Gauge
- (1) Micro Blade Guard (1.75HP Models)
- (1) Dust Collection Blade Guard (3HP Models)
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10” Blade
- (1) Standard Lockdown Insert
- (1) Standard Brake Cartridge
- (1) Owner’s Manual
- (2) Hardware Packs
- (1) 3mm Hex Key
- (1) 5mm Hex Key
- (1) 8mm Hex Key
- (1) Blade Spacing Adjustment Gauge
Specifications
Specifications
| SawStop Professional Cabinet Saw with 36 in. Professional T-Glide Fence System, 3HP, 230V, 60Hz PCS31230-TGP236 | |
| APPLICATION | Wood Working |
| Brand | SawStop |
| HORSEPOWER | 3.0 HP |
| MAKE | Professional |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Table Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 208V-240V 1Ph |
| SawStop Professional Cabinet Saw 3HP PCS31230 | |
| APPLICATION | Wood Working |
| Brand | SawStop |
| HORSEPOWER | 3.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Table Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 208V-240V 1Ph |
| SawStop Professional T-Glide Fence Assembly TGP2-FA | |
| APPLICATION | Wood Working |
| BRAND COMPATIBILITY | SawStop |
| Brand | SawStop |
| PRODUCT TYPE | Accessories |
| TOOL SUB-TYPE | Saws - Table Saws |
| TOOL TYPE | Saws |
| SawStop Professional T-Glide 36" Rails Assembly TGP2-R36A2 | |
| APPLICATION | Wood Working |
| BRAND COMPATIBILITY | SawStop |
| Brand | SawStop |
| PRODUCT TYPE | Accessories |
| TOOL SUB-TYPE | Saws - Table Saws |
| TOOL TYPE | Saws |
| SawStop Professional Series 36 in. Extension Table TGP2-T36A | |
| APPLICATION | Wood Working |
| BRAND COMPATIBILITY | SawStop |
| Brand | SawStop |
| MAKE | Professional |
| PRODUCT TYPE | Accessories |
| TOOL SUB-TYPE | Tables - Router Tables / Routers - Router Tables |
| TOOL TYPE | Routers |
