The SawStop safety system features an electronic detection system that carries a small electrical signal across the saw blade. Because the human body is naturally conductive, contact between the skin and the blade alters the signal. This change immediately activates a heavy-duty spring, driving an aluminum brake block into the spinning blade. The blade stops completely in less than 5 milliseconds (faster than an airbag deploys) and retracts under the table to prevent serious injury.

Yes, heavily wet or green pressure-treated lumber can occasionally carry enough conductivity to trigger the safety brake mistakenly. If you are cutting material that is noticeably damp, you can easily switch the machine into bypass mode to cut without activating the safety system. The saw's LED light diagnostic panel will also let you test the material's conductivity before making your cut to see if bypass mode is necessary.

Standard 10-inch single-blade replacement cartridges generally cost around $95, while specialized dado blade cartridges cost roughly $115. Keep in mind that when a brake activates due to skin contact, SawStop will often replace the cartridge free of charge if you send them the activated cartridge so they can verify and download the saved data.

To safely cut conductive materials like aluminum, carbon fiber, or mirrored plastics, you must enter bypass mode. With the main power switch on, insert the bypass key, turn it 90 degrees clockwise, and hold it. While holding the key, pull the Start / Stop paddle out to spin up the blade. Once the blade reaches full speed, you can let go of the key, the LED light will flash to confirm that the brake is temporarily deactivated for that cutting session.

While both are incredible precise, the industrial cabinet saw is engineered for heavy, uninterrupted continuous duty-cycles in commercial settings. The ICS features thicker gauge steel, heavier cast iron tables, thicker flywheels, and massive internal trunnions compared to the professional cabinet saw. Additionally, the ICS offers more powerful motor options (up to 5HP or 7.5HP), whereas the PCS maxes out at a 3HP motor option.

Yes, but it depends entirely on the motor option you select. The 1.75HP configuration of the SawStop Professional Cabinet Saw (PCS) is designed to run perfectly on standard residential 110V Power. However, if you opt for the more powerful 3 HP configuration, it strictly requires a dedicated 220V/230V circuit to operate.

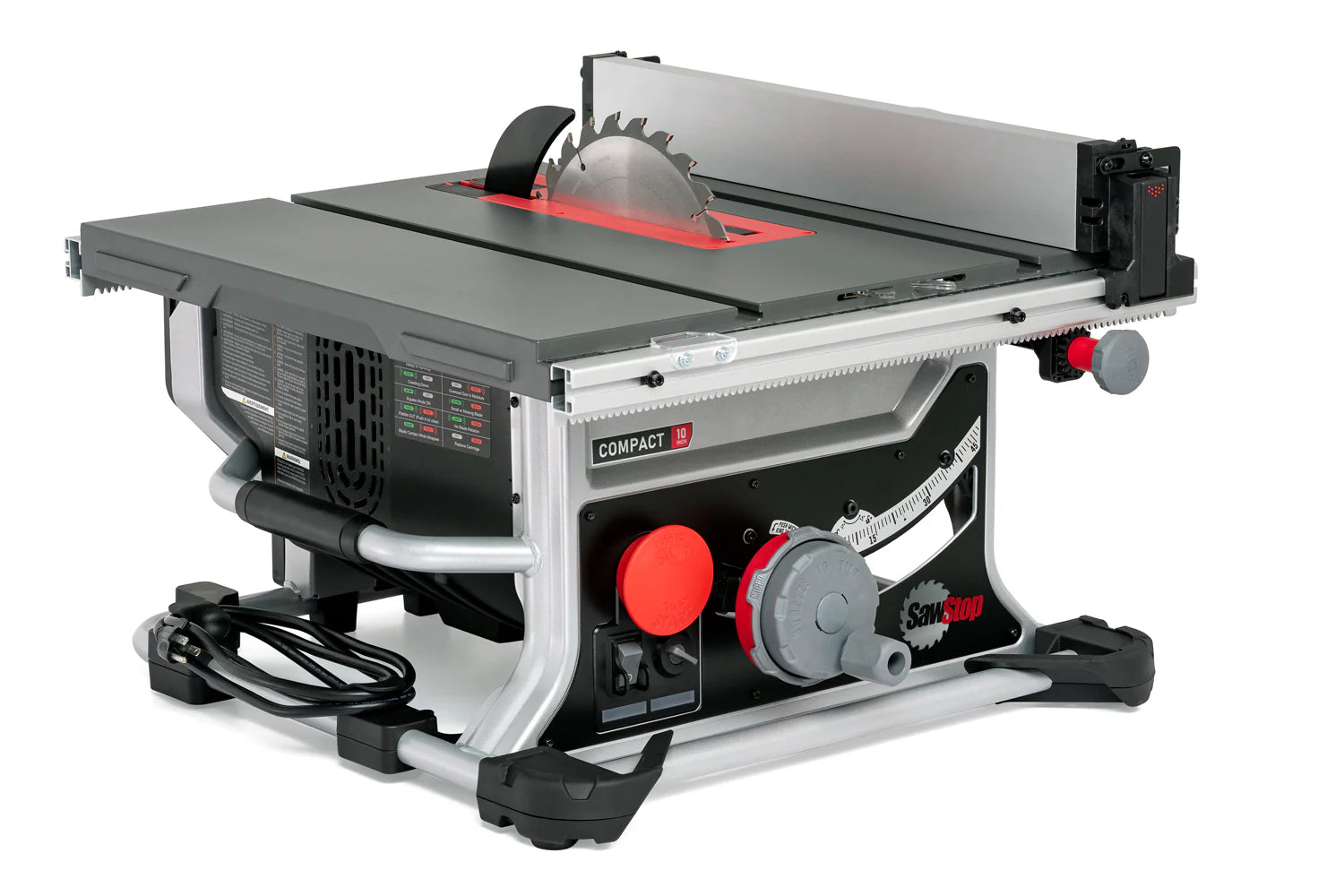

The Compact Table Saw (CTS) is built for ultimate portability, featuring a benchtop design without an integrated stand. The Jobsite Saw Pro is a larger tool featuring a deeper table surface, a superior T-style fence with a low-face shelf, and an integrated, collapsing wheeled gravity-rise stand that makes moving it around active job sites incredibly easy.

Yes. While the upfront cost of a SawStop is higher than standard contractor or cabinet saws, it functions as both a premium, high-precision woodworking tool and an insurance policy. A single hospital visit for a table saw injury can easily exceed the entire cost of the machine. Furthermore, SawStop saws hold an exceptionally high resale value on the used market compared to traditional machinery.

Yes, you can safely use dado sets on SawStop saws, but it requires two specific adjustments. First, you must install a dedicated SawStop Dado Brake Cartridge, which is engineered to handle the wider width of a dado head. Second, you must use a matching zero-clearance dado table insert to properly support your workpiece around the wider blade profile.

Replacing an activated brake cartridge and swapping out the blade takes roughly 5 to 10 minutes. The process is straightforward: you unlock the blade arbor, slide off the spent blade and fused brake cartridge together, install a fresh cartridge, mount a new blade, and reset the clearance gap using the built-in adjustment gauge.

No, you cannot simply swap the motor to upgrade a 1.75HP PCS to a 3HP model later on. The 1.75HP cabinet saw is structurally engineered with a different internal trunnion housing, wiring harness, and contractor switch designed specifically for 110V power. If your shop workflow requires a heavier 3 HP motor, it is highly recommended to purchase the 3HP 220V configuration from the start.

The primary difference is the width of the aluminum stopping block. A standard cartridge is calibrated to stop a single 10-inch blade, whereas a dado cartridge features a much wider aluminum block designed to safely catch a full width (up to 13/16'') 8-inch dado stack. The saw will not start if. You attempt to spin a dado stack with a standard cartridge installed, while the internal computer verifies that the correct cartridge is paired with the correct blade system.
