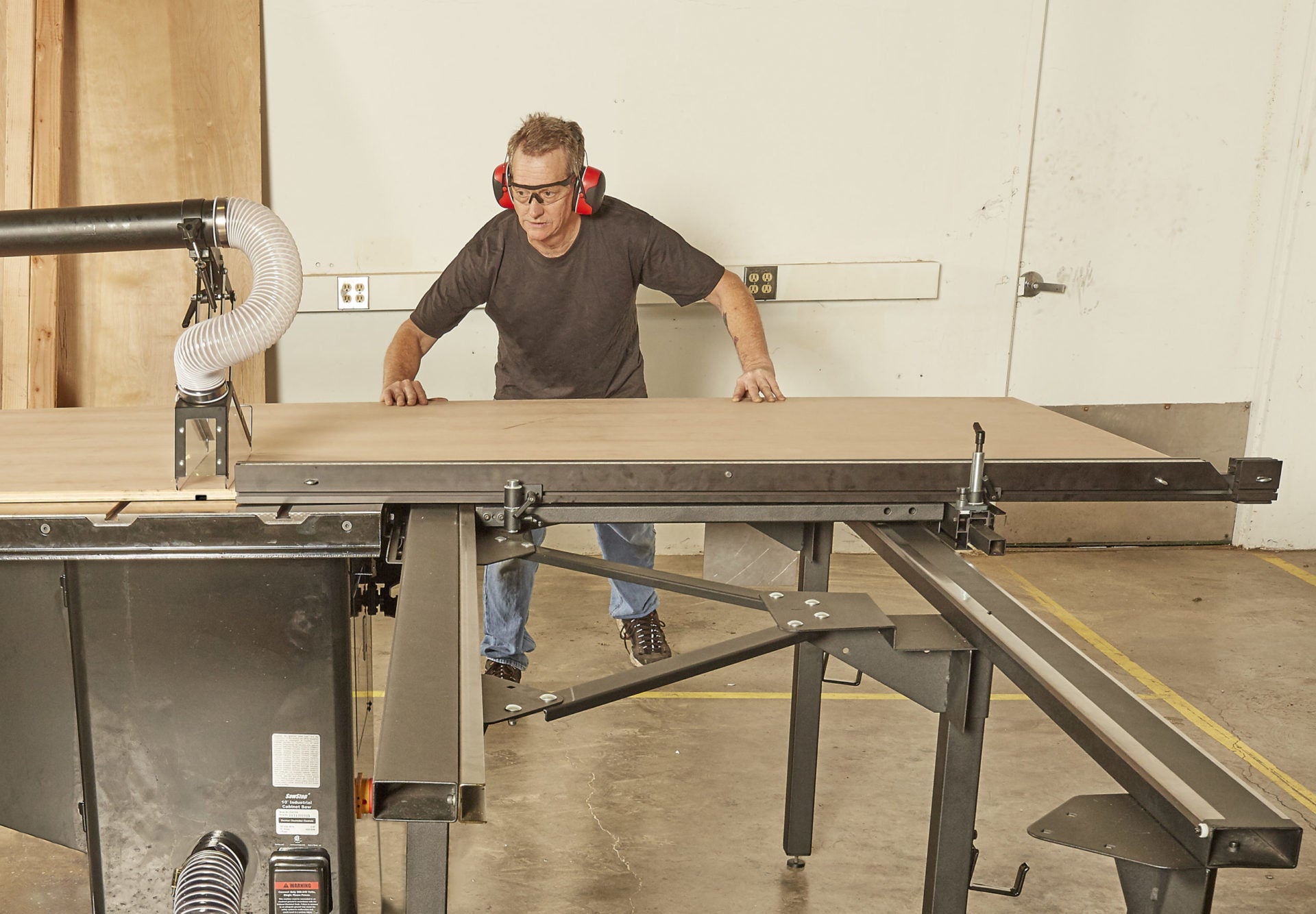

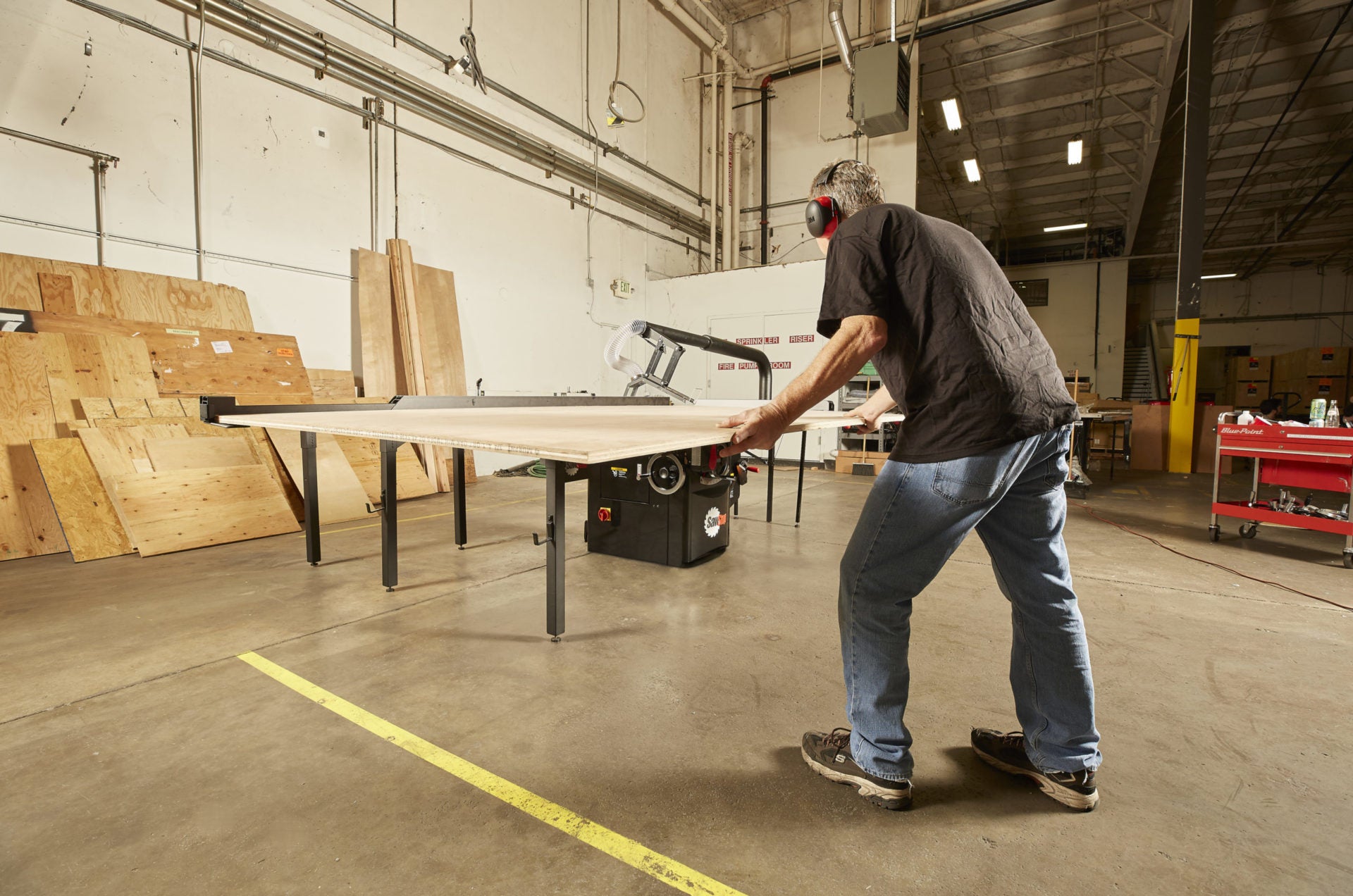

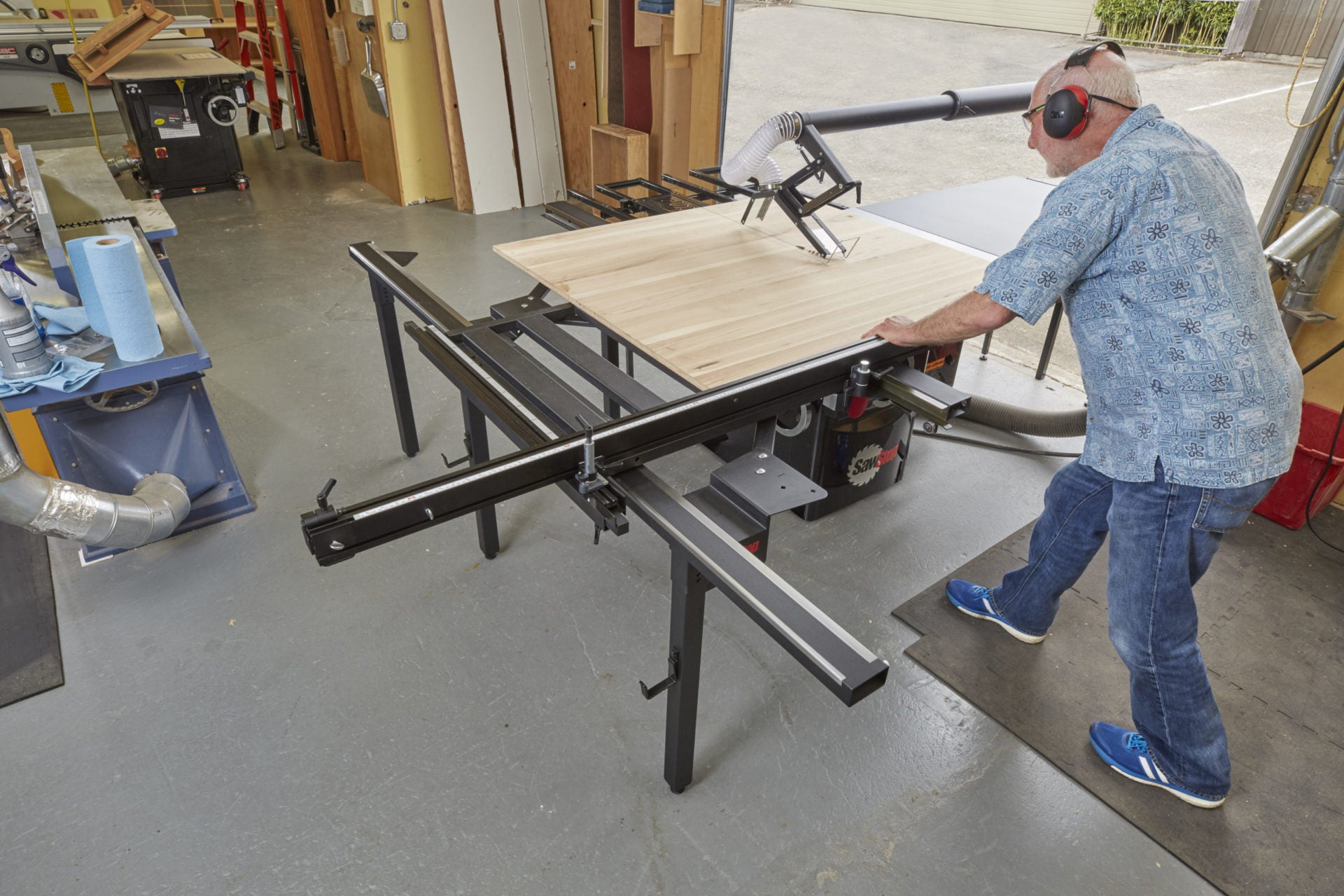

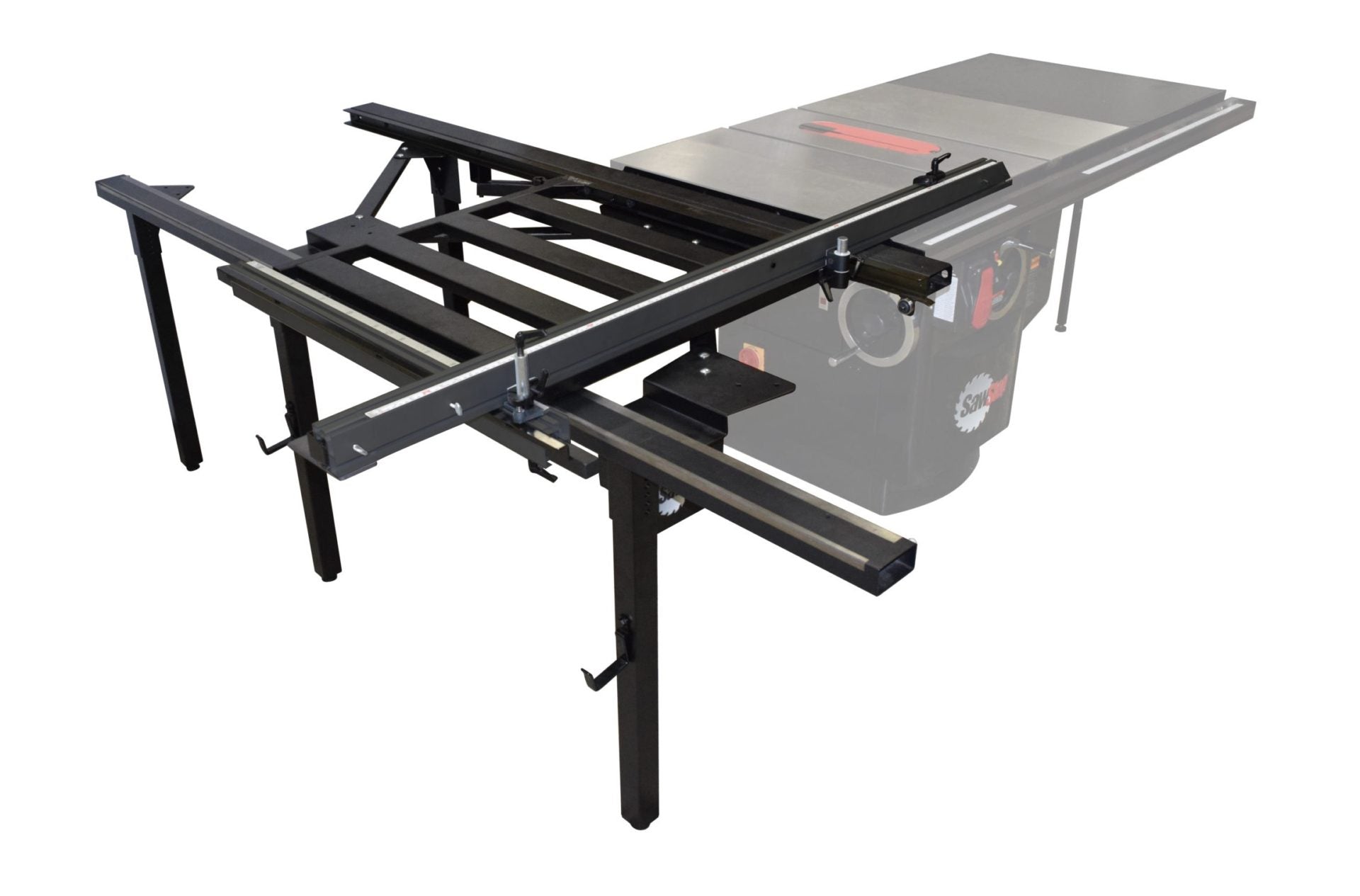

SawStop Large Sliding Table

Engineered for the demands of the Industrial woodshop, the Large Format Sliding Table ensures easy, repeatable operation. Cut sheet goods and larger stock easily, with maximum control and sure measurement. A rigid steel frame and 14 sealed, steel bearings ensure a reliable, smooth glide, and maximum adjustability affords both traditional and Euro configurations for a max crosscut of 70 inches.

For Use with Saw Type(s): ICS, PCS

Features:

• Maximum Quality - This high-quality, rugged sliding table is constructed of durable steel and can accommodate sheet goods up to 350 lbs. Easily cut down sheet goods with the over-sized sled. The maximum crosscut capacity is 70 inches. The 14 sealed, steel bearings and aluminum fence ensure smooth, reliable and repeatable cuts every time.

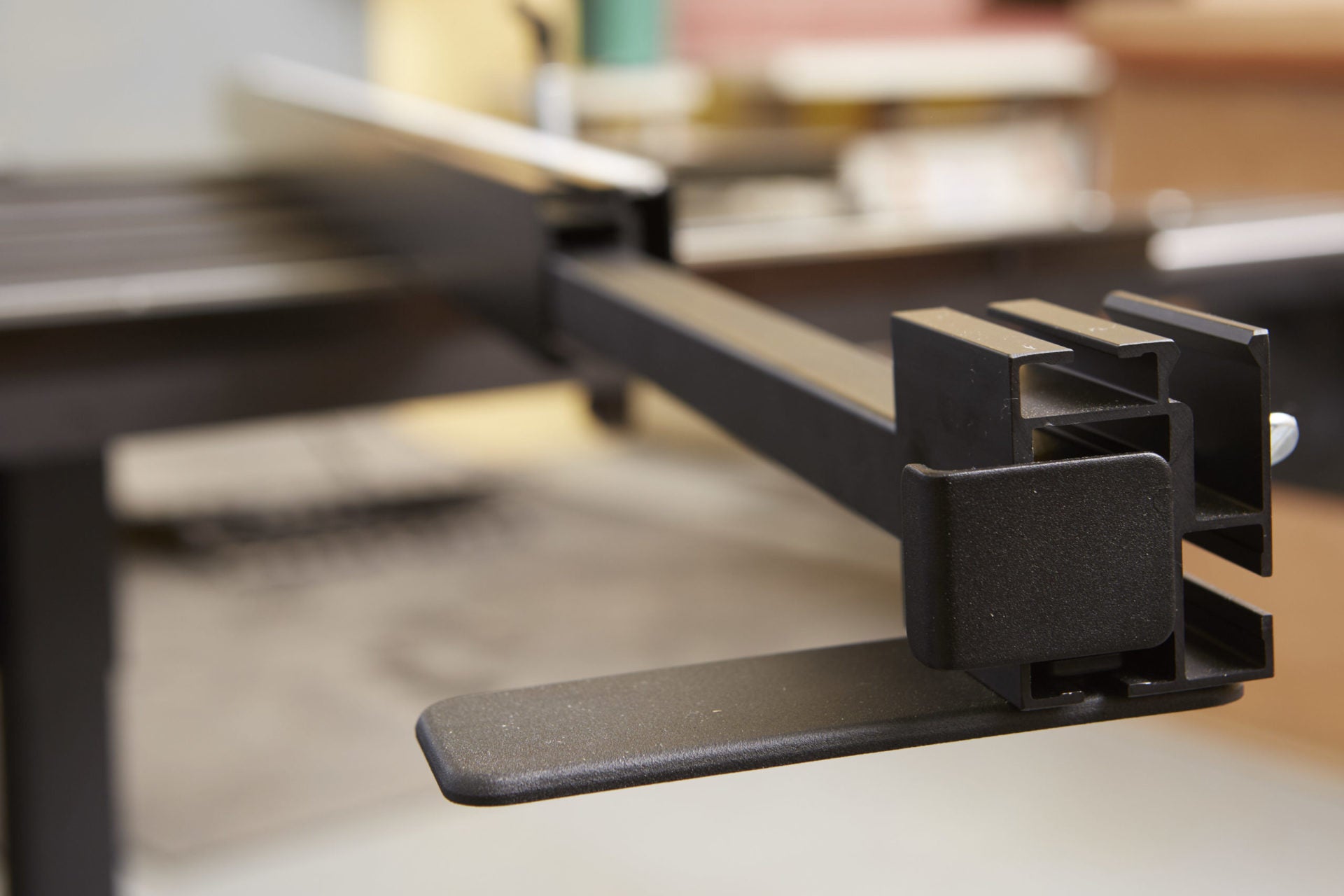

• Versatility - There are six different mounting options that allow for maximum adjustability in both traditional and European configurations. The aluminum fence can be easily removed and stored on the side of the sliding table with the included fence storage brackets.
• Efficiency - Detents set at 0, 15, 22.5, 30 and 45 degrees ensures quick and reliable cuts. The included flip stop allows the operator to set measurements for repeatable cuts.


Specifications:

• Table Dimensions: 30 x 30 1/2 in.
• Maximum Travel: 71 1/2 in.
• Maximum Crosscut Capacity (front Mounting): 49 in.
• Maximum Crosscut Capacity (rear mounting): 70 in.
• Weight Capacity Fully Extended: 350 lbs.
• Includes 2 boxes: TSA-SA70-1, TSA-SA70-2
• Shipping Dimensions: 97 x 34 x 10 in.
• Shipping Weight: 178 lbs.

Includes:

• Sliding Table
• Inner Guide Tube
• Outer Guide Tube
• Crosscut Fence
• Angle Guide Rail
• Mounting Bracket
• (4) Support Legs
• (2) Leg Brackets
• (2) Stepped Leg Bracket
• Positioning Plate
• Front Bracket
• Support Tube
• (3) Lateral Brackets
• (2) Guide Bearing Assemblies
• Fence Pivot Assembly

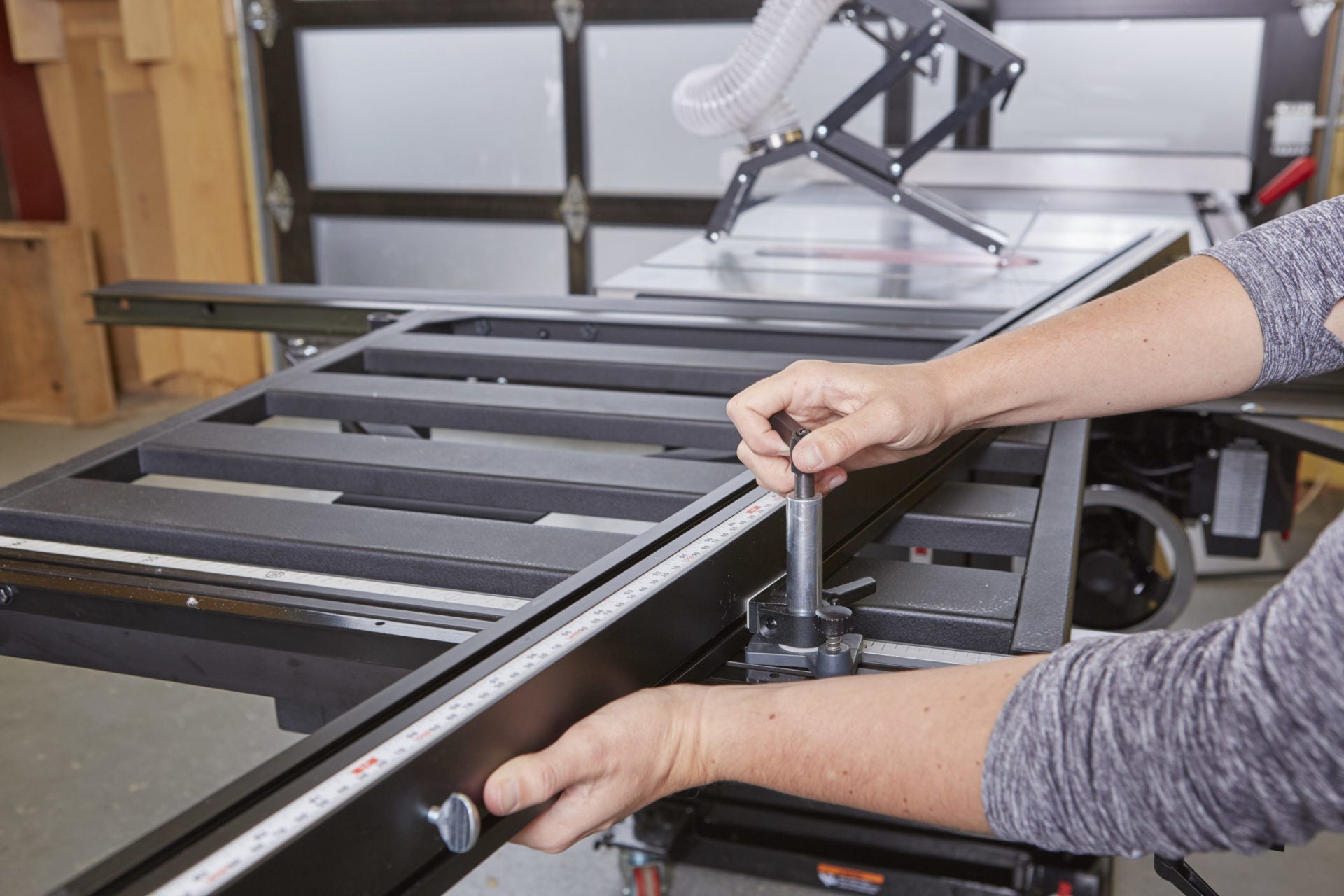

• Flip Stop
• Fence Lock Assembly
• Fence Extension
• Logo Plate
• Owner's Manual

Owner's Manual

Footprint Dimensions
