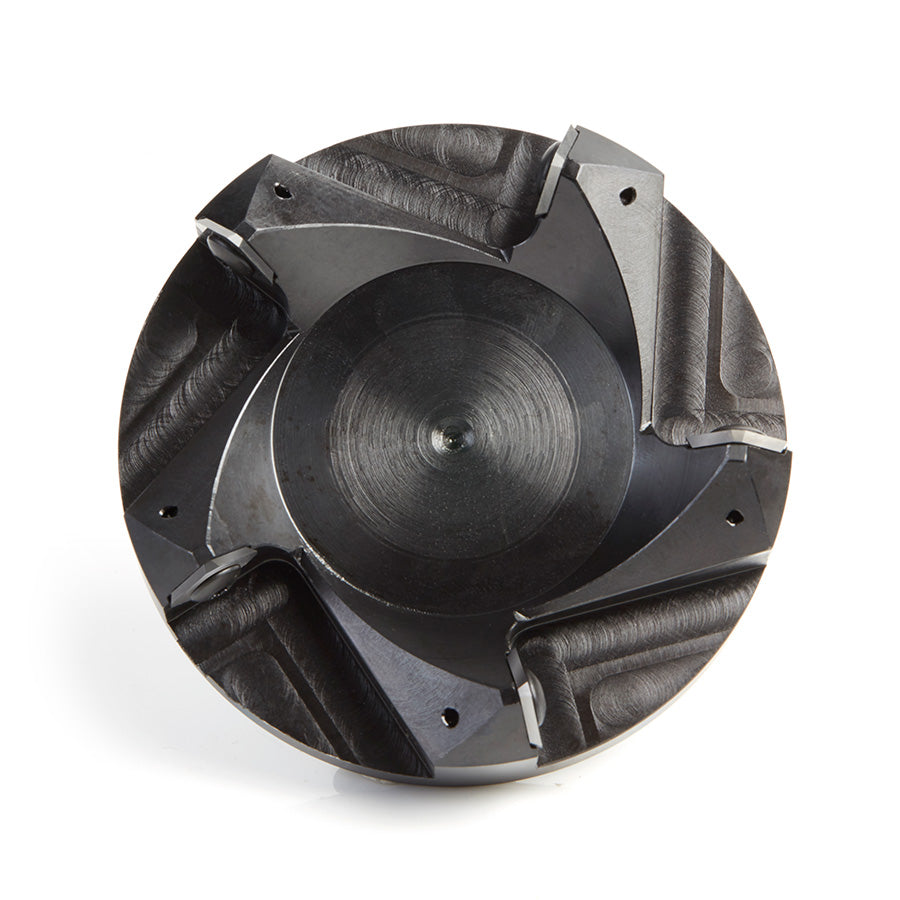

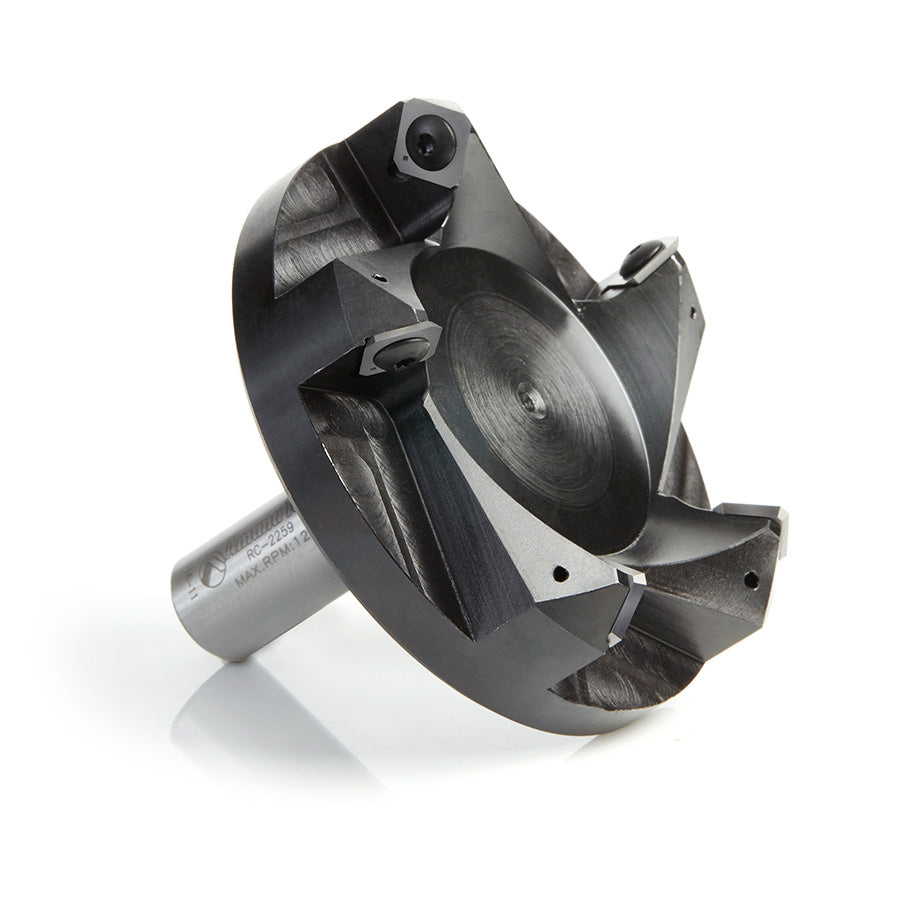

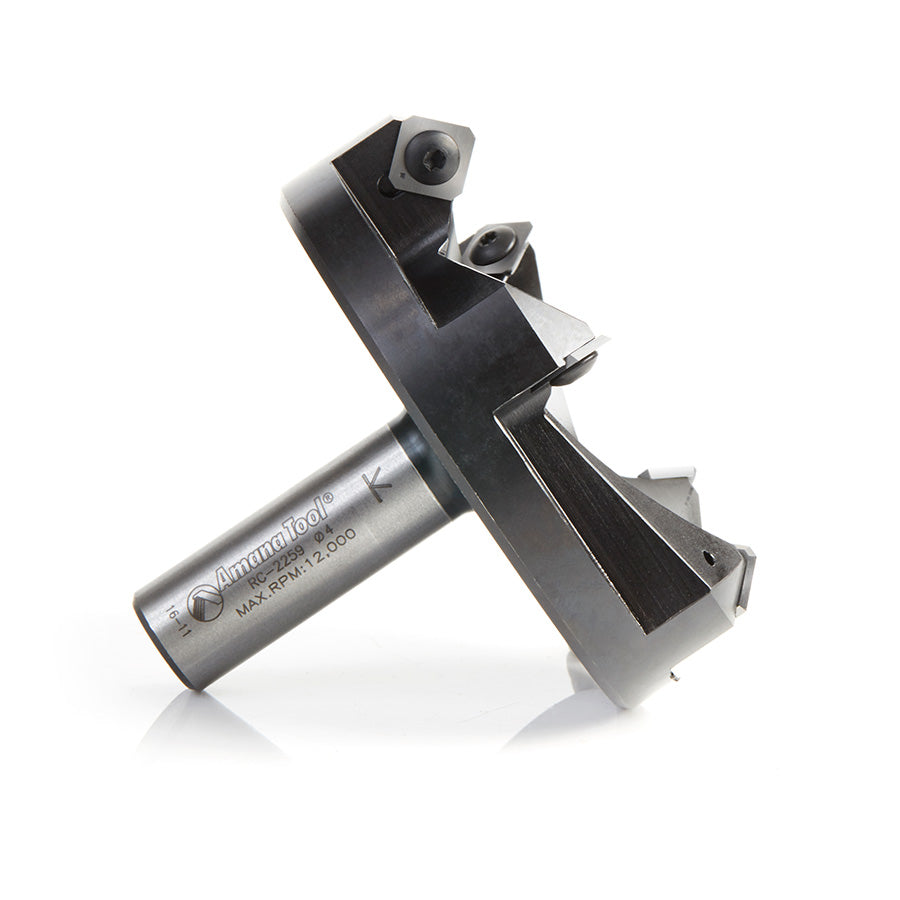

Amana Tool 5 FL Spoilboard 3/4 in Shank RC-2259
Amana Tool 5 FL Spoilboard 3/4 in Shank RC-2259
Couldn't load pickup availability
Details
Details
Amana RC-2259 CNC Insert Carbide 5 Wing/Flute Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler 3-27/32 Dia x 1-7/32 x 3/4 Shank Router Bit
Insert carbide spoilboard surfacing & chamfering router bit great for cutting large surface areas and surface planing. Higher number of teeth allows for higher feed rate.
Perfect for:
- Resurfacing spoilboards using CNC
- Planing large glued up panels using CNC
- Surfacing and finishing wood using timber slab machines
- Rabbeting or slotting
Designed for planing & chamfering the following materials:
- MDF
- Fiberboard
- HDF/LDF
- Balsa Core*
- Epoxy (Epoxy Resins)*
- High Density Urethane (HDU Board)*
- Plastic/Acrylic*
- Plywood/Chipboard*
- Hardwood/Softwood*
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*
*For optimal results and maximum insert life, replace inserts with optional general purpose knives #RCK-457 (sold separately).
Featuring:
- 4-sided solid carbide insert knives
- Exclusive carbide grade for highest quality of cut
- Maximum cutting efficiency
- Faster material removal process
- Tool can plunge up to a maximum depth of 6mm (1/4"), then start resurfacing
- Tool capable of removing very thin layers of material, less than 0.001" per pass
- The unique chamfer corner insert design, creates a flawless surface.
- The 5 wing design, resulting in a more balanced tool while running.
Proper torques rating to tighten down screws is 2-3Nm Torques.

Vectric compatible tool file for RC-2259 available for download, click here.

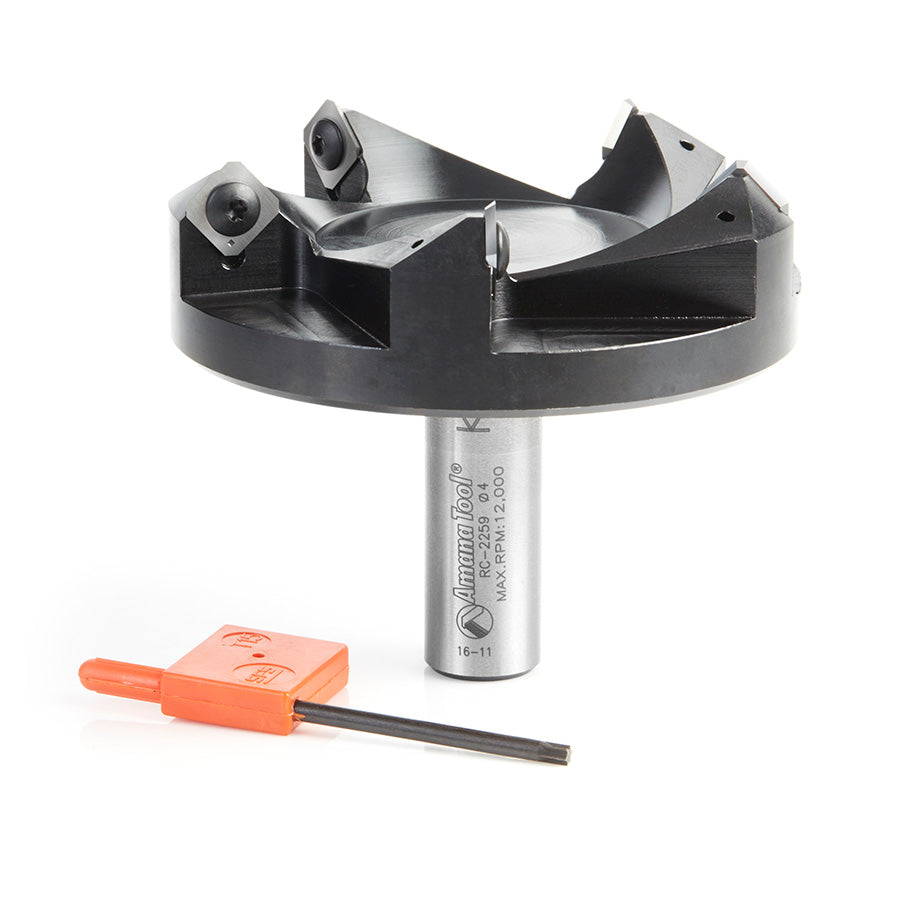

| Included MDF Knives (5 Required) | Optional General Purpose Knives (5 Required) | Optional Solid Wood Diamond-Like Carbon (DLC) Knives (5 Required) | Torx Screw (5) | Hex Key |
|---|---|---|---|---|
Specifications:
| (D) Diameter | 3-27/32 |
|---|---|
| (B) Cutting Height | 1-7/32 |
| (d) Shank | 3/4 |
| Overall Length (L) | 3-25/64 |
| B1 | 1/4 |
| Max RPM | 12,000 |
| Flutes | 5 |
| D1 | 3-11/32 |
| D2 | 5/64 |
Specifications
Specifications
| Amana Tool 5 FL Spoilboard 3/4 in Shank RC-2259 | |
| APPLICATION | Contracting & Remodeling / Wood Working |
| Brand | Amana Tool |
