Amana Tool 3FL 2 in Dia. Spoilboard 1/2 in Shank RC-2255
Amana Tool 3FL 2 in Dia. Spoilboard 1/2 in Shank RC-2255
Couldn't load pickup availability
Details
Details

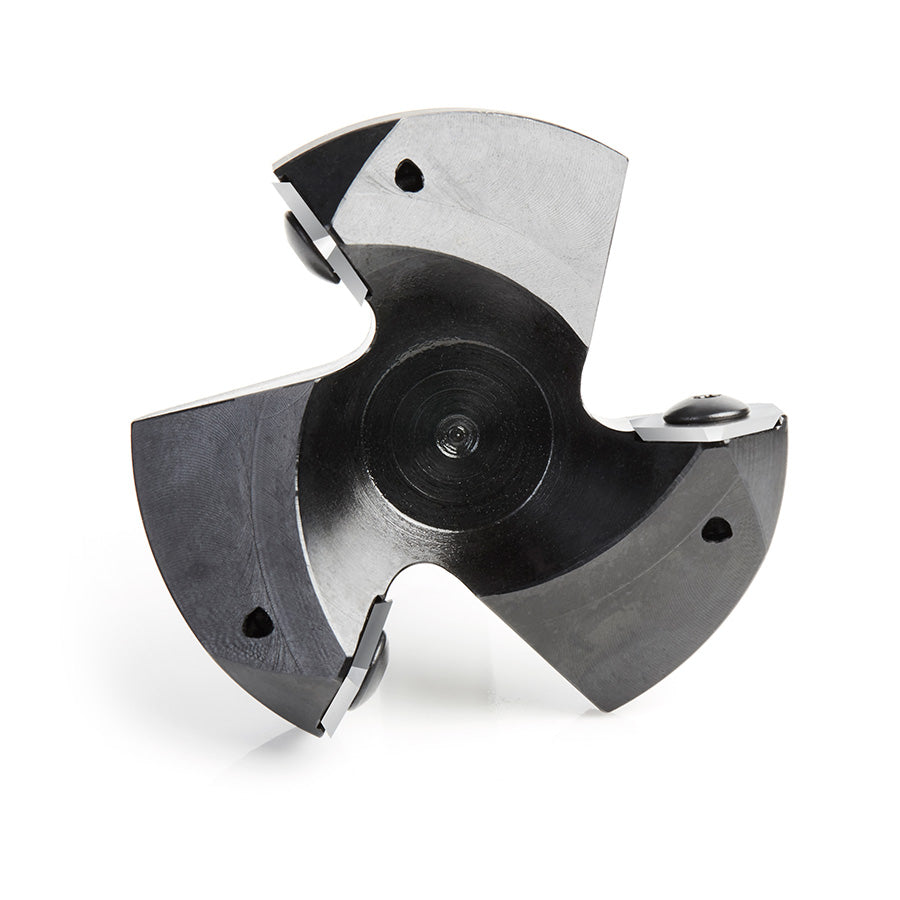

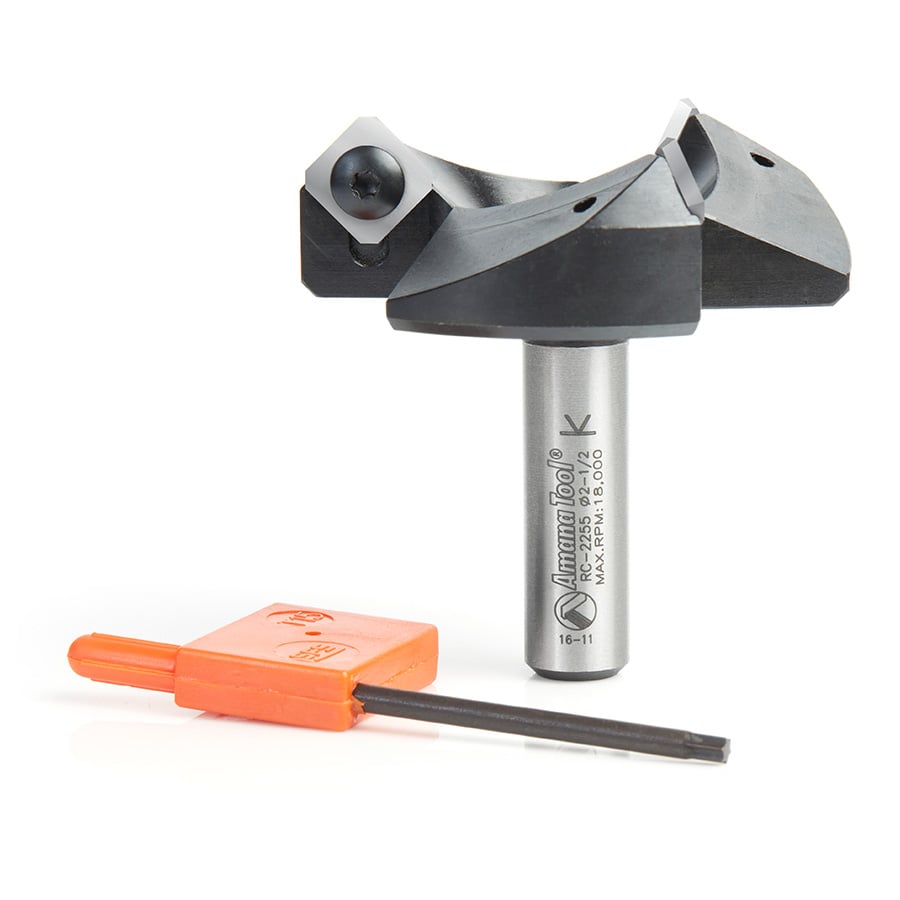

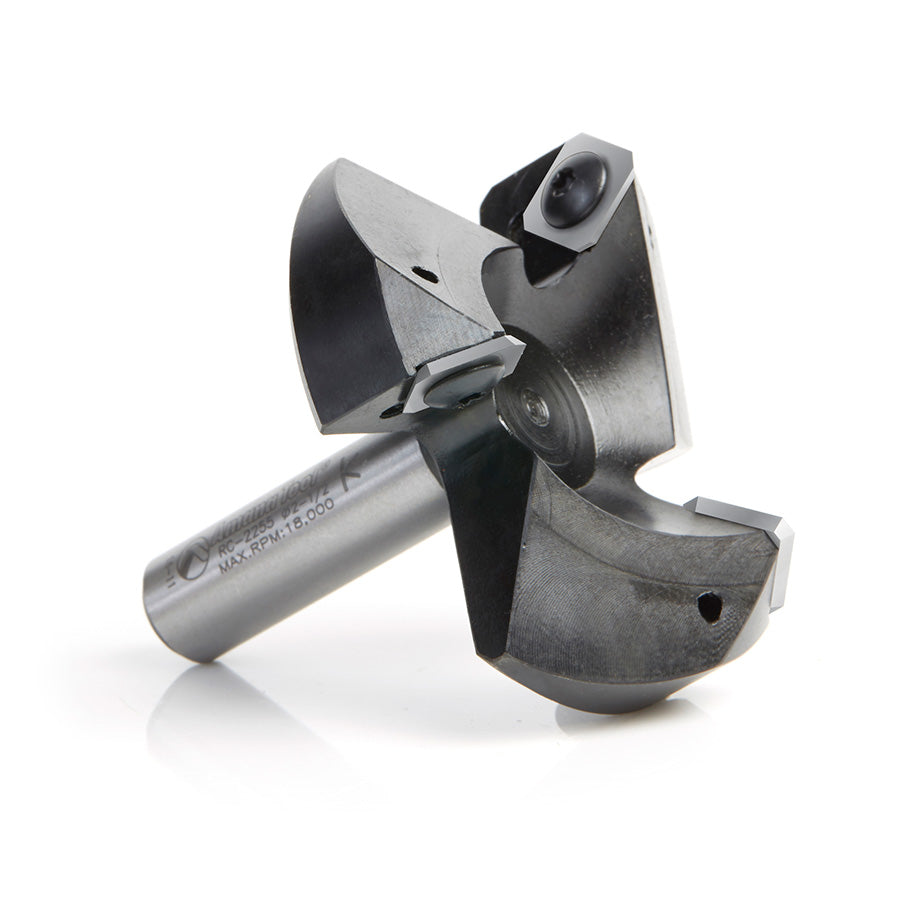

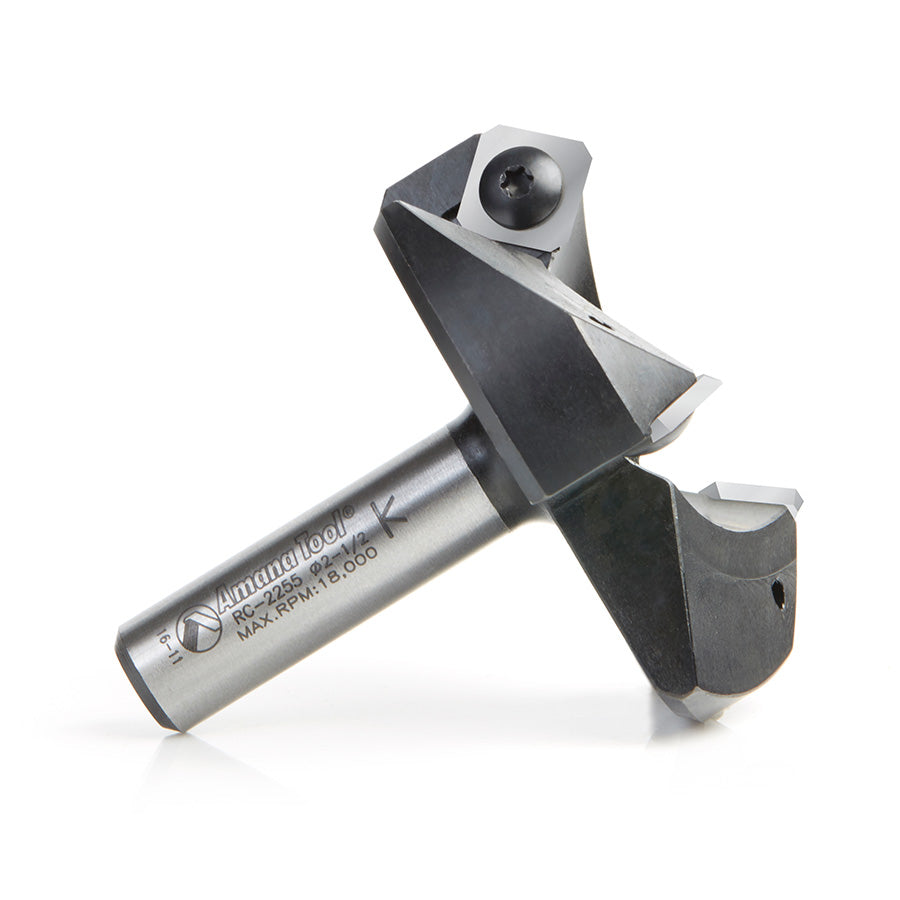

Amana RC-2255 CNC Insert Carbide 3 Wing/Flute Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler 2-1/2 Dia x 53/64 x 1/2 Shank Router Bit
Insert carbide spoilboard surfacing & chamfering router bit, great for planing large surface areas. Higher number of teeth allows for higher feed rate.
Also suitable for router sled machines.
Warning: Make sure that your router sled rails are fully stable and squared.
Perfect for:
- Resurfacing spoilboards using CNC
- Planing large glued up panels using CNC
- Surfacing and finishing wood using timber slab machines
- Rabbeting or slotting
Designed for planing & chamfering the following materials:
- MDF
- Fiberboard
- HDF/LDF
- Balsa Core*
- Epoxy (Epoxy Resins)*
- High Density Urethane (HDU Board)*
- Plastic/Acrylic*
- Plywood/Chipboard*
- Hardwood/Softwood*
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*
*For optimal results and maximum insert life, replace inserts with optional general purpose knives #RCK-457 (sold separately).
Featuring:
- 4-sided solid carbide insert knives
- Exclusive carbide grade for highest quality of cut
- Maximum cutting efficiency
- Faster material removal process
- Tool can plunge up to a maximum depth of 6mm (1/4"), then start resurfacing
- Tool capable of removing very thin layers of material, less than 0.001" per pass
- The unique chamfer corner insert design, creates a flawless surface.
- The 3 wing design, resulting in a more balanced tool while running.
Proper torques rating to tighten down screws is 2-3Nm Torques.
| Included MDF Knives (3 Required) | Optional General Purpose Knives (3 Required) | Optional Solid Wood Diamond-Like Carbon (DLC) Knives (3 Required) | Torx Screw (3) | Hex Key |
|---|---|---|---|---|
Specifications:
| (D) Diameter | 2-1/2 |
|---|---|
| (B) Cutting Height | 53/64 |
| (d) Shank | 1/2 |
| Overall Length (L) | 2-19/32 |
| B1 | 1/4 |
| Max RPM | 18,000 |
| Flutes | 3 |
| D1 | 2 |
| D2 | 5/64 |
Specifications
Specifications
| Amana Tool 3FL 2 in Dia. Spoilboard 1/2 in Shank RC-2255 | |
| APPLICATION | Contracting & Remodeling / Wood Working |
| BIT GEOMETRY | 3 Flute |
| Brand | Amana Tool |
| CONSUMABLE TYPE | Drilling Bits |
| CUTTER LENGTH | 53/64 in |
| DIAMETER | 2 1/2 in |
| LENGTH | 2 19/32 in |
| PRODUCT TYPE | Consumables |
| SHANK DIAMETER | 1/2 in |
| TOOL SUB-TYPE | Routers - CNC Routers |
| TOOL TYPE | Routers |
