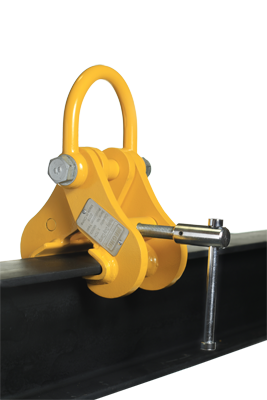

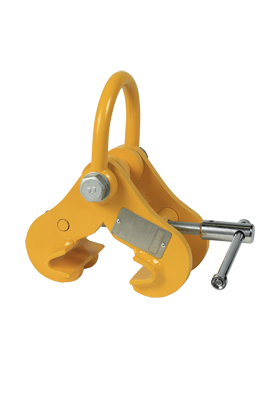

MAGNA Lifting Products 5 Ton Universal Lifting Beam Clamp, Fixed Jaw ULBC500F
MAGNA Lifting Products 5 Ton Universal Lifting Beam Clamp, Fixed Jaw ULBC500F
Couldn't load pickup availability
Details
Details
MAGNA 5 Ton Universal Lifting Beam Clamp, Fixed Jaw ULBC500F
The MAGNA ULBC500F provides a robust 5 Ton (11,000 lbs) lifting solution with universal loading capabilities. This clamp is essential for structural steel projects where beams must be lifted, turned, or positioned at angles. The fixed jaw design offers exceptional stability during these complex maneuvers.
Engineered for safety and durability, the ULBC500F features a heavy-duty threaded mechanism that locks tightly onto the beam flange. The integrated suspension eye allows for the attachment of multi-leg slings or shackles. With a 150% proof load test, this clamp meets the high safety standards required for overhead lifting.
Features & Benefits
- Multi-Directional: Safe for side loading and beam turning applications.
- Heavy Capacity: Rated for 11,000 lbs working load.
- Fixed Stability: Rigid jaw design prevents shifting during lifts.
- Adjustable Fit: Compatible with flanges from 3.0 to 7.5 inches wide.
- Safety First: Load tested to 150% of rated capacity (16,500 lbs).
Specifications
- Model Number: ULBC500F
- Working Load Limit (WLL): 5 Ton (11,000 lbs)
- Jaw Type: Fixed
- Fits Flange Width: 3.0 - 7.5 in.
- Net Weight: 22.0 lbs
Specifications
Specifications
| MAGNA Lifting Products 5 Ton Universal Lifting Beam Clamp, Fixed Jaw ULBC500F | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| CAPACITY | 5 Ton |
| CLAMP TYPE | Fixed Jaw, Standard Width |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Material Handling/Lifting - Clamps |
| TOOL TYPE | Material Handling/Lifting |
