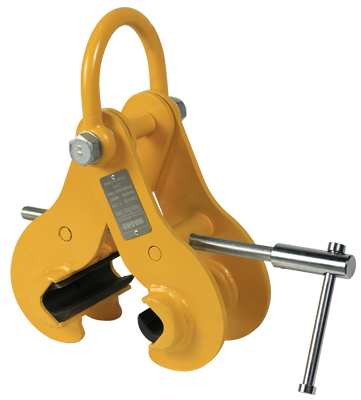

MAGNA 10 Ton Universal Lifting Beam Clamp, Swivel Jaw ULBC1000S
The MAGNA ULBC1000S is a heavy-duty 10 Ton (22,000 lbs) lifting clamp designed for the most demanding rigging tasks. It features a Swivel Jaw that articulates to maintain full contact with the beam surface, providing exceptional security when lifting or positioning large girders from angles.
This clamp combines massive capacity with the versatility of universal loading. The locking screw mechanism is robust and easy to operate, ensuring the clamp stays locked on. With a 150% proof load test, the ULBC1000S is the professional's choice for safe and efficient heavy steel handling.
Features & Benefits
- Swivel Precision: Jaw pivots to ensure maximum grip during side loads.
- 10-Ton Power: Reliable lifting for loads up to 22,000 lbs.
- Universal Lift: Approved for vertical, side, and angled loading.
- Broad Fit: Compatible with flanges from 3.5 to 12.0 inches.
- Safety Assured: Proof tested to 150% of capacity (33,000 lbs).
Specifications
- Model Number: ULBC1000S
- Working Load Limit (WLL): 10 Ton (22,000 lbs)
- Jaw Type: Swivel
- Fits Flange Width: 3.5 - 12.0 in.
- Net Weight: 48.4 lbs
Specifications
Specifications
| MAGNA Lifting Products 10 Ton Universal Lifting Beam Clamp, Swivel Jaw ULBC1000S | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| CAPACITY | 10 Ton |
| CLAMP TYPE | Swivel Jaw |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Material Handling/Lifting - Clamps |
| TOOL TYPE | Material Handling/Lifting |
