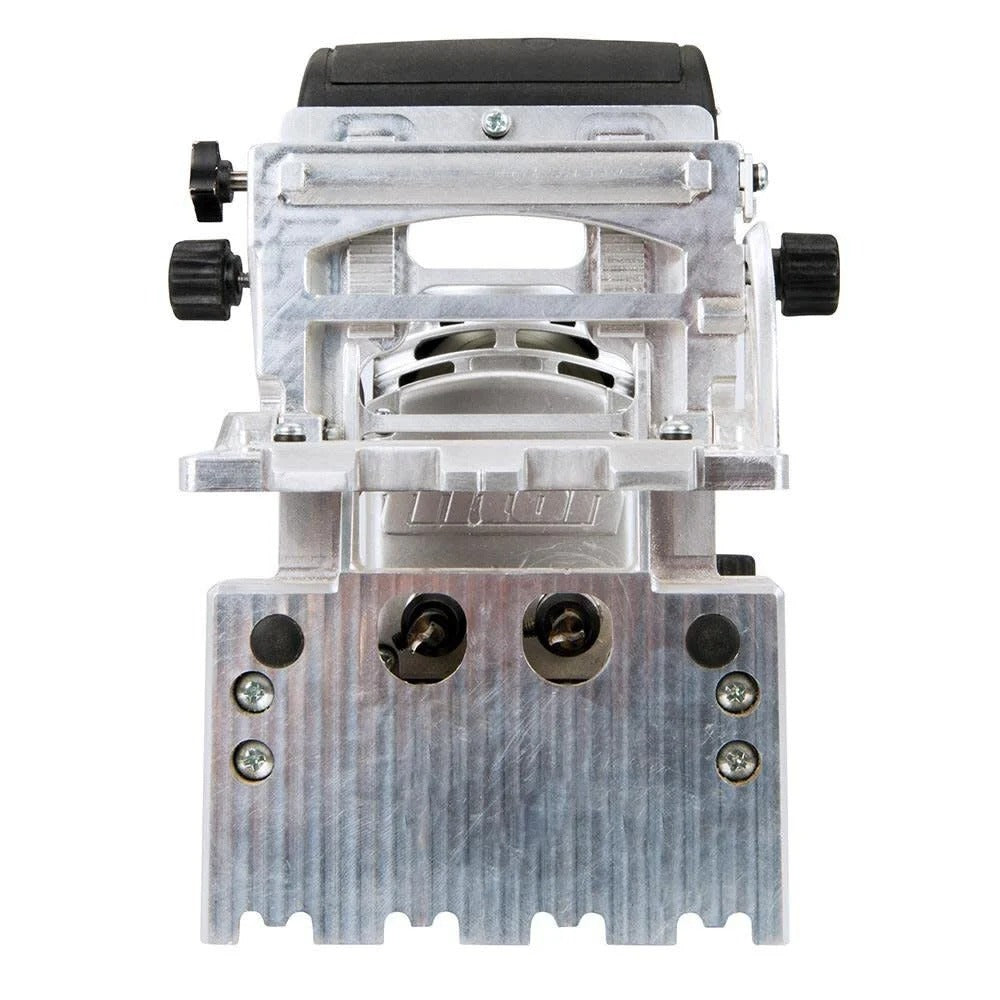

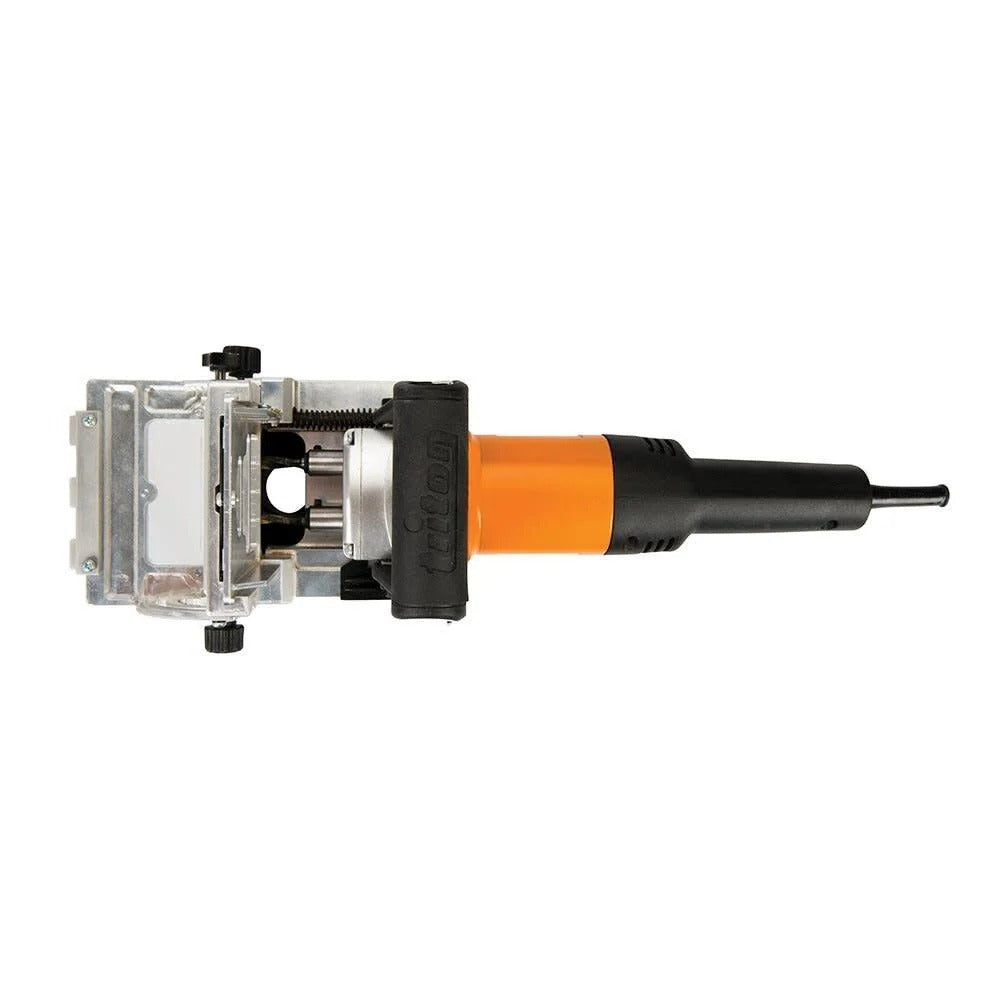

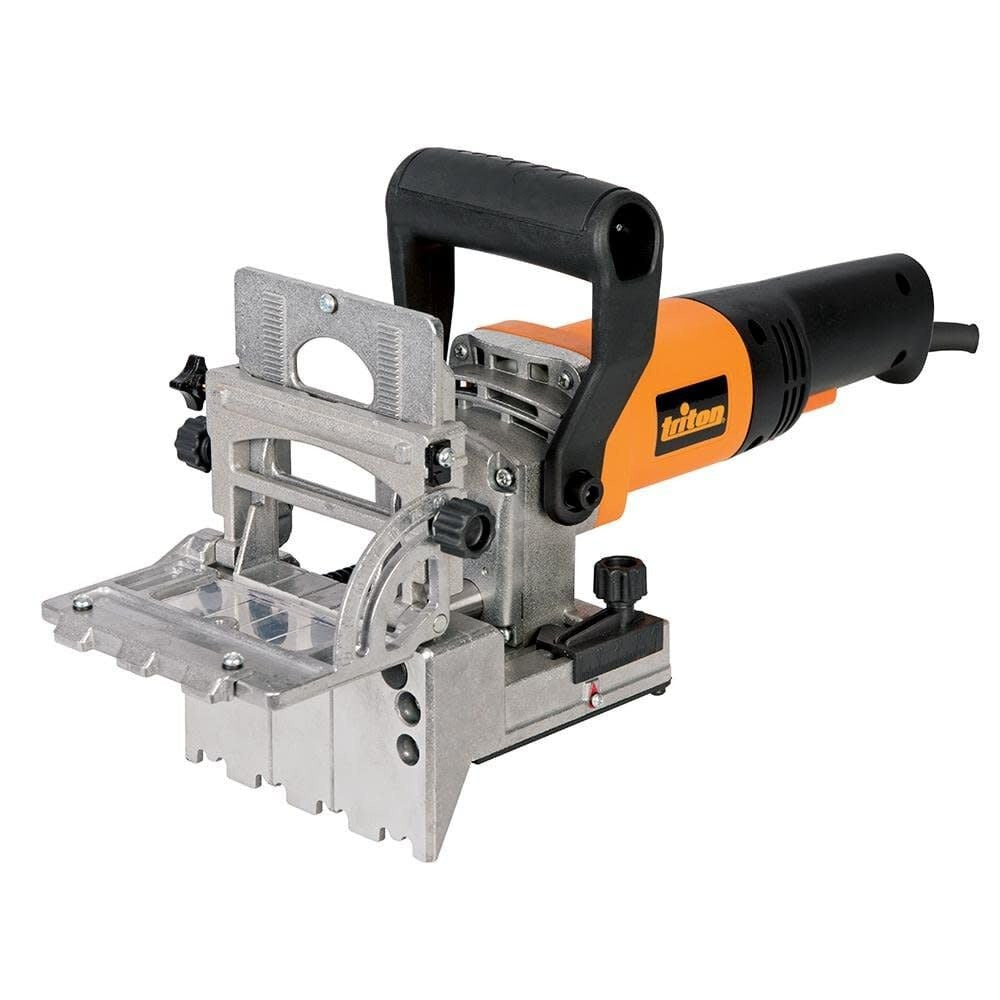

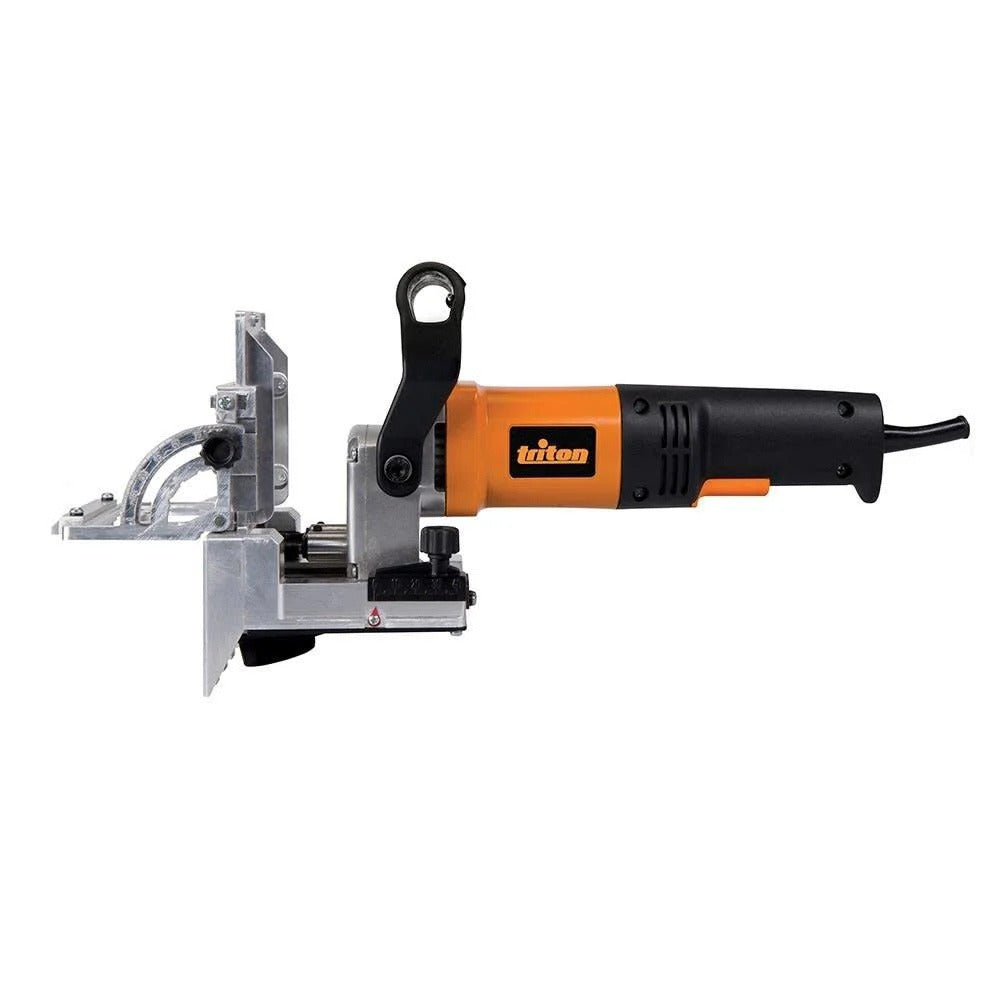

Triton Doweling Joiner 710W, TDJ600 392607
Triton Doweling Joiner 710W, TDJ600 392607
Couldn't load pickup availability
Details
Details
The Triton TDJ600 Dowelling Jointer is the professional's choice for creating strong, precise dowel joints in furniture and cabinetry. Replacing complex traditional joinery, the TDJ600 utilizes a dual-drilling mechanism driven by a powerful 710W motor to bore two holes simultaneously at standard 32mm centers. This creates a joint that is not only incredibly strong but also perfectly aligned, eliminating the misalignment frustrations often associated with manual doweling jigs. Ideally suited for carcass construction, shelving, and framing, it delivers repeatable accuracy every time.
Precision is built into every aspect of the TDJ600. It features a robust rack-and-pinion fence mechanism that allows for smooth, accurate vertical adjustment to center the dowels in material of varying thicknesses. The fence tilts from 0 to 90 degrees, enabling the creation of angled joints and miters with ease. A clear, calibrated viewer allows you to align the machine perfectly with your layout marks, while the fully adjustable depth stop ensures consistent hole depth for various dowel lengths. With its ergonomic handle and dust extraction port, the TDJ600 is designed for comfort, cleanliness, and superior results.
Features & Benefits
- Double Dowel Drilling: Drills two holes at 32mm centers in a single operation for fast, aligned joinery.
- Rack & Pinion Fence: Ensures precise vertical height adjustment for accurate centering on the workpiece.
- 710W Motor: Powerful motor drills clean holes in hardwoods and softwoods without stalling.
- 0-90° Angle Adjustment: Versatile fence allows for face, edge, and miter joint drilling.
- Calibrated Viewer: Clear viewing window aids in precise alignment with pencil marks.
- Dust Port: Connects to extraction systems for debris-free holes and a cleaner workspace.
Applications
Cabinet carcass assembly, shelving units, chair and table construction, face frames, and strengthening miter joints.
Specifications
- Power: 710W / 5.9A
- No Load Speed: 17,000 RPM
- Drilling Spacing: 32mm centers
- Drilling Depth: 0 - 38mm
- Fence Tilt: 0 - 90°
- Weight: 2.8kg (6.2 lbs)
What's Included
- 1 x TDJ600 Dowelling Jointer
- 2 x 8mm Drill Bits
- 1 x Dust Port Adaptor
- 1 x Hex Key
- 1 x Instruction Manual
Specifications
Specifications
| Triton Doweling Joiner 710W, TDJ600 392607 | |
| APPLICATION | Contracting & Remodeling / Flooring / Wood Working |
| Brand | Triton |
| HEIGHT | 8 3/8 in |
| LENGTH | 13.5 in |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL TYPE | Joiners |
| WIDTH | 6 1/8 in |
