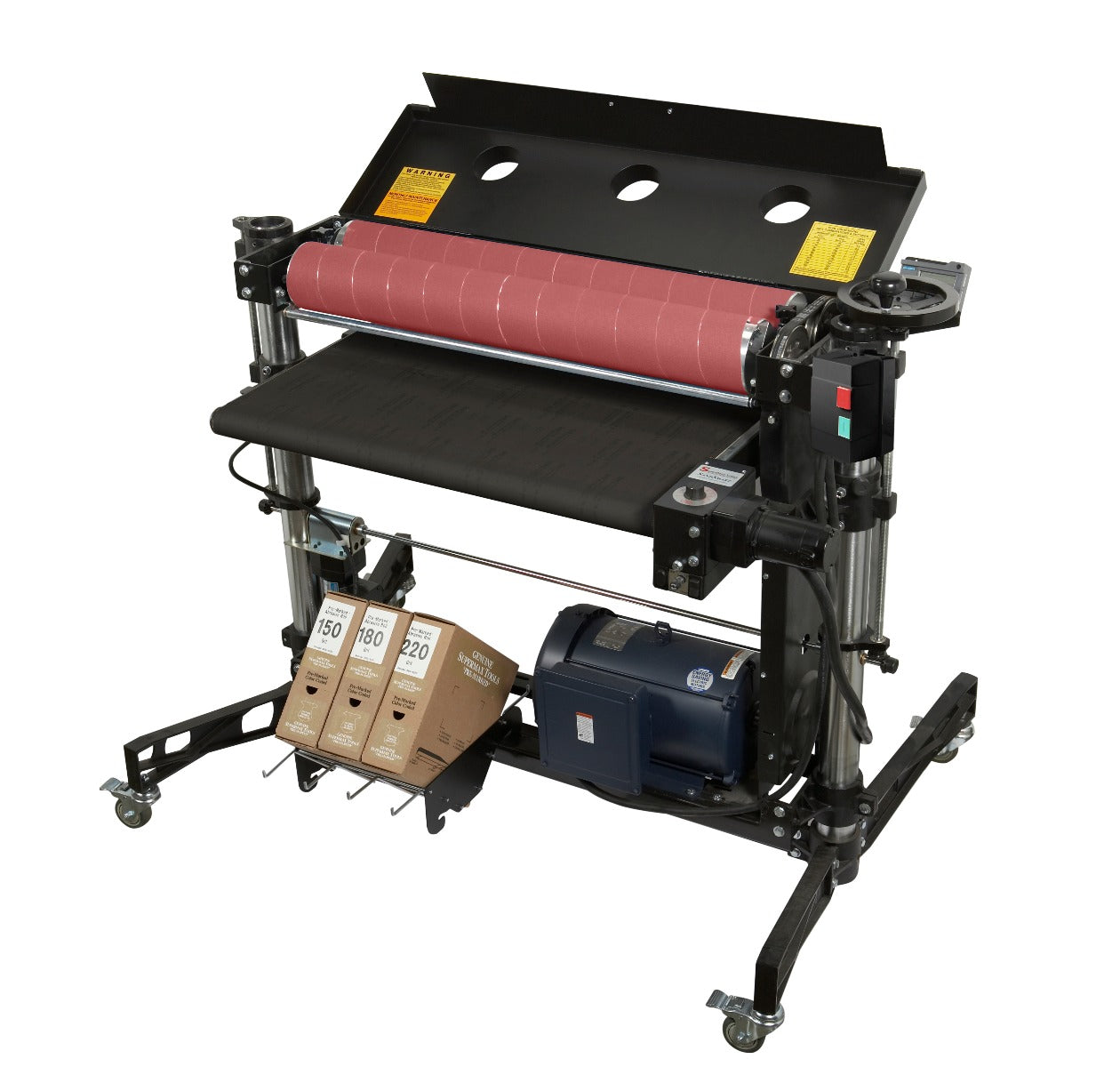

Laguna Tools SuperMax 37x2 Double Drum Sander with Casters, 5 HP, 220V, 1 Ph SUPMX-937003
Laguna Tools SuperMax 37x2 Double Drum Sander with Casters, 5 HP, 220V, 1 Ph SUPMX-937003
Couldn't load pickup availability
Details
Details
SUPMX-937003, SuperMax 37X2 Double Drum Sander, 220V, 5HP, 1PH - (includes casters)
Sand two grits in a single pass with a 37×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding. The 37×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor with single Phase power.
Features:
- INTELLISAND Technology: Automatically adjusts conveyor speed based on load
-
- Prevents gouging, damaging or burning stock
- Provides consistent finish even with varying grain pattern and density
- Greatly increases abrasive planing and dimensioning speed
- Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
- Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
- Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
- Easiest access to abrasive fastening system of any drum sander! Machine design includes additional space around abrasive, eliminating the need for special tools.
- Self-cooling drum prevents overheating and extends abrasive life
Specifications:
| Sanding Capacity: | Maximum Width (in): 25, 37, 50 Minimum Length (in): 3-1/2 Maximum Thickness (in): 25″ model: 6 37″ & 50″ models: 12 Minimum Thickness (in): 1/32 |
| Dimensions HxWxD (in): | 25″ model: 43 x 46 x 31 37″ model: 43 x 58 x 31 50″ model: 50 x 71 x 31 |
| Drum (in): (extruded aluminum) | 25″ model: 5 x 25 37″ model: 5 x 37 50″ model: 5 x 50 |
| Drum speed: | 1740 RPM |
| Dust Hood: (Steel hood, hinged at back | 25” model: one (2) 4” vacuum port, min. 1000 CFM recommended 37″ & 50″ models: (3) – 4″ vacuum ports, min. 1800 CFM recommended |
| Ball bearings (1”): | 4, sealed and permanently lubricated |
| Conveyor Motor: | 25″ & 37″ models: 100 in. -lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM 50″ model: 220 in.-lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM |
| Drive Motor (TEFC): | 25″ & 37″ models: 5 HP 50″ model: 7-1/2 H |
| Power Requirements: | 208-230V, 60HZ; 1 Ph, 30 amp service; 3 Ph 20 amp service |
| Shipping Weight (lbs): | 25″ model: 475 37″ model: 525 50″ model: 820 |
Specifications
Specifications
| Laguna Tools SuperMax 37x2 Double Drum Sander with Casters, 5 HP, 220V, 1 Ph SUPMX-937003 | |
| APPLICATION | Wood Working |
| BRAND COMPATIBILITY | Supermax |
| Brand | Laguna Tools |
| DEPTH | 31 in |
| HEIGHT | 43 in |
| HORSEPOWER | 5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Sanders - Drum Sanders |
| TOOL SUB - TYPE | Sanders - Drum Sanders |
| TOOL TYPE | Sanders |
| VOLTAGE | 208V-240V 1Ph |
| WIDTH | 58 in |
