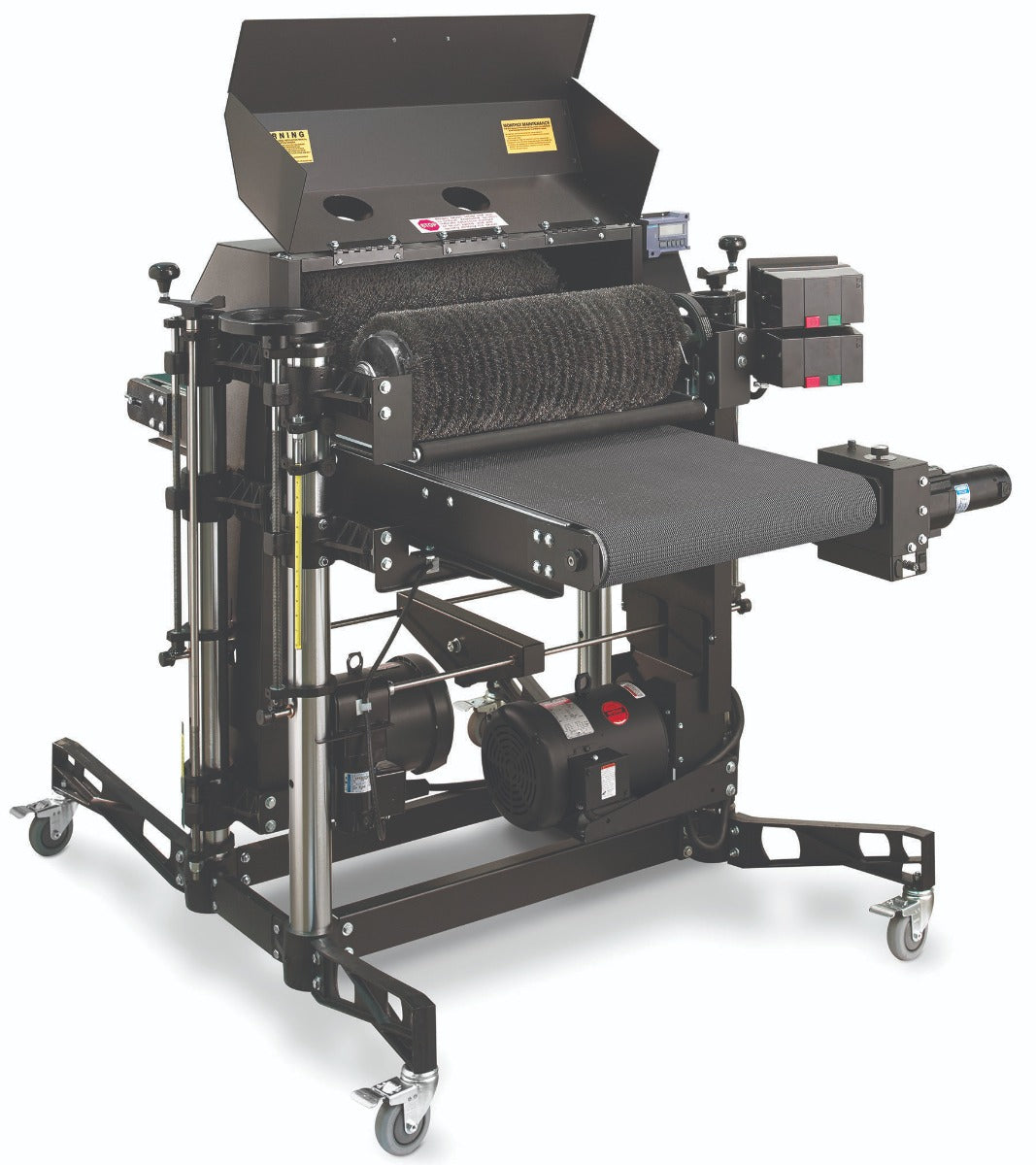

Laguna Tools SuperMax SuperBrush 24x2 Double Brush Sander, 7.5 HP, 220V, 3 Ph SUPMX-93267-2
Laguna Tools SuperMax SuperBrush 24x2 Double Brush Sander, 7.5 HP, 220V, 3 Ph SUPMX-93267-2
Couldn't load pickup availability
Details
Details
SUPMX-93267-2, SuperMax SUPERBRUSH 24x2 Double Brush Sander, 7.5HP, 220V, 3Ph
SuperMax Tools offers a wide variety of SuperBrush sanders to meet the many needs of any woodworking shop. Our goal is to provide an excellent priced machine yielding an incredible return on investment by creating faster output, reduced rework, and greater product consistency.
Just think of all the applications our machines can help with – here a just a few:
- Raw Wood Sanding | White Wood Sanding
- Break sharp edges
- Blend out minor defects
- Sealer Sanding | Primer Sanding | Scuff Sanding
- Profile sanding
- Clean reclaimed wood
- Wire brushing to pull out soft grain to create textured surface.

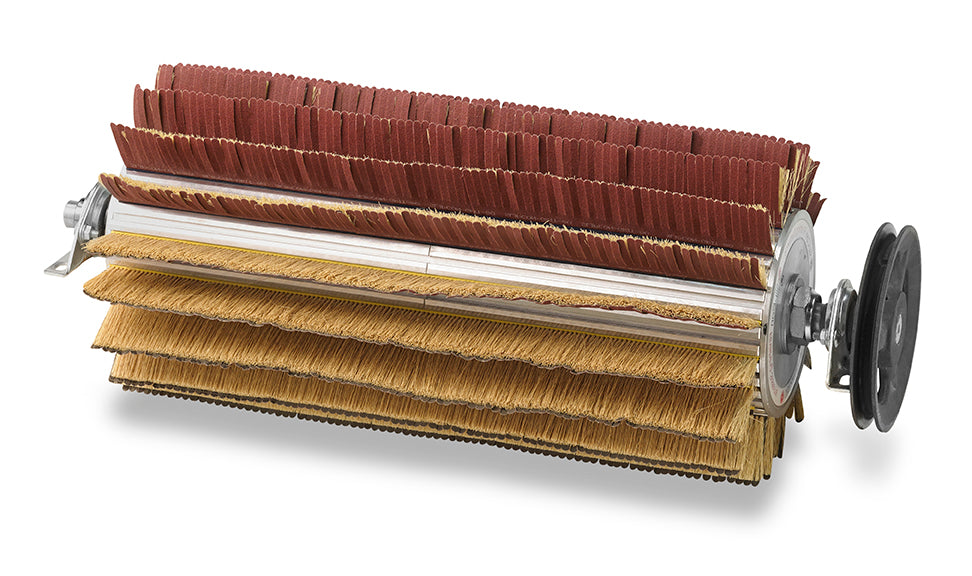

These easy to use machines come with an extremely low learning curve and offer many different features which include: quick change brush heads, infinitely variable brush and conveyor speeds to allow for endless finish possibilities, adjustable tension rollers to prevent stock slippage, and precision height adjustments. Our SuperBrush sanders come in sizes ranging from 24” to 49” with single and/or double brush head offerings to meet all your finishing needs.
Features:
- Brush rotation is reversible (first brush)
- RPM gauge displays brush speed, variable 400-1200 RPM
- Power and manual height adjustment, high speed and adjustable speed, controls 3/32 per turn
- Digital Read Out: Displays how much material is being removed per pass, displays zero when the desired thickness is reached, displays the actual thickness of the stock as it exits the sander
Applications:
- Raw Wood Sanding | White Wood Sanding
- Break sharp edges
- Open grain for even finish absorption
- Blend out minor defects
- Sealer Sanding | Primer Sanding | Scuff Sanding
- Removes raised fibers and grain (denib/defuzz)
- Degloss previously finished wood
- Clean reclaimed wood
- Wire brushing
- Distress (weathered/Southwest finish)
- Pull out soft grain to create textured surface
Specifications:
- Sanding Capacity:
- Maximum Width (in): 24, 36 or 49
- Minimum Length (in): 11
- Maximum Thickness (in): 9, varies with brush style
- Minimum Thickness (in): 1/32, varies by application
- Dimensions HxWxD (in): 24” model: 67 x 46 x 54
- Brush (in): 9-12 typical diameter
- Typical Bristle Length: 1-1/2 – 3”
- Speed: ranged variable, 400-1200 RPM brush
- Dust Hood (steel with hinged back): Four (4), 4 in. vacuum ports, 1800 CFM min.
- Conveyor Motor: 220 in.-lb. torque, direct drive D.C. motor, ranged variable 0-30 FPM
- Drive Motor (TEFC): (2) 7-1/2HP
- Power Requirements: 208-230V, 60HZ, 3 Ph, 20 amp service (2)
- Shipping Weight (lbs): 1100
Specifications
Specifications
| Laguna Tools SuperMax SuperBrush 24x2 Double Brush Sander, 7.5 HP, 220V, 3 Ph SUPMX-93267-2 | |
| APPLICATION | Wood Working |
| Brand | Laguna Tools |
| HORSEPOWER | 7.5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Sanders - Brush Sanders |
| TOOL TYPE | Sanders |
| VOLTAGE | 208V-240V 3Ph |
