Laguna Tools SuperMax SuperBrush 24 Single Brush Sander, 5 HP, 220V, 1 Ph SUPMX-91267
Laguna Tools SuperMax SuperBrush 24 Single Brush Sander, 5 HP, 220V, 1 Ph SUPMX-91267
Couldn't load pickup availability
Details
Details
SUPMX-91267, SuperMax SuperBrush 24 220V, 1Ph (includes 1 brush and caster set)

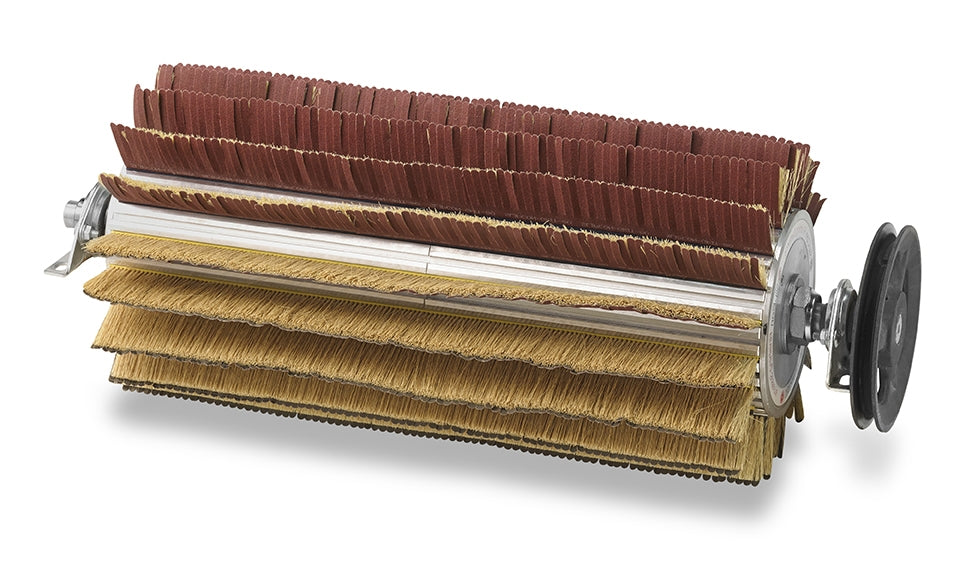

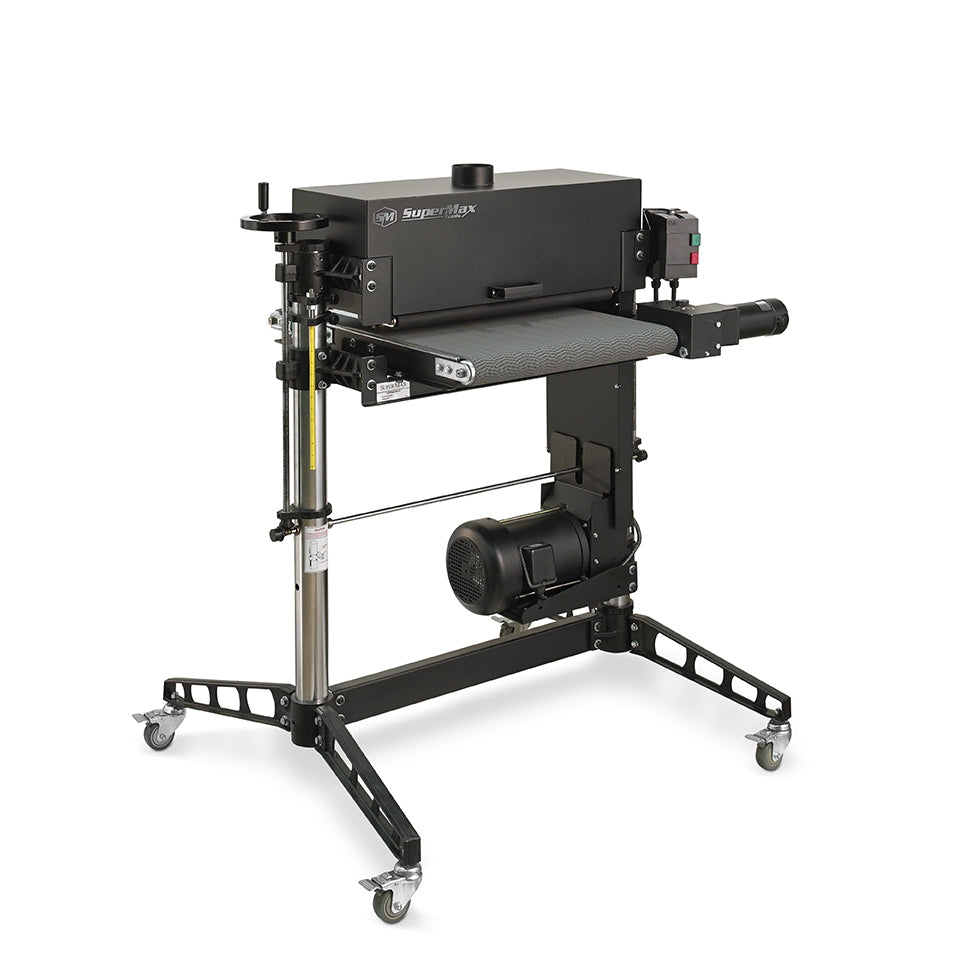

The SuperMax SuperBrush 24-Inch Single Brush Sander with 80-Grit Dense Flatter Brush is a multi-purpose tool that can handle most metal cleaning or finishing tasks. It has a variable speed conveyor and brush head that let you prepare surfaces for paint or create a variety of decorative finishes. The SuperBrush 24-inch single brush sander has a 208/230V 1phase 5-horsepower totally enclosed fan-cooled brush motor and a direct-drive, 0 to 15 feet per minute conveyor motor that provides 100 inch-pounds of torque. Easy-to-use controls and a quick-change brush minimize downtime for tool adjustments. Like all SuperMax brush sanders for sale, this product features a reinforced steel conveyor bed with a poly belt, precision brush height adjustment and adjustable tension rollers, so it feeds materials consistently and accurately. Its hinged dust cover has a 4-inch vacuum port that provides excellent debris removal. This SuperMax brush sander machine can handle materials up to 24 inches wide and 1/32 to 11 inches thick. It has a 10-inch minimum stock length.
Features:
- Infinitely variable brush speed and conveyor feed rate allows for a wide variety of finishes
- Quickly change brush heads or abrasive loadings
- Fully adjustable tension rollers prevent stock slippage
- Reinforced steel conveyor bed with a poly conveyor belt
- Precision height adjustment
- Bristle Contact Gauge included
Specifications:
| Sanding Capacity | Maximum Width (in): 24, 36, or 49 Minimum Length (in): 10 Maximum Thickness (in): 11, varies with brush style Minimum Thickness (in): 1/32 |
| Dimensions HxWxD (in): | 24” model: 52 x 46 x 35 36” model: 52 x 58 x 35 49” model: 50 x 71 x 31 |
| Brush (in): | 9-11 typical diameter |
| Typical Bristle Length: | 1-1/2 – 3” |
| Speed: | ranged variable, 400-1200 RPM brush |
| Dust Hood: | 24” model: steel with hinged back, two (2)) 4” vacuum port, 1200 CFM min. 36” model: steel with hinged back, three (3) 4” vacuum ports, 1800 CFM min. 49” model: steel with hinged back, three (3) 4” vacuum ports, 1800 CFM min. |
| Drive Motor (TEFC): | 24″ & 39″ model: 5HP 49″ models: 7-1/2HP |
| Power Requirements: | 208-230V, 60HZ; 1 PH, 30 amp service; 3 PH, 20 amp service |
| Shipping Weight (lbs): | 24” model: 525 36” model: 605 49” model: 775 |
| Conveyor Motor: | Direct Drive D.C motor, infinitely variable, 0-15 FPM 24″ model: 100 in.-lb. torque 36″ model: 100 in.-lb. torque 49″ model: 200in.-lb. torque |
Specifications
Specifications
| Laguna Tools SuperMax SuperBrush 24 Single Brush Sander, 5 HP, 220V, 1 Ph SUPMX-91267 | |
| APPLICATION | Wood Working / Metal Working |
| BRAND COMPATIBILITY | Supermax |
| Brand | Laguna Tools |
| DEPTH | 35 in |
| HEIGHT | 52 in |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Sanders - Brush Sanders |
| TOOL SUB - TYPE | Sanders - Brush Sanders |
| TOOL TYPE | Sanders |
| VOLTAGE | 208V-240V 1Ph |
| WIDTH | 46 in |
