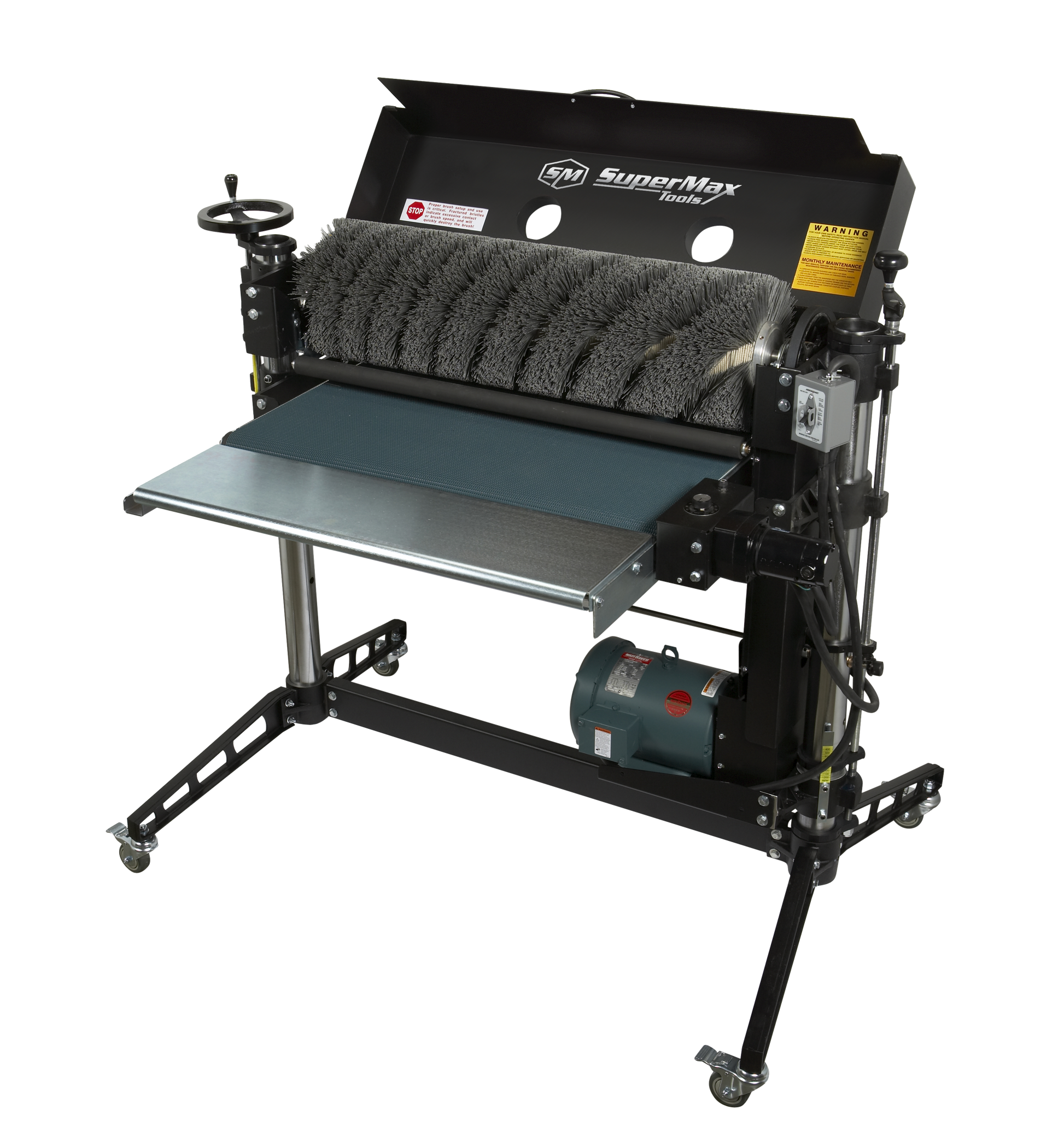

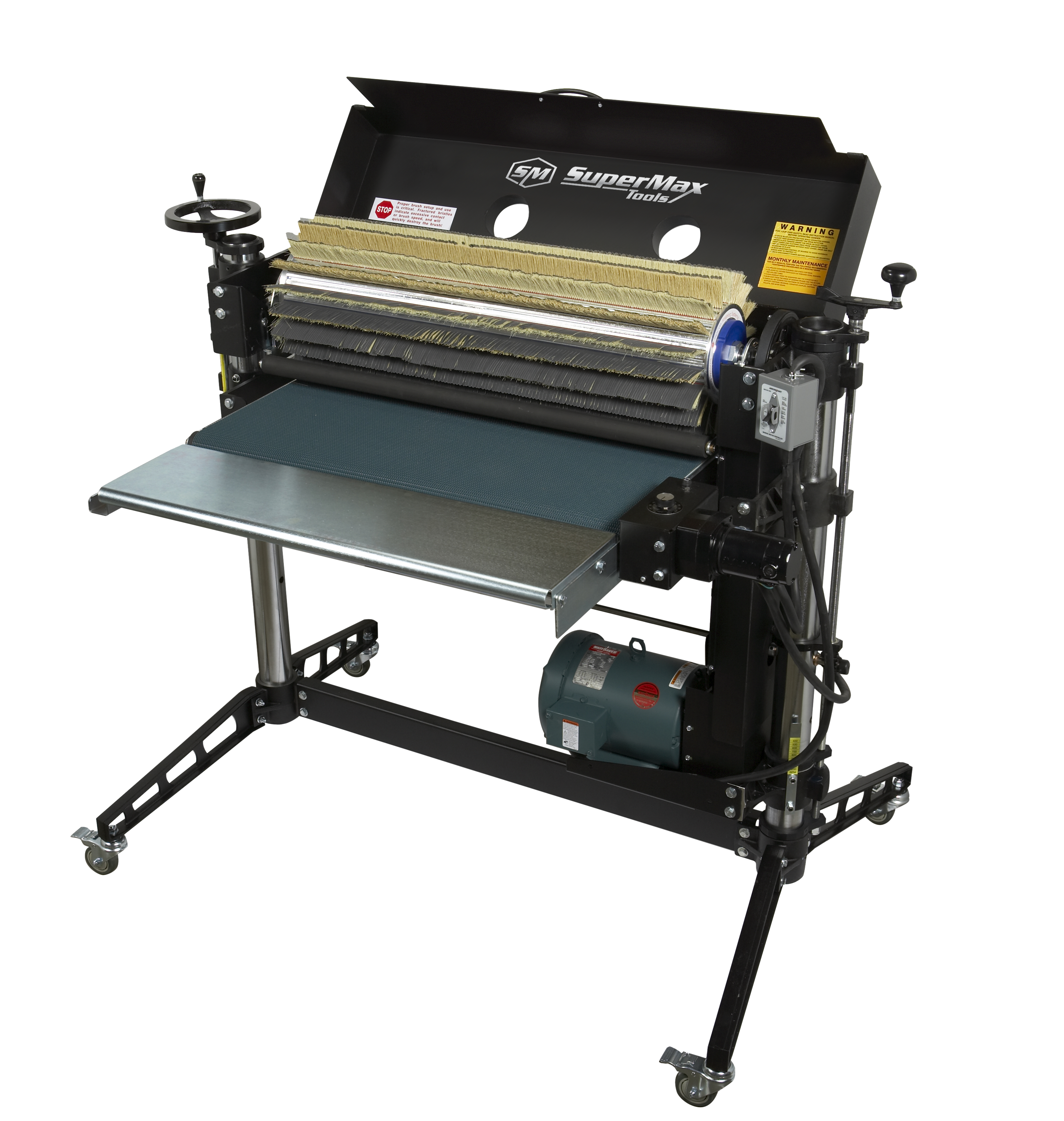

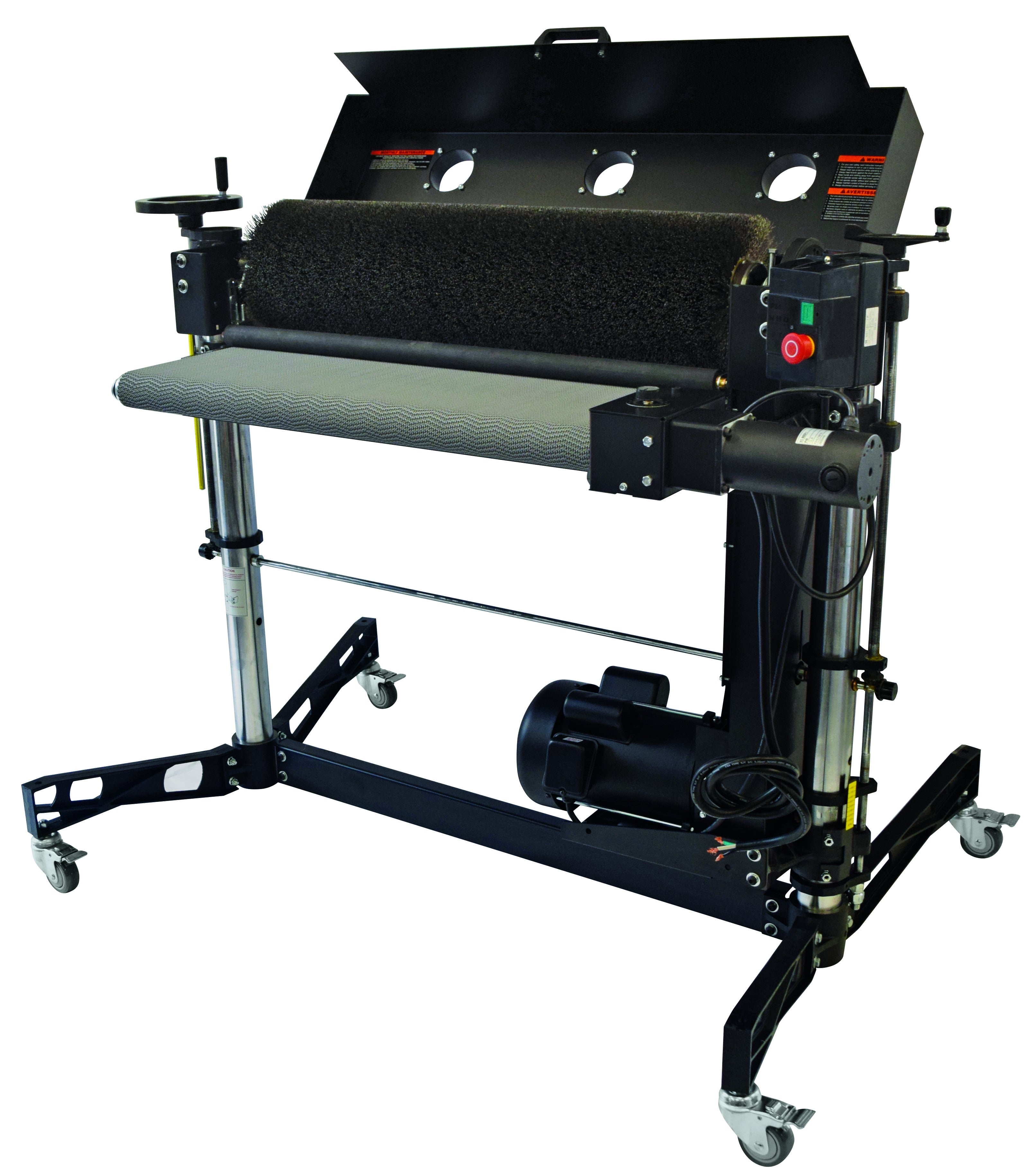

Laguna Tools SuperMax SuperBrush 49 Single Brush Sander, 10 HP, 220V, 3 Ph SUPMX-93497
Laguna Tools SuperMax SuperBrush 49 Single Brush Sander, 10 HP, 220V, 3 Ph SUPMX-93497
Couldn't load pickup availability
Details
Details

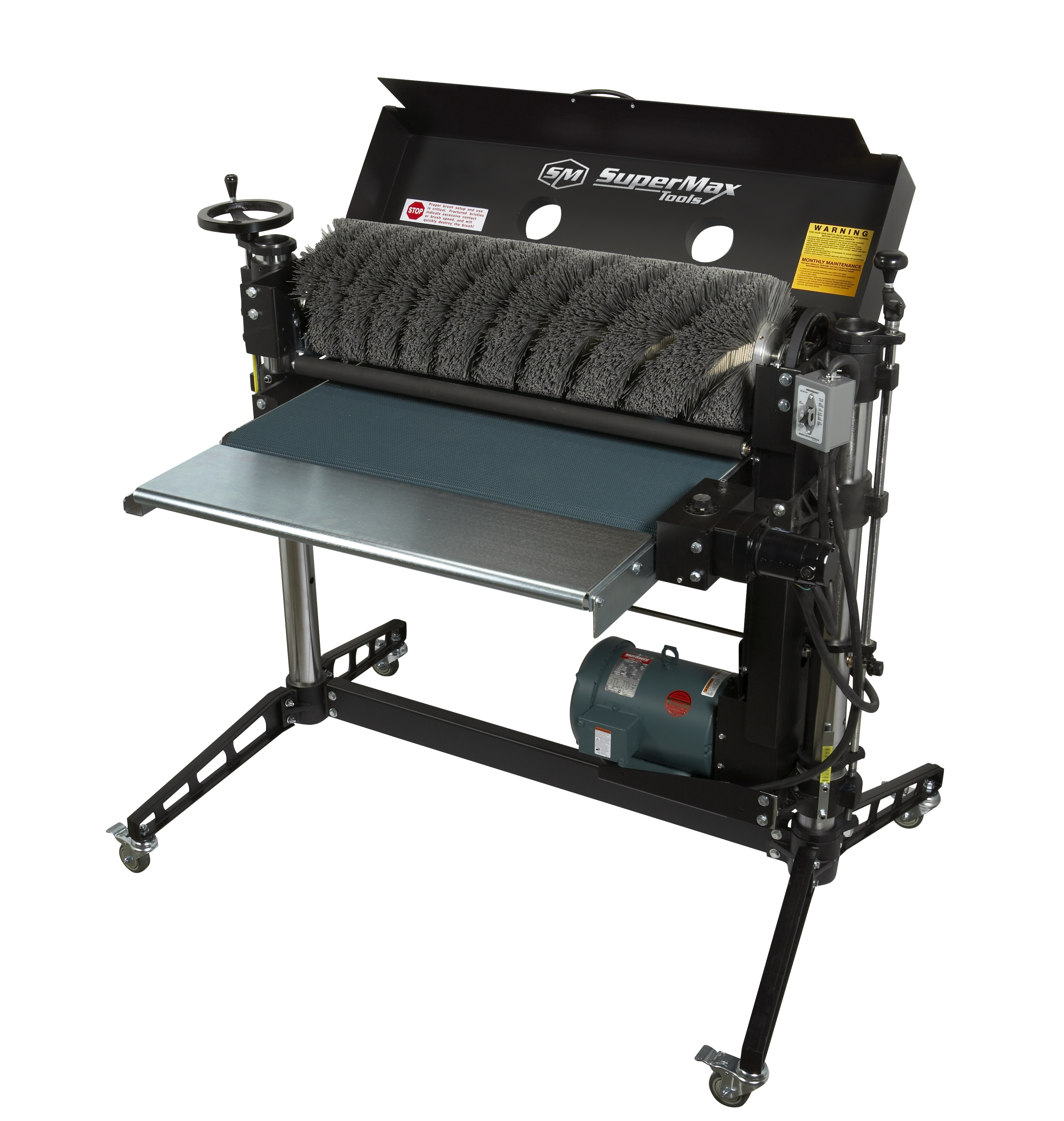

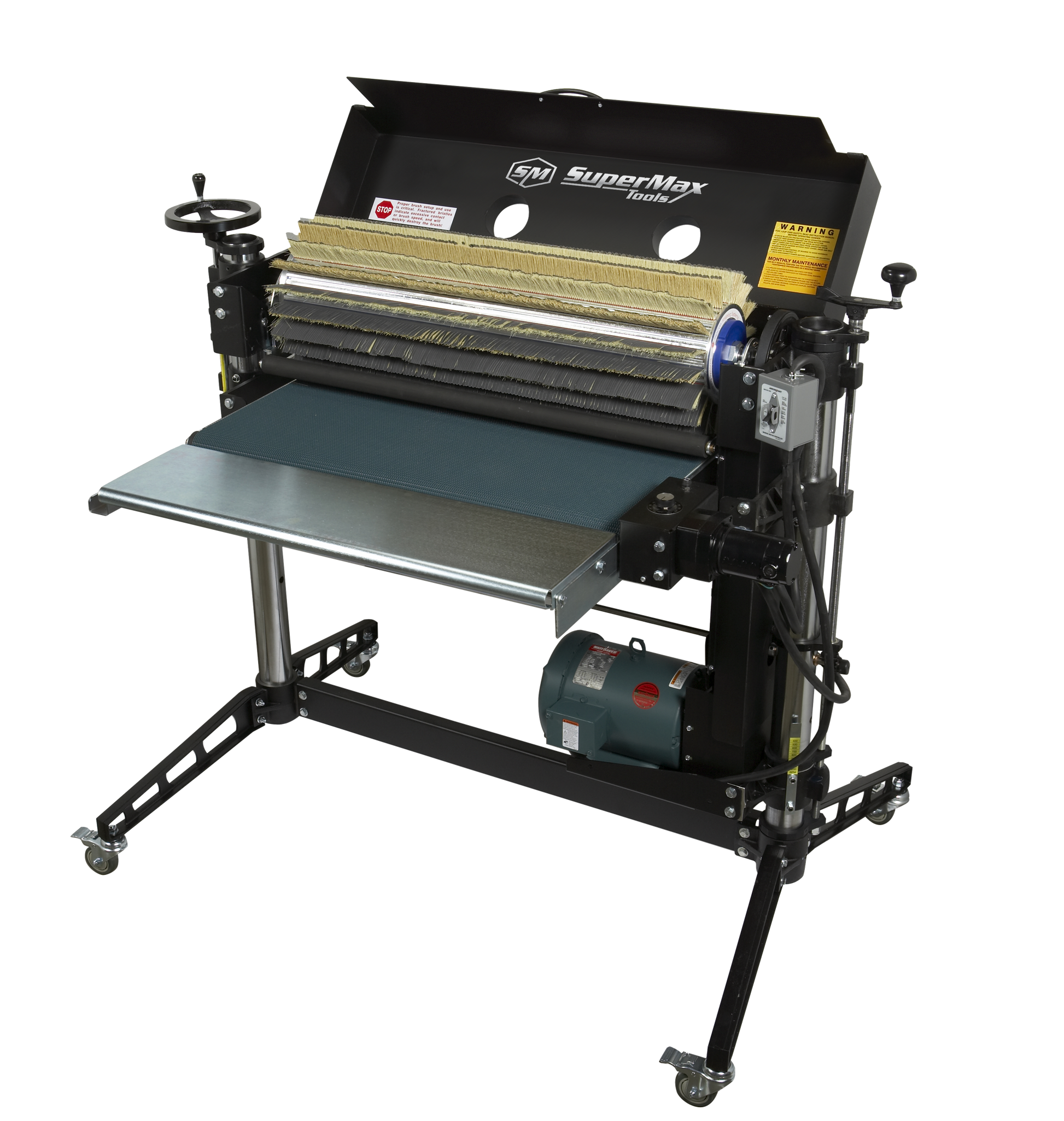

SUPMX-93497, SuperMax SuperBrush 49 220V, 3Ph
SuperMax Tools offers a wide variety of SuperBrush™ sanders to meet the many needs of any woodworking shop. Our goal is to provide an excellent priced machine yielding an incredible return on investment by creating faster output, reduced rework, and greater product consistency.
Just think of all the applications our machines can help with – here a just a few:
- Raw Wood Sanding | White Wood Sanding
- Break sharp edges
- Blend out minor defects
- Sealer Sanding | Primer Sanding | Scuff Sanding
- Profile sanding
- Clean reclaimed wood

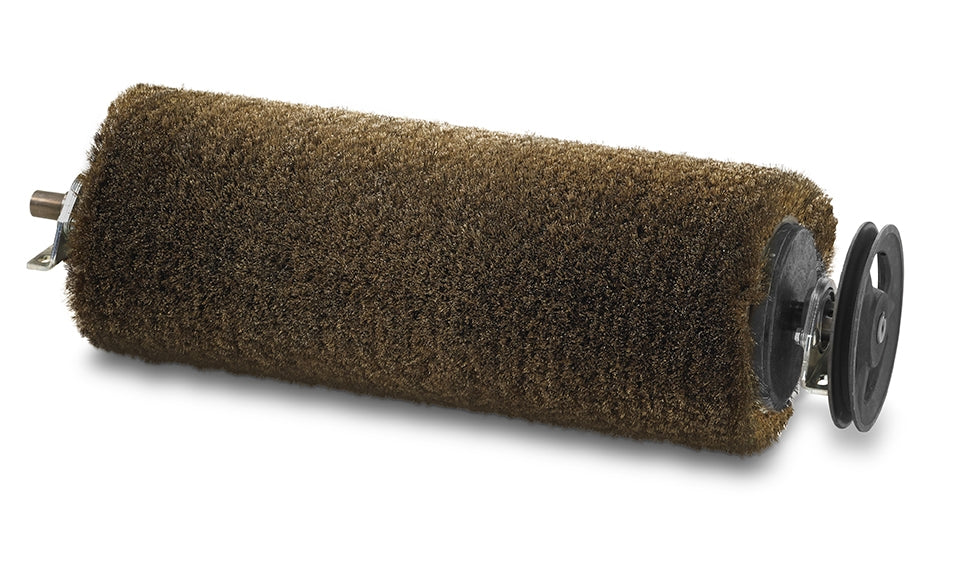

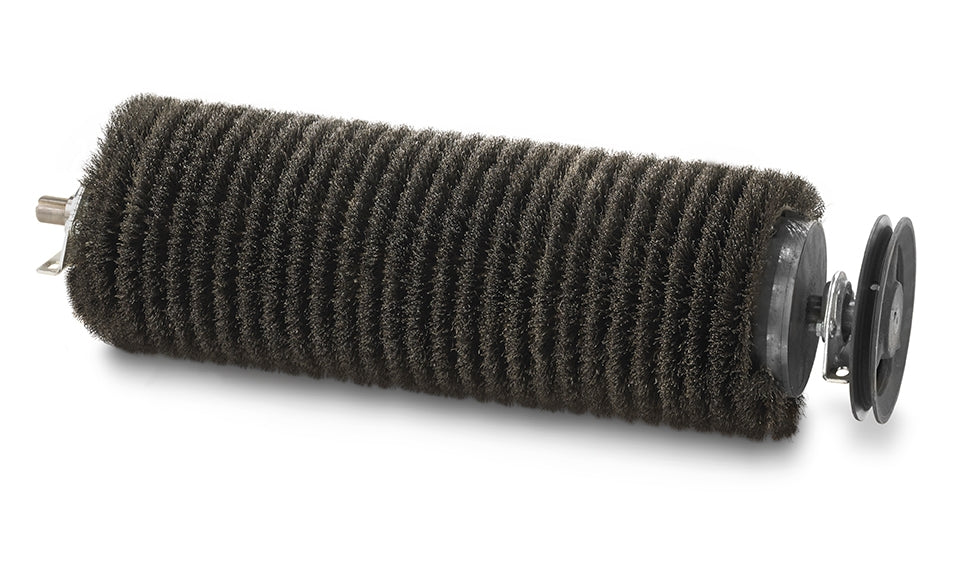

- Wire brushing to pull out soft grain to create textured surface
These easy to use machines come with an extremely low learning curve and offer many different features which include: quick change brush heads, infinitely variable brush and conveyor speeds to allow for endless finish possibilities, adjustable tension rollers to prevent stock slippage, and precision height adjustments. Our SuperBrush™ sanders come in sizes ranging from 24” to 49” with single and/or double brush head offerings to meet all your finishing needs.
Features:
- Infinitely variable brush speed and conveyor feed rate allows for a wide variety of finishes

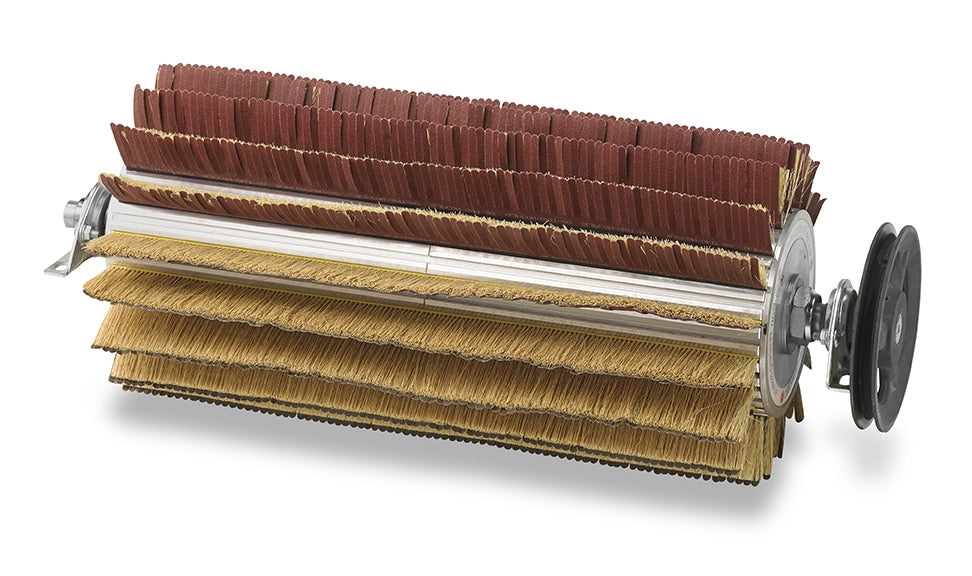

- Quickly change brush heads or abrasive loadings
- Fully adjustable tension rollers prevent stock slippage
- Reinforced steel conveyor bed with a poly conveyor belt
- Precision height adjustment
- Bristle Contact Gauge included
Specifications:
| Sanding Capacity | Maximum Width (in): 24, 36, or 49 Minimum Length (in): 10 Maximum Thickness (in): 11, varies with brush style Minimum Thickness (in): 1/32 |

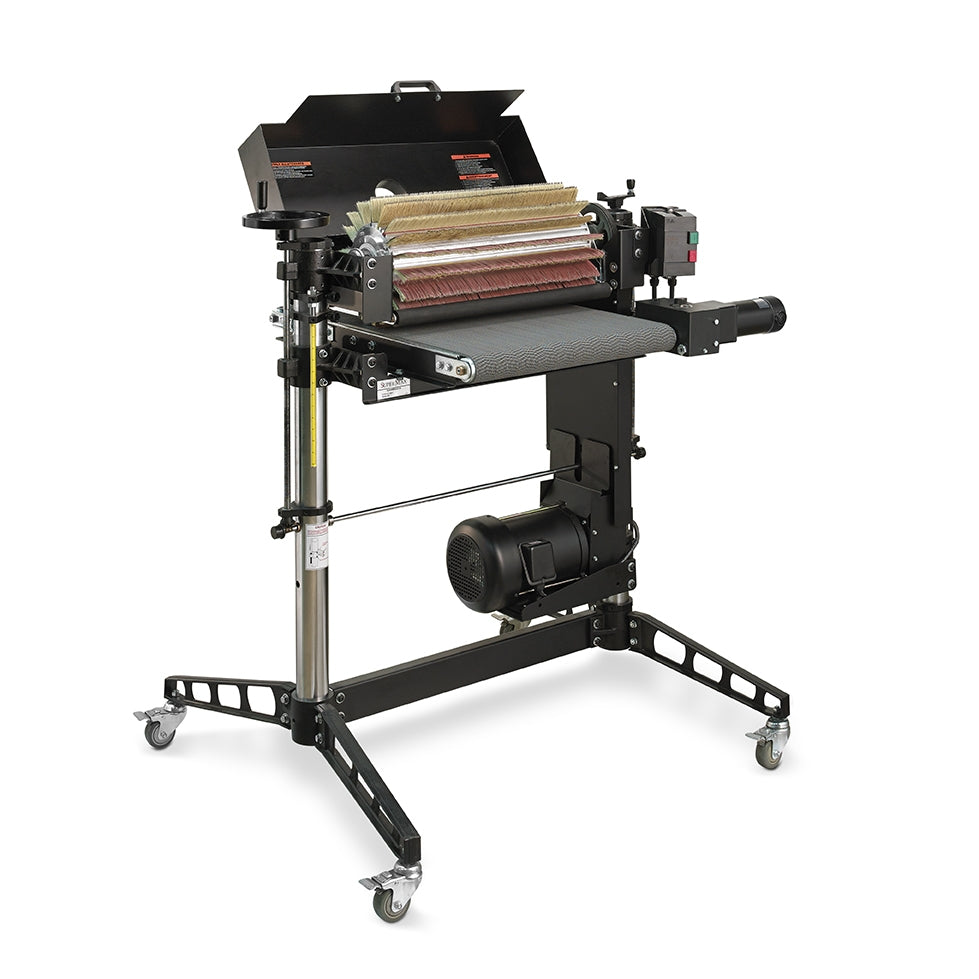

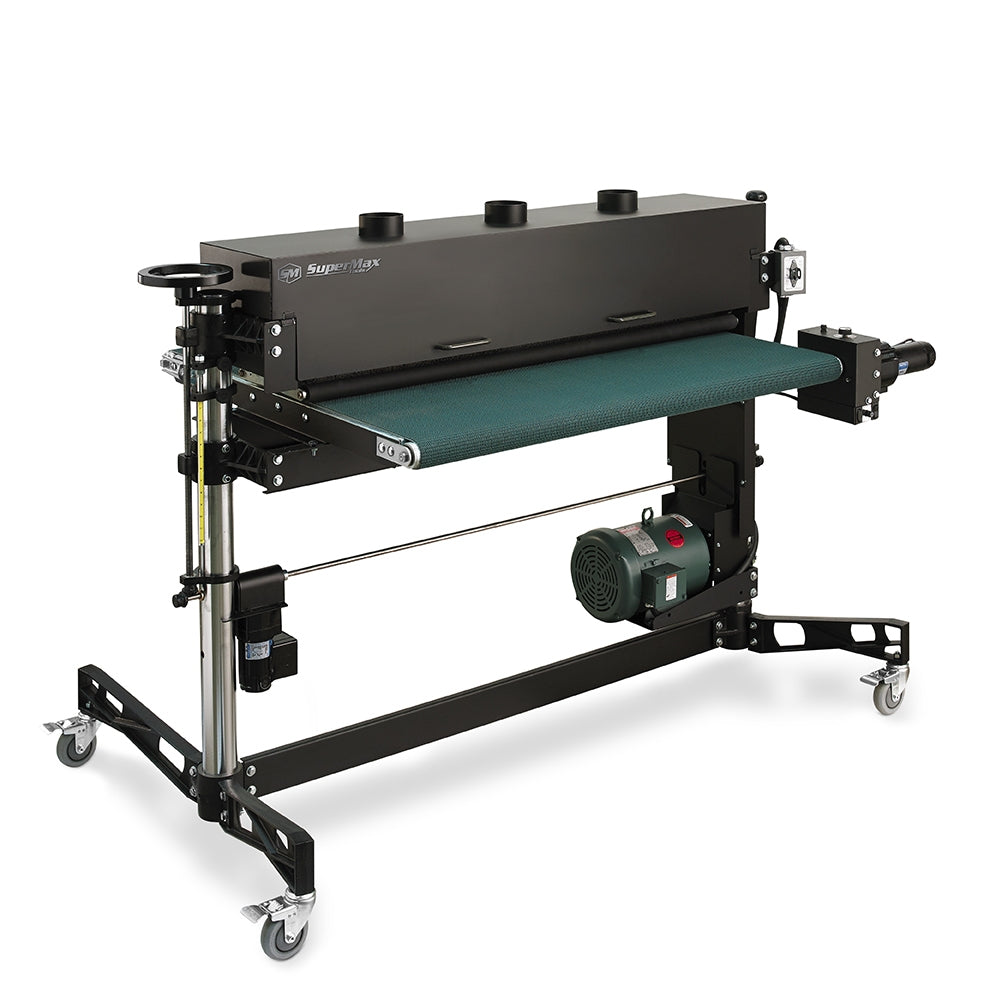

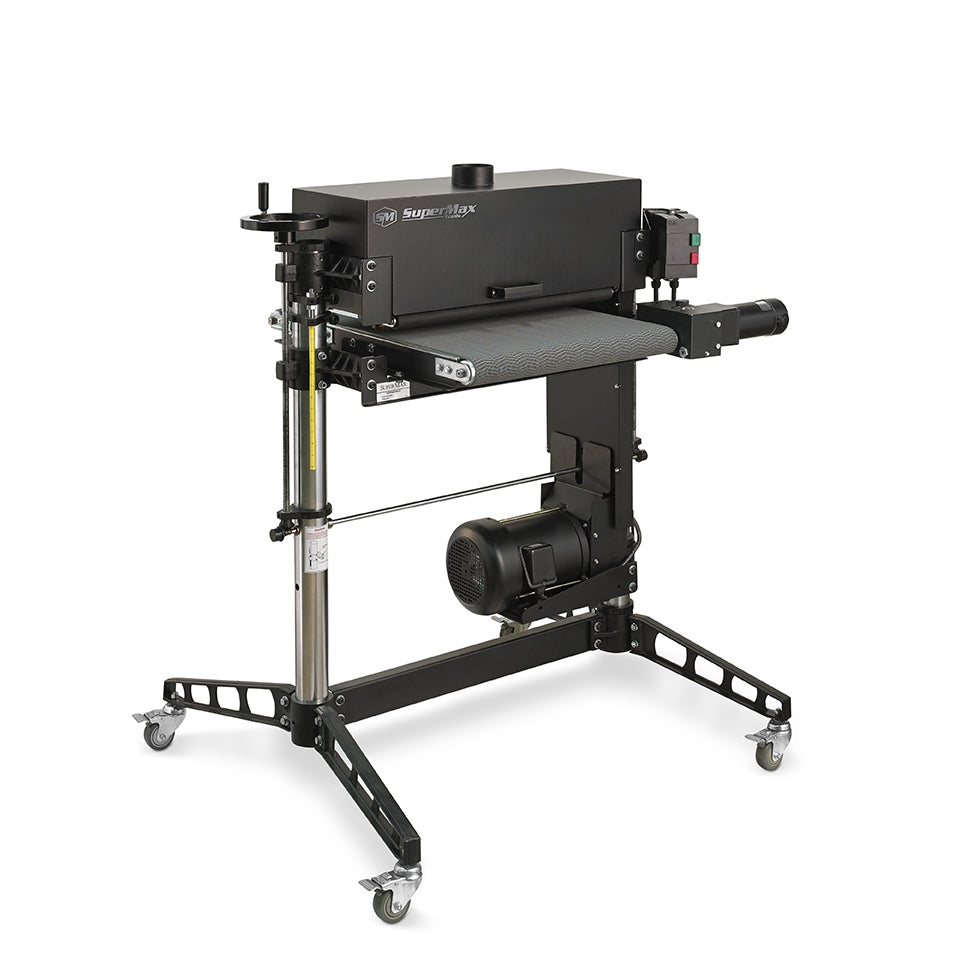

| Dimensions HxWxD (in): | 24” model: 52 x 46 x 35 36” model: 52 x 58 x 35 49” model: 50 x 71 x 31 |
| Brush (in): | 9-11 typical diameter |
| Typical Bristle Length: | 1-1/2 – 3” |
| Speed: | ranged variable, 400-1200 RPM brush |
| Dust Hood: | 24” model: steel with hinged back, two (2)) 4” vacuum port, 1200 CFM min. 36” model: steel with hinged back, three (3) 4” vacuum ports, 1800 CFM min. 49” model: steel with hinged back, three (3) 4” vacuum ports, 1800 CFM min. |
| Drive Motor (TEFC): | 24″ & 39″ model: 5HP 49″ models: 7-1/2HP |
| Power Requirements: | 208-230V, 60HZ; 1 PH, 30 amp service; 3 PH, 20 amp service |
| Shipping Weight (lbs): | 24” model: 525 36” model: 605 49” model: 775 |
| Conveyor Motor: | Direct Drive D.C motor, infinitely variable, 0-15 FPM 24″ model: 100 in.-lb. torque 36″ model: 100 in.-lb. torque 49″ model: 200in.-lb. torque |
