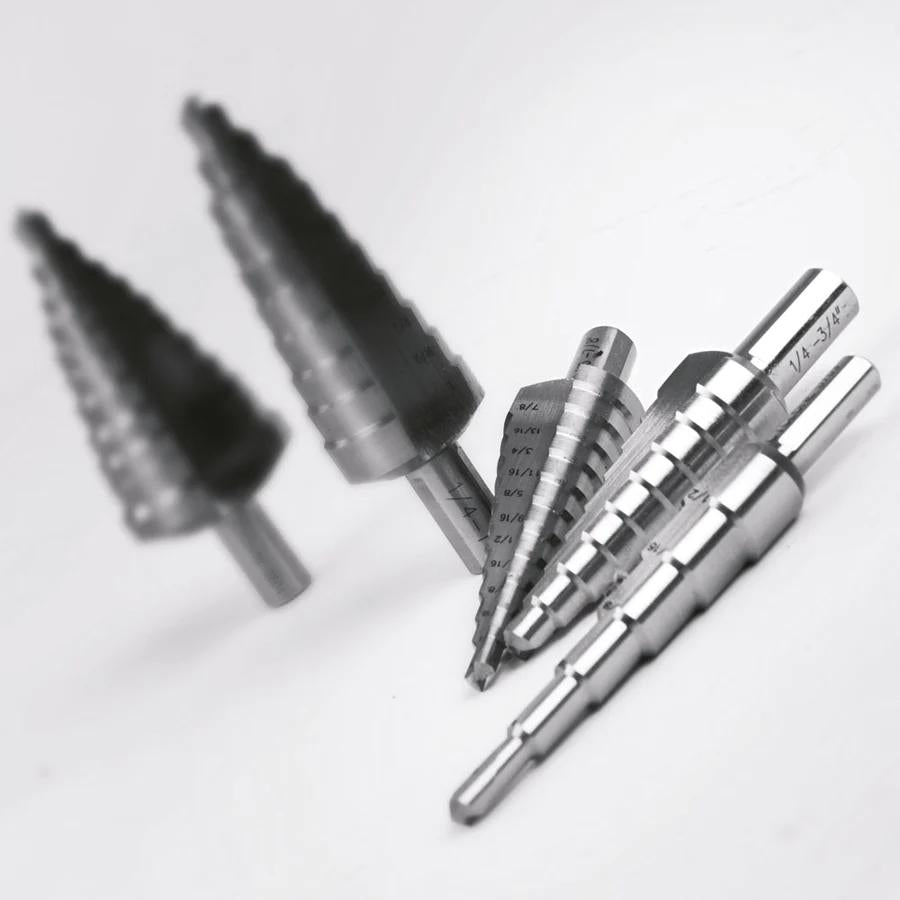

Evolution 1/4 to 3/4" Straight Flute Step Drill SD-9
Evolution 1/4 to 3/4" Straight Flute Step Drill SD-9
Couldn't load pickup availability
Details
Details
SD-9, Evolution Straight Flute Step Drill 1/4 to 3/4, 9 hole sizes 1/16 increments 3/8" shank
Evolution Premium Step Drills are made from the same high-quality M2AL as Cyclone Premium Annular Cutters. These tools are heat treated to 68RC, giving them more durability during tough applications.
Evolution Premium Step Drills are used to produce a range of hole sizes in steel up to 1/8" thick using only one tool. The twin flute design allows for a smoother cutting action with no pre-drilling necessary. Evolution Premium Step Drills have 3 chucking flats on the driving shank to ensure no slipping in the chuck.

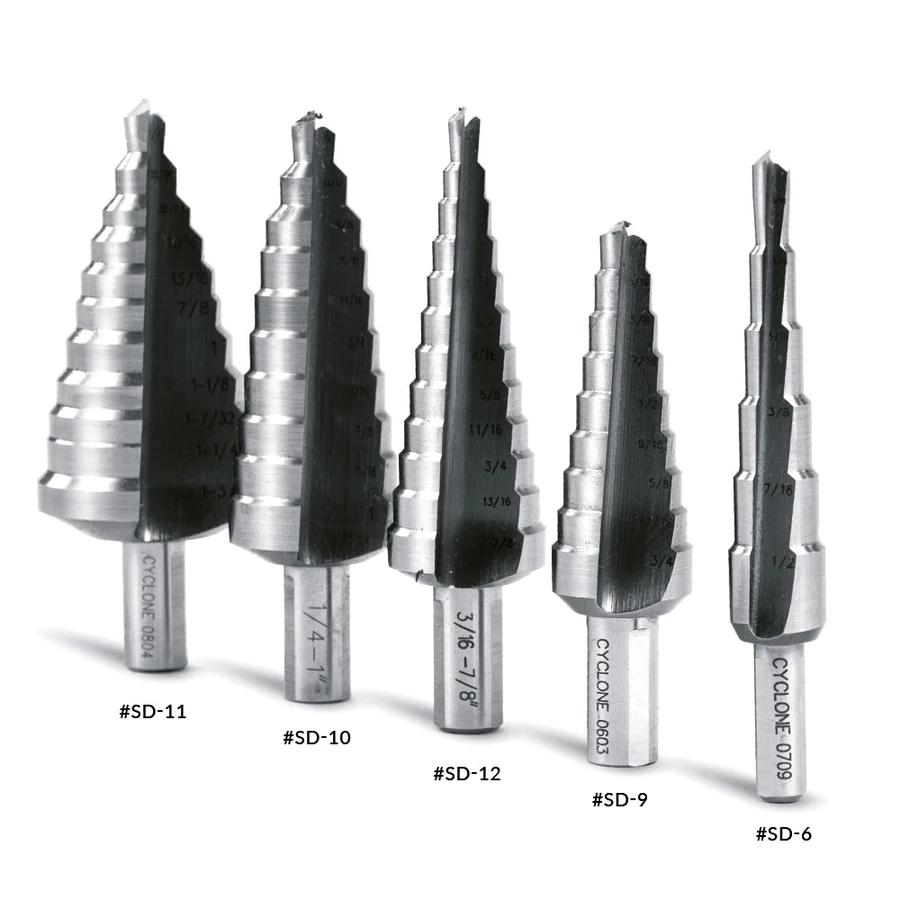

SD-6: (6 Hole Sizes) Two Flutes 1/4" Shank
3/16", 1/4", 5/16", 3/8", 7/16", 1/2"

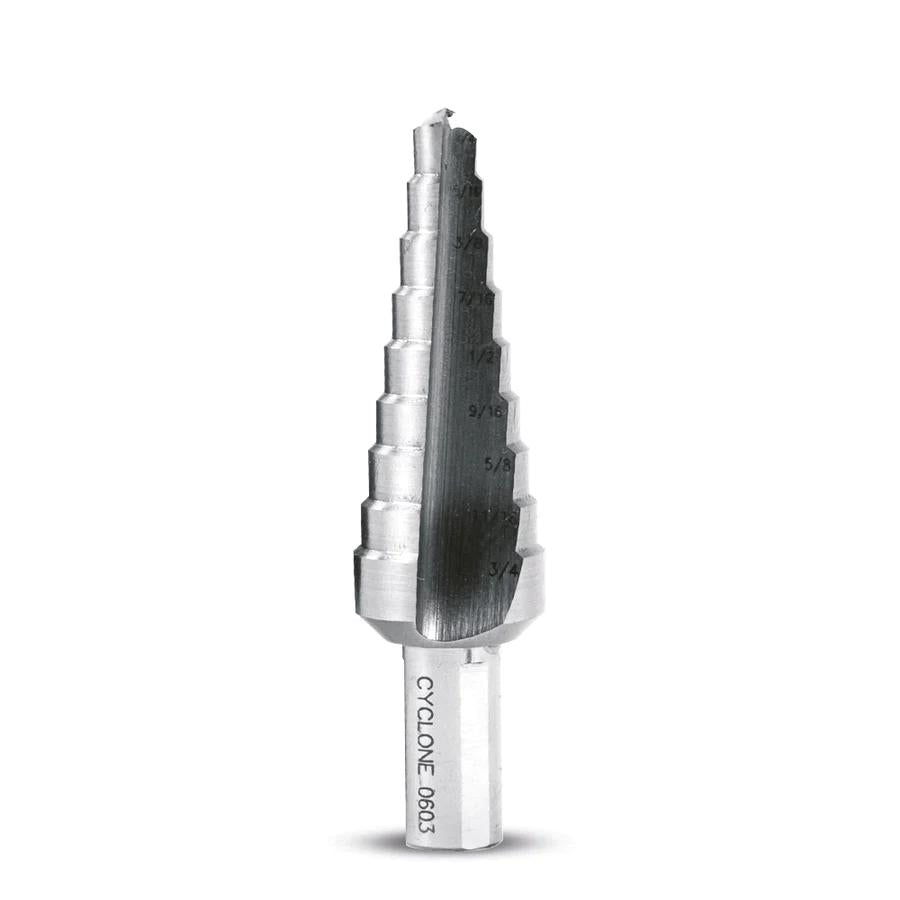

SD-9: (9 Hole Sizes) Two Flutes 3/8" Shank

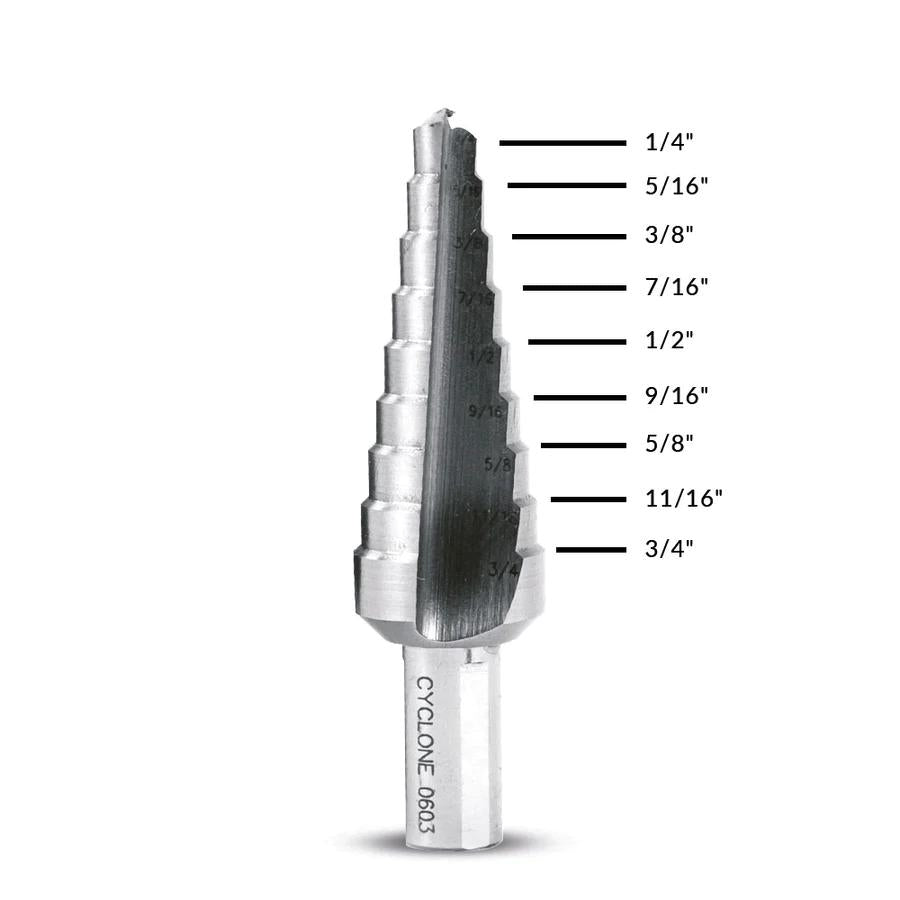

1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4"
SD-10: (10 Hole Sizes) Two Flutes 3/8" Shank
1/4", 13/32", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1"
SD-11: (11 Hole Sizes) Two Flutes 3/8" Shank
1/4", 25/64", 35/64", 11/16", 13/16", 7/8", 1", 1-1/8", 1-7/32", 1-1/4", 1-3/8"
SD-12: (12 Hole Sizes) Two Flutes 3/8" Shank
3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8"
Specifications
Specifications
| Evolution 1/4 to 3/4" Straight Flute Step Drill SD-9 | |
| APPLICATION | Metal Working |
| BIT GEOMETRY | Straight Flute |
| BRAND COMPATIBILITY | Evolution |
| Brand | Evolution |
| CONSUMABLE TYPE | Drilling Bits |
| DIAMETER | Assorted |
| PRODUCT TYPE | Consumables |
| SHANK DIAMETER | 3/8 in |
| TOOL SUB-TYPE | Drills - Magnetic Drills |
| TOOL TYPE | Drills |
