Powermatic PM1900TX-BK3 Dust Collector, 3HP 3PH 230/460V, 30-Micron Bag Filter Kit 1792073K
Powermatic PM1900TX-BK3 Dust Collector, 3HP 3PH 230/460V, 30-Micron Bag Filter Kit 1792073K
Couldn't load pickup availability
Details
Details

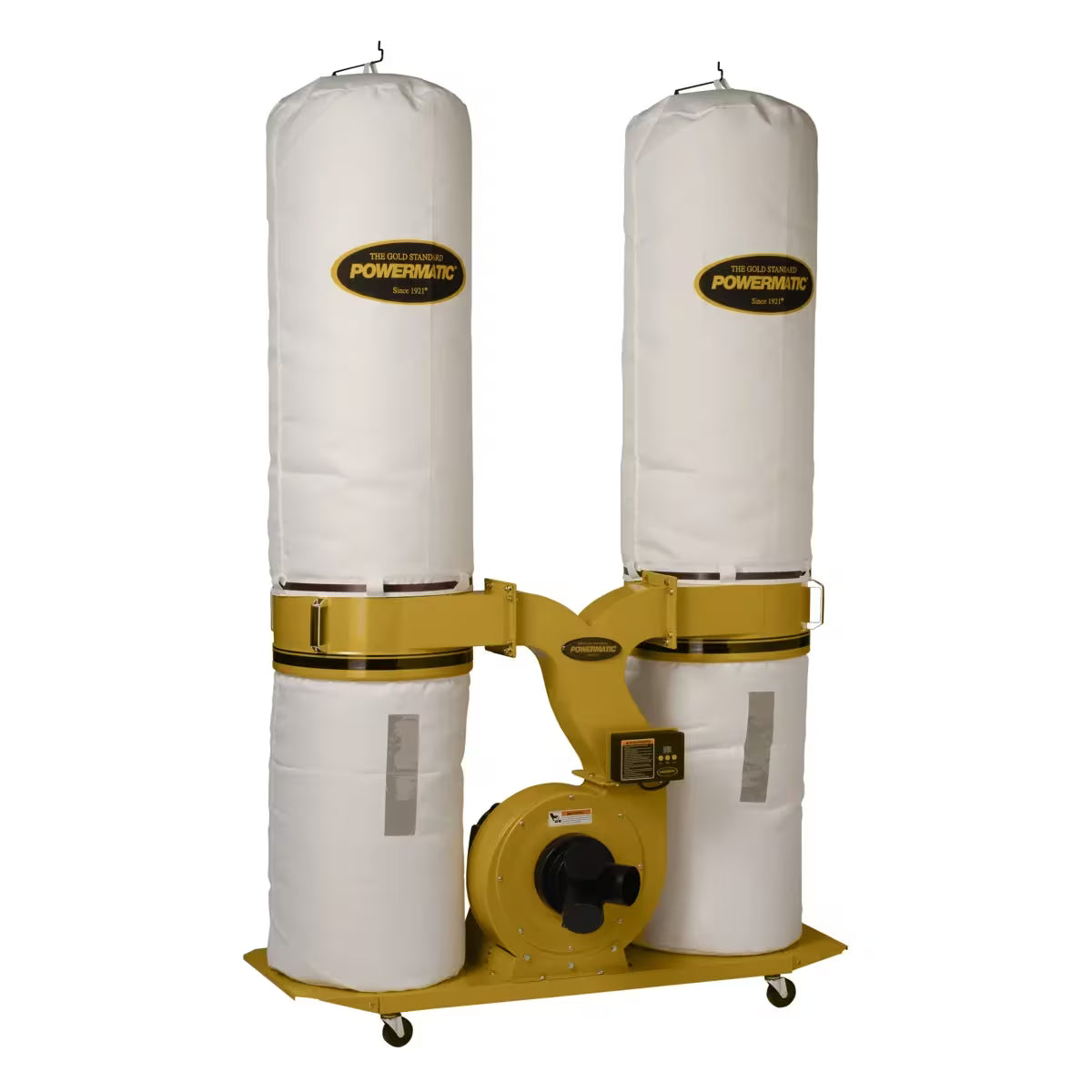

The Powermatic PM1900TX-BK3 TurboCone dust collector with three-phase power provides industrial-level performance for production environments. Equipped with a 3 HP motor wired for 230/460V three-phase operation, this system uses TurboCone separation to prevent filter clogging and improve collection efficiency. Twin 30-micron cloth filter bags handle bulk chip collection while large-capacity bags minimize interruptions during extended use. The rigid all-metal duct promotes consistent airflow, and the mobile base with locking casters and integrated handles supports easy shop movement.

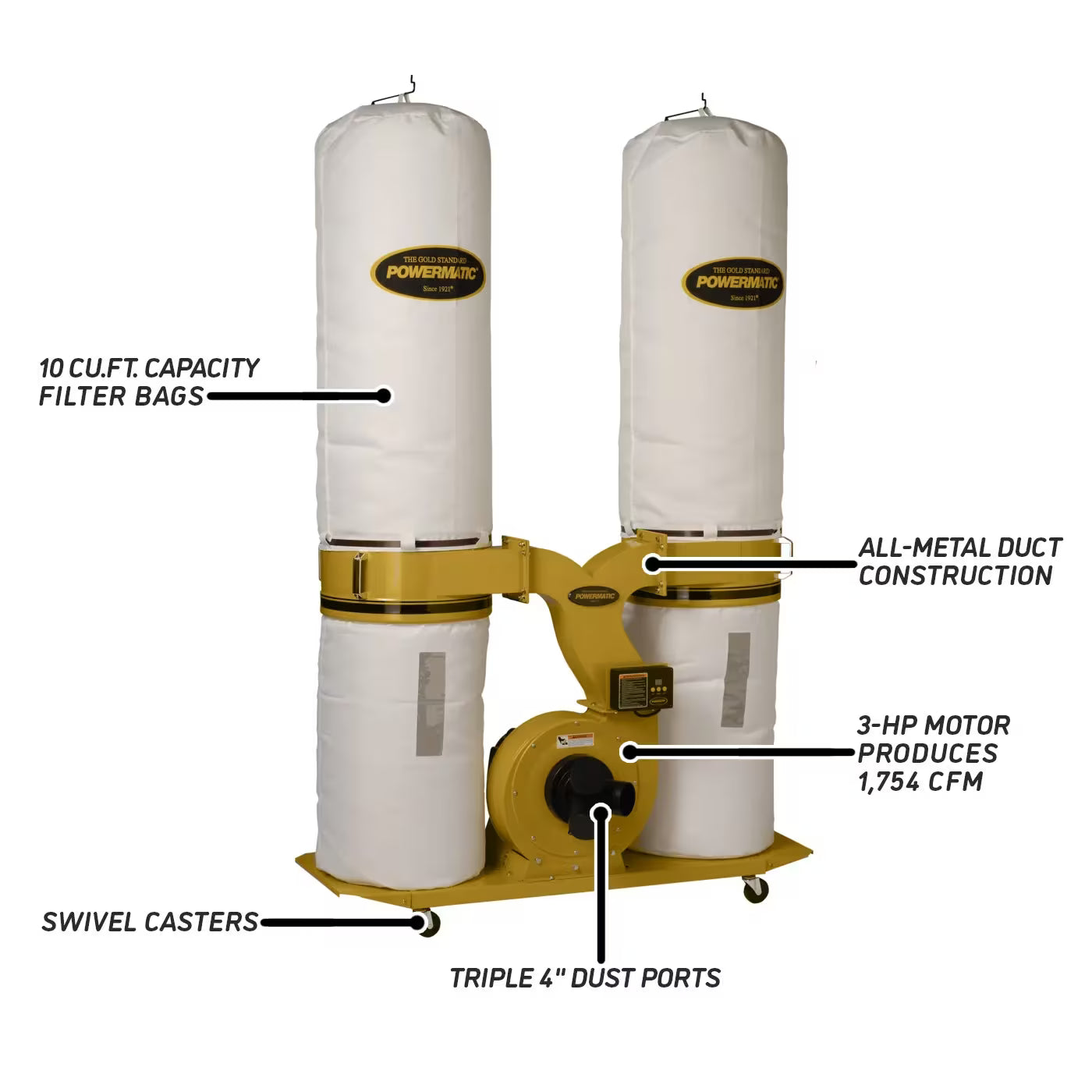

Features & Benefits
- TurboCone technology separates chips before reaching the filter to improve collection efficiency and maintain consistent airflow
- 3 HP motor powering a steel impeller delivers strong, continuous suction for industrial three-phase shop environments
- Twin 30-micron cloth filter bags support bulk chip collection while allowing steady airflow during extended operation
- Cone-shaped design helps reduce premature filter clogging to minimize maintenance interruptions
- All-metal duct construction adds rigidity and promotes smoother airflow through the collection system
Specifications
Specifications
| SKU | PM9-1792073K |
| Collection Bag Diameter | 20 in. |
| EAN/UPC Attribute | 731325175271 |
| Efficiency Micron | 30 Micron |
| Gross Weight | 215 |
| Impeller Diameter | 14 in. |
| Impeller Material | Steel |
| Input Power | 230/460V Three Phase |
| Model Number | PM1900TX-BK3 |
| Motor HP | 3 |
| Net weight | 207 |
| Old Material Number | 1792073K |
| Prewired Voltage | 230V |
| Product Type | Machines |
| Prop 65 | Cancer and Reproductive Harm |
| Speeds CFM Filtered Air | 1891 |
| Style Type | Bag Filtration |
| Warranty | 5 Year |
