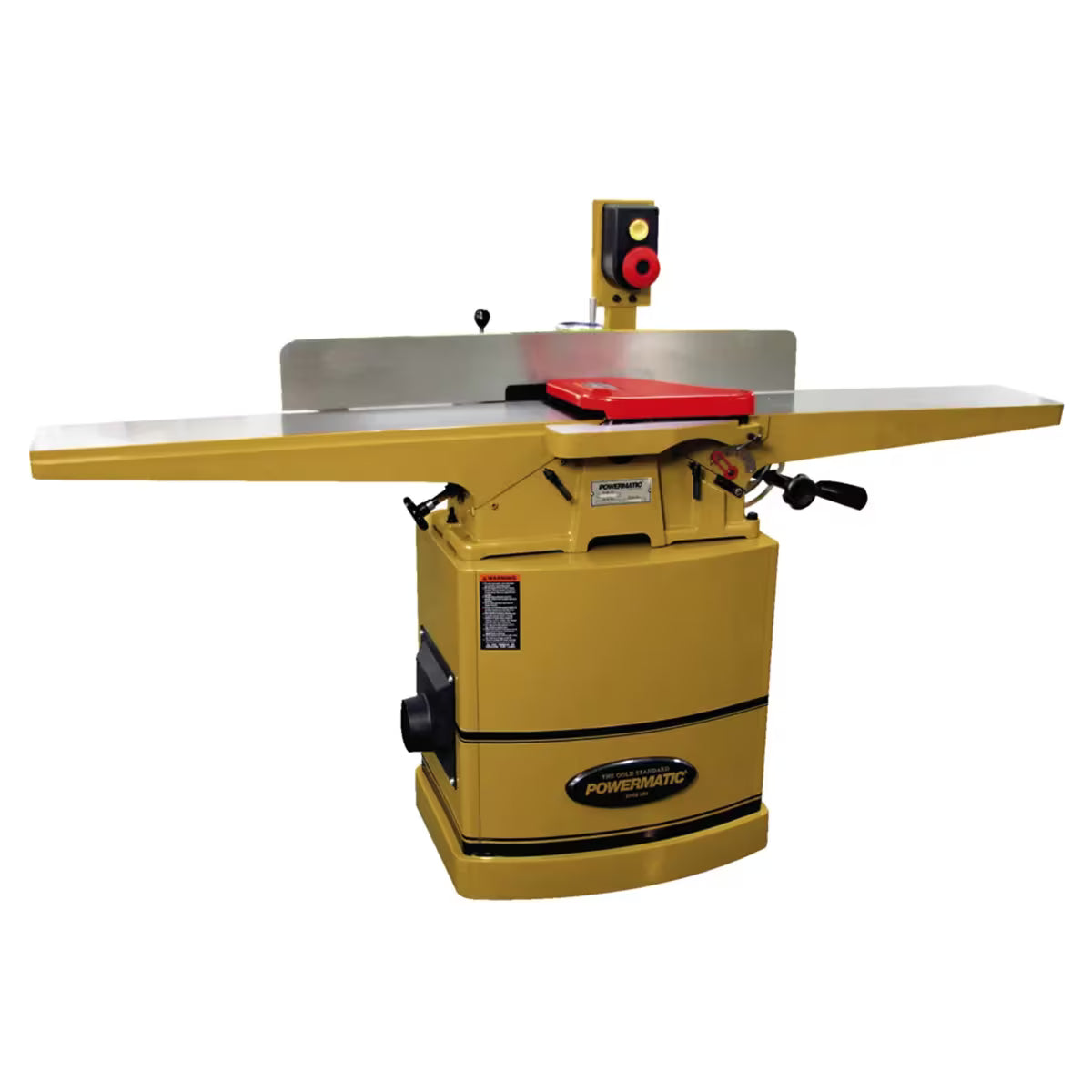

Powermatic 60HH 8 in. 2HP 1PH 230V Helical Head Jointer 1610086K
Powermatic 60HH 8 in. 2HP 1PH 230V Helical Head Jointer 1610086K
Couldn't load pickup availability
Details
Details

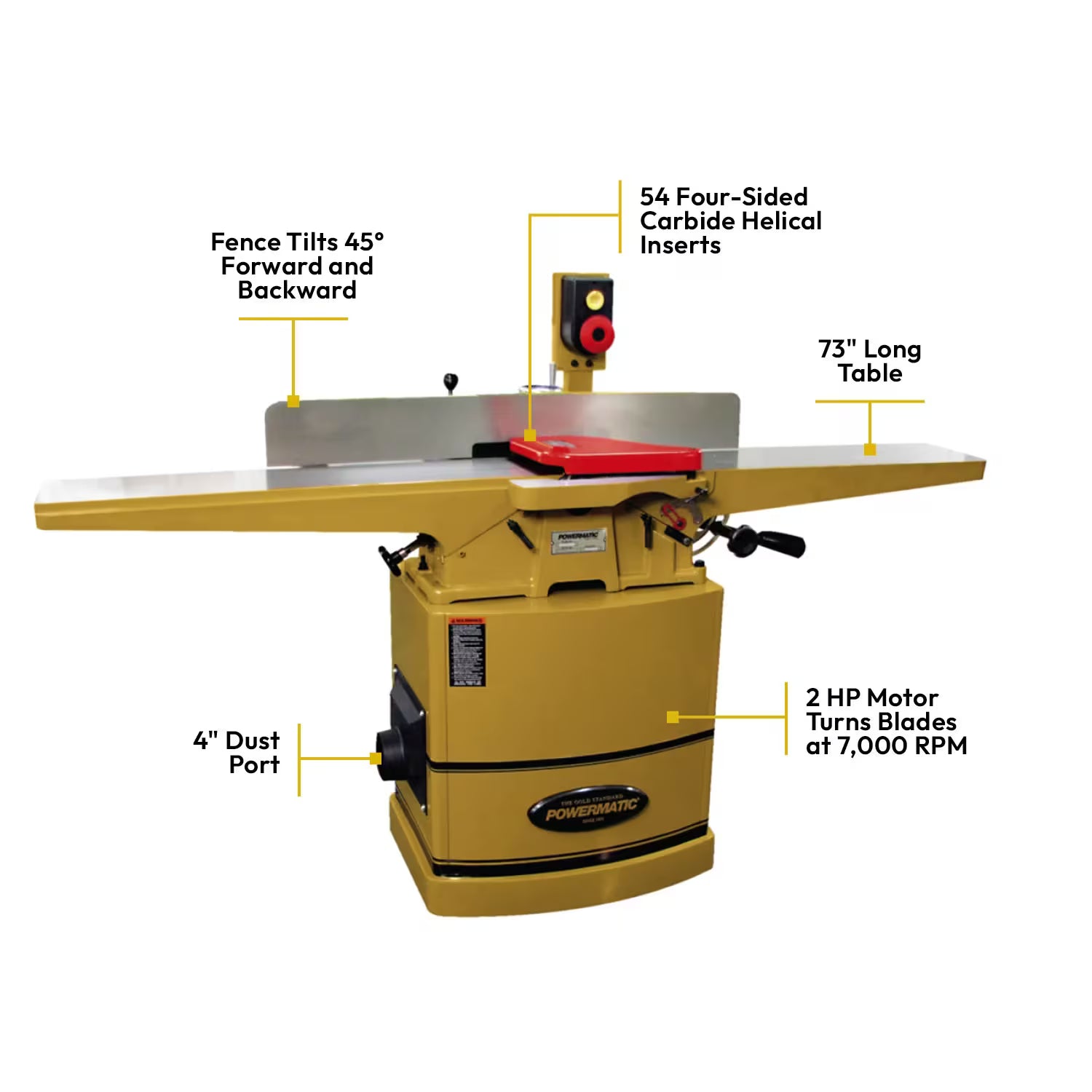

The Powermatic 60HH 8-inch jointer with a helical cutterhead and 230V single-phase power is designed for precision jointing with enhanced ease of use. Driven by a 2 HP motor, this jointer features a helical cutterhead with 54 four-sided carbide inserts that deliver a smooth finish with reduced noise and minimal tear-out. The long 73-inch table provides solid material support, while the infeed table lever allows rapid height positioning followed by fine depth adjustments. Fence tilting is controlled through a worm gear system operated by a handwheel, with a non-marring insert protecting the table surface. A high-mounted power switch and magnet-backed push blocks improve convenience and safety during operation.
Features & Benefits

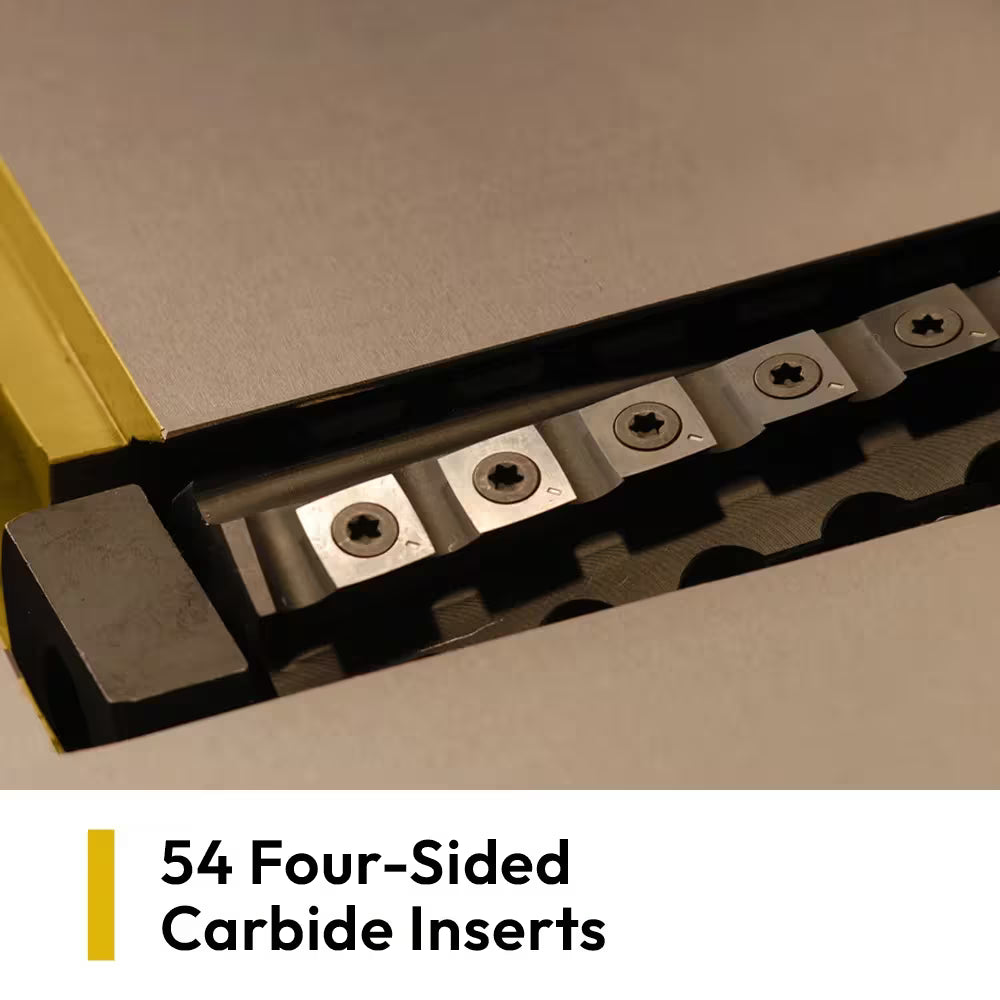

- Helical cutterhead with 54 four-sided carbide inserts delivers a smoother surface finish while reducing noise and tear-out during jointing
- 2 HP single-phase motor provides consistent cutting power for accurate jointing of hardwoods and wider stock

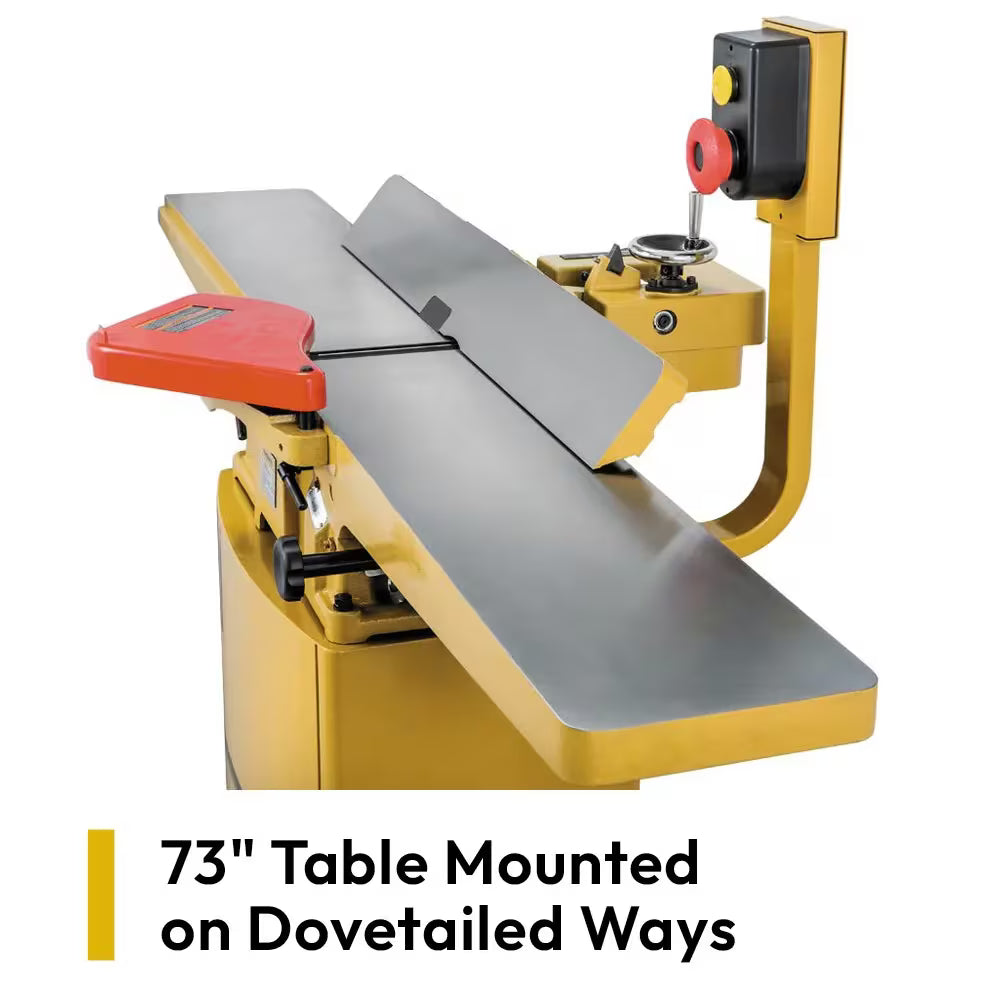

- 73-inch total table length offers increased workpiece support for improved accuracy on long boards
- Quick-adjust infeed table lever allows rapid height changes with fine control for precise depth-of-cut settings

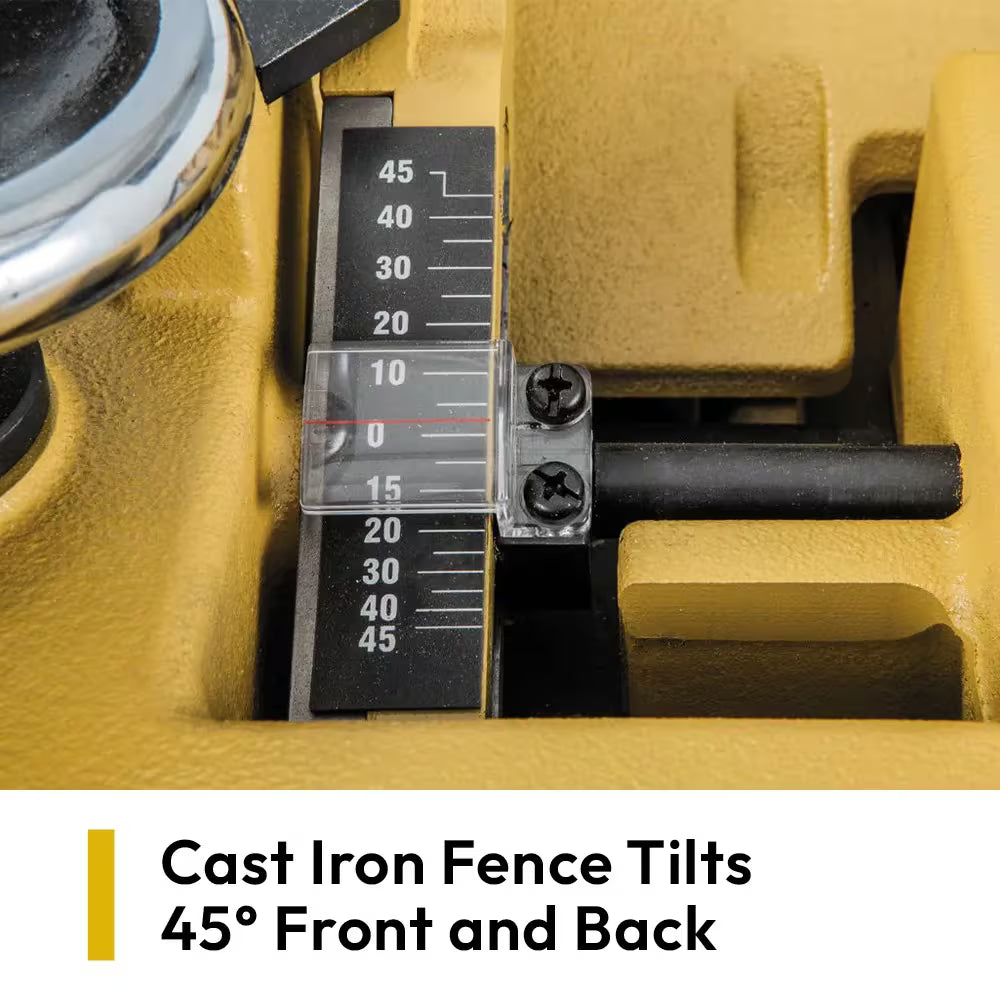

- Handwheel-operated worm gear fence system enables smooth, controlled fence tilting for accurate edge jointing
- Dovetail-mounted infeed and outfeed tables maintain alignment while providing stable, vibration-resistant operation
- Non-marring fence insert protects the cast iron table surface during fence adjustments

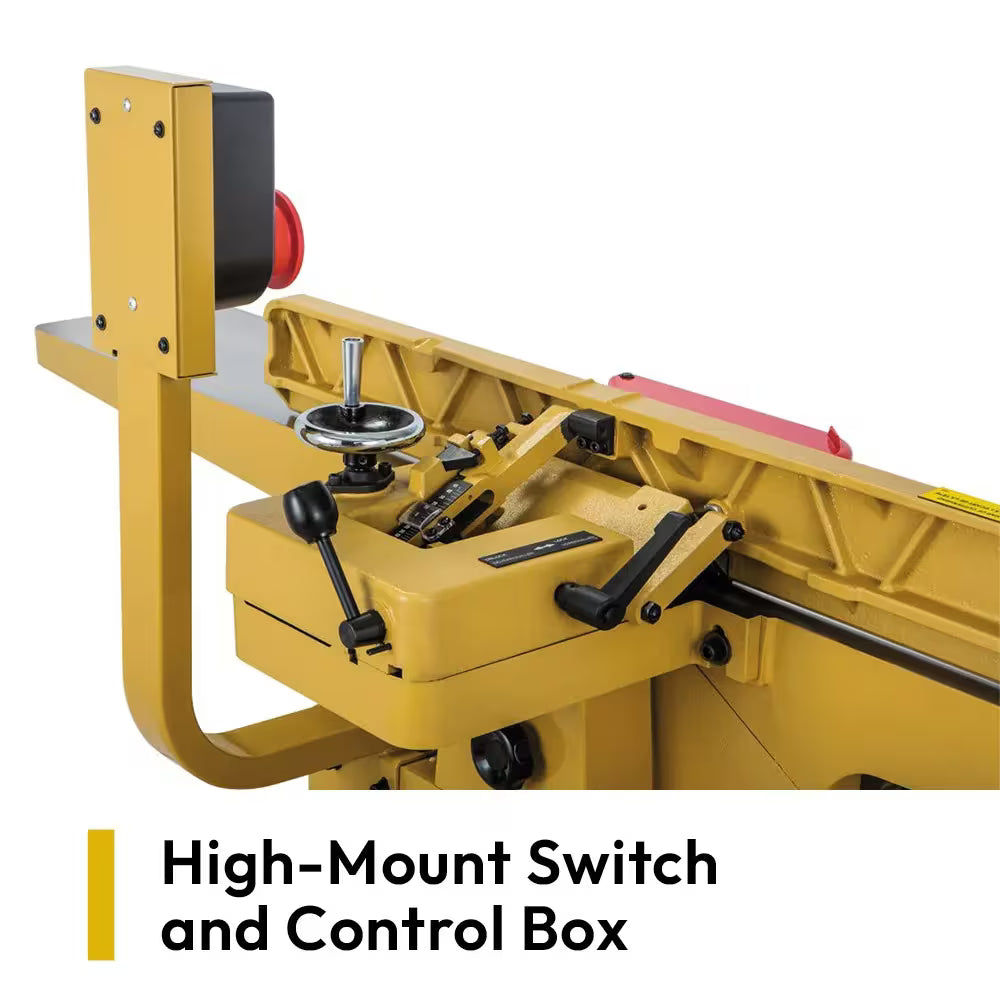

- High-mounted power switch and control box improves visibility and operator access during use
- Magnetic push blocks store directly on the machine for convenient access and improved shop organization
Specifications
Specifications
| SKU | PM9-1610086K |
| Cutterhead Diameter | 3 in. |
| Cutterhead Speed (RPM) | 7000 |
| Cutting Capacity Width | 8 in. |
| Dust Port Outside Diameter (in.) | 4 in. |
| EAN/UPC Attribute | 662755985355 |
| Fence Size | 38 in. x 4-3/4 in. |
| Gross Weight | 518 |
| Input Power | 230V Single Phase |
| Model Number | 60HH |
| Motor HP | 2 |
| Net weight | 490 |
| Number of Knives | 54 |
| Old Material Number | 1610086K |
| Prewired Voltage | 230 |
| Product Type | Machines |
| Prop 65 | Cancer and Reproductive Harm |
| Table Height | 32 |
| Type of Cutterhead | Helical Head |
| Warranty | 5 Year |
