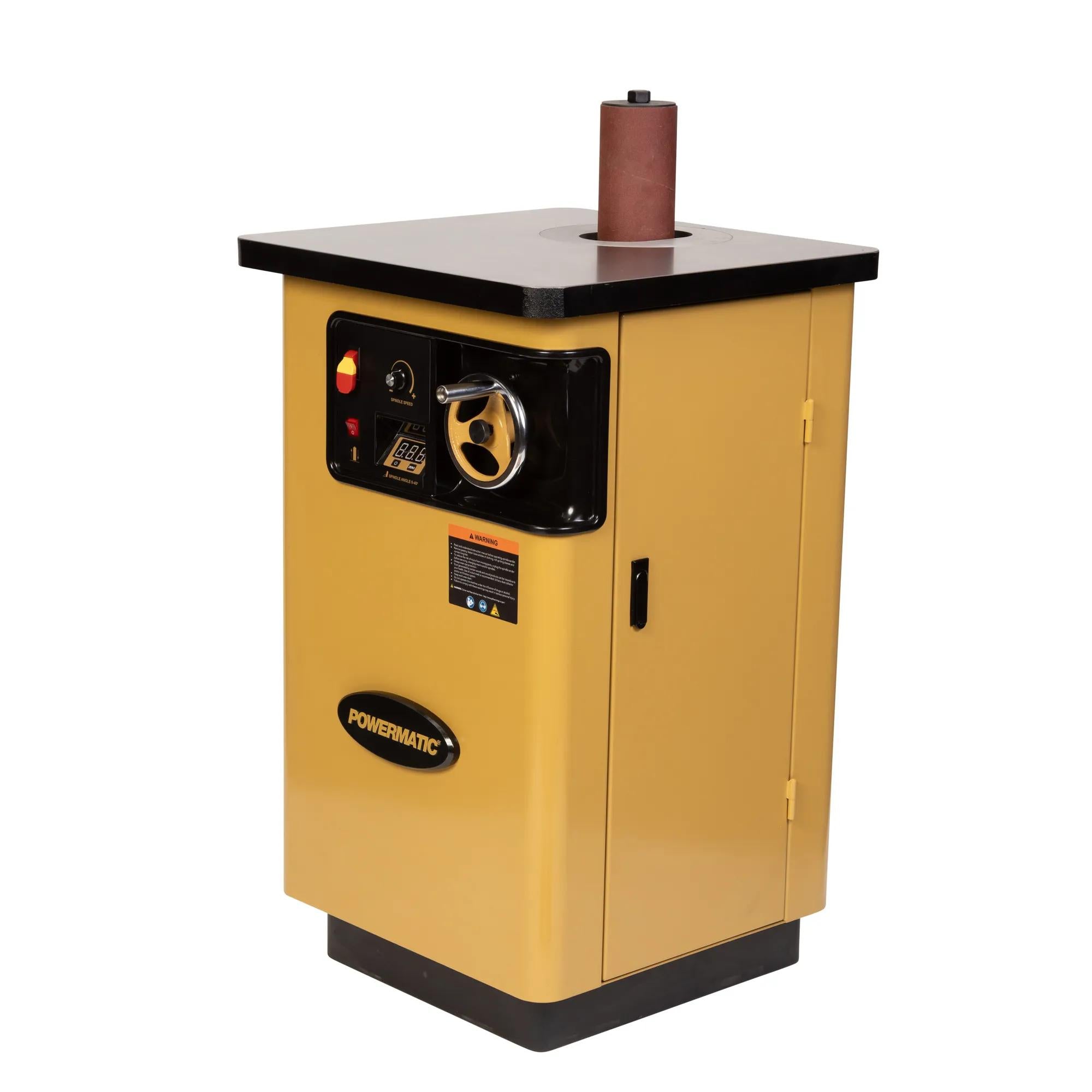

Powermatic Oscillating Spindle Sander 1HP 1Ph 115V OSS10 PM1-266
Powermatic Oscillating Spindle Sander 1HP 1Ph 115V OSS10 PM1-266
Couldn't load pickup availability
Details
Details
The Powermatic OSS10 Oscillating Spindle Sander is engineered for precise spindle sanding, smooth edge finishing, and long-term reliability in professional and serious woodworking shops. Designed with control, accuracy, and ease of use in mind, it supports a wide range of sanding applications from intricate curves to larger edge profiles.

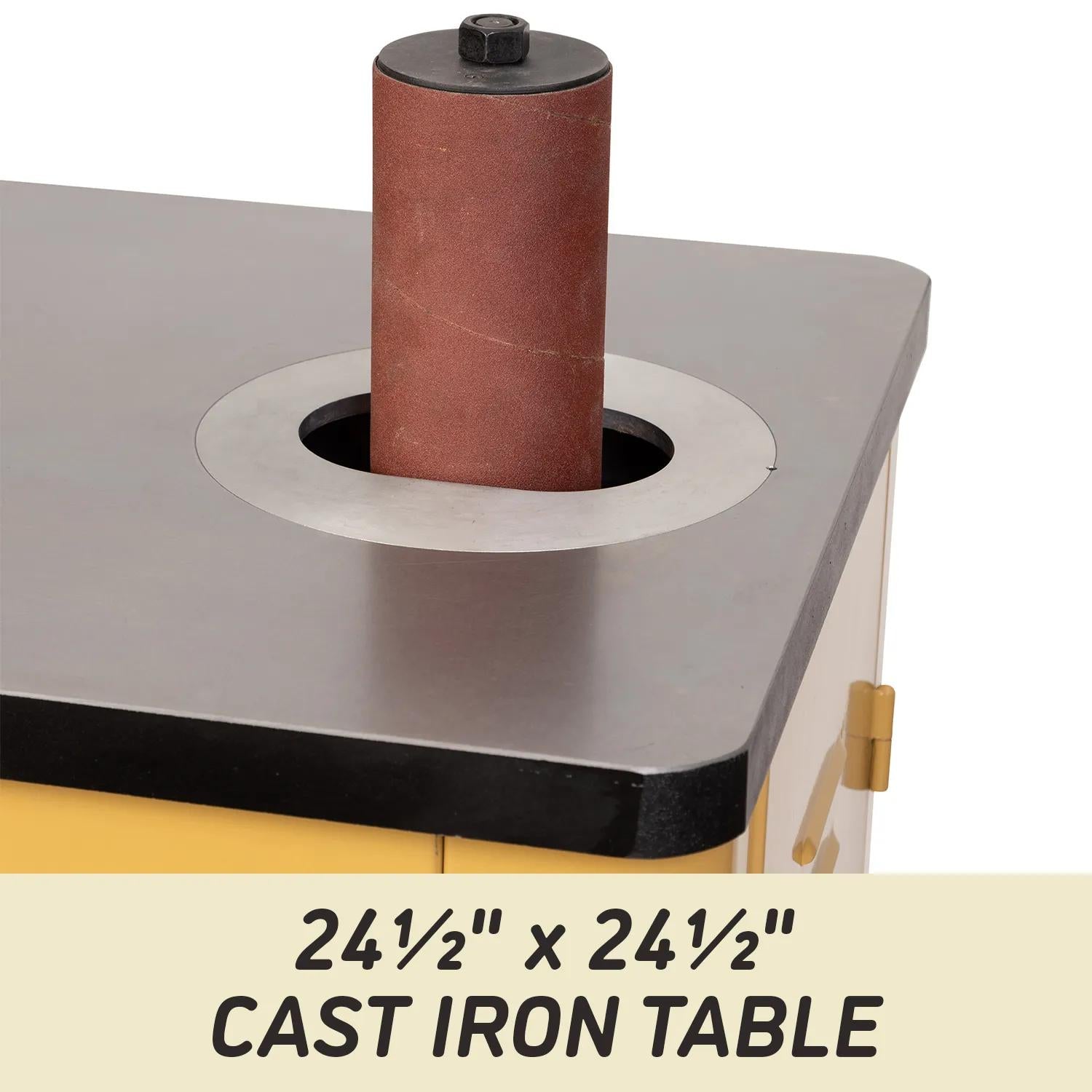

A large 24-1/2" × 24-1/2" cast iron stay-flat table provides stable, accurate support during sanding operations. The oscillating spindle mechanism, operating at up to 60 oscillations per minute with a 1.5" stroke, helps keep abrasives cleaner, reduces heat buildup, and extends spindle life.

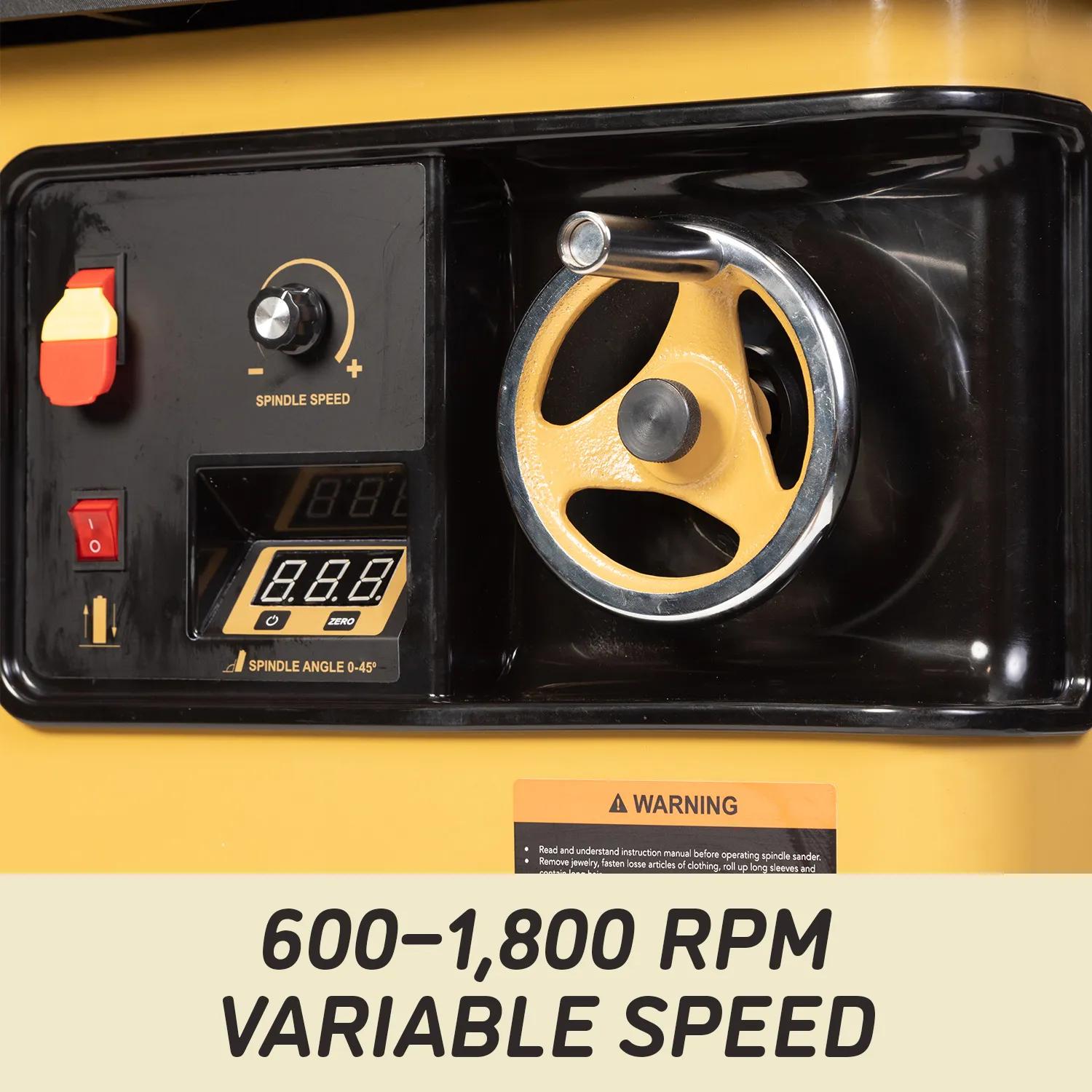

The variable-speed spindle (600–1,800 RPM) allows operators to match sanding speed to material type and finish requirements. Spindle tilt from 0° to 45° expands sanding versatility for angled and beveled work. A clear digital readout displays speed and angle settings for precise, repeatable adjustments.

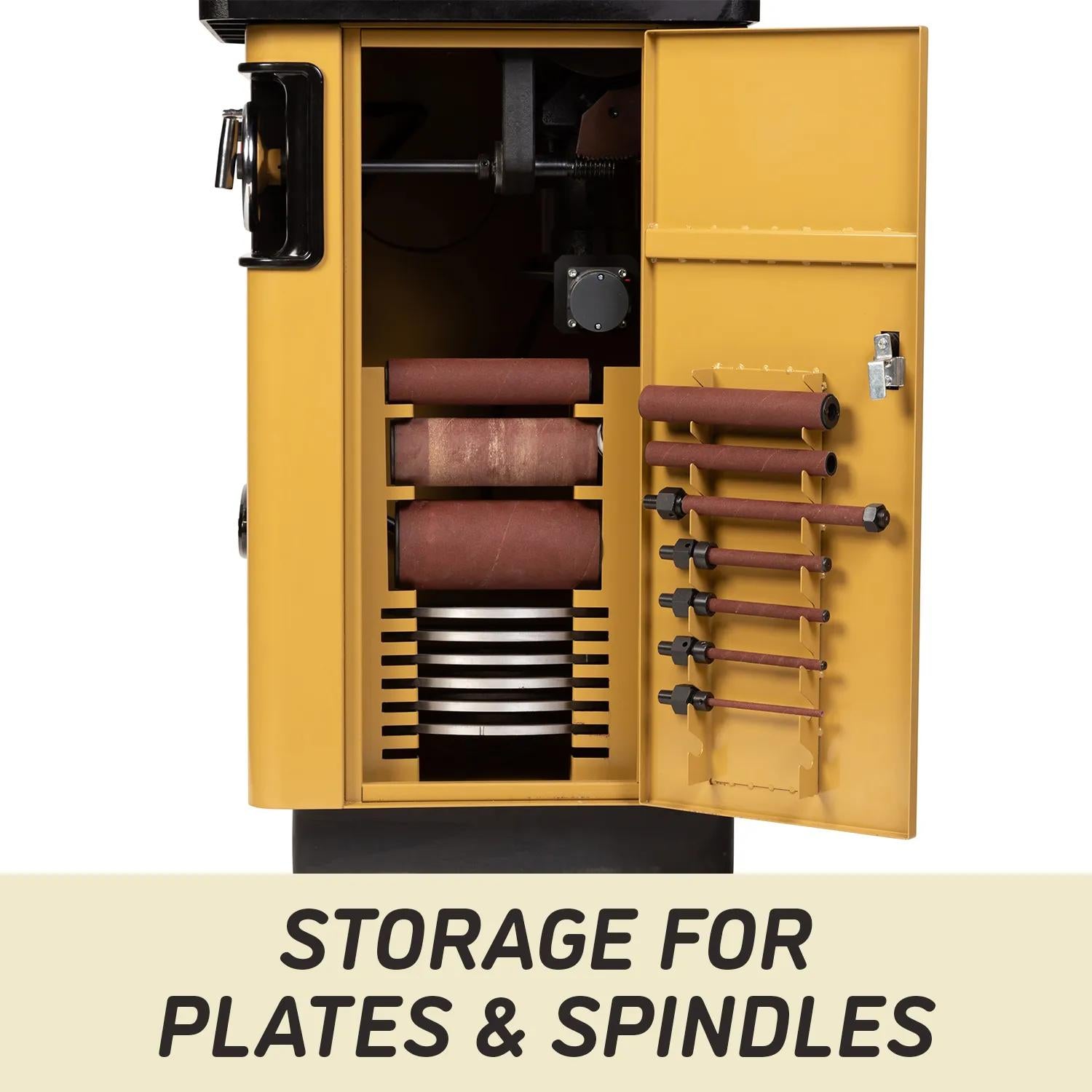

Supporting spindles from 1/4" to 4" diameter, the OSS10 accommodates a wide range of sanding sleeves and inserts. Operator controls include an intuitive paddle switch with safety key, while integrated dust collection and a steel cabinet with spindle storage help keep the workspace organized.
Like all Powermatic machines, the OSS10 is backed by a 5-year warranty, reinforcing confidence in its durability and long-term performance.

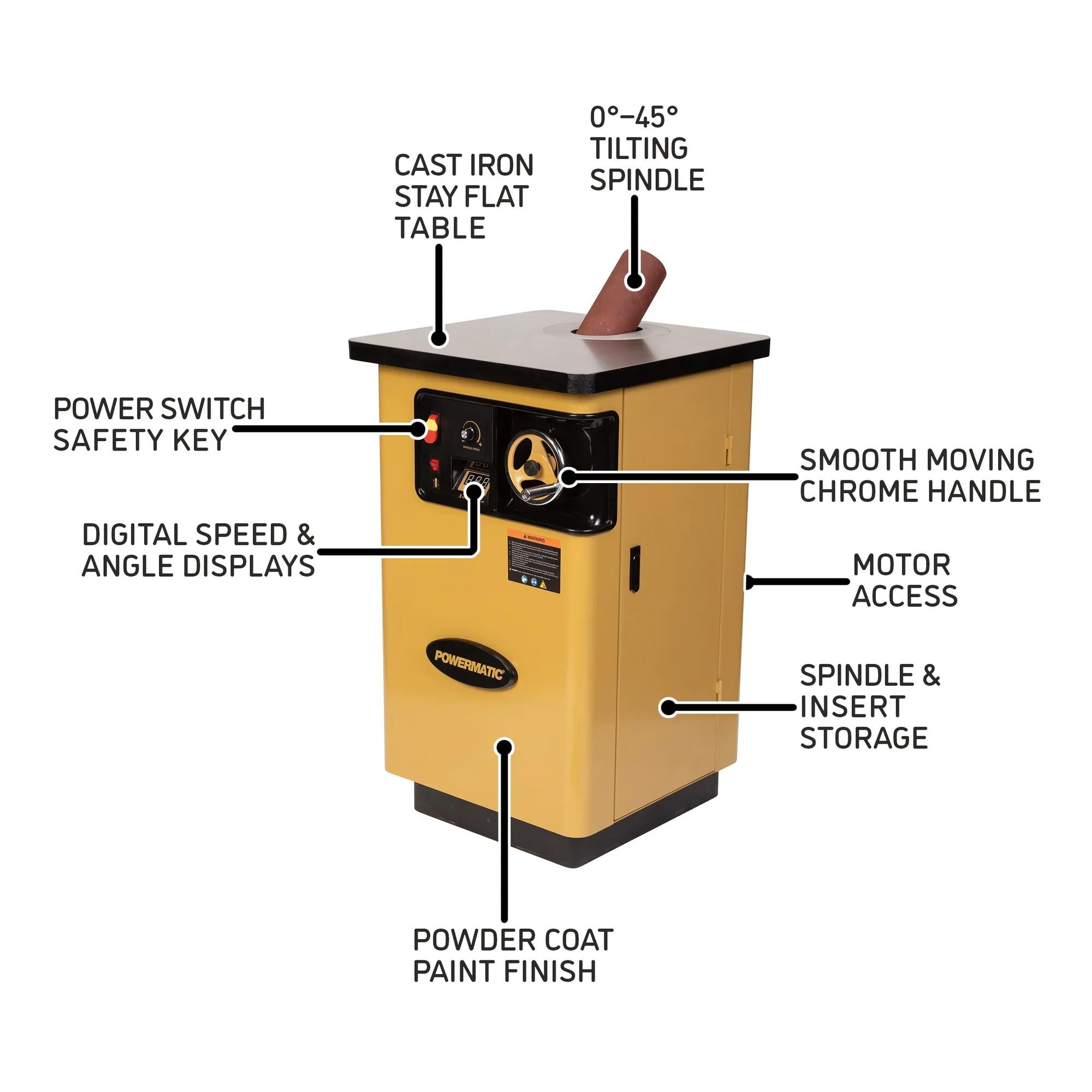

Features & Benefits
- Large cast iron stay-flat table (24-1/2" × 24-1/2") provides stable, accurate support for precision sanding.
- Oscillating spindle action (up to 60 OPM, 1.5" stroke) keeps abrasives cleaner and extends spindle life.
- Variable spindle speeds (600–1,800 RPM) allow control across materials and sanding applications.

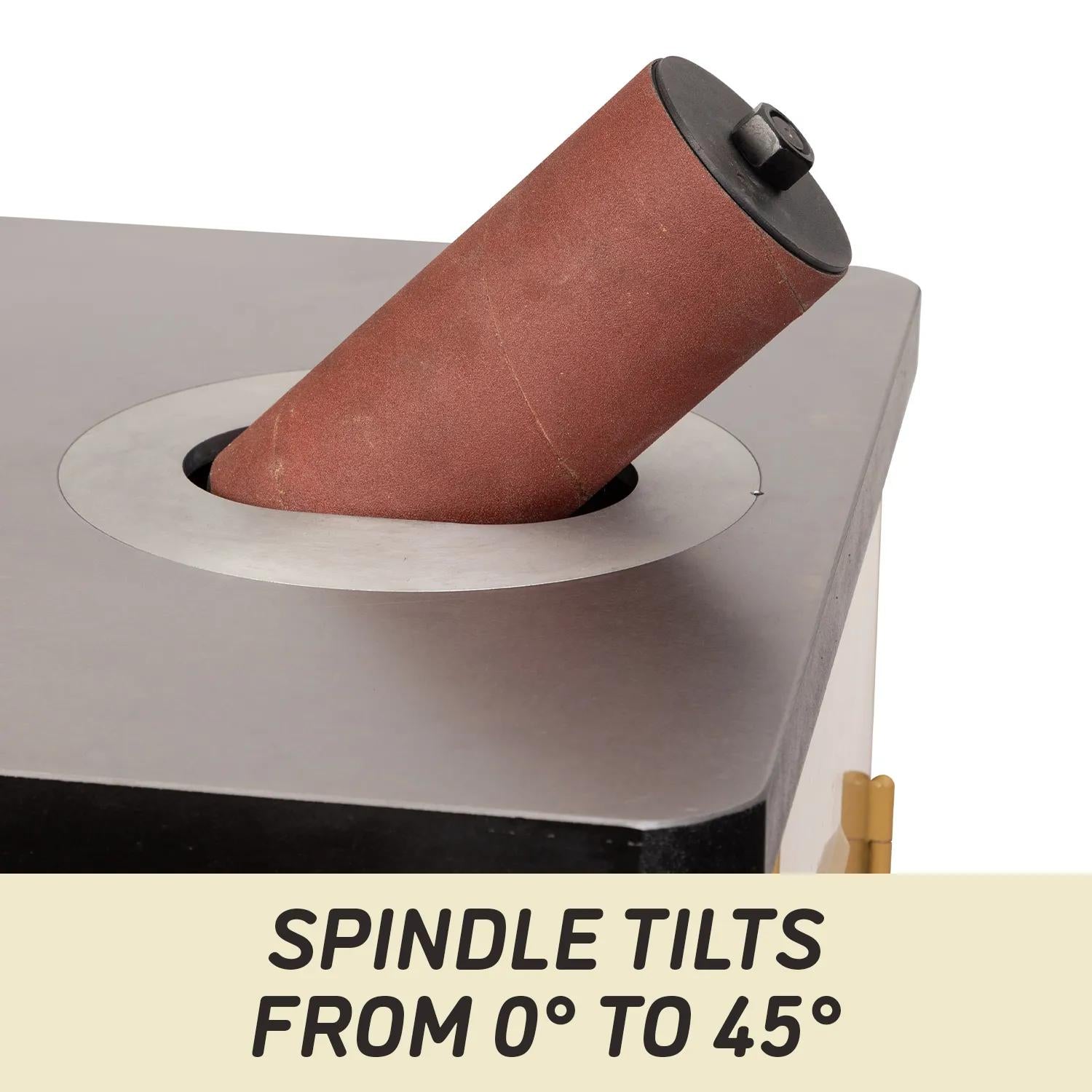

- 0°–45° tilting spindle enables accurate angled and beveled sanding.

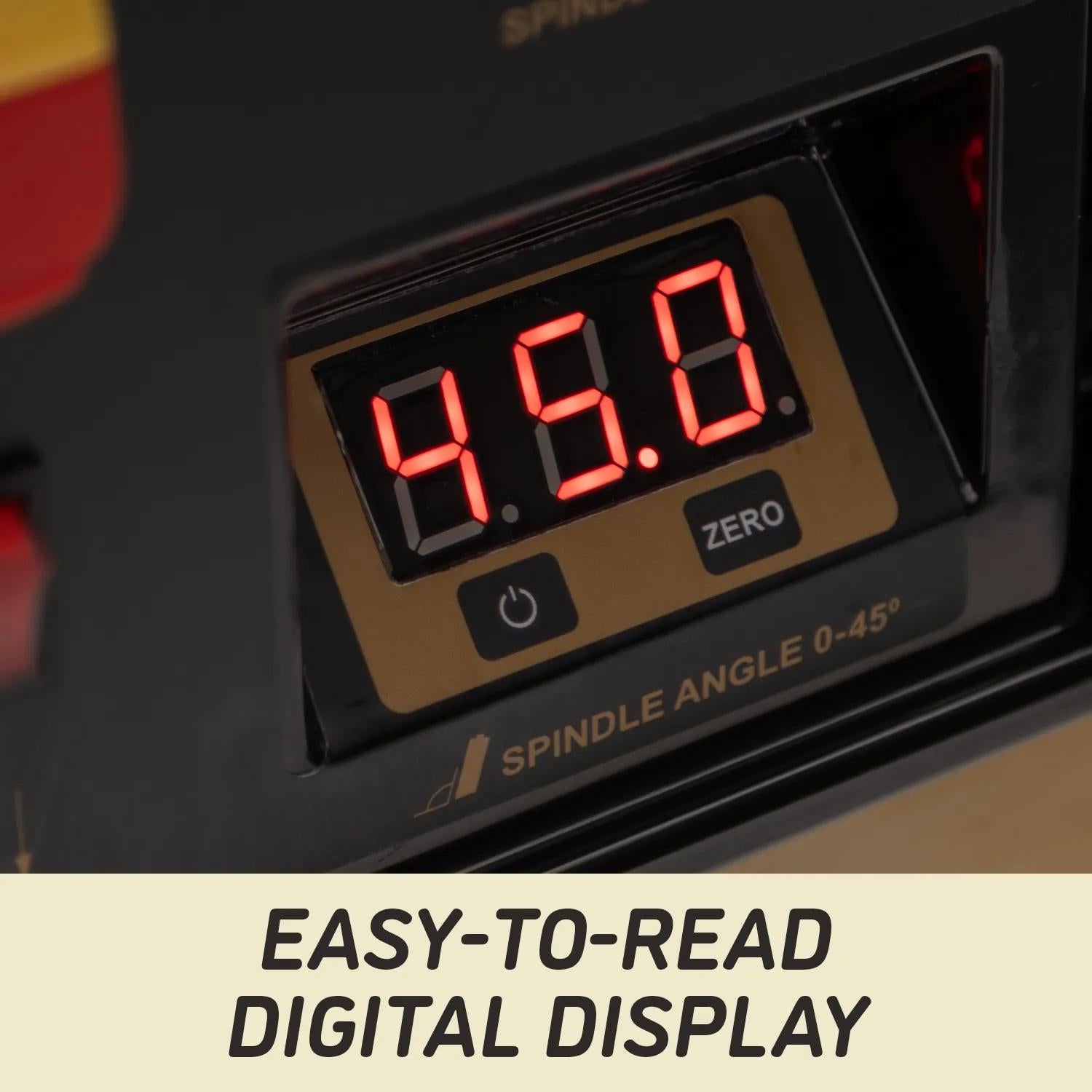

- Digital readout displays speed and angle for precise, repeatable adjustments.
- Supports spindle sizes from 1/4" to 4" for broad sanding versatility.
- Paddle switch with safety key provides intuitive control and added operator safety.
Specifications
Specifications

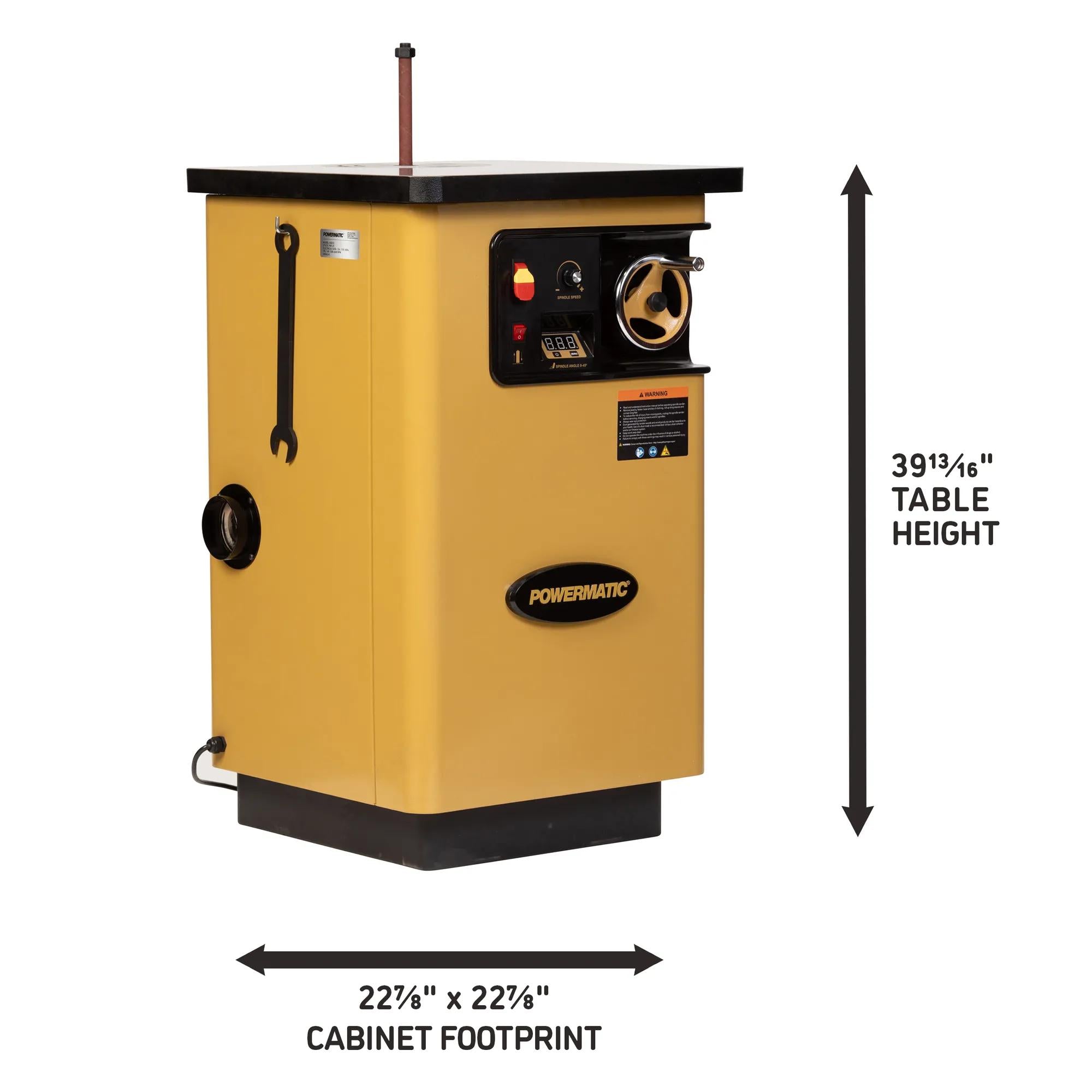

| assembled dimensions | 25.81 in. x 24.5 in. x 39.81 in. |
| base size | 20 in. x 20 in. |
| dust port outside diameter in | 4 in. |
| horse power hp | 1 |

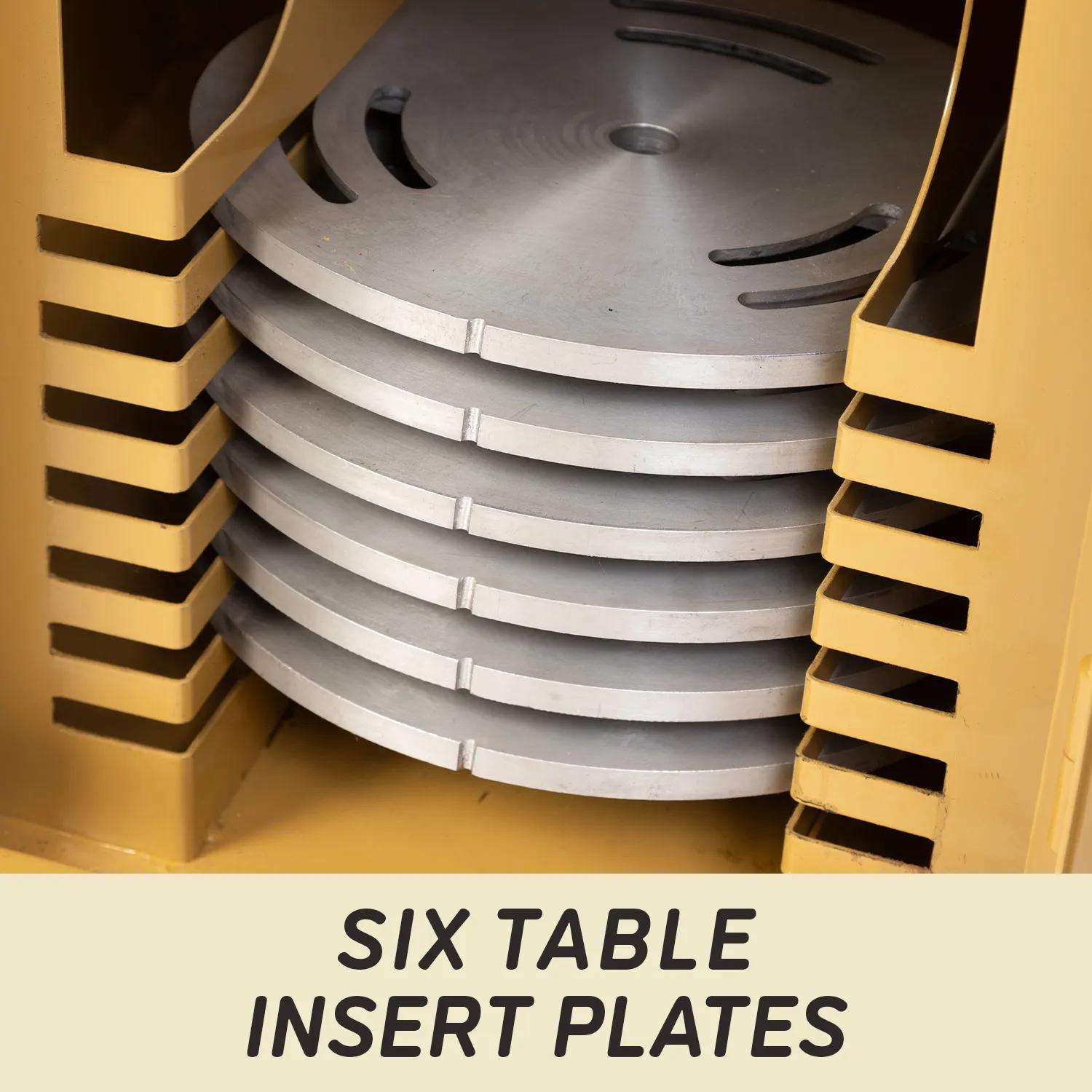

| accessories | Includes 6 table insert plates (¼–4 in.), 5 rubber drums w/sleeves (1–4 in.), 5 spindles w/sanding sleeves (¼–¾ in.), combo wrench, spindle hex nut & 5 hex wrenches (2.5–6mm) |
| input power | 115V |
| motor hp | 1 |
| motor phase | Single |
| motor voltage v | 115 |
| number of spindles | 5 |
| oscillation stroke in | 1.5 |
| oscillations per minute | 60 |
| recommended circuit size amps | 15 |
| dust collection minimum cfm required cfm | 300 |
| spindle diameter in | 0.25 to 4 in. |
| spindle speed rpm | 600 to 1800 |
| spindle tilt deg | Front 0, back 45 |
| spindle travel in | 1.5 in. |
| table size l x w in | 24.5 in. x 24.5 in. |
| Gross Weight | 396 |
| Net Weight | 335 |
