Palmgren 20" Step Pulley Drill Press With Power Feed 9680207

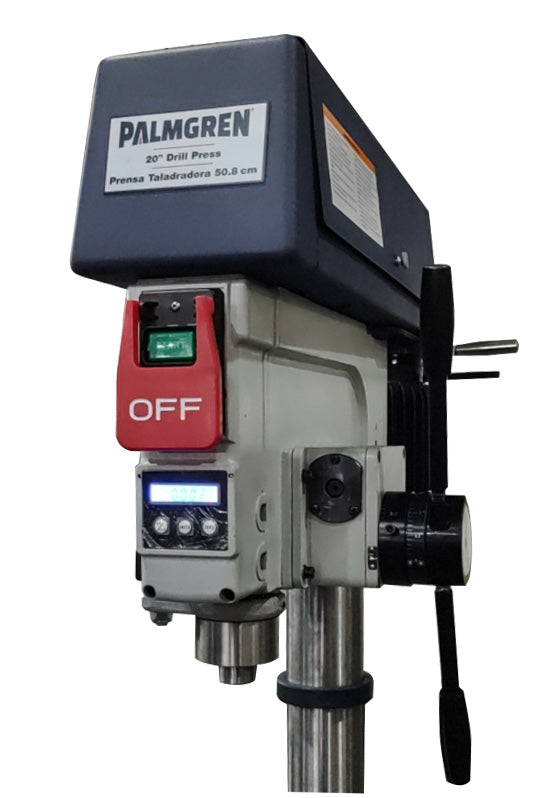

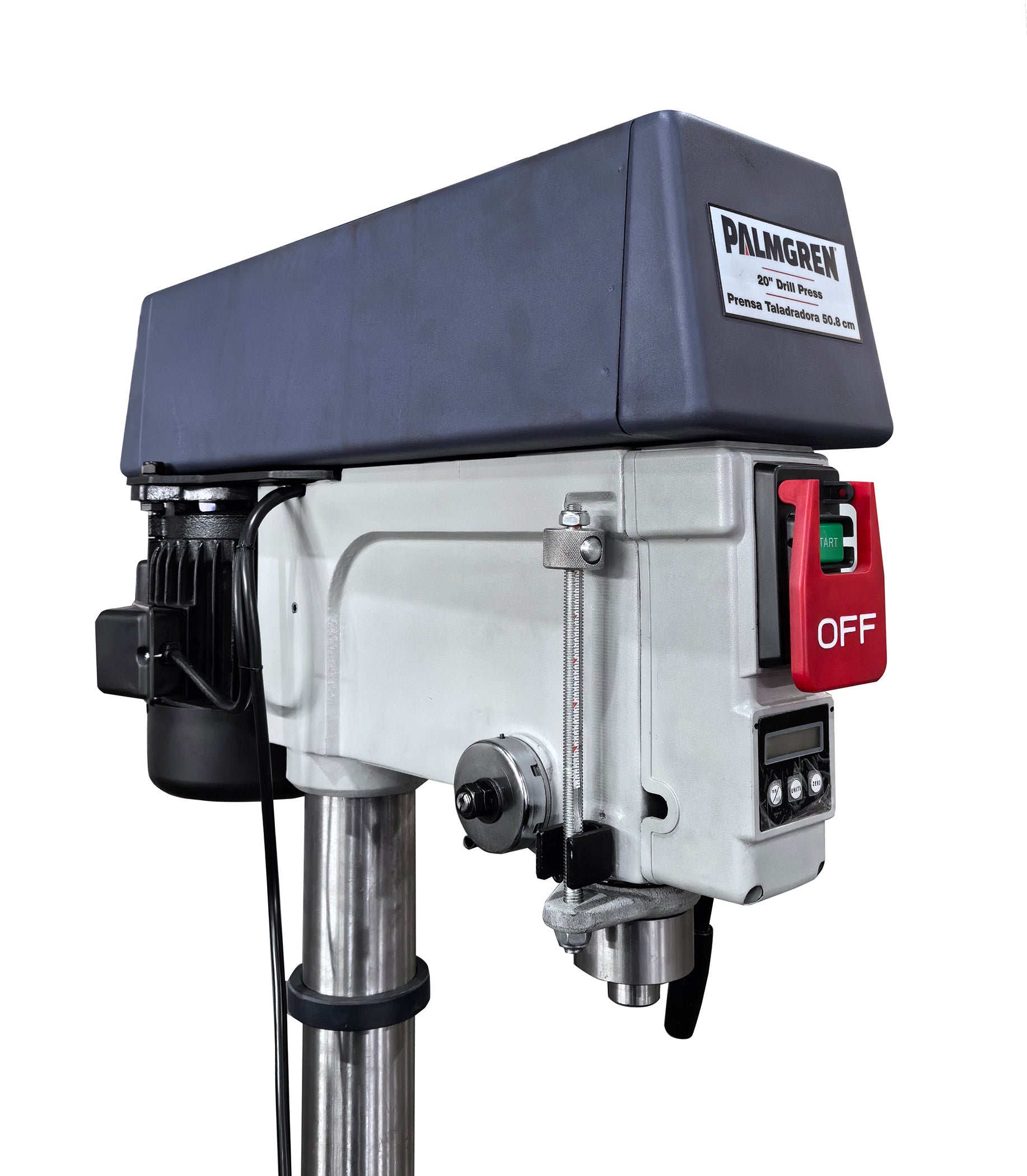

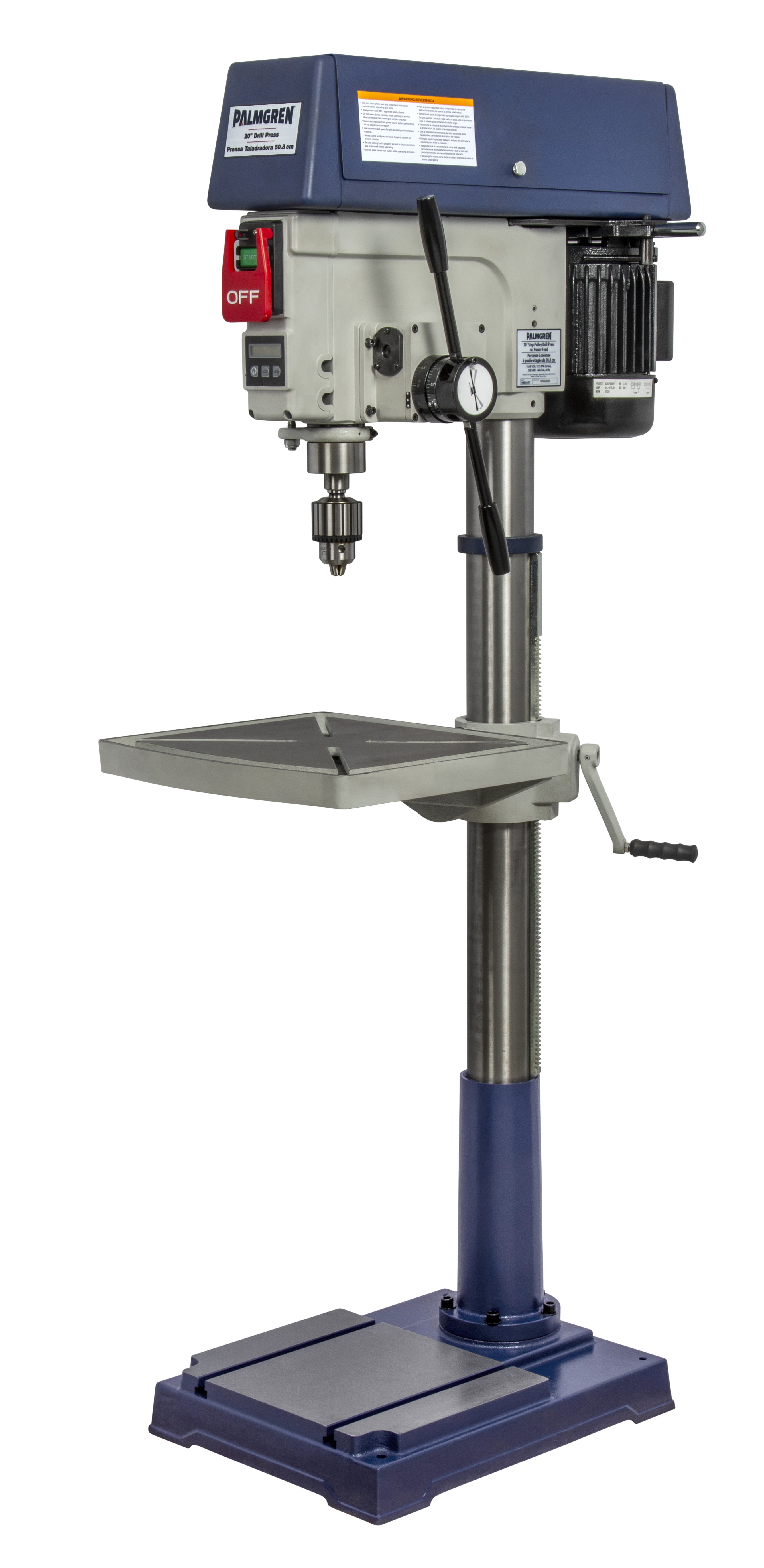

Palmgren's 20" Power Feed Step Pulley Drill Press is a one-of-a-kind machine. This machine features oversized head, table and base castings for increased rigidity during heavy drilling operations. Loaded with special features including digital readout displays for drill depth and spindle RPM, quick belt change and tensioning, and depth stop. All of these features, backed by a 1-1/2 horsepower motor, combine to make the ultimate drill press for home shops, maintenance shops, and industrial applications.
Features & Benefits
- Table can be tilted to the left and right
- Table can be rotated 360° around the column
- Digital readouts for spindle depth and RPM
- Positive quick-adjust feed depth stop
- Includes 3/4" chuck and MT3 to JT3 arbor
Specifications
- Application: Metal Drilling
- Base Dimension: 17 5/8 x 22 1/2 x 5 1/2 in
- Chuck Size: 5-20/JT3 mm
- Column Diameter: 3.62 in
- Distance spindle - base (max.): 45-3/8 in
- Distance Spindle-Column: 4-3/4 to 26-3/8 in
- Distance spindle - table (max.): 26-3/8 in
- Drill Press Model: Floor Model
- Drill Press Type: Step Pulley
- Drilling Capacity in Cast Iron: 1 in
- Includes: Chuck with Key
- Motor HP: 1.5
- Number of Spindle Speeds: 120-3600 rpm?16steps
- Number of Table Slots:: 3.0
- Phase: Single
- Quill Diameter: 2.44 in
- Spindle Taper: MT3
- Spindle Travel: 6 in
- Swing: 20 in
- Table Tilt Right to Left: 45° Left & Right
- Tilting Angle: 45°
- Tool Weight (Max): 331.0
- Voltage: 120/240V 60Hz
- Warranty: 3 Year
