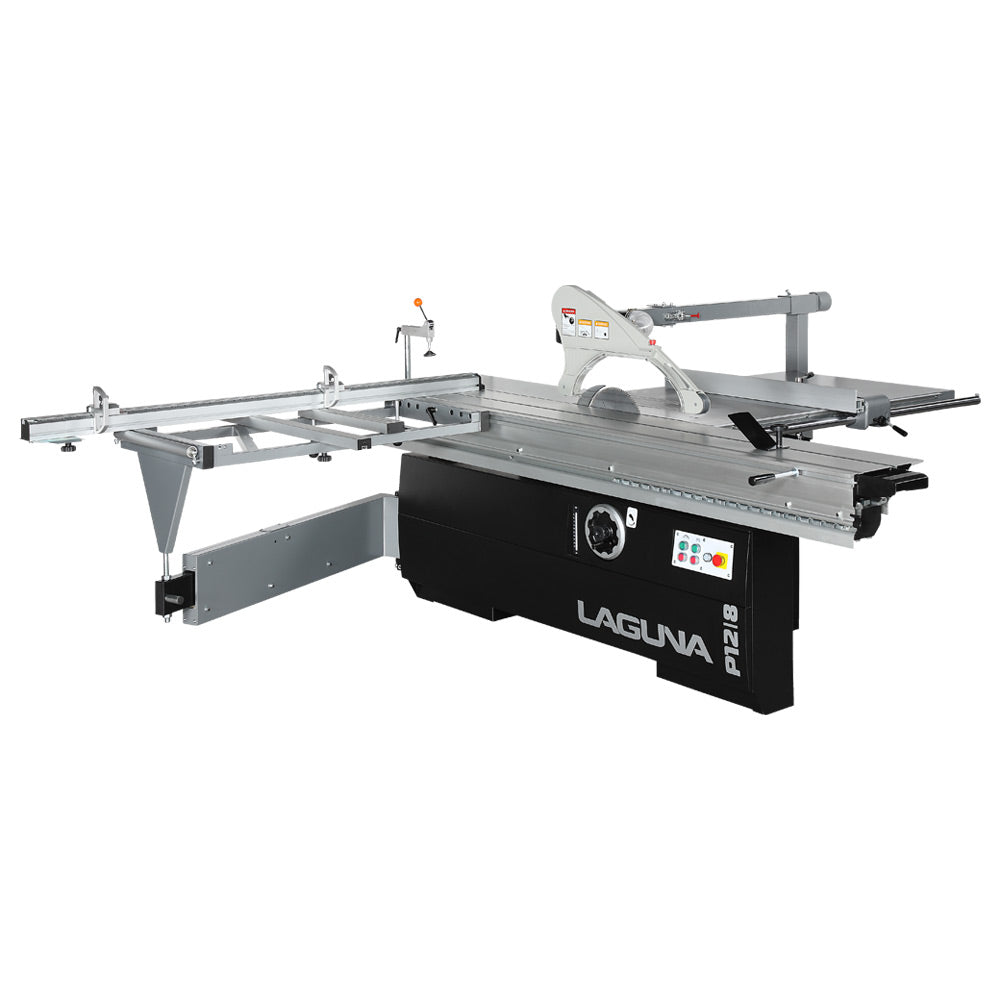

MPSP12-8-7.5HP-3PH-0135, Laguna P12|8 Panelsaw 220V 3Phase
The P12|8 was designed to clear 8′. material using a 12″ blade. This means that when you finish your stroke, the back end of your sheet will just have cleared the blade, causing no friction as the blade is spinning down. The 102? sliding table is constructed of anodized aluminum. Our dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly.
Features:
- Motor: 7.5HP 3ph or 5 HP 1ph
- Voltage: 220v 60 HZ
- Blade Capacity: 12″, 14″/300mm, 355mm
- Max. Blade: 16″/400mm (minimum height when lowered: 1″/25mm)
- Max Scoring Blade: 4-3/4″/120mm
- Scoring Adjustment: T-Handle through Cast Top
- Specifications:
- Arbor: 30mm (Main), 20mm (Scoring)
- Max Cutting Height 90° 14″/355mm Blade: 4-½″/115mm
- Max Cutting Height 90° 16″/400mm Blade: 5-⅛″/130mm
- Max Cutting Height 45° 14″/355mm Blade: 2-¾″/70mm
- Max Cutting Height 45° 16″/400mm Blade: 3-½″/90mm
- Main Blade Speed: 4000 RPM
- Dust Collection Port Saw: 4-¾″ (120mm)
- Dust Collection Port Guard: 4″ (100mm)
- Sliding Table: 102.36″ (2600mm)
- Sliding Table Width: 14.88″ (387mm)
- Main Cast Table: 21-½″ x 35-¼″
- Rip Fence: 51″ (1300mm)
- Rip Fence Micro Adjust: Included
- Rip Fence Bar: 1-⅝″ (40mm) Solid Steel Micro Polished Overhead Guard With Swing Away
- Push Handle: Included
- Rip Shoe: Included
- Hold Down Clamp: Included
- 32″ x 12″ Steel Extension Table: Included
- Cross Fence: 2 x Flip-Stop
- Cross Fence Readout: Inch/Metric
- Crosscut Fence Max Collapsed: 77″
- Crosscut Fence Max Extended: 140″
- Table Lock Positions: 2 Tabs, 20 Notches = 40 Total
- Ship Dimensions Body: 83″ x 47″ x 46″
- Ship Dimensions Table: 137″ x 20″ x 15″
- Weight (Net/Ship): 1815/2112 lbs
Specifications
Specifications
| Laguna Tools Panelsaw 220V 3Phase, P12|8 MPSP12-8-7.5HP-3PH-0135 | |
| APPLICATION | Wood Working |
| Brand | Laguna Tools |
| HORSEPOWER | 7.5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Panel Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 208V-240V 3Ph |
