Laguna Tools Panelsaw 220V 1Phase, P12|10 MPSP12-10-5HP-1PH-0135
Laguna Tools Panelsaw 220V 1Phase, P12|10 MPSP12-10-5HP-1PH-0135
Couldn't load pickup availability
Details
Details

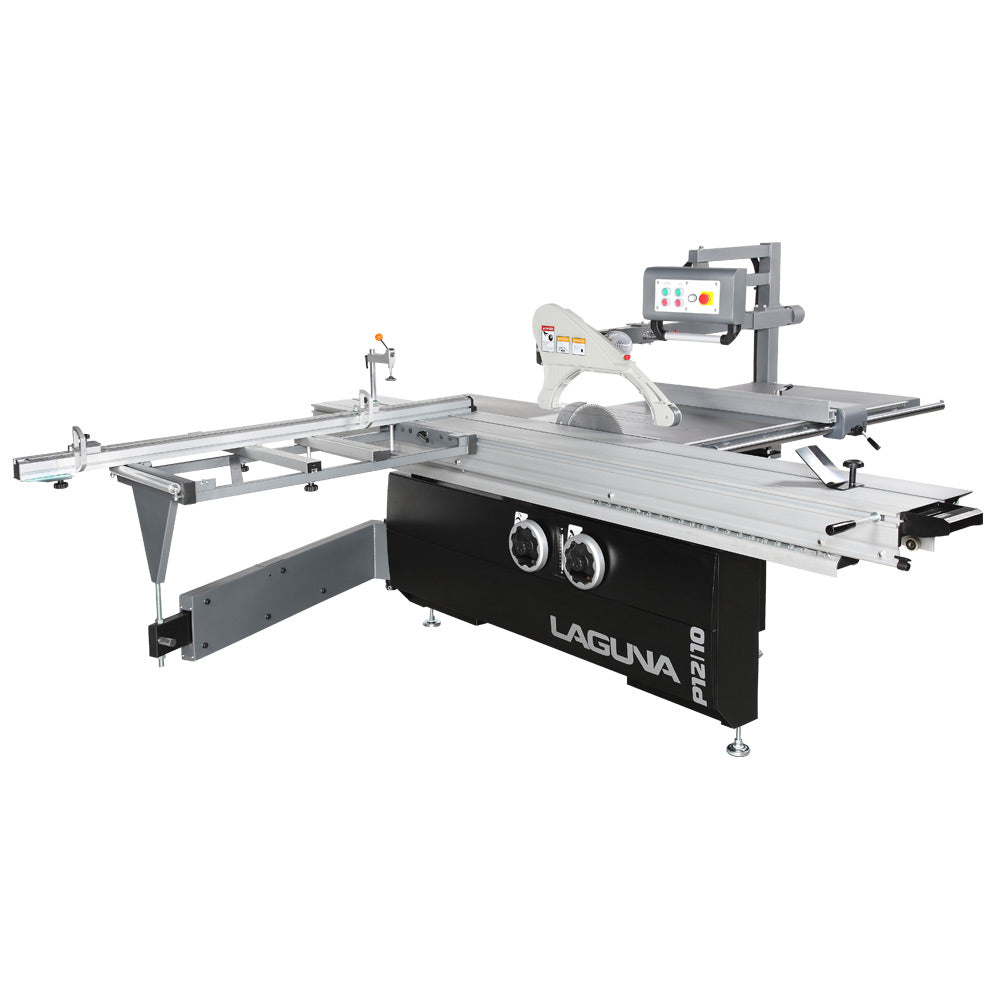

MPSP12-10-5HP-1PH-0135, Laguna P12|10 Panelsaw 220V 1Phase
The 126″ sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly. The European-style 51″ rip fence consists of heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust the fence incrementally. The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is a swing-away function that allows you to quickly move the guard out of the way. The dust collection hookup is out of the way at the end of the gantry (5″).
Features:
- Motor: 7.5HP 3ph or 5 HP 1ph
- Voltage: 220v 60 HZ
- Blade Capacity: 12″, 14″/300mm, 355mm
- Max. Blade: 16″/400mm (minimum height when lowered: 1″/25mm)
- Max Scoring Blade: 4-3/4″/120mm
- Scoring Adjustment: T-Handle through Cast Top
Specifications:
- Arbor: 30mm(Main), 20mm (Scoring)
- Max Cutting Height 90° 14″/355mm Blade: 4-½″ (115mm)
- Max Cutting Height 90° 16″/400mm Blade: 5-⅛″ (130mm)
- Max Cutting Height 45° 14″/355mm Blade: 2-¾″ (70mm)
- Max Cutting Height 45° 16″/400mm Blade: 3-½″ (90mm)
- Main Blade Speed: 4000 RPM
- Scoring Blade Speed: 8000 RPM
- Dust Collection Port Saw: 4¾″ (120mm)
- Dust Collection Port Guard: 4″ (100mm)
- Sliding Table: 126″ (3200mm)
- Sliding Table Width: 14.88″ (378mm)
- Main Cast Table: 21-½″ x 35-¼″
- Rip Fence: 51″ (1300mm)
- Rip Fence Micro Adjust: Included
- Rip Fence Bar: 1-⅝″ (40mm) Solid Steel Micro Polished
- Overhead Guard With Swing-Away
- Push Handle: Included
- Rip Shoe: Included
- Hold Down Clamp: Included
- Crosscut Fence: 2 x Flip-Stops
- Crosscut Fence Readout: Inch/Metric
- Crosscut Fence Max Collapsed: 77″
- Crosscut Fence Max Extended: 140″
- Table Lock Positions: 2 Tabs, 20 Notches = 40 Total
- Ship Dimensions Body: 83″ x 47″ x 46″
- Ship Dimensions Table: 137″ x 20″ x 15″
- Weight (Net/Ship): 1815/2112 lbs
Specifications
Specifications
| Laguna Tools Panelsaw 220V 1Phase, P12|10 MPSP12-10-5HP-1PH-0135 | |
| APPLICATION | Wood Working |
| Brand | Laguna Tools |
| HORSEPOWER | 5.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Panel Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 208V-240V 1Ph |
