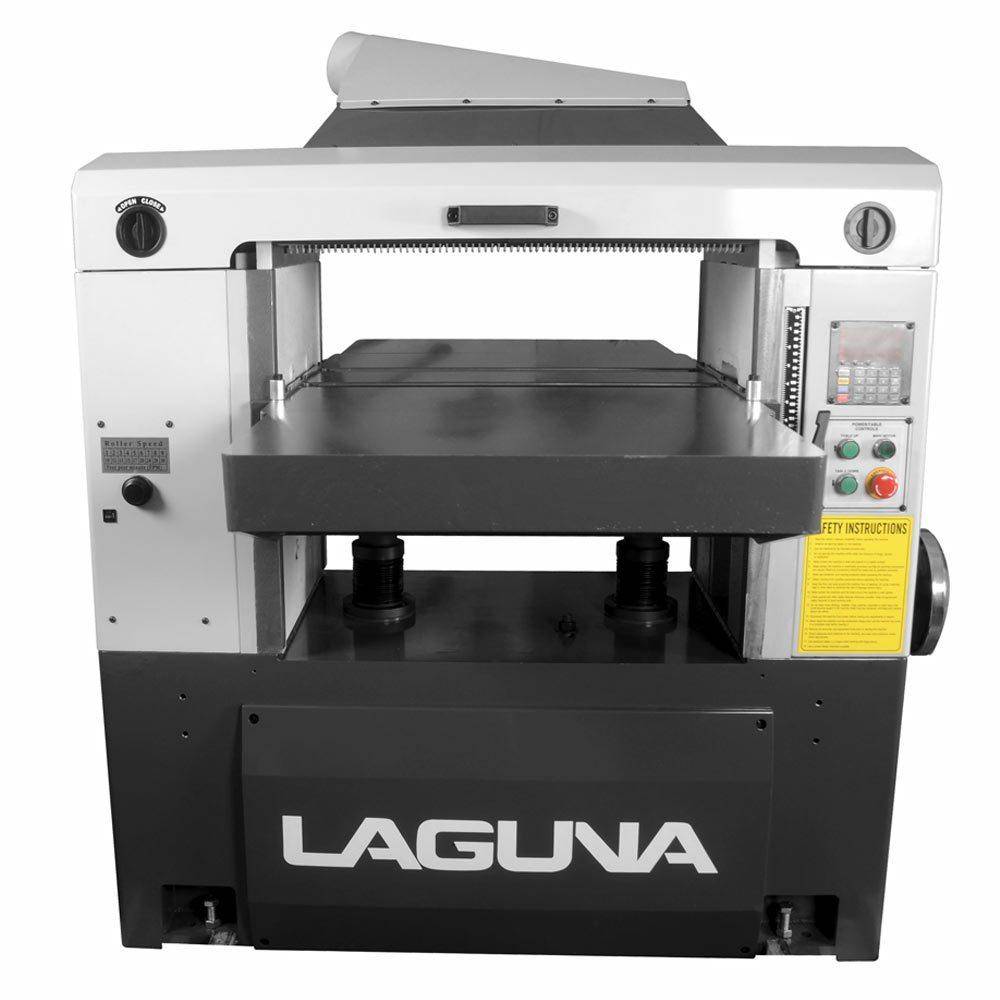

MPLAN25-15-3-0130, Laguna Industrial 25″ Planer With 15HP 3PH
Oversized bearing housings ensure ultra-smooth, quiet performance and long life. Most thickness- planers in this class have only 2 or 4 speeds and it seems they never have the right speed for the job. The Laguna 25” comes standard with Electronic Variable Speed meaning you will ALWAYS have the exact speed required.
Another feature not normally found in this class is the standard PLC control which allows you to simply enter in the desired height and the bed moves automatically to that setting. You’ll never want to go back to turning a hand wheel to find your thickness (or even holding down a button for that matter!). The PLC in the Laguna Industrial 25” planer also has automatic backlash compensation ensuring exact thicknesses.
Of course no world class planer would be complete without our incredible ShearTec II cutter head, which boasts 6 rows of 4 sided German carbide inserts for a total of 174 knives!
Specifications:
- Motor, Cutterhead: 15HP 3 Phase, 220 Volt, 37A
- Motor, Feed: ¾ HP, DC Electronically Variable speed
- Motor, Vertical: ¾ HP, AC
- DRO (Digital Read Out)
- PLC Programmable Height Setting
- Push-Button Height Setting
- Manual Back-Up Height Setting
- Maximum Stock Width: 25”
- Maximum Stock Thickness: 9”
- Minimum Stock Thickness: 1/8”
- Minimum Stock Length: 10”
- Maximum Stock Removal 01-12” Wide: 6 mm/1/4”
- Maximum Stock Removal 12-25” Wide: 3 mm/1/8”
- Electronic Variable Speed 10-30 FPM.
- Table Size: 52”L x 26”W (including extensions)
- ShearTecII Cutterhead: 6 row 174 Insert Knives
- Cutter-head Diameter: 3-1/2”
- Cutter-head Speed: 4800 RPM
- Knives: 174 ShearTec II, 4-sided, Solid Carbide
- Segmented In-feed Roller: 3”
- Segmented Pressure Bar
- 2 Polished Out-feed Rollers: 3”
- Retractable Table Rollers: Adjustable
- In/Out-Feed Cast Extensions Included 10″ L X 26″ W
- Dustport: 5”
- CSA Components
- Weight 1500 Lbs.
Specifications
Specifications
| Laguna Tools Industrial 25in Planer With 15HP 3PH MPLAN25-15-3-0130 | |
| APPLICATION | Wood Working |
| Brand | Laguna Tools |
| HORSEPOWER | 15 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Planers - Stationary Planers |
| TOOL TYPE | Planers |
| VOLTAGE | 208V-240V 3Ph |
