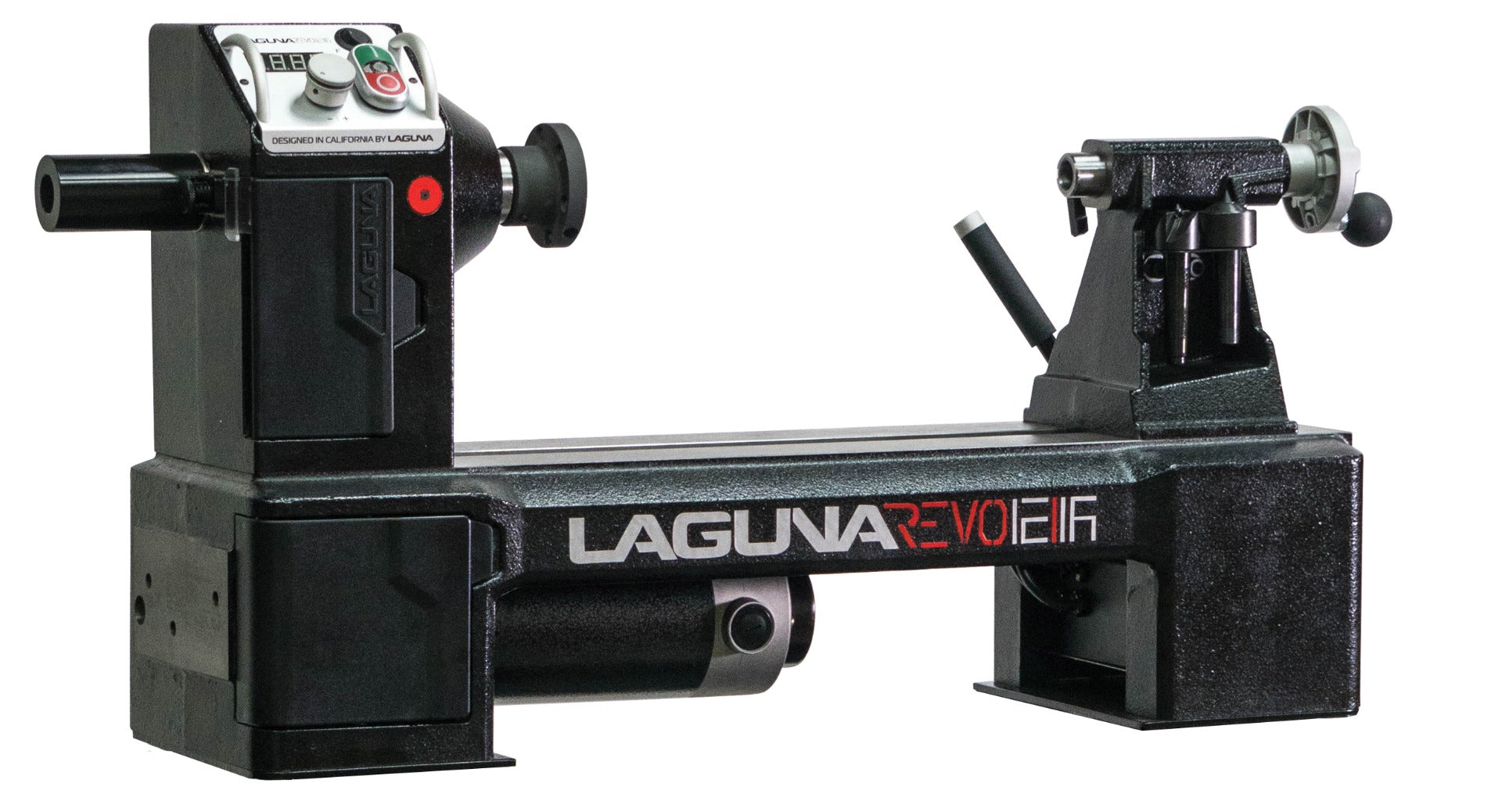

MLAREVO1216EVS, Laguna REVO 12|16 Lathe
REVOLUTIONARY NEW CONTROL PRODUCES SUPERIOR TORQUE
Pulse Width Modulation efficiently delivers more torque at low- to mid-range speeds, minimizing RPM loss. PWM delivers power to a DC motor through a succession of voltage pulses rather than adjusting voltage or current. PWM vastly improves efficiency at low- to mid-range speeds and substantially decreases the loss of torque under load
HOW DOES PULSE WIDTH MODULATION DIFFER FROM STANDARD CONTROLLERS?
Typically a controller limits voltage or current to adjust the speed. This limitation results in less torque being available especially at low to mid-range speeds. The voltage not being used is converted to heat that can damage electrical components after prolonged use
Stand sold seperately.
Features:
- 24 Position Index System with Lock & Transparent Window √

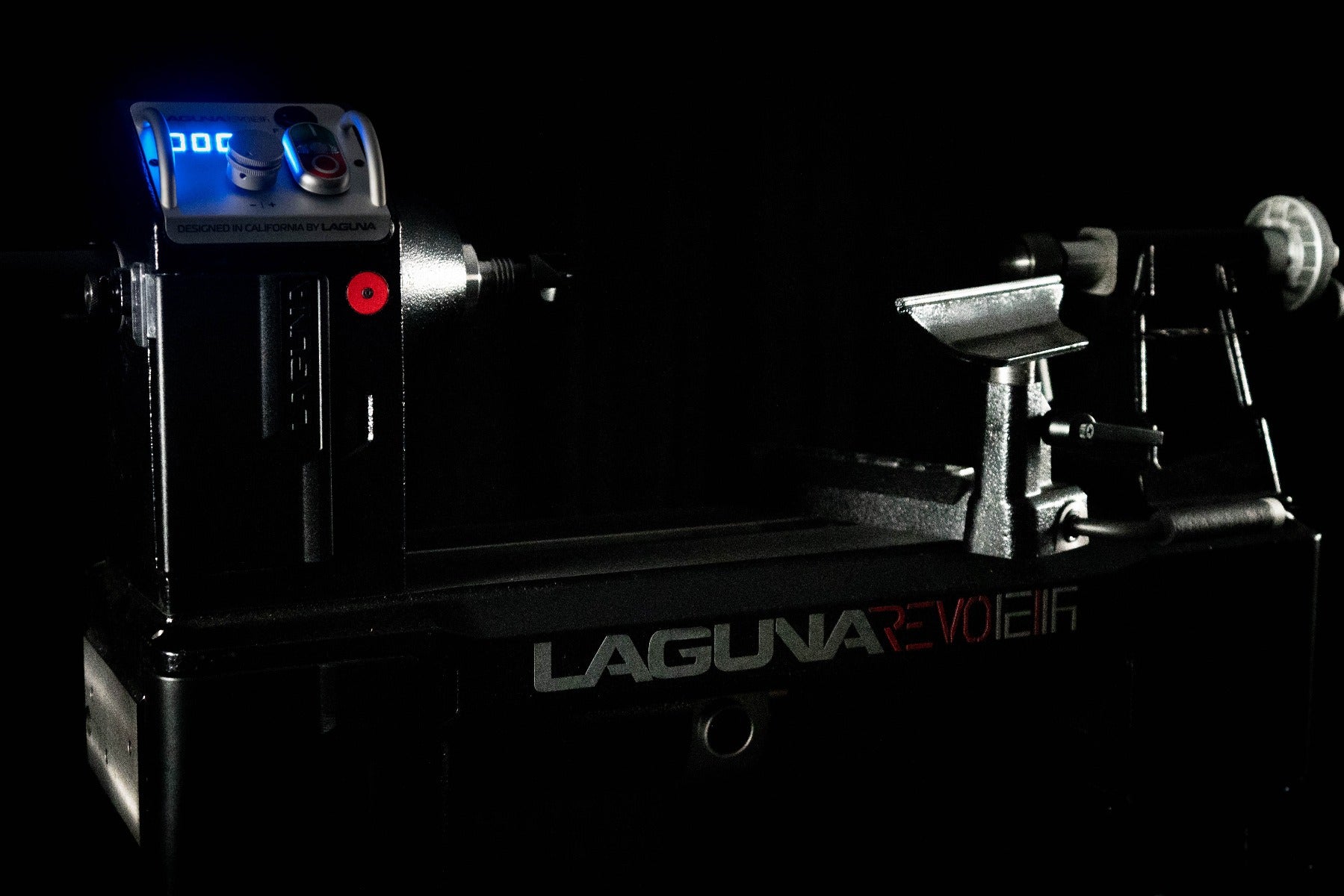

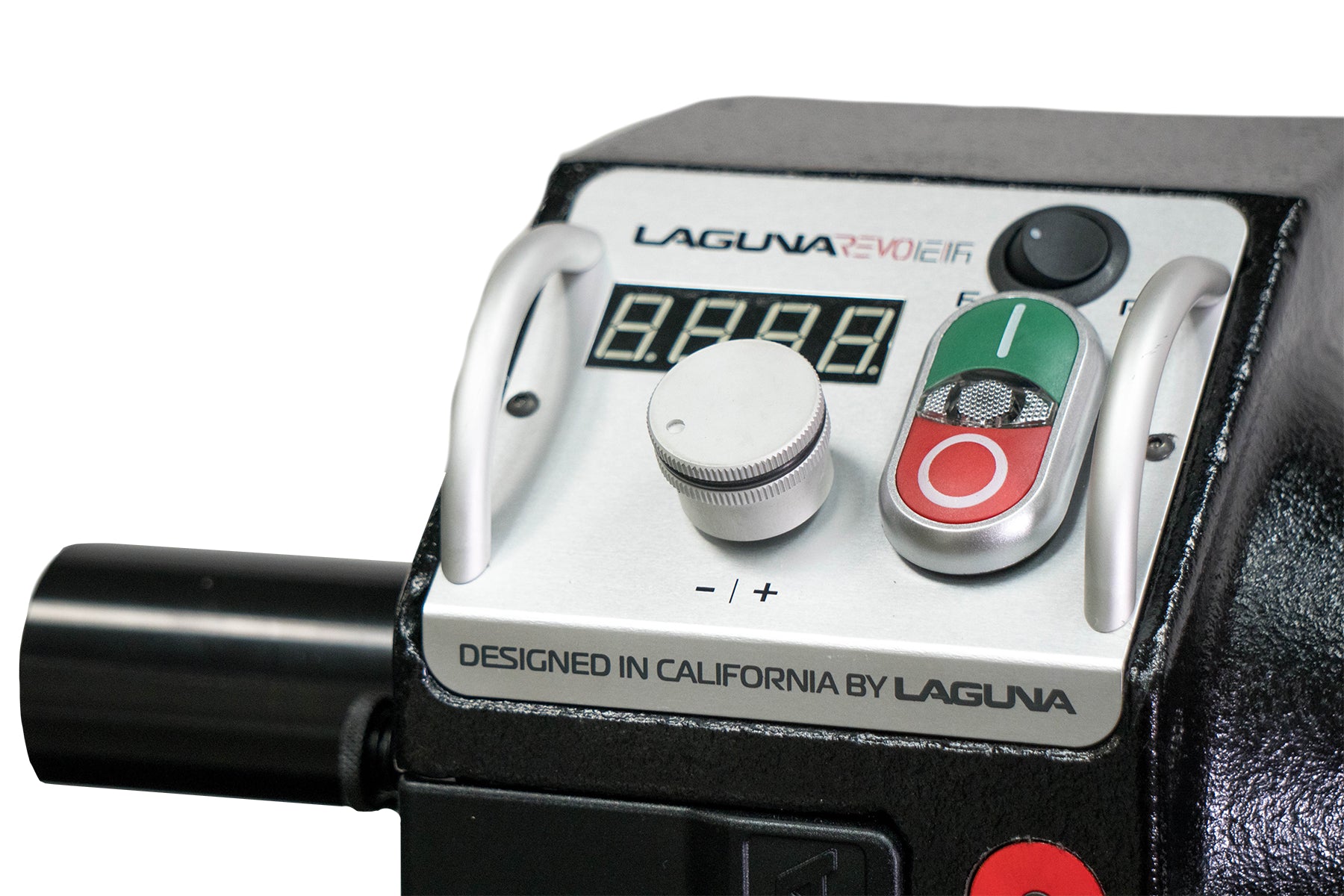

- Electronic Variable Speed & RPM Digital Read Out (DRO) √
- Pulse Width Modulation (PWM) Motor Control √

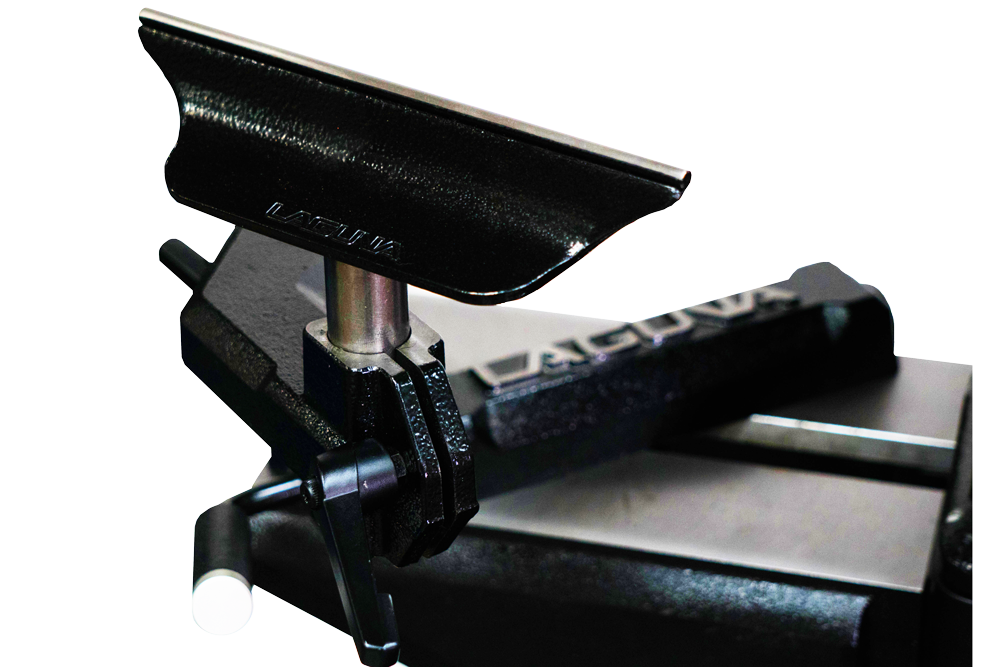

- Hardened 1045 Steel Tool Rest Leading Edge √
- Luxury Banjo with 45° Chamfered Edge √

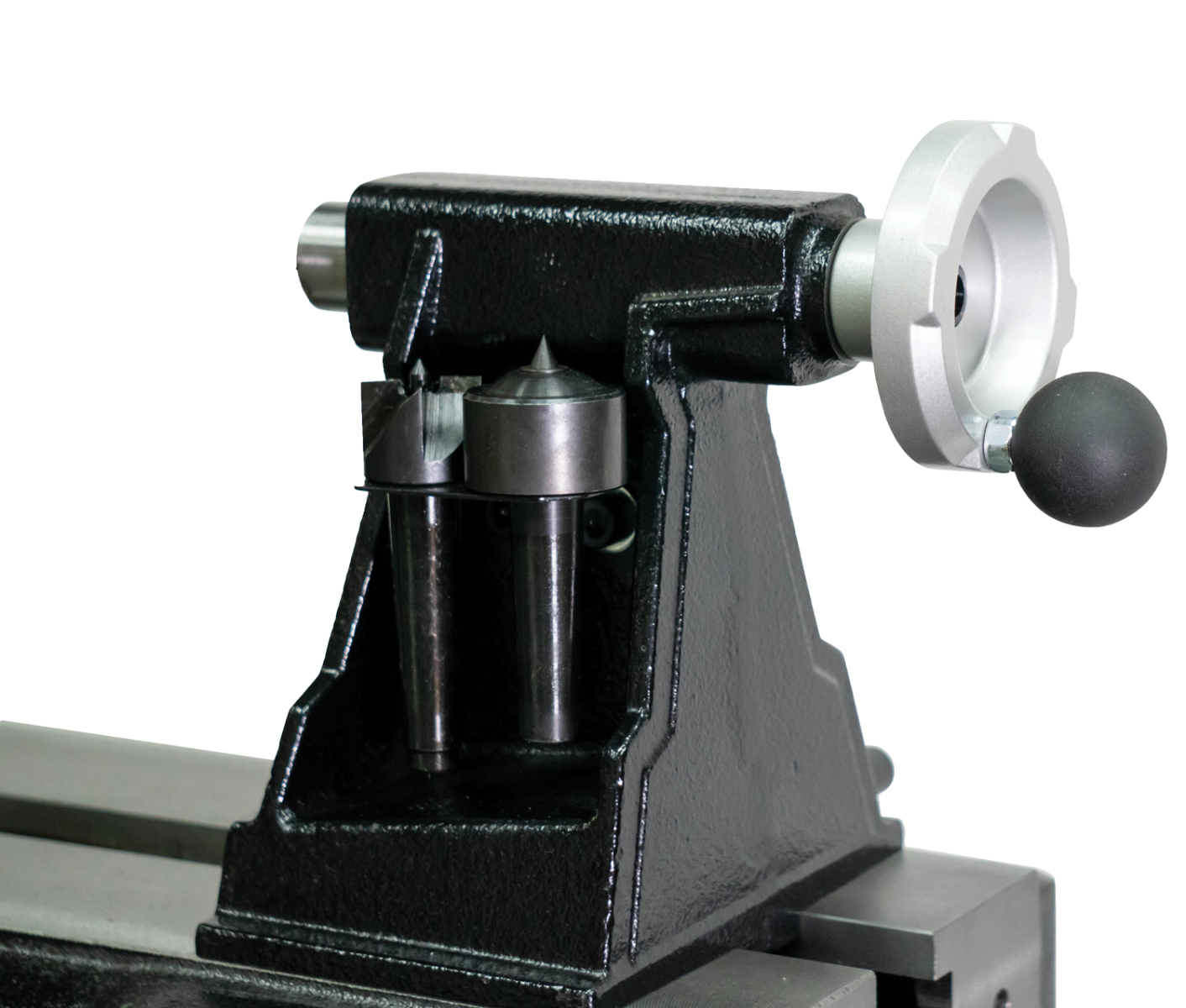

- Live & Drive Center On-Board Storage √
- Forward & Reverse Spindle Rotation √
- Premium Banjo & Tailstock handles √
- 1” REVO Compatible Tool Rest Post √
- 3-1/2” Solid Polished Handwheel √
- ACME Lead Screw in Tailstock √
- Drive Center Knock-out Rod √
- Live Center & Drive Center √
- Magnetic Door Latches √

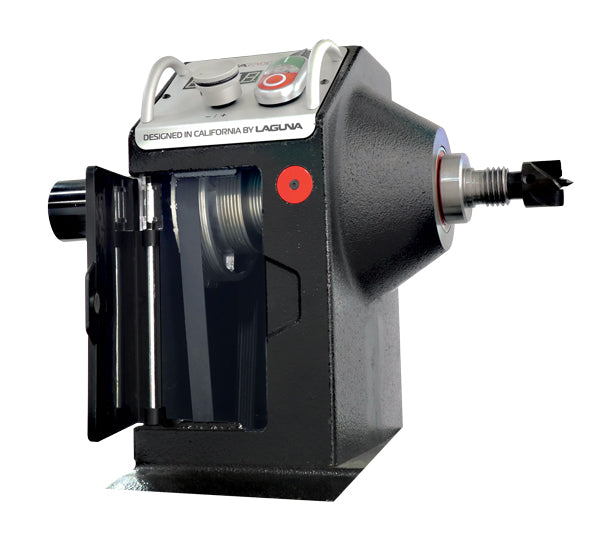

- Tool-less Belt Change √
- Faceplate Wrench √
- 3” Faceplate
Specifications:
- Motor: 1 HP DC Permanent Magnet Motor
- Controller: Pulse Width Modulation (PWM)
- Electrical Requirements: 110V-1PH-60HZ
- Recommended Breaker Size: 110V - 15 AMP
- Speed Range High 650 - 3500 RPM
- Speed Range Mid 325 - 1750 RPM
- Speed Range Low 50 - 525 RPM
- Distance Between Centers 15.5”
- Swing Over Bed 12-1/2”
- Swing Over Banjo 9-1/2”
- Max. Outboard Swing 16”
- Spindle Bore 3/8”
- Spindle Taper MT2
- Spindle Thread 1”x 8 TPI (both ends)

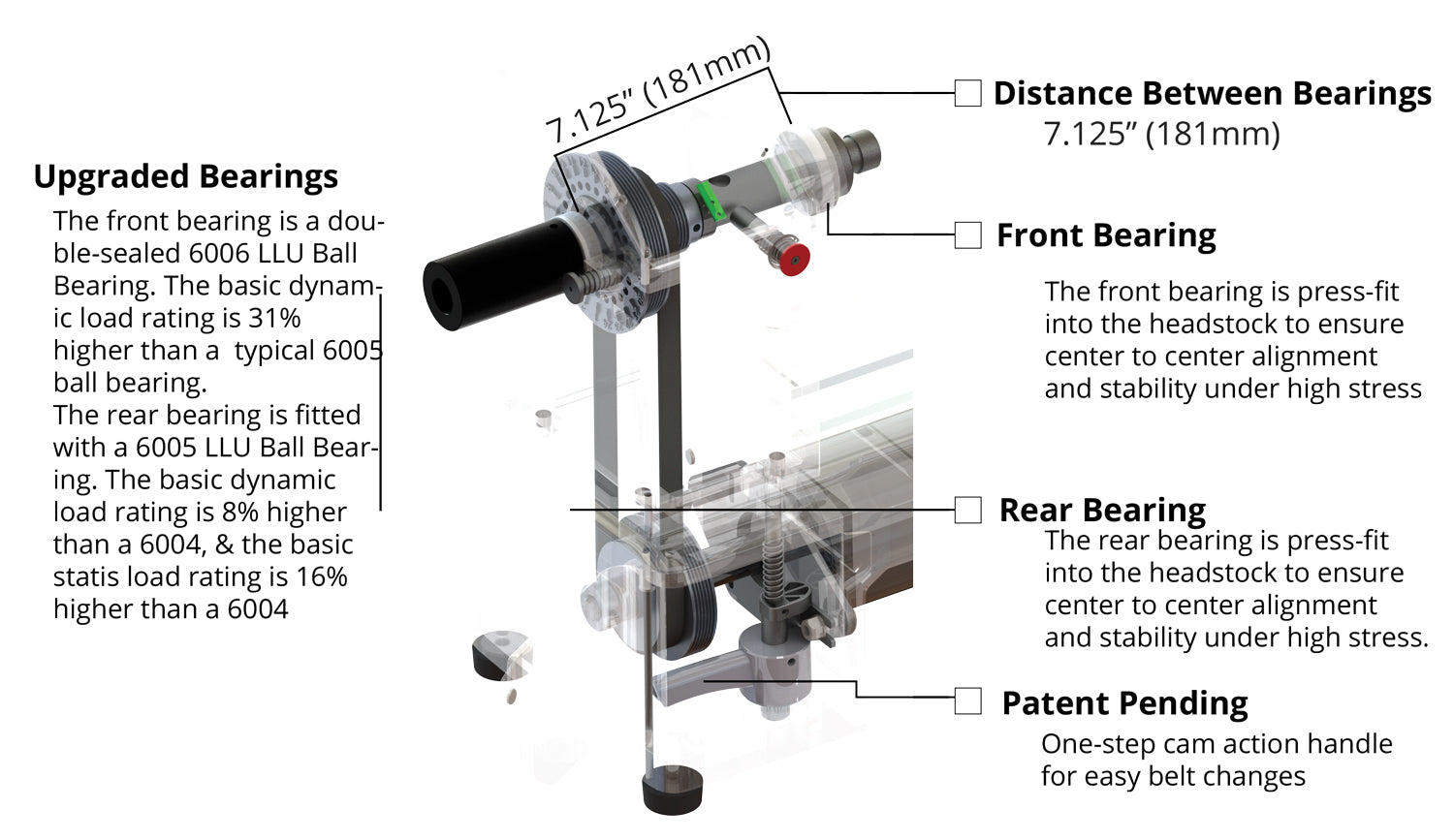

- Front Bearing 6006LLU
- Rear Bearing 6005LLU
- Indexing 24 positions w/ Lock
- Drive belt Poly-V Belt 6 Grooves
- Tail stock quill travel 2-1/2”
- Tail stock taper MT2
- Bed Length 29.4”
- Tool Rest Length 6”
- Tool Rest Post Dia. 1”
- Faceplate Dia. 3”
- Certification CSA C/US 256540
- Floor to bed height 6.7” no pads
- Floor to Spindle Center 13” no pads
- Overall Size L29.4” W8.9” H17.4”
- Shipping Dimensions L35.8” W14.6” H20.5”
- Net Weight 118 LBS
- Shipping Weight 125 LBS
Optional Accessories:

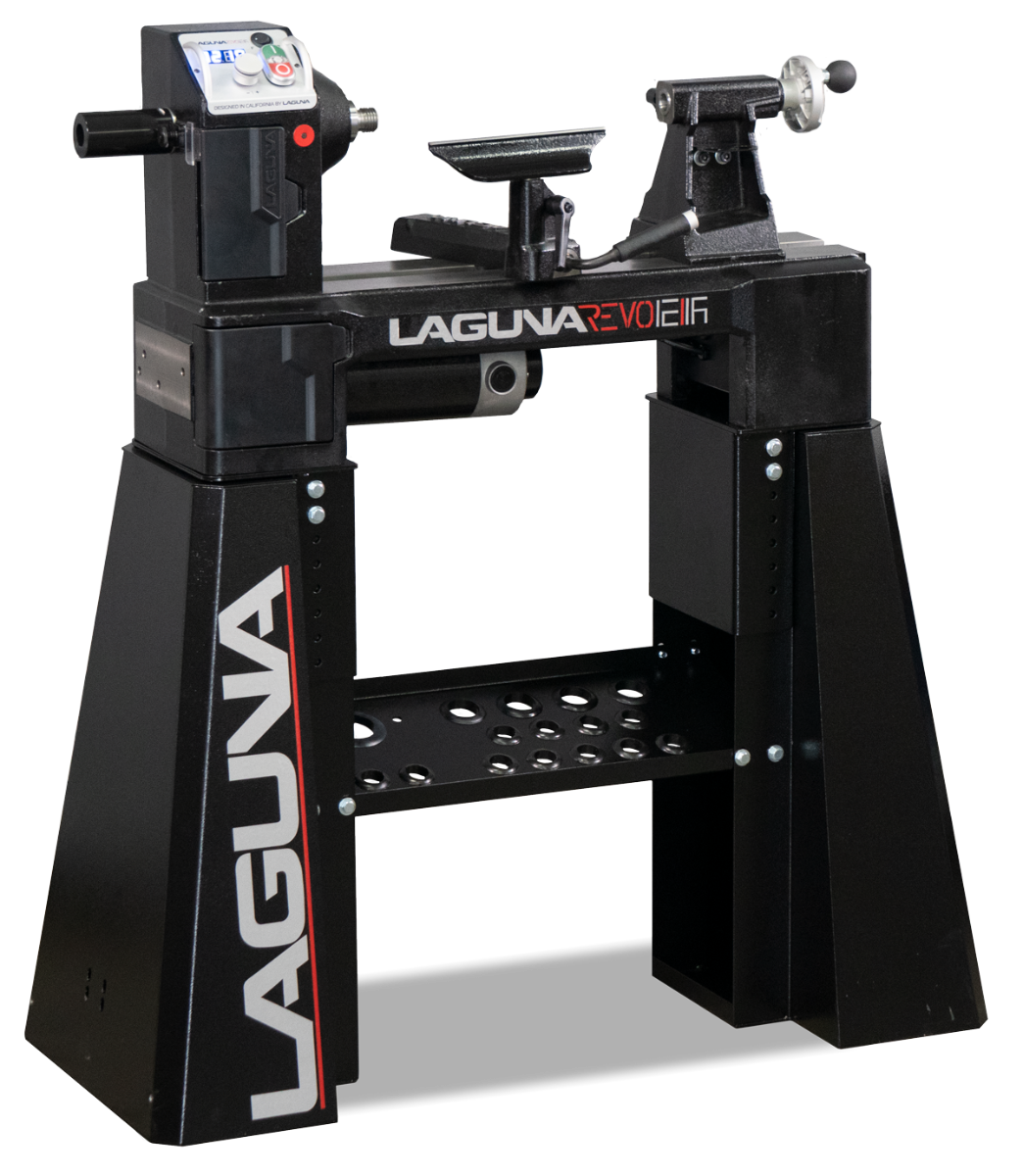

PREMIUM STAND
- Never has a Midi Lathe been supported
- this well. Adjustable from 39”– 45” at
- spindle center & featuring ergonomic
- multi tool shelving. Net Weight is 81 lbs.
- making the Revo 12|16 mounted on stand
- a combined 199 lbs.
INDUSTRIAL FLOOD LIGHT
- Dust-proof ribbed aluminum case
- swivels 320°, features bright
- glare-free floodlight & built-in
- transformer.
L BRACKET
- L-Shaped Bracket mounts on back of headstock In hi/low position.
DELUXE WHEEL SYSTEM
- The Wheel System is designed for maximum stability & ease of use.
- Simply step on pedal to engage.

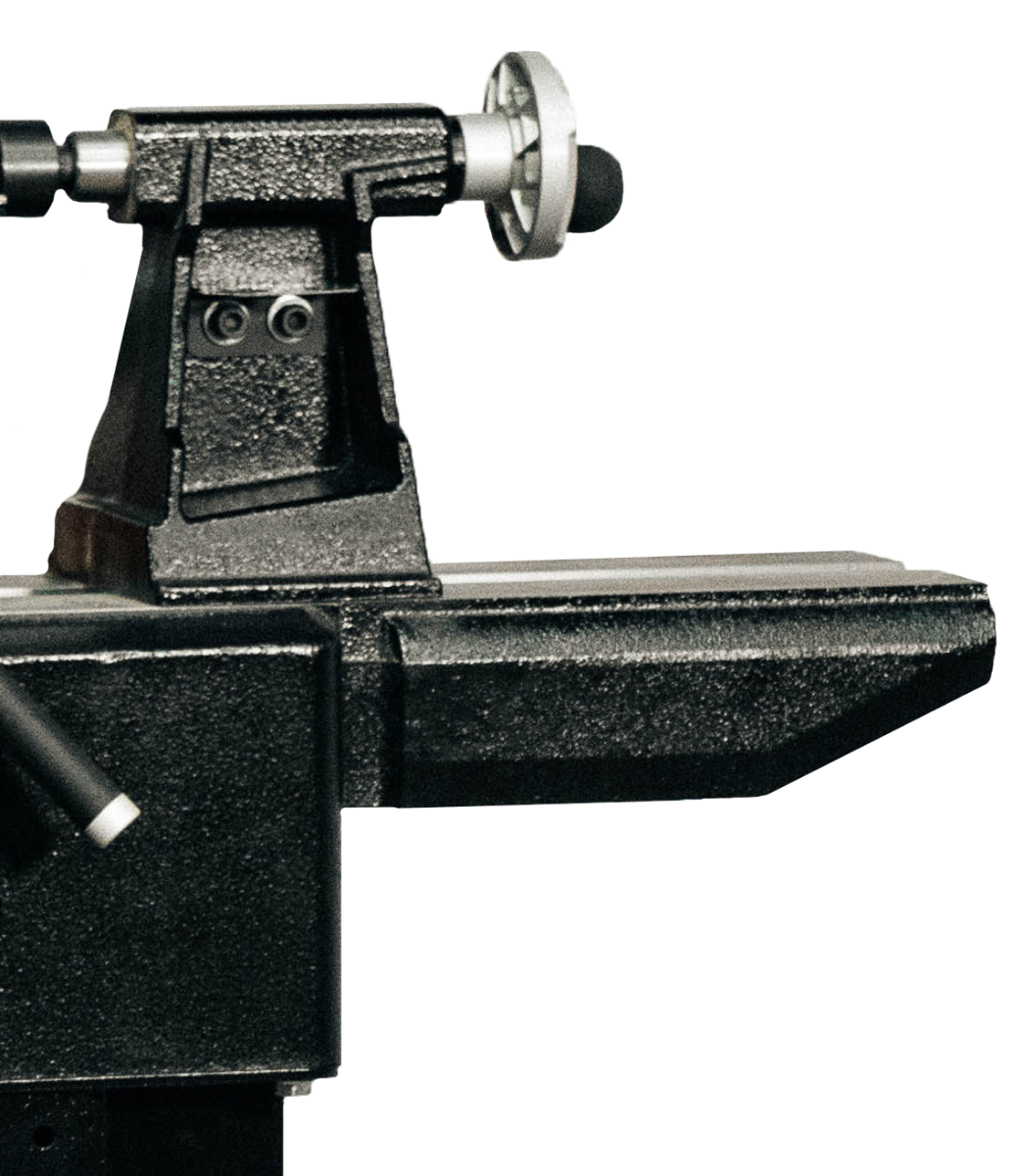

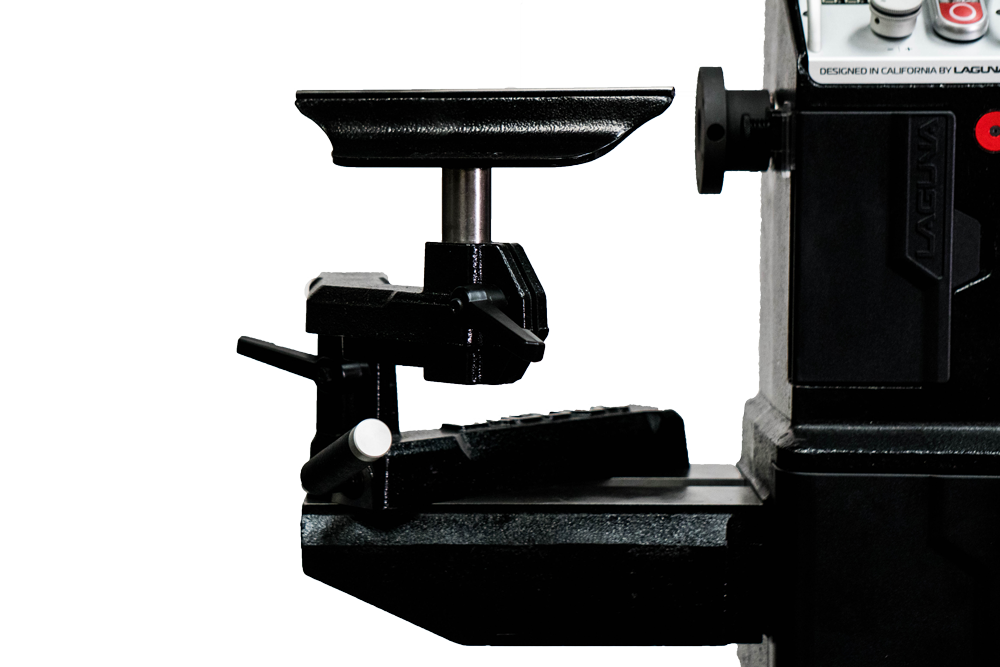

EXPANSION SET
- 10” Cast Iron Extension
- Tool Rest Extension
- Spindle Adaptor LH | RH 1” X 8 TPI
Specifications
Specifications
| Laguna Tools REVO 12|16 Lathe, 1 HP, 110V MLAREVO1216EVS | |
| APPLICATION | Wood Working |
| Brand | Laguna Tools |
| DEPTH | 14.6 in |
| HEIGHT | 20.5 in |
| HORSEPOWER | 1.0 HP |
| MAKE | Revo |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Lathes - Wood Working |
| TOOL TYPE | Lathes |
| VARIABLE SPEED | Yes |
| VOLTAGE | 110V-120V |
| WIDTH | 35.8 in |
