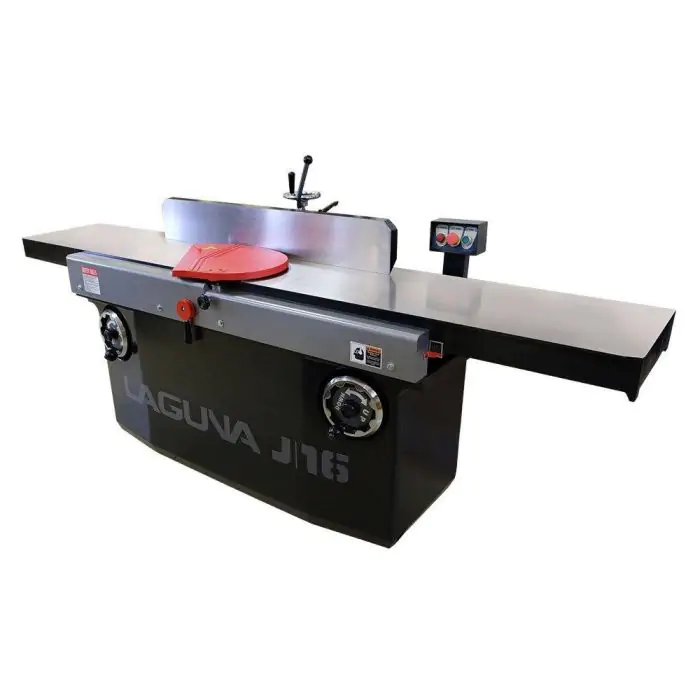

MJO6405-5HP-3PH-0800, Laguna J|16 Industrial Jointer, 5HP, 3Ph, 220V
The J|16 Jointer is the true heavyweight of jointers. Our 16 in. version features a total length of over 8 feet. The heavy cast-iron tables are supported by parallelogram adjusters and controlled through precision hand-wheel adjusters. The Laguna ShearTec cutterhead is equipped with German carbide insert knives for maximum durability and quick replacement. The fence is a heavy casting supported by a large diameter shaft with rack and pinion movement for smooth, repeatable accuracy. The overhead control panel allows for quick, easy operation. The swing-away guard is easily adjustable and removable for knife replacements
Features:
- 98 in. Table Length
- 16 in. Jointer Width
- 31.5 in. Table Height
Specifications:
-
Table Area (L x W): 112 x 20 in.
-
Max Jointing Width: 20 in.
-
Table Height: 31.5 in.
-
Fence Angle: 0-45°
-
Cutterhead: 6 Row
-
Knives: 144 qty
-
Cutterhead Speed: 5000 RPM
-
Motor: 5HP 3PH 220V
- Parallelogram Adjustments
- Cast Iron Body
- Over Head Controls
- Rack and Pinion Fence
-
Net Weight: 1606 lbs.
-
Shipping Weight: 1760 lbs.
Specifications
Specifications
| Laguna Tools Industrial Jointer, 5HP, 3Ph, 220V, J|16 MJO6405-5HP-3PH-0800 | |
| APPLICATION | Wood Working |
| Brand | Laguna Tools |
| HORSEPOWER | 5.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL TYPE | Jointers |
| VOLTAGE | 208V-240V 3Ph |
