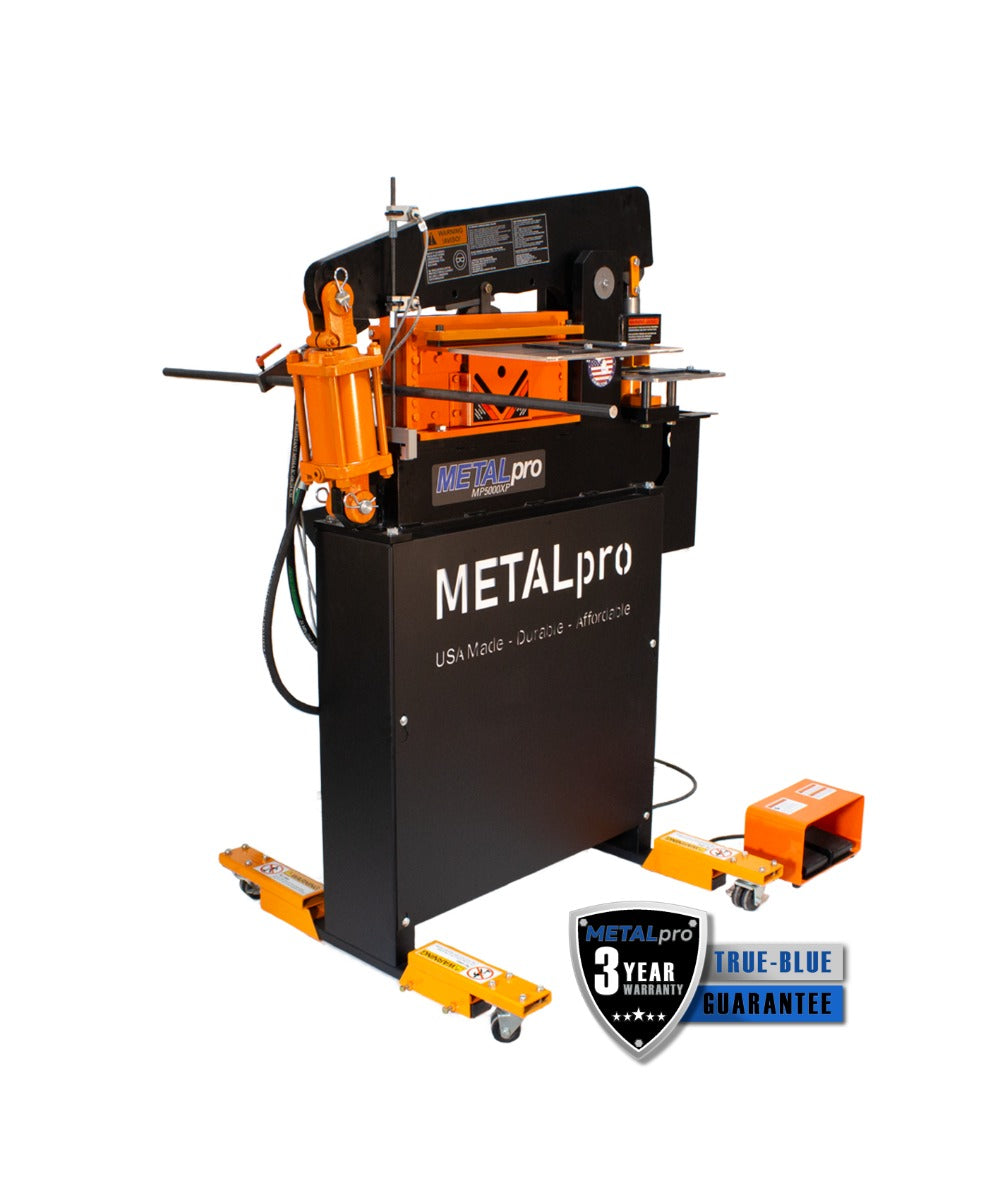

The MP5000XP (Xtreme Production) is a 50-ton ironworker that comes fully loaded with power and attachments, built to handle production and high out-put speeds. It is powered by a foot switch controlled 1.5HP Baldor motor, spinning an American engineered 2 stage, high performance gear pump. The motor/pump runs on 110V single phase power producing 24 strokes per minute and allows for users to punch, shear or brake up to 1/2″ material. This ironworker comes equipped with 13 attachments (listed below) giving users all the tools needed to hit the ground running. The MP5000XP is loaded with capabilities, and it’s matte black color with orange accents are, sleek, bold and just plain badass.

Quality is not just a promise at METALpro, its part of our foundation. It is why we make our machines in Hamilton, Michigan and source 100 percent of our components in the USA. We don’t just talk about durability, we mean it, and that’s why we offer an industry leading 3 year warranty.

• 1.5HP Baldor Motor with 2 Stage (HI-LO) gear pump 2900PSI

• Dual pedal foot switch with safety cover (8ft length)

• 12 inch 3 in 1 Combination Shear (Flat Bar, Angle Iron, Round Rod, Square Bar)

• 12″ Press Brake with 3/16″ brake die set

• Brake Back Stop

• Brake Guide Table

• Limit Switch Kit (Stroke Control with micro adjust)

• Punch Station Guide Table

• Shear Guide Table

• Slug Catcher

• Wheel Kit

• Shear back stop

• 8 Piece Punch and Die Set (9/32″, 11/32″, 13/32″, 15/32″, 17/32″, 21/32″, 25/32″, 29/32″)

All in one ‘fabrication shop’ with capabilities in:

• Punching
• Forming
• Shearing
• Pressing
• Notching
• Pipe notching
• Bending

• HI-LO 2 stage gear pump, 1.5HP Baldor Motor
• Punch capacity of 50 tons
• Power cavity with 3-in-1 12 inch shear
• 12 inch brake with back stop and guide table
• 8 piece punch and die set (standard bolt hole sizes)
• Wheel kit for maneuverability
• Stroke control kit with microadjust
• Punch and shear station guide tables
• Built in slug catcher
• Guarding complies with ANSI B11-8 standards
• 3 year warranty

Frame Dimensions

Width .................................24"
Height ................................59"
Length................................36½"
Weight ...............................900 pounds

Speed

Strokes per minute ..........24
Motor ................................110V AC single phase, 1.5 HP, 2 Stage Pump
Capacity.............................50 tons
Throat Depth....................3¾"
Punch ................................50 ton max capacity

Shear

Flat bar ..............................up to 1/2"
Angle .................................¼" x 4"x 4"
Rod.....................................¾"
Square................................5/8"
Hydraulics..........................2900 PSI
Oil capacity........................1.5 US gallons

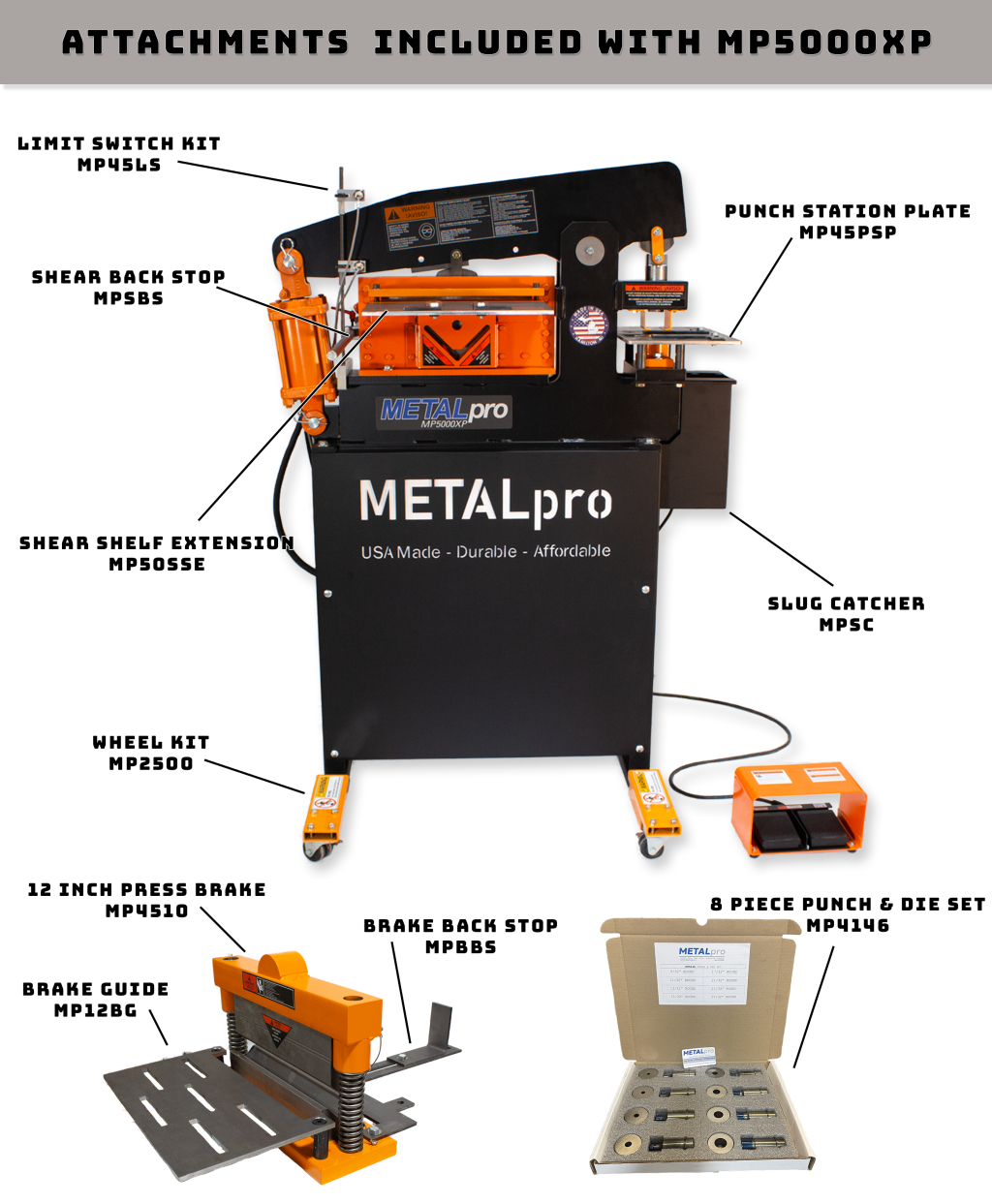

Accessories (Included)

Brake .................................12 inch brake w/ back stop and front guide table
Limit Switch Kit .................stroke control with microadjust
Guide Plates......................punch station plate and shear shelf extension
Slug Catcher......................holds hundreds of slugs
Wheel kit............................locking casters
Shear back stop.................adjustable shear back stop for repeat cuts
Punch and die set..............8 piece PD set (standard bolt hole sizes)
NOTCHERS AND OTHER CUSTOM TOOLING SOLD SEPERATELY

Our XP models are made and designed with production in mind. These models are efficient with an equipped 1.5HP Baldor motor, 2 stage gear pump that produces 26 stokes per minute. This XP model comes standard with a plethora of tooling and accessories designed for high-output production.

We ensure the highest quality standards, sourcing 100 percent of our components in the USA. Quality you can trust, and backed industry leading 3 year warranty.

Choose METALpro!
