MetalPro 5/8" Square Tube Die Set MP95S-058
MetalPro 5/8" Square Tube Die Set MP95S-058
Couldn't load pickup availability
Details
Details
Refine your ornamental fabrication capabilities with the MP95S-058 5/8" Square Tube Die Set. Designed as a direct-fit solution for the MetalPro MP9500 Hydraulic Bender, this tooling package addresses the specific challenges of bending small-dimension 5/8-inch (0.625") square tubing. It is the premier choice for creating intricate scrollwork, custom lighting frames, and architectural accents.
Bending small square tubing requires extreme precision to prevent the material from twisting or "corkscrewing" during the forming process. The MP95S-058 utilizes a precision-machined "full containment" die cavity that strictly supports all four sides of the tube. This support mitigates sidewall deformation and ensures the tube remains square throughout the bend radius. Manufactured from solid billet carbon steel, these dies are rated for mild steel tubing with wall thicknesses up to 0.120", delivering consistent, repeatable results for production environments.
Features & Benefits
- Anti-Twist Geometry: Full-containment grooves prevent small diameter tubing from rotating or corkscrewing.
- Decorative Specialist: The ideal size for fabricating high-end furniture accents and window guards.
- Solid Billet Construction: Machined from a 55 lb block of carbon steel for maximum rigidity and longevity.

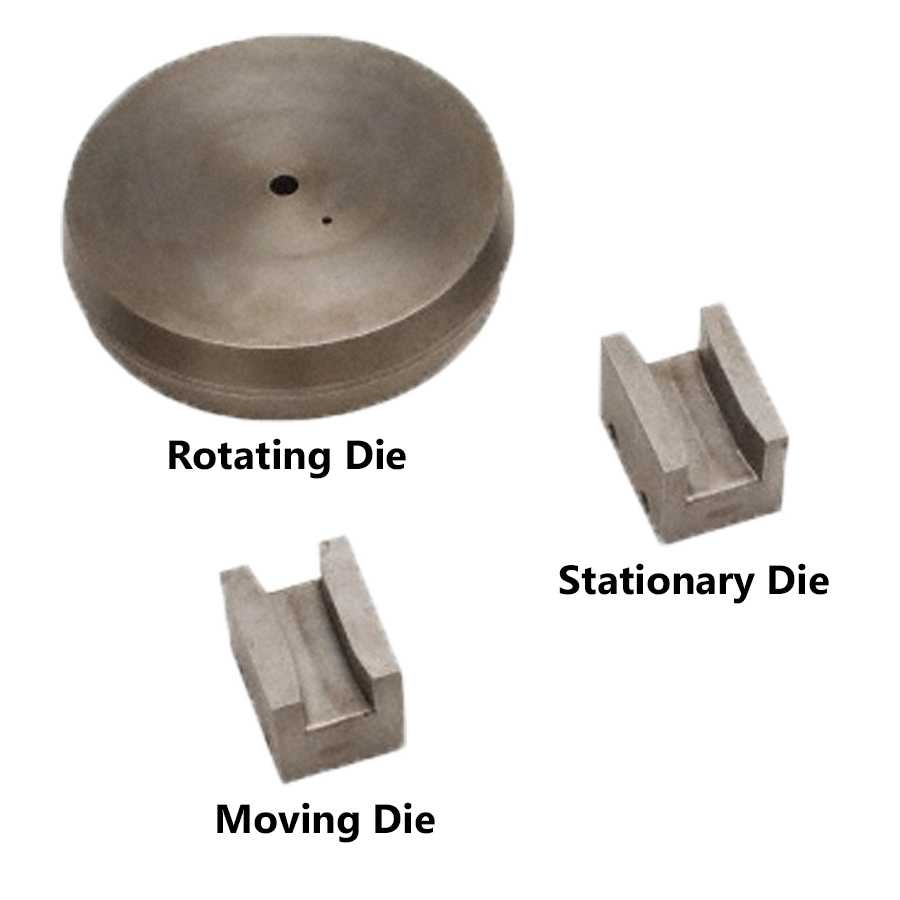

- Complete Tooling System: Includes matched Rotating Die, Stationary Die, and Moving Die for immediate operation.
Specifications
- Compatible Machine: MetalPro MP9500 Hydraulic Bender
- Tube Capacity: 5/8" (0.625") Square Tube
- Max Wall Thickness: 0.120"
- Material: High-Grade Carbon Steel
- Shipping Weight: 55 lbs
Specifications
Specifications
| MetalPro 5/8" Square Tube Die Set MP95S-058 | |
| APPLICATION | Metal Working |
| Brand | MetalPro |
| PRODUCT TYPE | Accessories |
| TOOL SUB-TYPE | Metal Forming - Benders |
| TOOL TYPE | Metal Forming |
