MetalPro 45-Ton Ironworker w/ 8" Shear Kit, 5pc Round Punch Kit BNDL-MP4500FS-S8-B0-P5
MetalPro 45-Ton Ironworker w/ 8" Shear Kit, 5pc Round Punch Kit BNDL-MP4500FS-S8-B0-P5
Couldn't load pickup availability
Details
Details

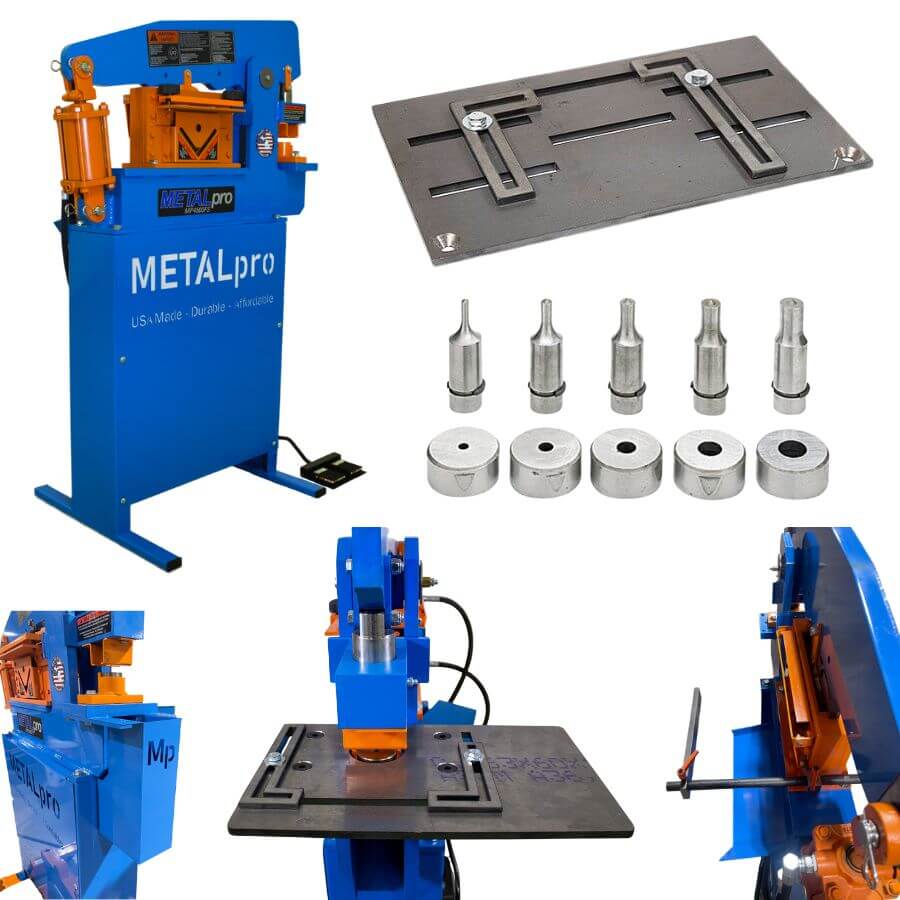

METALpro 45-Ton Ironworker w/ 8" Shear Kit, 5pc Round Punch Kit BNDL-MP4500FS-S8-B0-P5

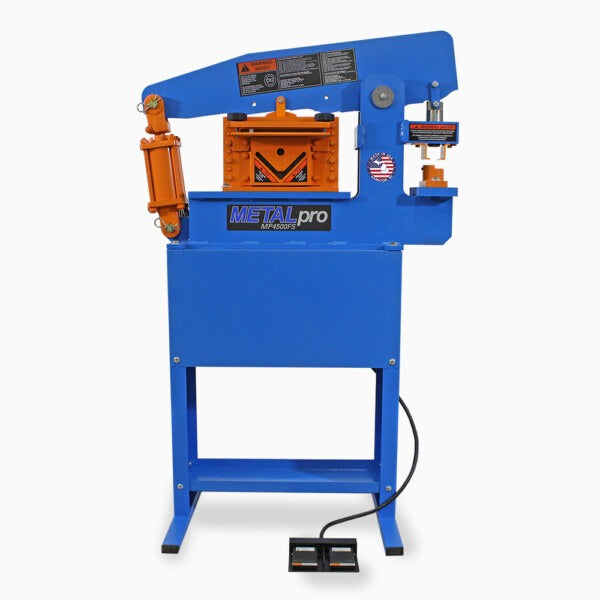

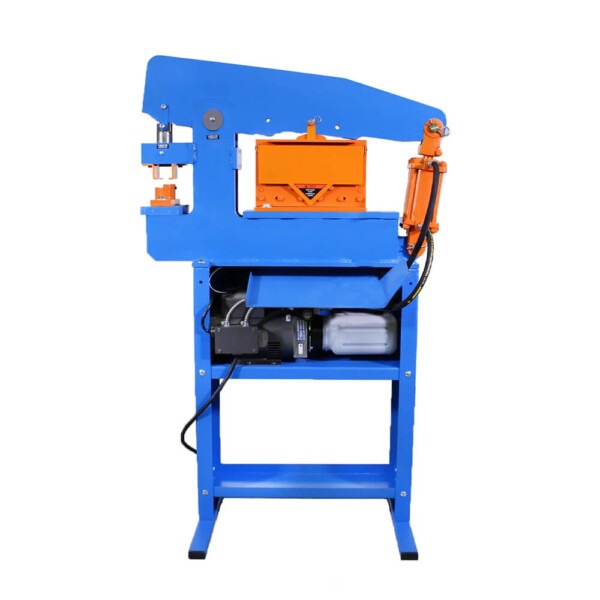

METALpro's MP4500FS ironworker delivers 45 tons of punching force and 22.5 tons at the central station. Like the larger MP5000FS, it runs on a standard 110/120 V outlet and uses foot‑switch controlled hydraulics for precise hands‑free operation. A built‑in 8 in. 3‑in‑1 shear cuts flat bar, angle and rod stock while the forming station handles material up to 1/2 in. thick. The machine is made in the USA and backed by a 3‑year limited warranty. This bundle pairs the ironworker with an 8 in. shear shelf extension and back stop for repeatable cuts and a 5‑piece round punch kit with guide table and slug catcher, giving you everything needed for punching, shearing and forming operations.
Features & Benefits
- 45‑ton ironworker with 45 tons at the punch station and 22.5 tons at the central workstation; powered by 110/120 V single‑phase electricity and controlled via foot‑switch
- 8 in. 3‑in‑1 shear cuts flat bar up to 1/2 in., angle up to 1/4 × 4 × 4 in. and round rod up to 3/4 in
- Forming station handles material up to 1/2 in. thick with 25 tons of forming capacity
- USA‑made with a 3‑year limited warranty
- 8 in. shear shelf extension adds a stable work surface with adjustable L‑brackets for repeatable cuts
- Shear back stop (MPSBS) adjusts up to 48 in. and includes a mounting bracket, adjustable rod and stop for consistent length cuts
- 5‑piece round punch kit expands your punching capacity with sizes 1/4 in., 3/8 in., 1/2 in., 5/8 in. and 3/4 in.
- Guide table (MP45PSP) bolts to the punch station and includes adjustable L‑brackets for accurate, repeatable punching
- Slug catcher (MPSC) mounts beneath the punch station to capture slugs and keep the workspace clean
Specifications
- Punch capacity: 7/8 in. round hole through 1/2 in. mild steel
- Forming tonnage: 25 tons; forming capacity up to 1/2 in. thick
- Shear capacity: 1/2 in. flat bar, 1/4 × 4 × 4 in. angle, 3/4 in. round rod
- Power: 110/120 V single‑phase; foot‑switch controlled hydraulics
- Dimensions: 24 × 36.5 × 59 in.; weight: 575 lb
Downloads
Specifications
Specifications
| MetalPro 45-Ton Ironworker w/ 8" Shear Kit, 5pc Round Punch Kit BNDL-MP4500FS-S8-B0-P5 | |
| APPLICATION | Metal Working |
| Brand | MetalPro |
| HORSEPOWER | 1.5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Metal Forming - Ironworkers |
| TOOL TYPE | Metal Forming |
| VOLTAGE | 110V-120V |
| MetalPro 45 Ton Ironworker with 8 in. Shear and Foot Switch MP4500FS | |
| APPLICATION | Metal Working |
| Brand | MetalPro |
| HORSEPOWER | 1.5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Metal Forming - Ironworkers |
| TOOL TYPE | Metal Forming |
| VOLTAGE | 110V-120V |
| MetalPro 8 in. Shear Shelf Extension MP45SSE | |
| APPLICATION | Metal Working |
| Brand | MetalPro |
| PRODUCT TYPE | Accessories |
| TOOL SUB-TYPE | Metal Forming - Shears |
| TOOL TYPE | Metal Forming |
| MetalPro Shear Back Stop MPSBS | |
| APPLICATION | Metal Working |
| Brand | MetalPro |
| PRODUCT TYPE | Accessories |
| TOOL SUB-TYPE | Metal Forming - Ironworkers / Metal Forming - Shears |
| TOOL TYPE | Metal Forming |
| MetalPro 5 Piece 1/4 to 3/4 in. Round Punch and Die Set MP4140 | |
| APPLICATION | Metal Working |
| Brand | MetalPro |
| DIAMETER | Assorted |
| PRODUCT TYPE | Accessories |
| TOOL SUB-TYPE | Metal Forming - Ironworkers |
| TOOL TYPE | Metal Forming |
| MetalPro Punch Station Guide Table MP45PSP | |
| APPLICATION | Metal Working |
| Brand | MetalPro |
| PRODUCT TYPE | Accessories |
| TOOL SUB-TYPE | Metal Forming - Ironworkers |
| TOOL TYPE | Metal Forming |
| MetalPro Slug Catcher MPSC | |
| APPLICATION | Metal Working |
| Brand | MetalPro |
| PRODUCT TYPE | Accessories |
| TOOL SUB-TYPE | Metal Forming - Ironworkers |
| TOOL TYPE | Metal Forming |
