MetalPro 3/4", 1" Round Pipe Die Set MP95P-034
MetalPro 3/4", 1" Round Pipe Die Set MP95P-034
Couldn't load pickup availability
Details
Details
The MP95P-034 Round Pipe Die Set is the definitive tooling solution for general-purpose fabrication with the MetalPro MP9500. Designed to handle the industry's most common handrail and safety barrier sizes, this set enables the bending of 3/4-inch nominal and 1-inch nominal pipe. The integrated dual-groove design maximizes shop efficiency by consolidating two critical sizes into one robust setup.
Featuring a 4-inch Centerline Radius (CLR), this die set ensures smooth, consistent bends that meet commercial architectural standards. The 4-inch radius is optimized to minimize wall thinning and ovality in 1-inch pipe, preserving the structural integrity required for safety-critical applications. Fully rated for Schedule 80 wall thicknesses, the carbon steel dies (Models 9553, 9554, 9555) resist wear even under heavy industrial use.
Features & Benefits
- Dual-Size Capability: Accommodates 3/4" and 1" pipe in a single tooling setup, ideal for handrail construction.
- Optimized 4" Radius: Provides a 3:1 bend ratio for 1" pipe, ensuring minimal distortion and maximum flow characteristics.
- Heavy-Duty Construction: Machined from billet carbon steel to withstand 12 tons of hydraulic force.

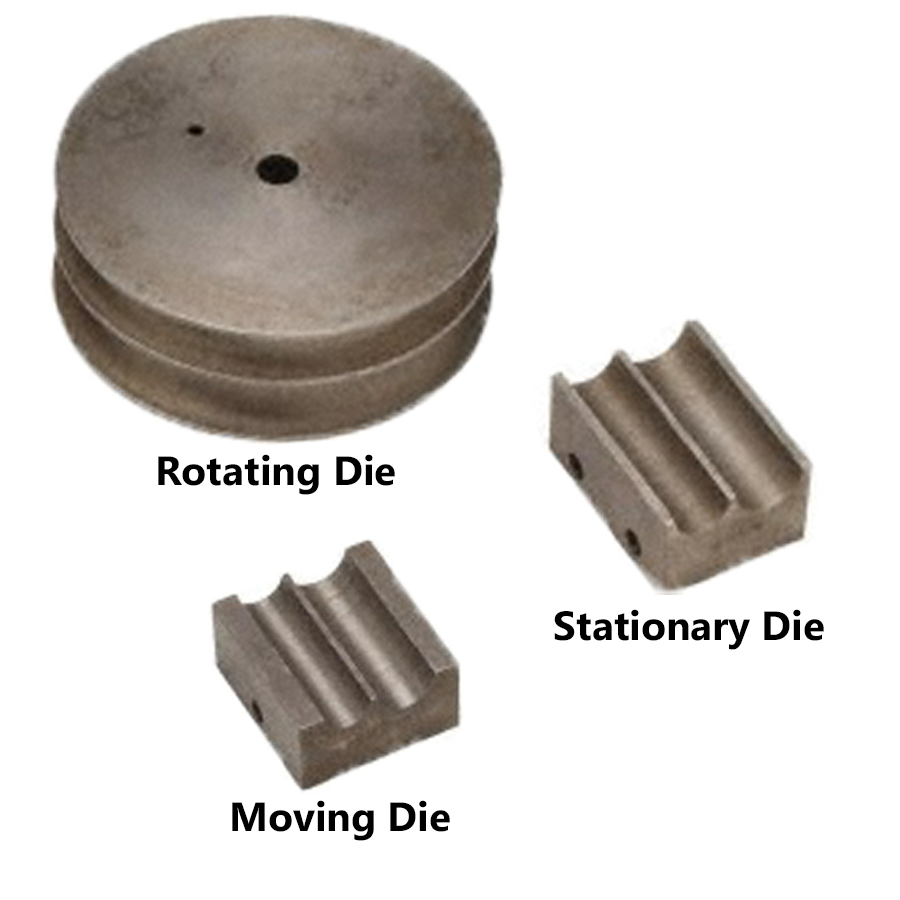

- Complete System: Includes matched Rotating, Stationary, and Moving dies.
Specifications
- Compatible Machine: MetalPro MP9500 Hydraulic Bender
- Pipe Capacity: 3/4" (1.050" OD) and 1" (1.315" OD)
- Centerline Radius: 4.0 Inches
- Die Models Included: 9553 (Rotary), 9554 (Stationary), 9555 (Moving)
Specifications
Specifications
| MetalPro 3/4", 1" Round Pipe Die Set MP95P-034 | |
| APPLICATION | Metal Working |
| Brand | MetalPro |
| PRODUCT TYPE | Accessories |
| TOOL SUB-TYPE | Metal Forming - Benders |
| TOOL TYPE | Metal Forming |
