MetalPro 1-3/4" Square Tube Die Set MP95S-134
MetalPro 1-3/4" Square Tube Die Set MP95S-134
Couldn't load pickup availability
Details
Details
Step up to heavy-duty structural fabrication with the MP95S-134 1-3/4" Square Tube Die Set. Designed for the powerful MetalPro MP9500, this massive tooling package enables the bending of 1-3/4 inch square tubing, a primary material for heavy equipment frames, architectural arches, sign posts, and substantial support structures.
Bending large-profile square tubing requires immense hydraulic force and incredibly robust tooling to prevent die deflection. The MP95S-134 is machined from massive blocks of billet carbon steel, bringing the total set weight to 109 lbs. This mass is critical for absorbing the stresses of bending 0.120" wall thickness material without distorting. The deep, precision-ground channels fully encapsulate the tube, preventing sidewall blowout and ensuring that the structural integrity of the steel is maintained throughout the bend.
Features & Benefits
- Heavy-Duty Capacity: Enables bending of substantial 1-3/4" tubing for structural applications.
- Deflection Resistant: Massive 109 lb billet steel construction maintains accuracy under maximum load.
- Profile Preservation: Engineered containment prevents large-tube deformation and collapse.
- Professional Results: Ideal for architectural steel and industrial machinery frames.
Specifications
- Compatible Machine: MetalPro MP9500 Hydraulic Bender
- Tube Capacity: 1-3/4" Square Tube
- Max Wall Thickness: 0.120"

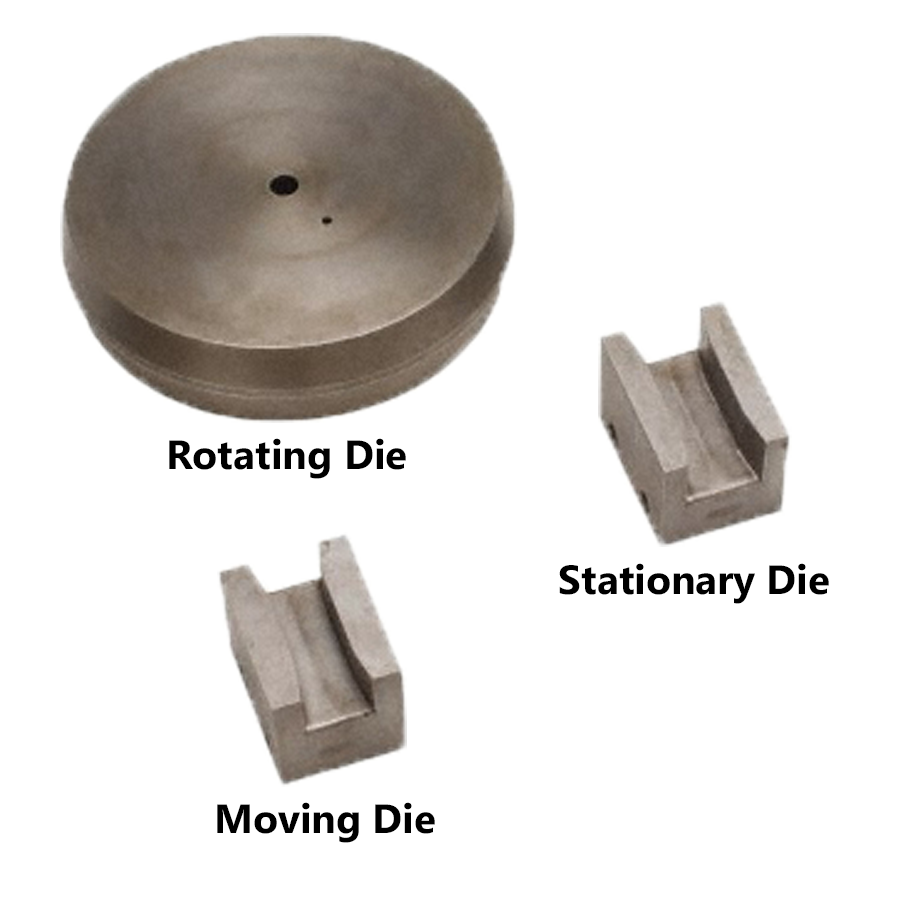

- Set Components: Rotating Die, Stationary Die, Moving Die
- Shipping Weight: 109 lbs
Specifications
Specifications
| MetalPro 1-3/4" Square Tube Die Set MP95S-134 | |
| APPLICATION | Metal Working |
| Brand | MetalPro |
| PRODUCT TYPE | Accessories |
| TOOL SUB-TYPE | Metal Forming - Benders |
| TOOL TYPE | Metal Forming |
