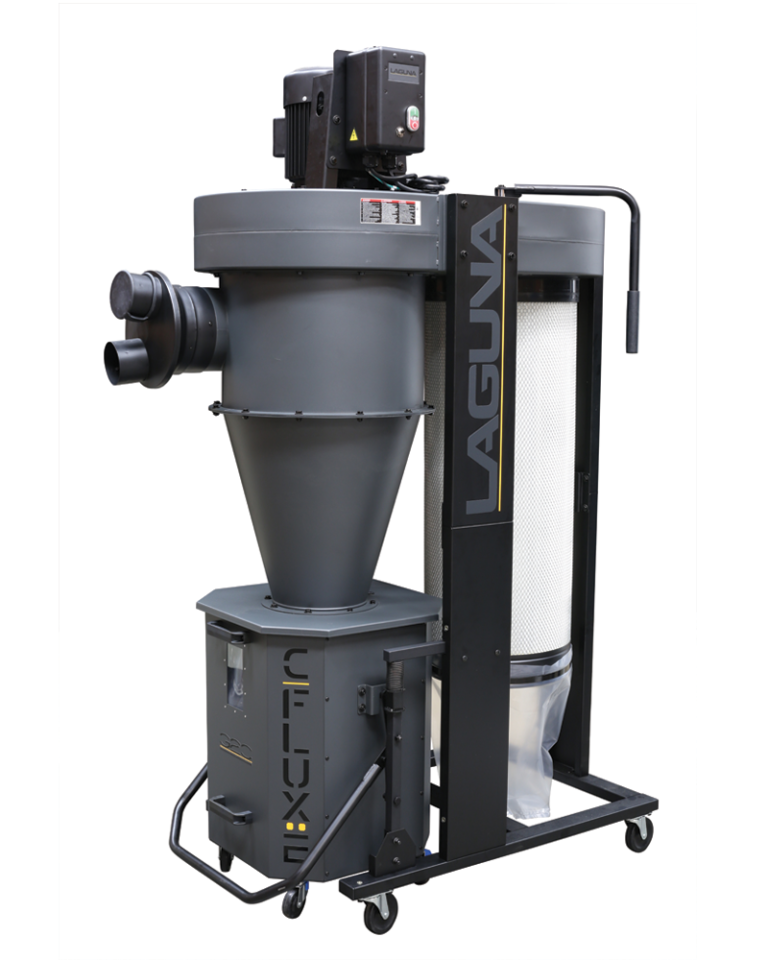

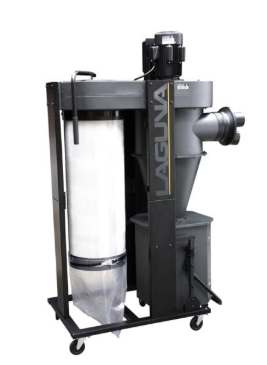

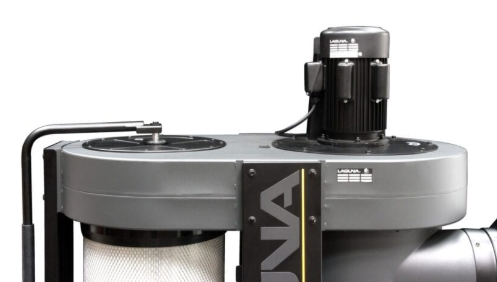

MDCCF22201, Laguna C|Flux:2 2hp 220v Cyclone Dust Collector
The C|Flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM.
All shapes and dimensions has been reevaluated to optimize performance.

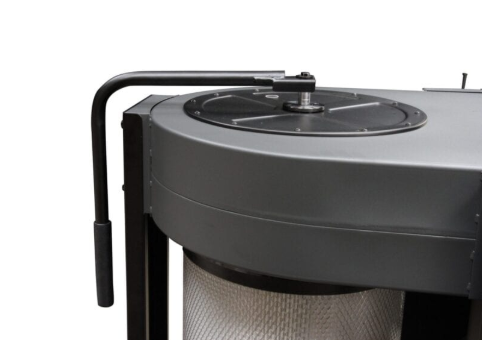

The C|Flux:2 comes standard with a 1 micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron & features 109 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.
Features:

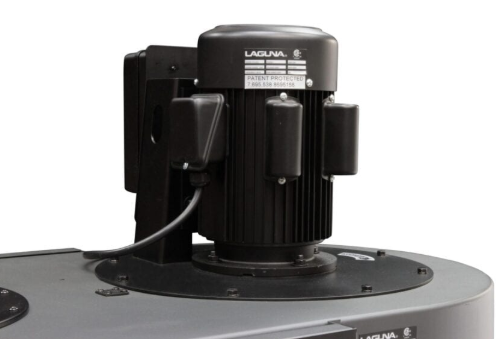

- Motor HP: 2 HP
- Phase: 1
- Voltage: 220v
- Amps: 14 Amps
- Recommended Breaker: 20 AMP
- Hertz: 60
Specifications:
-
Plug: No
-
RPM: 3450
-
Switch Type: Radio Frequency Remote Switch – Black Box
-
Hand Held Remote: HF
-
Shop Setting CFM: 116
-
Inlet CFM: 1740
-
Max Static Pressure (Inches of Water): 9.3″
-
Impeller/Fan Size: 14.5″
-
Impeller Material: Steel
-
Impeller Type: Radial Fin
-
Balanced To: ISO 1940
-
Inlet Diameters: 8″ Main To 4″ x 2 Ports
-
Drum Capacity: 46 Gal.
-
Octagon Drum: Metal Drum Insert
-
Drum Collection Bag (Dia. x L): Plastic Bag (610 x 950mmL)
-
Canister Filter Type: 1 Micron
-
Filtration Efficiency: 0.2 – 2 Micron at 99.97%
-
MERV Rating: 12
-
Canister Diameter: 400mm (15.75″)
-
Canister Length: 900mm (19.69″)
-
Filter Surface Area: 9.5m² / 109ft²
-
Canister Filter Lower Dust Collection: Plastic Bag (400 x 600mmL)
-
Base With Perforated Sheet Across Canister Floor: N/A
-
Wheels: 4″ Ball Caster
-
US/CSA Approved: Yes
-
Decibel Reading: 88 dB (At 9.8ft)
-
Assembled Dimensions (L x W x H): 46″ x 27″ x 79″ | 1178 x 690 x 2025mm
-
Shipping Weight: 364bs
-
Shipping Dimensions (L x W x H): 46in x 27in x 79in
Specifications
Specifications
| Laguna Tools Cyclone Dust Collector, 2 HP, 220V, 1 Ph, C|FLUX:II MDCCF22201 | |
| AIR FILTRATION | 1 Micron |
| APPLICATION | Wood Working |
| Brand | Laguna Tools |
| DECIBEL RANGE | 81-90 |
| DEPTH | 28 in |
| HEIGHT | 87 in |
| HORSEPOWER | 2.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Dust Management - Dust Collectors |
| TOOL TYPE | Dust Management |
| VOLTAGE | 208V-240V 1Ph |
| WIDTH | 48 in |
