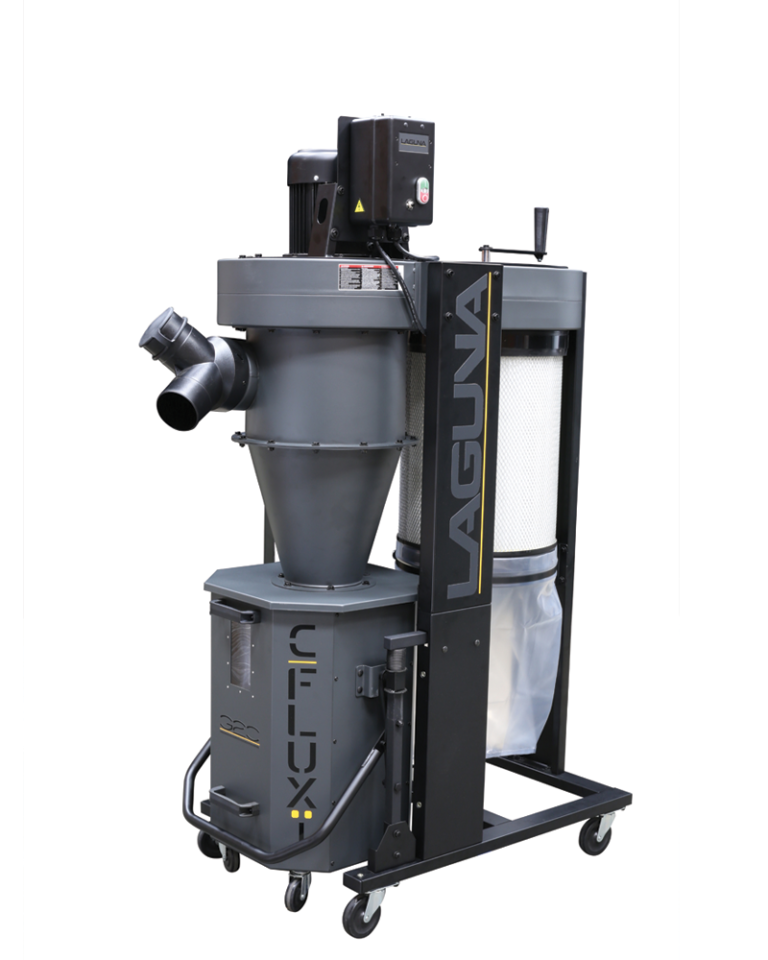

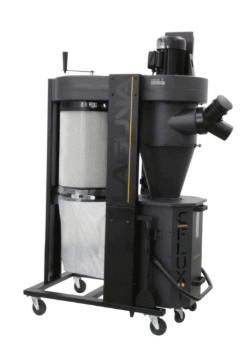

MDCCF15110, Laguna C|Flux:1, 1.5hp, 110v Cyclone Dust Collector
The C|Flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions has been reevaluated to optimize performance.
The C|Flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron & features 48 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.
The C|Flux series can be equipped with an optional auto clean kit either at time of purchase or as an add-on later. The auto clean kit includes a smart sensor that detects a rise in static pressure indicating the filter is getting clogged and automatically activates the cleaning procedure.
Ingenious lift system quickly moves the drum off the floor and seals against the drum lid, avoiding the need for a flex hose. This design allows for much better portability as you are not forcing 4 wheels into the floor while pushing the unit.
Features:
- Motor HP: 1.5 HP
- Phase: 1
- Voltage: 110v
- 220v Option available – sold separately
- Full Load Amperage Draw [FLA]: 18.8(110V) / 9.4(220V)
- Recommended Breaker: 30 AMP (110V) / 15 AMP (220V)
- Hertz: 60
Specifications:
- Motor HP 1.5 HP
- Phase 1
- Voltage 110/220v
- Amps 15 / 9.8 Amps
- Hertz 60
- Plug No
- RPM 3450
- Switch type Radio Frequency Remote switch – Black Box
- Hand held remote control HF
- Real CFM 900
- Nominal CFM 1314
- Max Static Pressure (inches of water) 10.1″
- Impeller/Fan Size 13.5″
- Impeller Material Steel
- Impeller type Radial Fin
- Balanced To: ISO 1940
- Inlet Diameters 6″ by 4″ x 2 ports
- Drum Capacity 25 Gal.
- Octagon drum Metal drum insert
- Drum collection bag (Dia. x L) Plastic bag (Ø610 x 950mmL)
- Canister Filter type 1 Micron
- Filtration efficiency 0.2-2micron @ 99.97%
- MERV rating 12
- Canister diameter Ø400mm (15.75″)
- Cansiter length 500mm (19.69″)
- Filter Surface Area 4.5m² 48ft²
- Canister cleaning Manual Handle crank. 270 degrees
- *Optional Auto cleaning kit available
- Canister filter lower dust collection Plastic bag (Ø400 x 600mmL)
- Base with perforated sheet across canister floor N/A

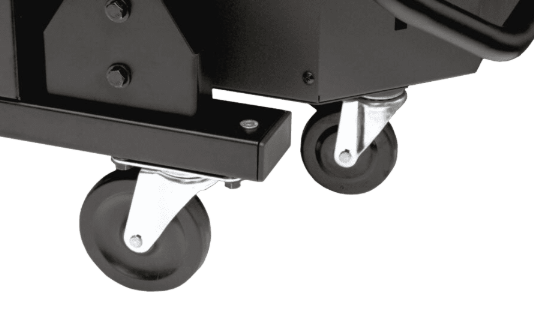

- Wheels 4″ Flat Caster
- US/CSA Approved Yes
- Decibel Reading 82 d B(A) (@9.8ft)
- Machine weight 105kgs 232Lbs
- Shipping weight 130kgs 287Lbs

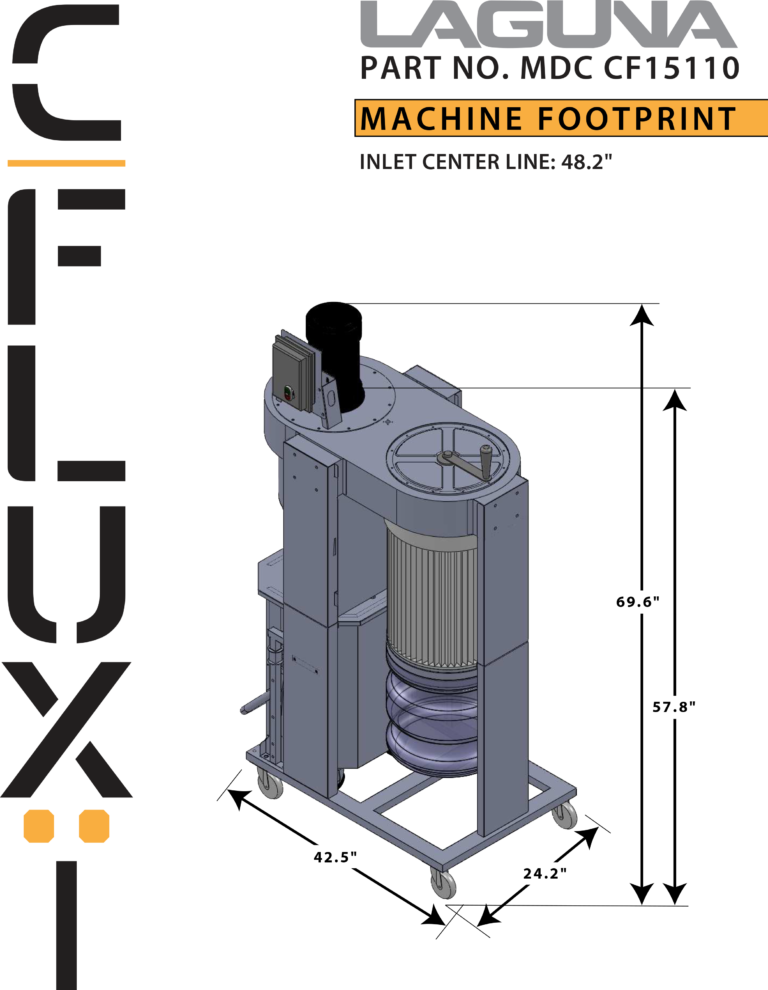

- Assembled Dimensions (L x W x H) 42.5" x 24" x 68.5" | 1078x614x1740mm
Specifications
Specifications
| Laguna Tools Cyclone Dust Collector, 1.5 HP, 110V, C|FLUX:I MDCCF15110 | |
| AIR FILTRATION | 1 Micron |
| APPLICATION | Wood Working |
| Brand | Laguna Tools |
| DECIBEL RANGE | 81-90 |
| DEPTH | 25 in |
| HEIGHT | 68 in |
| HORSEPOWER | 1.5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Dust Management - Dust Collectors |
| TOOL TYPE | Dust Management |
| VOLTAGE | 110V-120V |
| WIDTH | 42 in |
