MAGNA Lifting Products 15 Ton Lever Hoist, 15 ft. Lift LH150015
MAGNA Lifting Products 15 Ton Lever Hoist, 15 ft. Lift LH150015
Couldn't load pickup availability
Details
Details

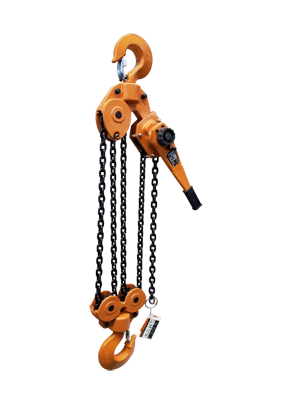

MAGNA 15 Ton Lever Hoist, 15 ft. Lift LH150015
The MAGNA LH150015 represents the pinnacle of manual lifting capacity in the LH series, rated for a staggering 15 Tons (33,000 lbs). It utilizes a specialized 5-fall configuration of Grade 100 alloy chain to manage these extreme loads safely. This hoist is intended for the most demanding applications in heavy industry, including power plant maintenance and heavy manufacturing.
Engineered for reliability, the LH150015 features a durable steel housing and is completely repairable to ensure a long operational life. It comes standard with low-temperature grease, allowing for use in environments as cold as -45°C (-49°F). The unit is proof tested to 150% of its rated capacity and features a Weston-style load brake for absolute load security during lifting and lowering operations.
Features & Benefits
- Maximum Capacity: Lifts up to 33,000 lbs with a heavy-duty 5-fall chain system.
- Grade 100 Alloy: Uses premium chain for superior strength under extreme tension.
- Repairable Build: Designed for full maintenance and part replacement.
- Cold Weather Ready: Lubricated for operation in temperatures down to -45°C (-49°F).
- Rigorous Safety: Factory load tested to 150% of capacity (49,500 lbs test load).
- Positive Control: Mechanical load brake ensures secure holding of massive loads.
Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1500 (15 Ton Plain Trolley), GTR1500 (15 Ton Geared Trolley), ULBC1500F (15 Ton Fixed Jaw Clamp)
Specifications
- Model Number: LH150015
- Working Load Limit (WLL): 15 Ton (33,000 lbs)
- Standard Lift: 15 ft.
- Load Chain Dimensions: 9.0 x 27.0 mm
- Load Chain Grade: Grade 100
- Number of Falls: 5
- Pull to Lift Full Load: 93 lbs
- Headroom (Dimension C): 31.50 in.
- Handle Length (Dimension D): 15.40 in.
- Hook Throat Opening (Dimension G): 3.10 in.
- Net Weight: 343.0 lbs
Specifications
Specifications
| MAGNA Lifting Products 15 Ton Lever Hoist, 15 ft. Lift LH150015 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 15 ft |
| LIFTING CAPACITY | 15 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Lever Hoists |
| TOOL TYPE | Hoists |
