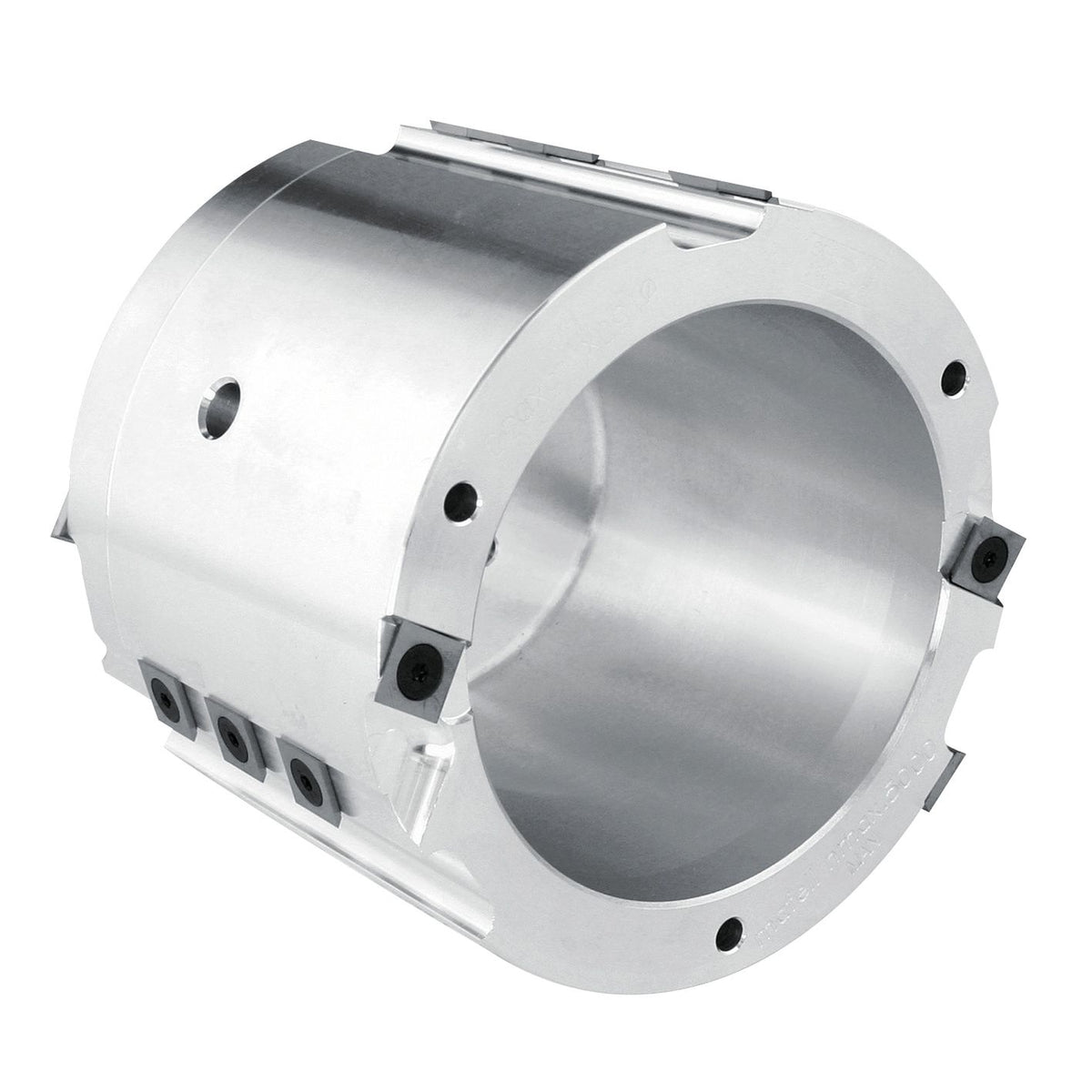

The Mafell 203657 Skew Notch Cutter Head is designed to produce precise birdsmouths and complex skew notches in timber framing applications. Measuring 5-7/8 in. by 4-1/2 in. (150 mm x 115 mm), this specialized cutter head is compatible with the Mafell ZK 115Ec Notch Cutter, as well as legacy ZK 115E and ZK 115K models.

By leveraging the tilting capacity of the notch cutter, this head can achieve variable depth profiles based on the cutting angle. It provides a cutting depth of 1-1/8 in. at a 15-degree pitch, expanding to 3-1/16 in. at a 45-degree pitch. The head is equipped with thirteen indexable carbide knives, maximizing cutting performance and simplifying tooling changes.

Features & Benefits

• Versatile Notching Capability: Specially profiled for producing birdsmouths and skew notches at various angles.
• Variable Cutting Depths: Achieves cut depths up to 1-1/8 in. (29.7 mm) at 15°, 2-1/4 in. (57.5 mm) at 30°, and 3-1/16 in. (77.9 mm) at 45°.

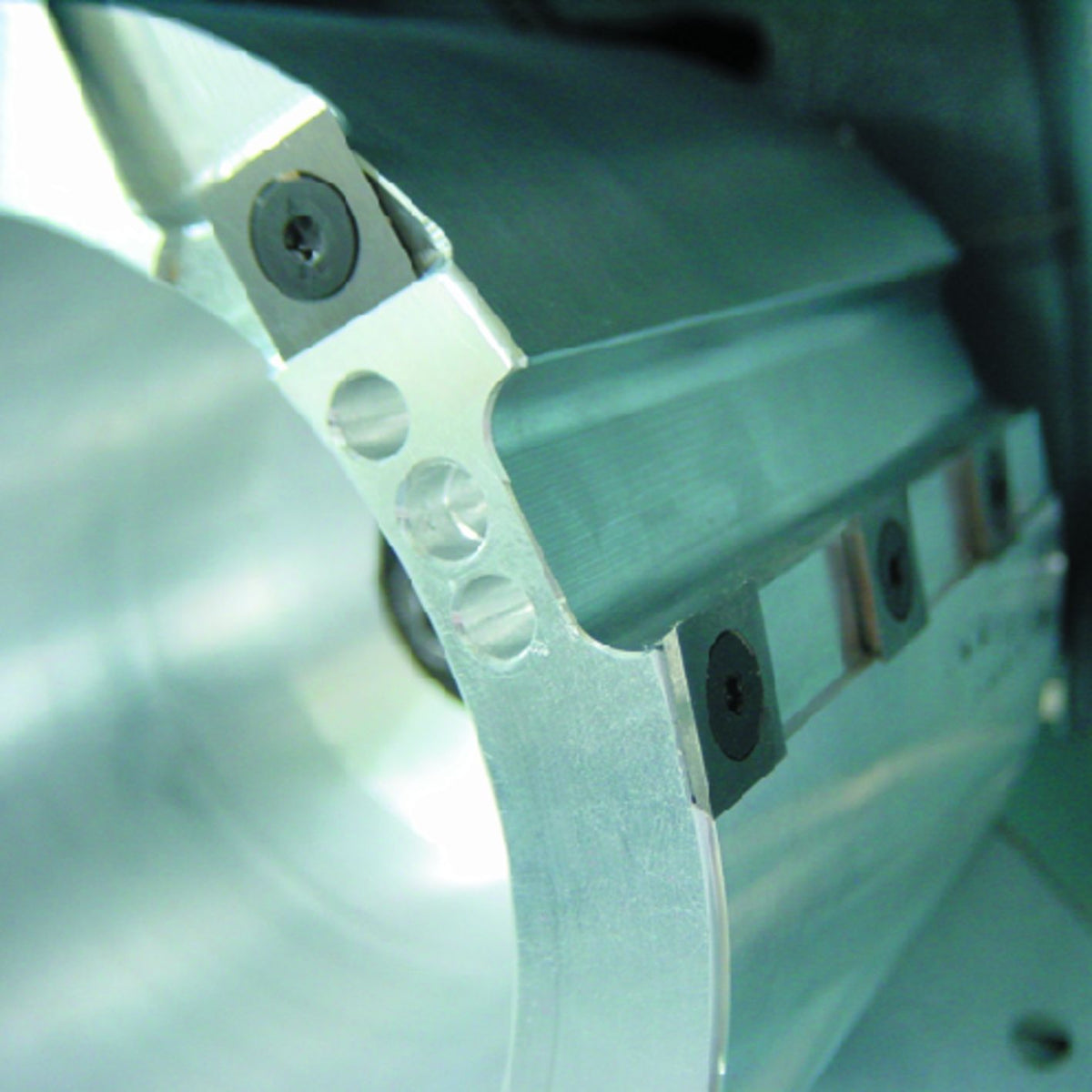

• Replaceable Carbide Tooling: Utilizes thirteen 14 x 14 x 2 mm carbide knives for consistent finish quality and fast replacement.
• Backward Compatibility: Fits the current ZK 115Ec as well as older generation ZK 115E and ZK 115K machines.
