The Mafell Arunda 60-1B Midi Dovetail Joint Milling Template System is designed for routing shallow-depth wood-to-wood timber connections in floor joists, rafters, and light-to-medium timber framing components. Suitable for timber widths from 45 mm to 120 mm (1-3/4 in. to 4-3/4 in.) and heights from 90 mm to 300 mm (3-1/2 in. to 11-13/16 in.), the 60-1B system produces a 21 mm (13/16 in.) joint depth, preserving section strength on main receiving beams.

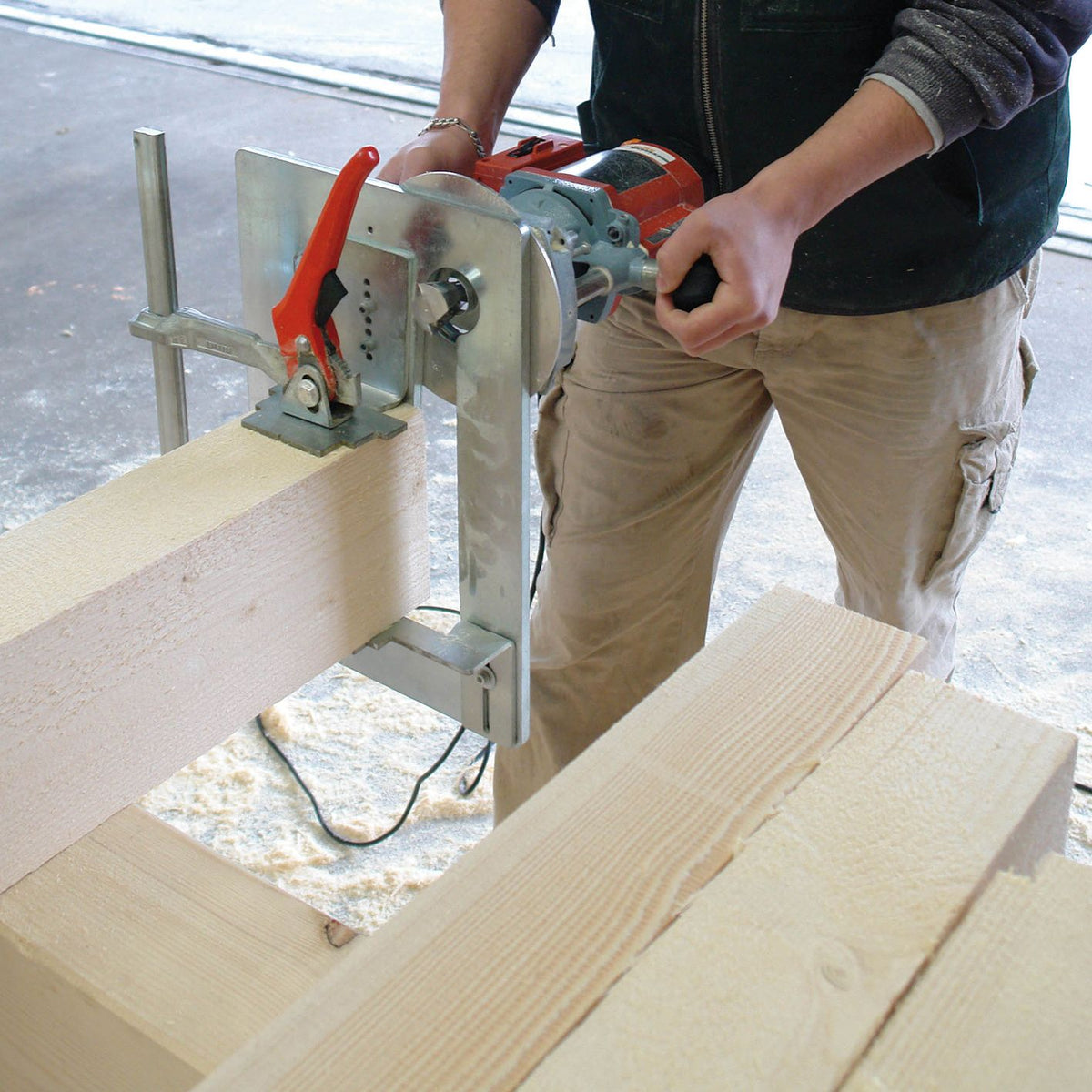

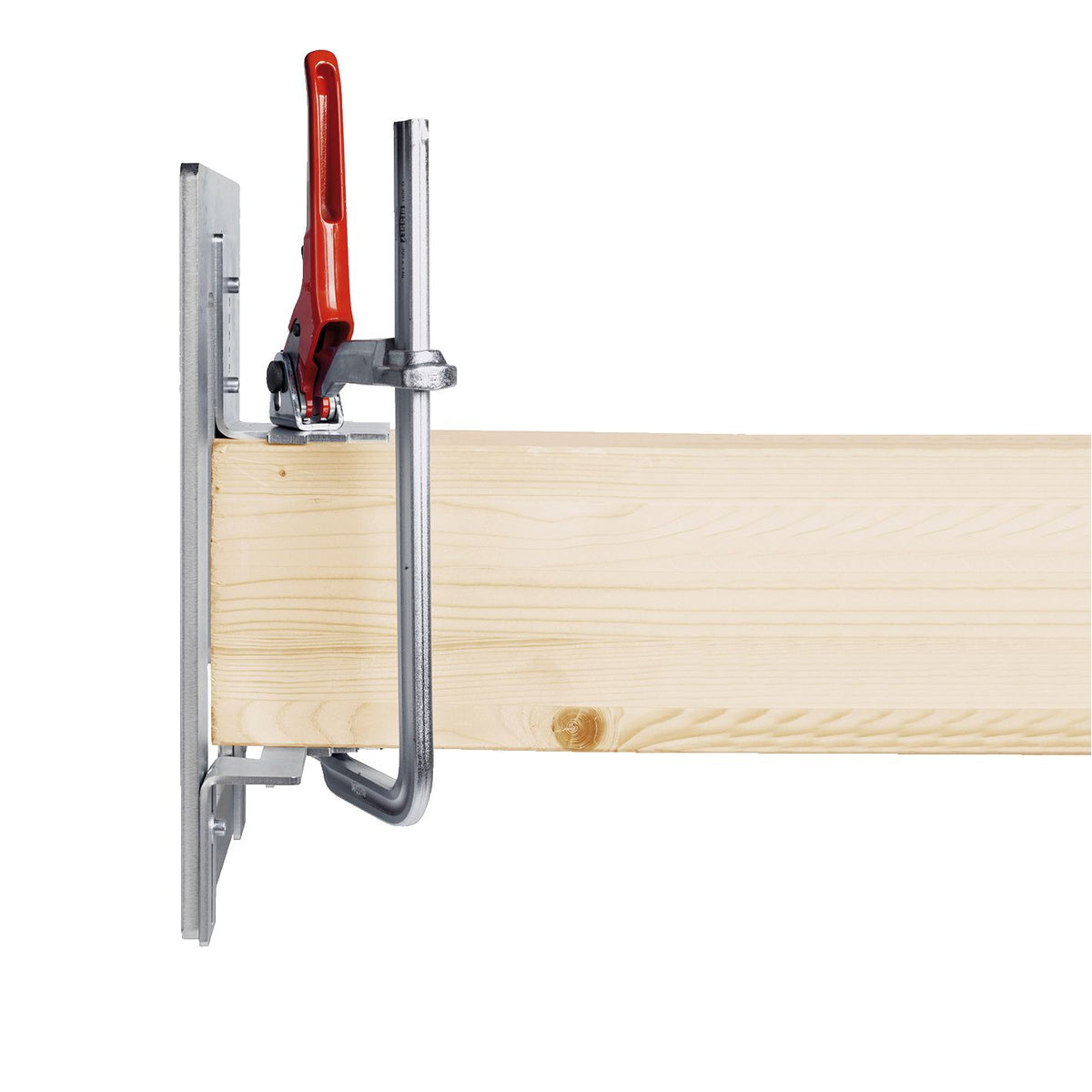

Used with a compatible high-output router like the Mafell LO 65 Ec, the 60-1B template set guides the router bit along precise male and female contours. The resulting self-tightening dovetail joint drops together seamlessly from above, pulling structural members together tightly while eliminating exposed metal hangers or screws. The 21 mm penetration depth is specifically engineered for framing layouts where full 37 mm socket depth is unnecessary or structurally restricted.

The Midi set contains all necessary core system tooling, including tenon and mortise templates, dedicated cutter head with reversible carbide blades, guide ring, setting gauge, spare blades, and a custom wooden transport case.

Features & Benefits

• Shallow Joint Profile: 21 mm joint depth reduces material removal in primary support beams while ensuring reliable joint transfer capacity.
• Wide Timber Width Range: Accommodates timber widths from 45 mm up to 120 mm, offering versatile application across light and medium structural members.

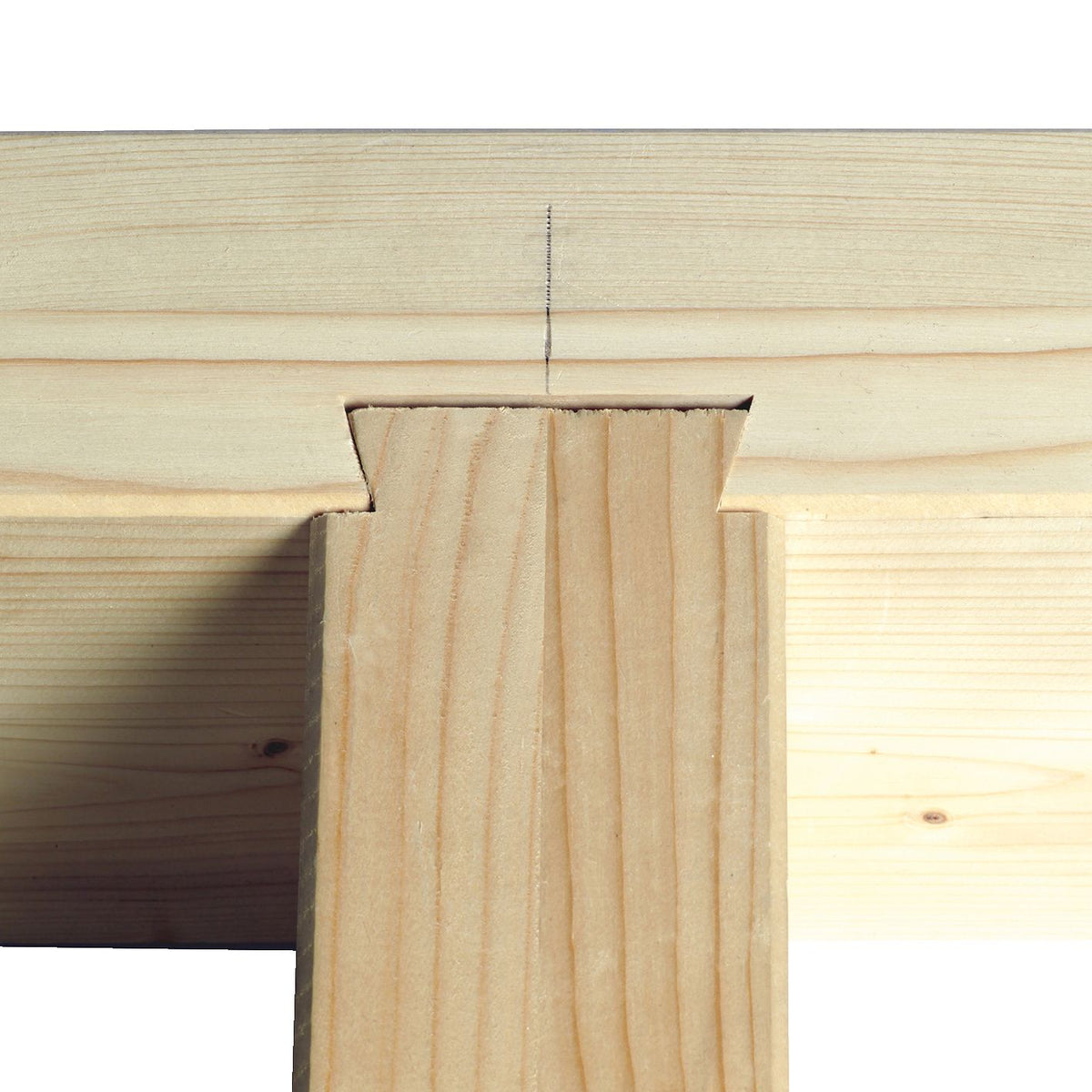

• Self-Locking Joinery: Wedge-shaped dovetail design automatically pulls joints tight under vertical load without requiring mechanical fasteners.
• Angled Milling Support: Enables straight and bevel cuts up to 50 degrees for roof valley, hip, and rafter joinery.
• Reversible Carbide Cutters: Dedicated cutter head uses double-sided blades for long service life and consistent joint tolerances.
• Wooden Storage Box: Protects precision templates and guide hardware during transit between shop and site.

What's Included

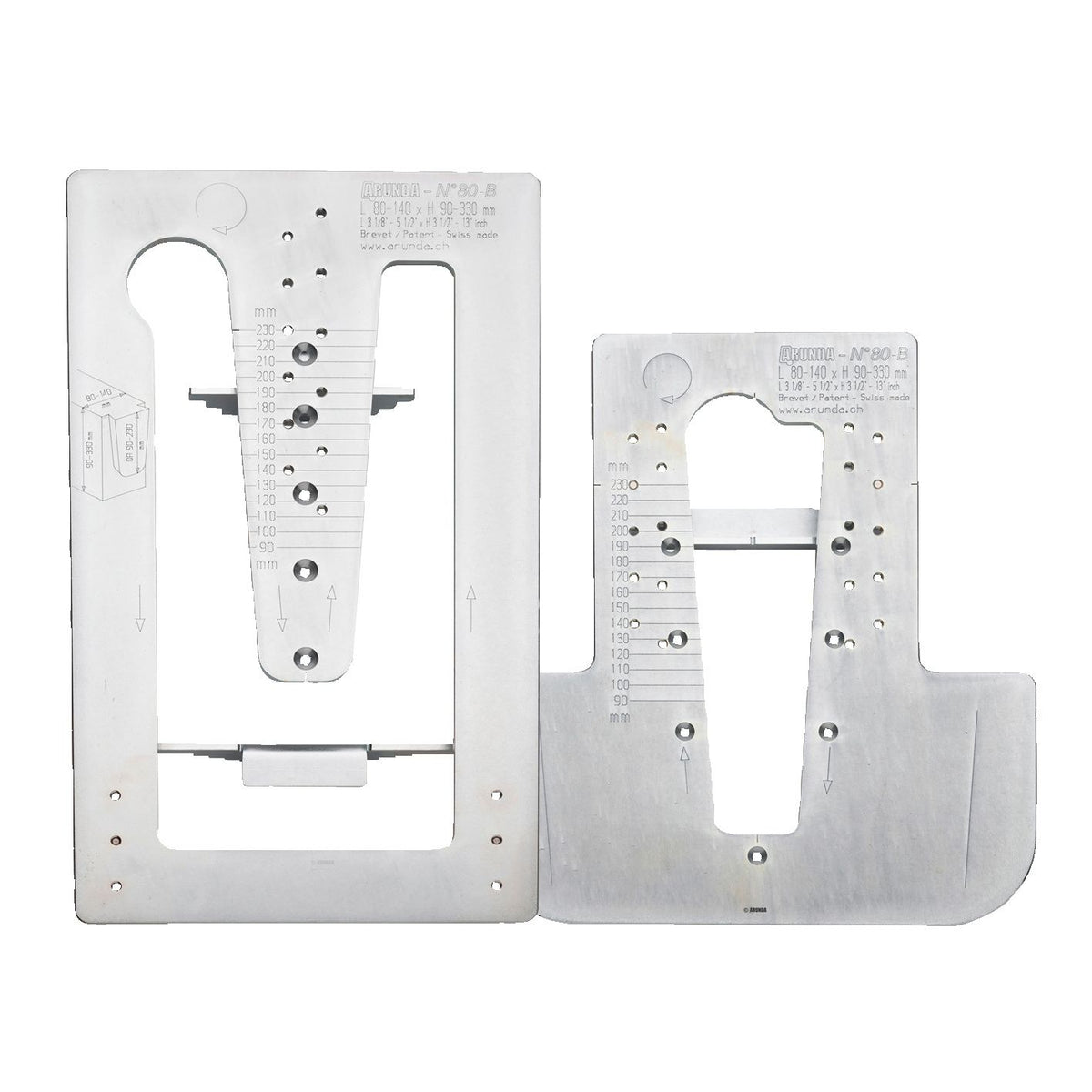

• (1) Tenon Milling Template
• (1) Mortise Milling Template
• (1) Cutter Head
• (1) Guide Ring
• (1) Positioning Gauge
• (2) Pairs of Reversible Carbide Blades
• (1) Wooden Transport Case

Select the Arunda 60-1B when working with timber widths from 45 mm to 120 mm (1-3/4 in. to 4-3/4 in.) where a shallow 21 mm joint depth is required. For applications demanding a deeper 37 mm structural joint, choose the Arunda 50N (45 to 80 mm width), Arunda 80N (80 to 140 mm width), or Arunda 120N (120 to 200 mm width).
