The Mafell Arunda 160B Midi Timber Dovetail Milling Template Set is a specialized joinery system designed for crafting precise timber-to-timber dovetail connections without metal fasteners. Engineered for heavy timber framing and mass timber construction, this system creates self-locating, load-bearing wood joints on timber widths from 160 to 300 mm (6-5/16 to 11-13/16 in.) and timber heights from 90 to 300 mm (3-1/2 to 11-13/16 in.). Model 160B features adjustable fence stops that accommodate both perpendicular 90-degree joints and angled connection cuts up to 50 degrees.

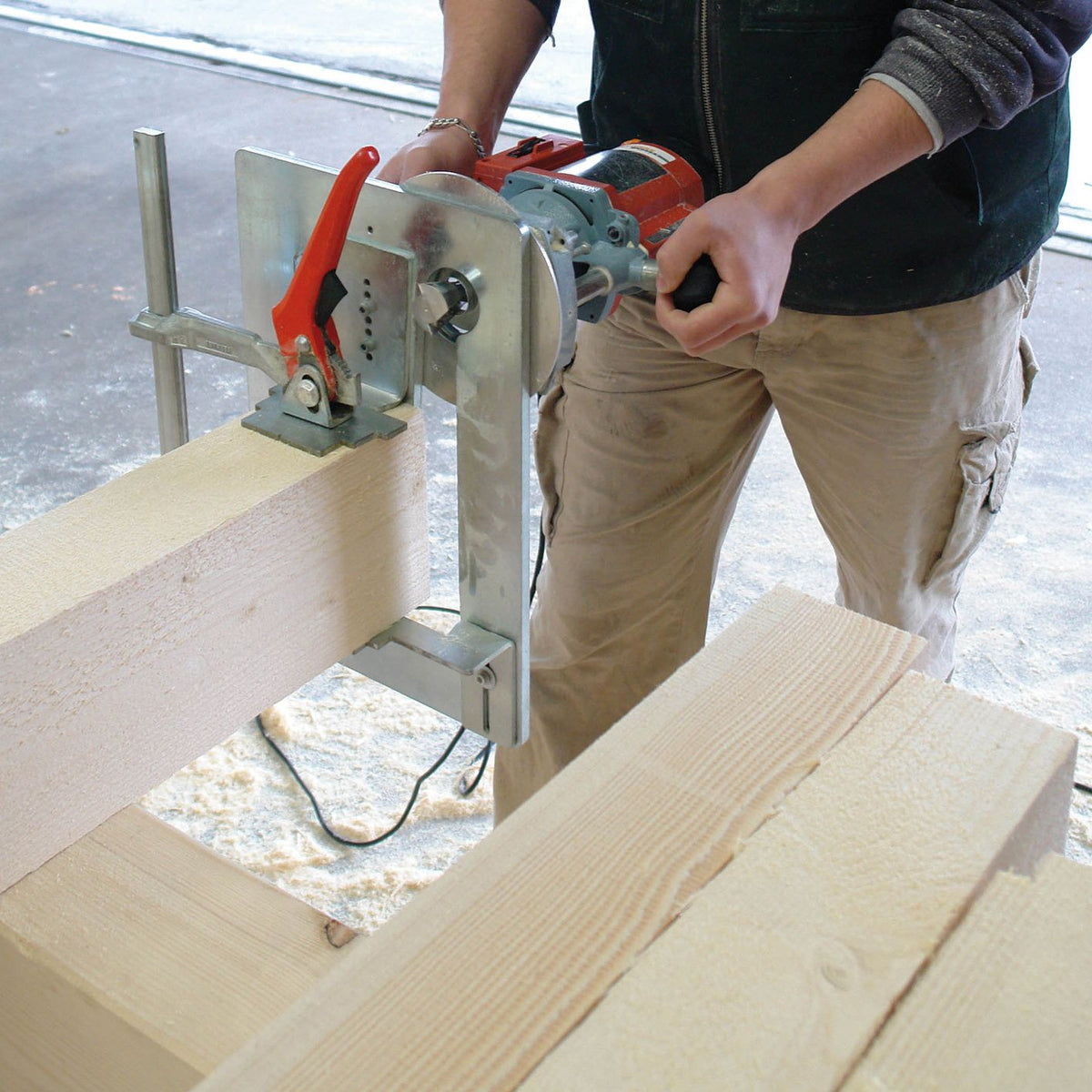

Using the Arunda system with a high-power router, timber framers and carpenters can quickly cut matching tenon and mortise components directly on the jobsite or in the shop. The trapezoidal shape of the dovetail joint provides immediate mechanical interlock, allowing timber beams to drop into place for rapid assembly. This Midi configuration includes a complete single-size template set supplied with a dedicated dovetail router bit, guide ring, setting gauge, and protective storage box.

Features & Benefits

• High-Capacity Timber Jointing: Accommodates large timber cross sections from 160 x 90 mm up to 300 x 300 mm for structural timber framing applications.
• Angled Joint Adjustability: Integrated template fence stops adjust to route angled timber joints up to 50 degrees as well as standard 90-degree connections.

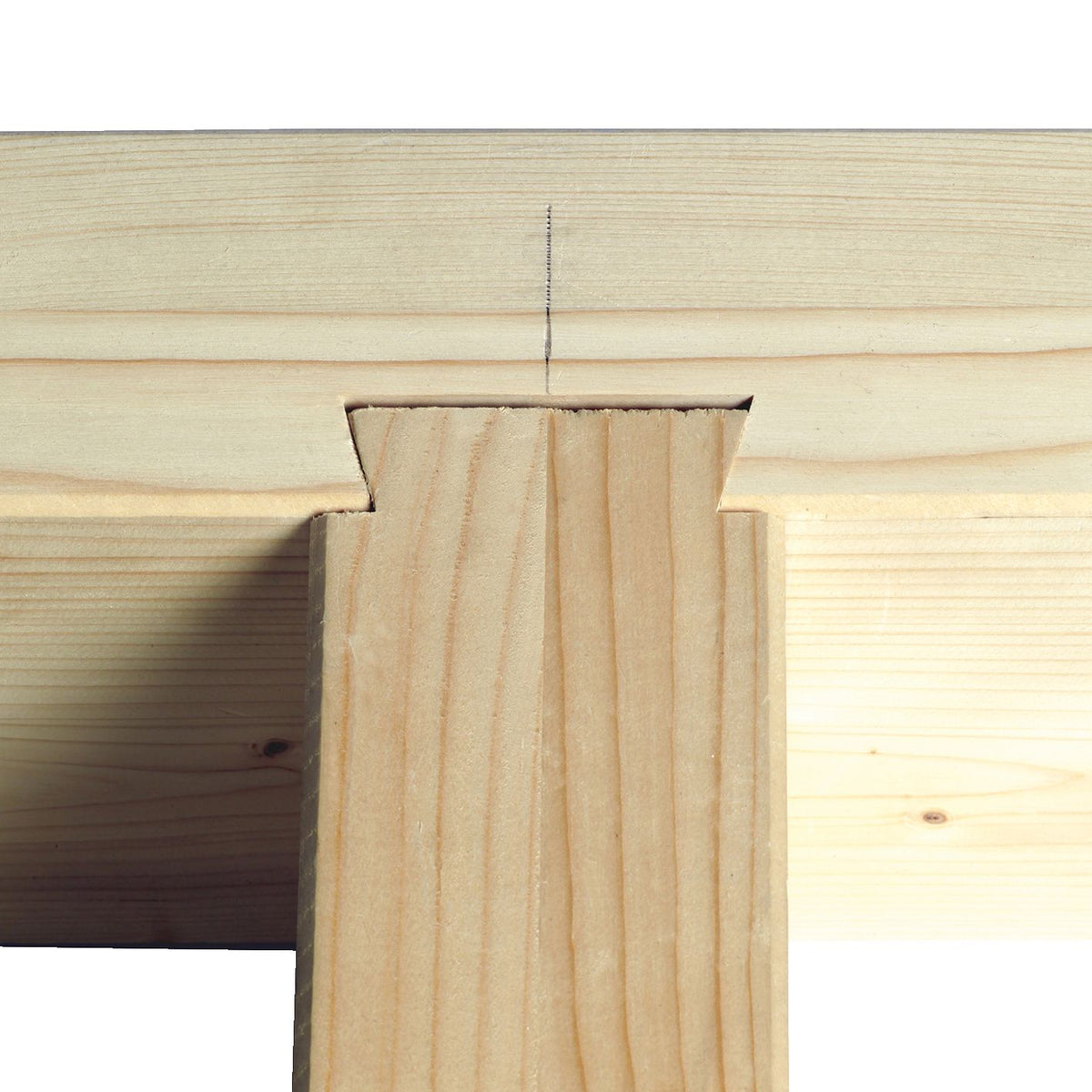

• Self-Locating Dovetail Geometry: Produces tight-fitting, wood-to-wood structural connectors that align automatically without metal plates or hardware.
• Reversible Carbide Blades: The included Arunda dovetail cutter uses replaceable insert blades to maintain consistent cutting dimensions and finish quality.
• Precision Guide Ring Alignment: Dedicated guide ring ensures smooth tracing along template walls for exact, repeatable mortise and tenon dimensions.
• Setting Gauge Included: Allows fast, accurate depth settings for the router bit to maintain tight fitting tolerances.

What's Included

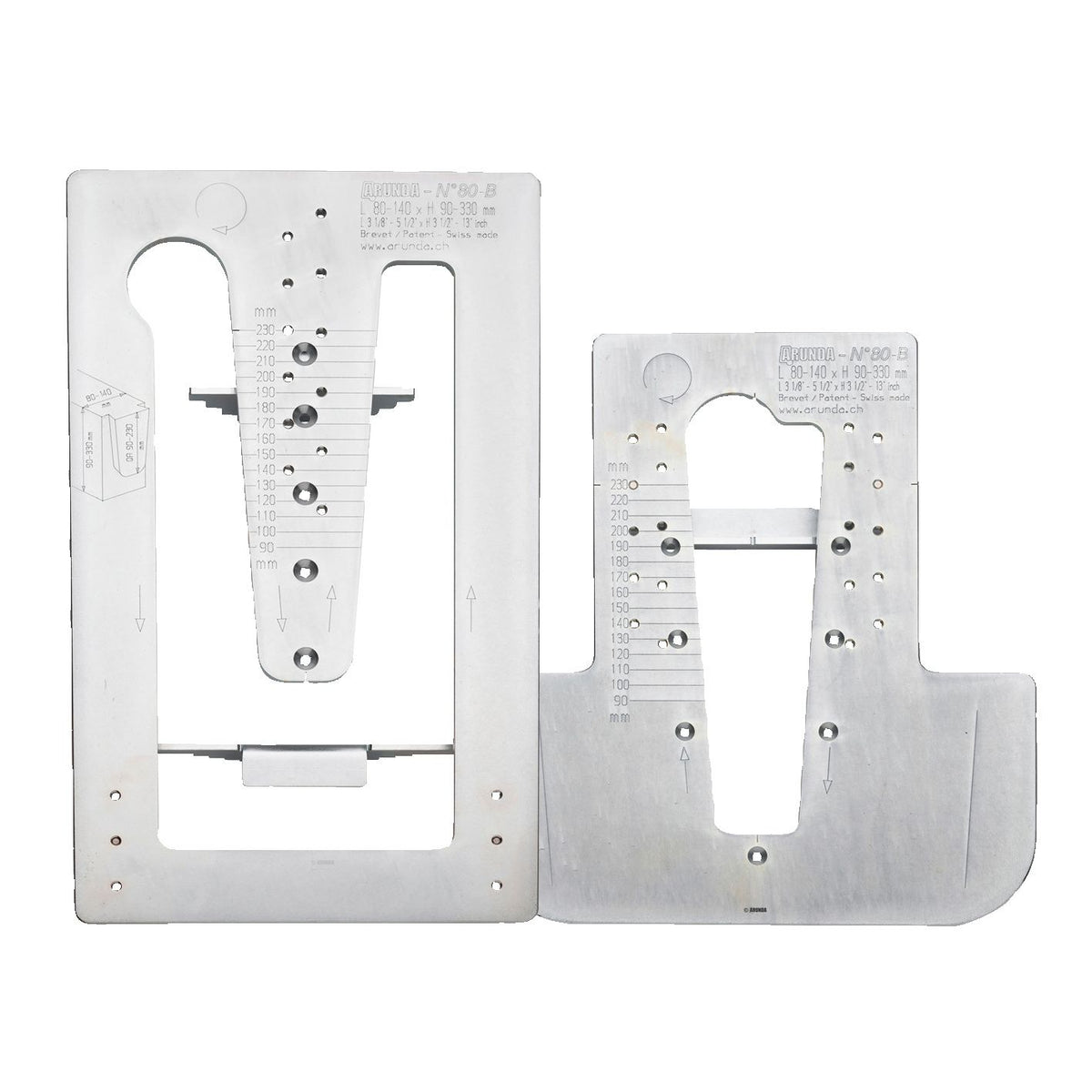

• (1) Pair of Arunda 160B Templates (1 Tenon Template, 1 Mortise Template)
• (1) Dovetail Router Cutter with Reversible Blades
• (1) Guide Ring
• (1) Setting Gauge
• (2) Pairs of Reversible Blades
• (1) Wooden Storage Box

For smaller timber cross sections, select the Arunda 120B Midi for timber widths from 120 to 200 mm, the Arunda 80B Midi for widths from 80 to 140 mm, or the Arunda 50B Midi for widths from 45 to 80 mm.
