Mafell K 105-18 PURE 36V (2 x 18V) 11 in. Cordless Circular Saw, 4-5/16 in. Cut Depth (Bare Tool) 91D324
Mafell K 105-18 PURE 36V (2 x 18V) 11 in. Cordless Circular Saw, 4-5/16 in. Cut Depth (Bare Tool) 91D324
Couldn't load pickup availability
Details
Details

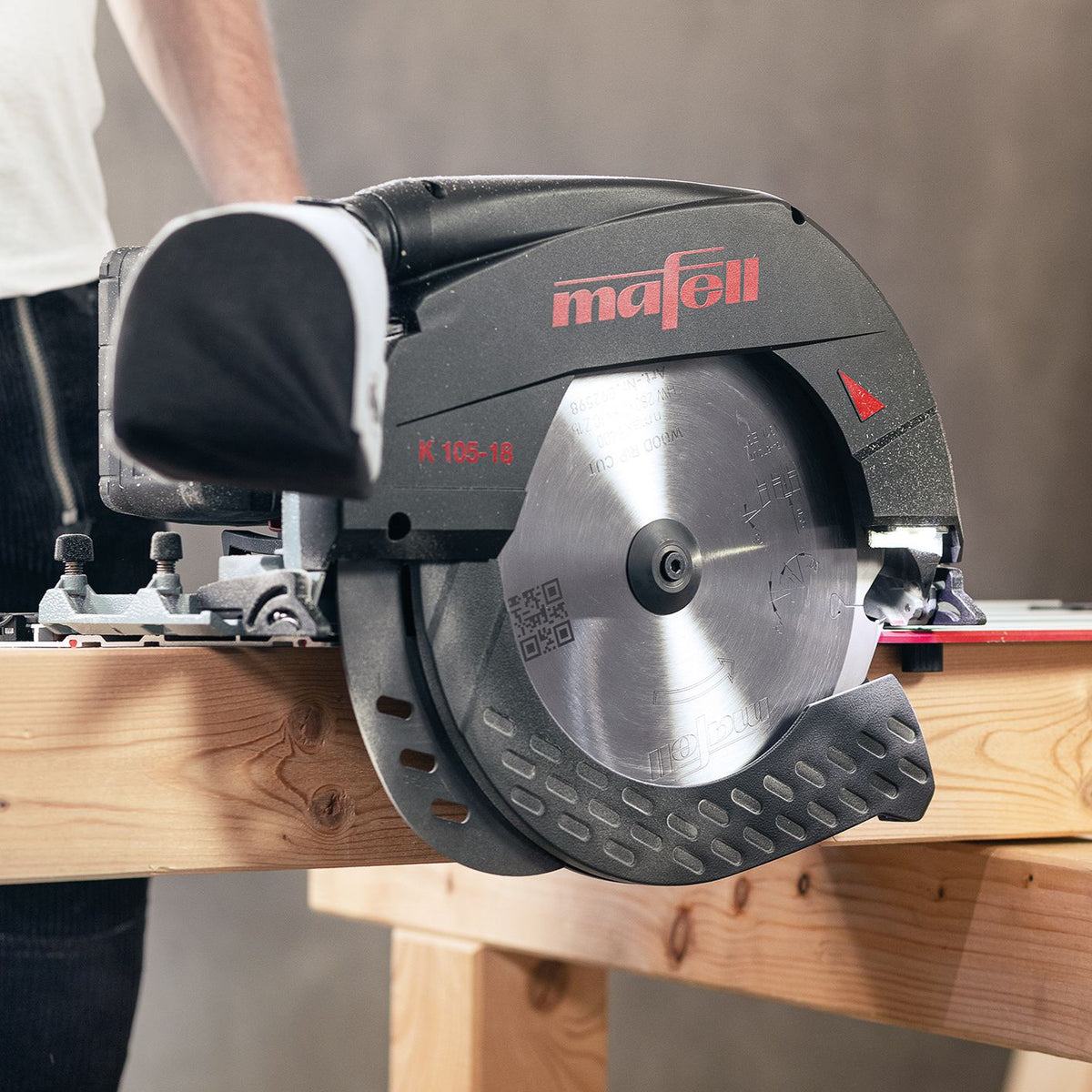

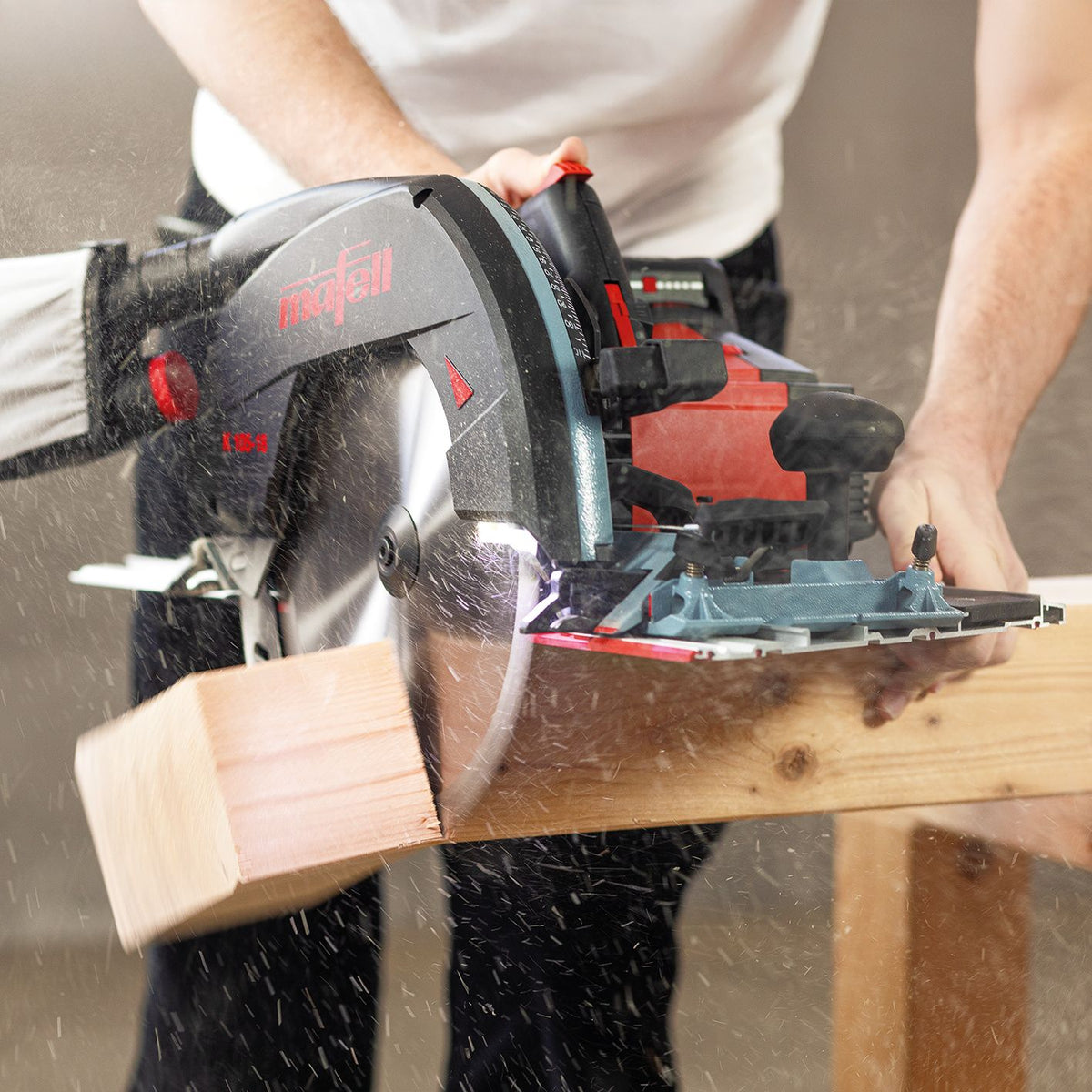

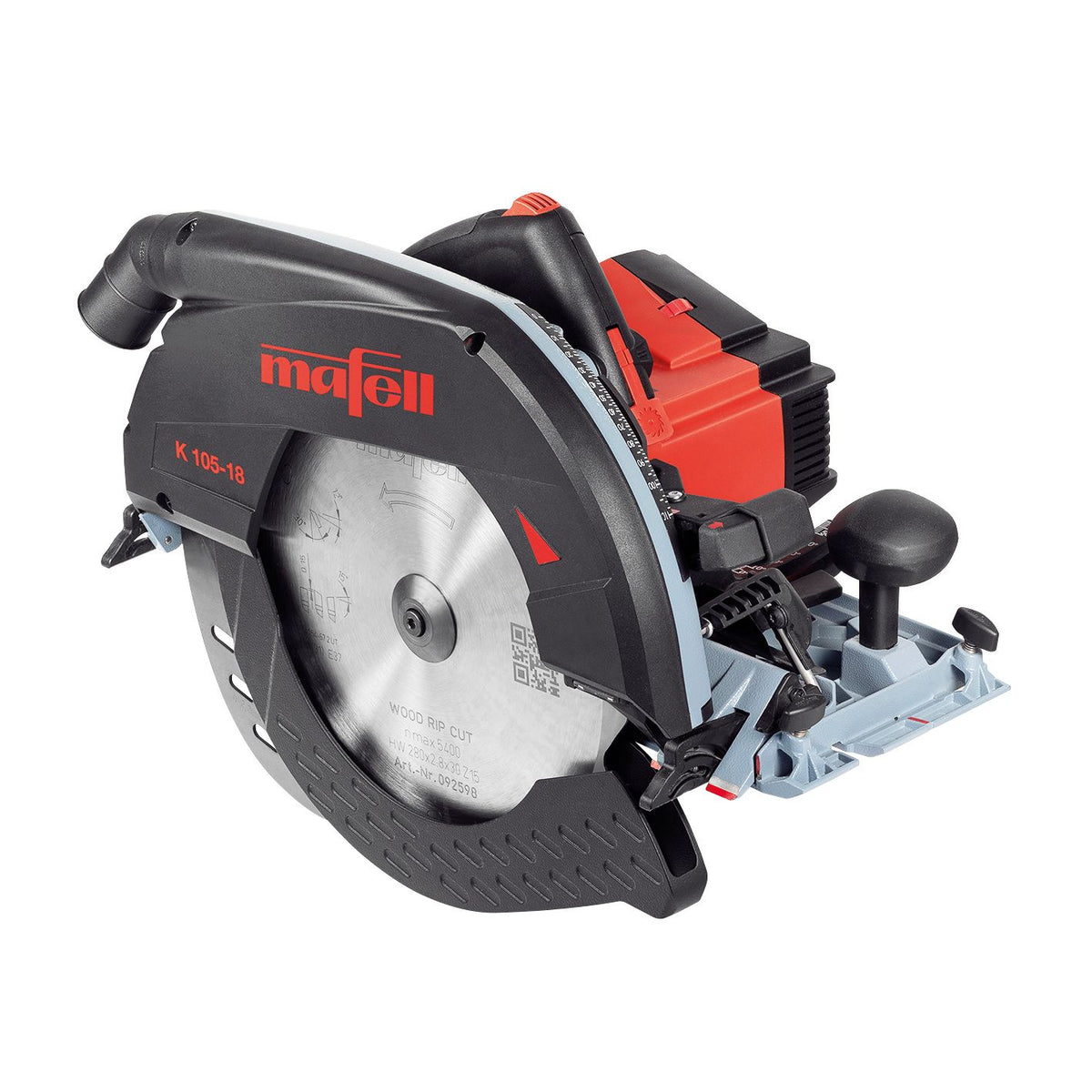

The Mafell K 105-18 PURE 36V (2 x 18V) Cordless Circular Saw (Ref. 91D324) delivers impressive cutting capacity up to 4 5/16 in. (110 mm) for heavy-duty timber construction, framing, and insulation cutting. Powered by dual 18V CAS battery technology, this portable circular saw provides the mobility of cordless operation with the high power required for deep ripping, cross-cutting, and joinery cuts in solid wood, board materials, and composite insulation panels.
Built with Mafell's ErgoBalanceConcept, the K 105-18 is balanced for reduced fatigue and ergonomic control during demanding hand-held applications. For plunge cutting, the integrated FLIPPKEIL spring-mounted riving knife automatically retracts into the housing when plunging into workpieces and re-engages behind the blade without requiring manual unscrewing or removal. The tilting adjustment mechanism enables bevel cutting up to 60 degrees, while the cutting pointer automatically adjusts to match the set bevel angle to ensure precise cutting to the mark.
When used with Mafell F guide rail systems, the saw maintains an exceptional cutting depth of up to 4 1/8 in. (104 mm), making it suitable for long rip cuts and timber trimming. Integrated bright LEDs illuminate the working area, and an optimized chip ejection channel maintains clear sightlines and clean operation, especially when cutting thick fiber insulation materials.
Features & Benefits
- 4 5/16 in. Cutting Depth: Achieves deep cut capacity up to 110 mm (0 to 4 5/16 in.) unguided and up to 104 mm (4 1/8 in.) on guide rails.

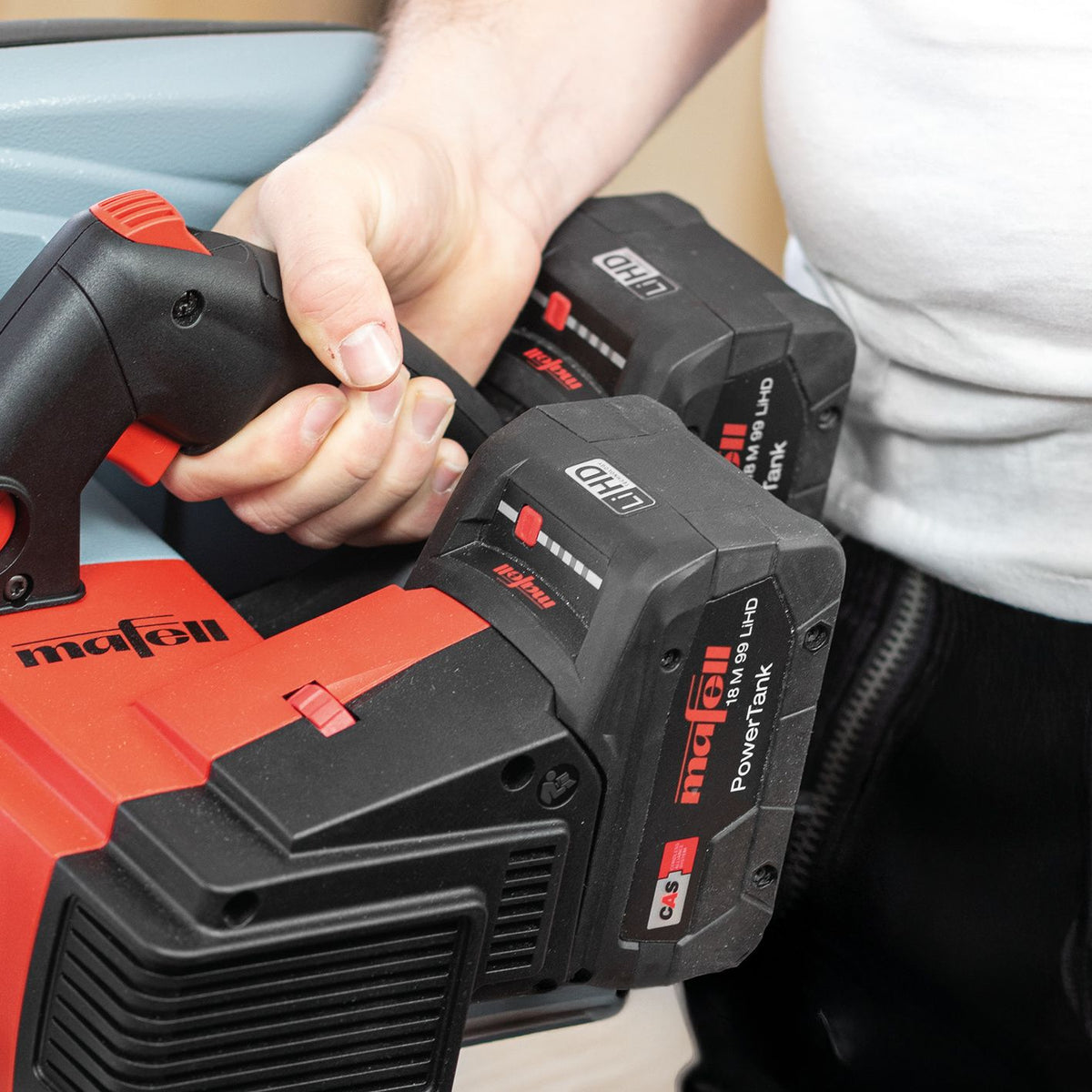

- Dual 18V Battery System: Operates on two 18V CAS battery packs for heavy-duty cordless power.
- FLIPPKEIL Riving Knife: Retracts automatically during plunge cuts to provide safety without requiring knife removal.

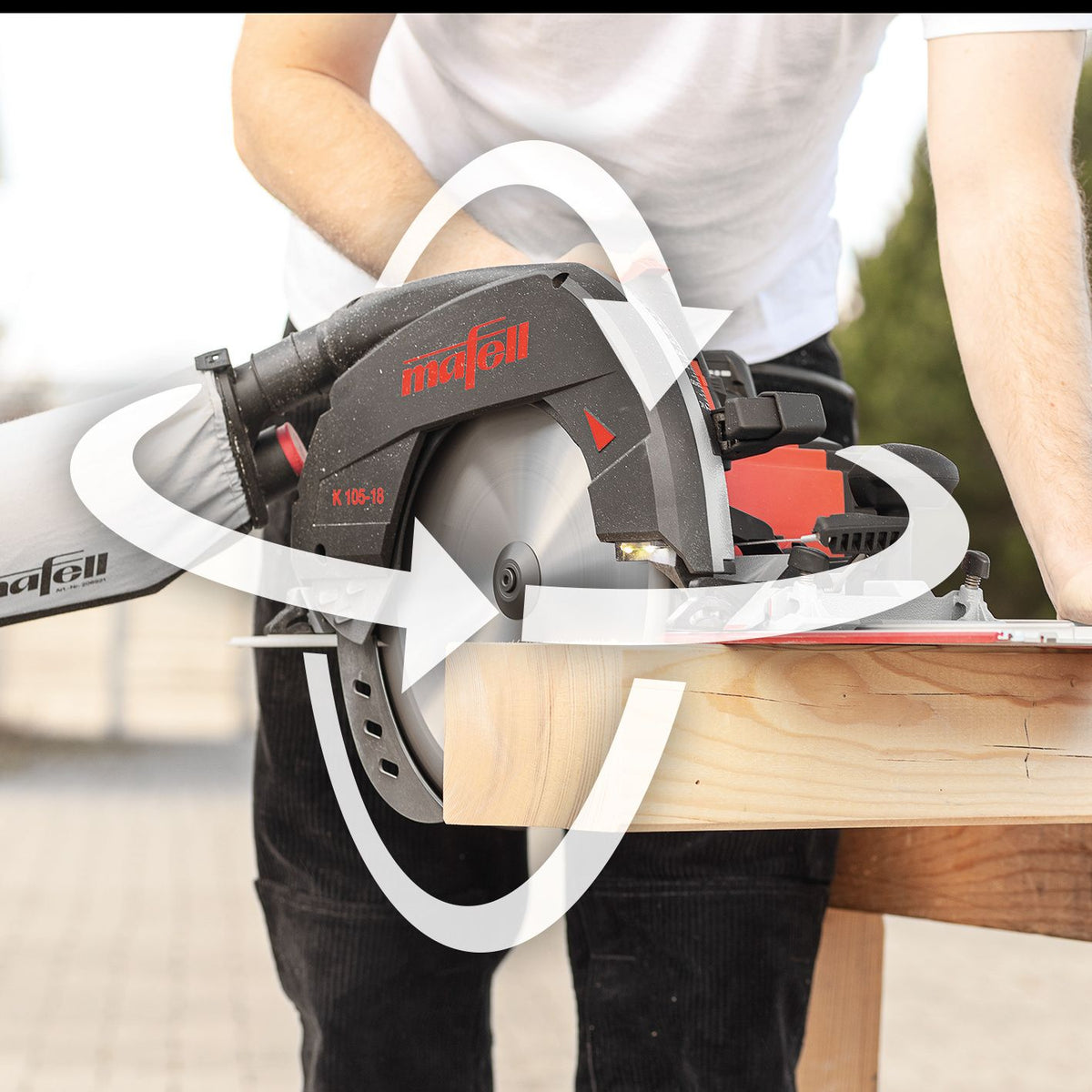

- ErgoBalanceConcept: Optimized tool weight distribution reduces operator fatigue during extended overhead or horizontal cuts.
- 60-Degree Bevel Range: Tilts from 0 to 60 degrees for birdsmouth cuts, chamfers, and compound miters.
- Automatic Angle Pointer: Cutting line indicator automatically swivels to reflect the set tilt angle for high precision when cutting to mark.
- Quick-Lock Cutting Depth: Sets and locks desired cutting depth in a single motion.
- Optimized Ejection Chute: Clears chips efficiently, preventing clogs when processing thick fiber and wood insulation materials.
- Integrated LED Lighting: Directs bright illumination over the cut area for improved visibility in poor lighting conditions.
- Cross-Cutting System Compatible: Base plate features a guide groove for pairing with the optional Guide Track L cross-cutting device.
What's Included
- (1) KSB-WL 280 GT HW Wood Rip Cut Saw Blade, 280 x 2.8 x 30 mm, 11 in., 15 Teeth (Ref. 092598)
- (1) K 105-PA Parallel Guide Fence (Ref. 212867)
- (1) 5 mm Allen Key
This "PURE" variant is supplied as a bare tool without batteries or charger. It requires two 18V Cordless Alliance System (CAS) battery packs for operation. Buyers requiring power supply components can pair this unit with the Mafell Power-Set 2 (Ref. 209594) or individual 18V CAS LiHD battery packs and charger.
Specifications
Specifications
| Specification | Value |
|---|---|
| Model | K 105-18 PURE (USA/CAN) |
| Manufacturer Part Number | 91D324 |
| Product Type | Cordless Portable Circular Saw |
| Primary Capacity (Cutting Depth) | 0 - 110 mm (0 - 4 5/16 in.) |
| Cutting Depth at 45 Degrees | 0 - 77 mm (0 - 3 1/16 in.) |
| Cutting Depth at 60 Degrees | 2 - 55 mm (1/16 - 2 3/16 in.) |
| Cutting Depth on Guide Rail | 0 - 104 mm (0 - 4 1/8 in.) |
| Tilt / Bevel Range | 0 - 60 degrees |
| Blade Diameter | 280 mm (11 in.) |
| Arbor Size | 30 mm |
| No-Load Speed | 2,800 - 5,200 rpm |
| Nominal Voltage | 2 x 18V |
| Extraction Connection Diameter | 35 mm (1 3/8 in.) |
| Weight (Including Battery) | 9.3 kg (20.5 lbs) |
