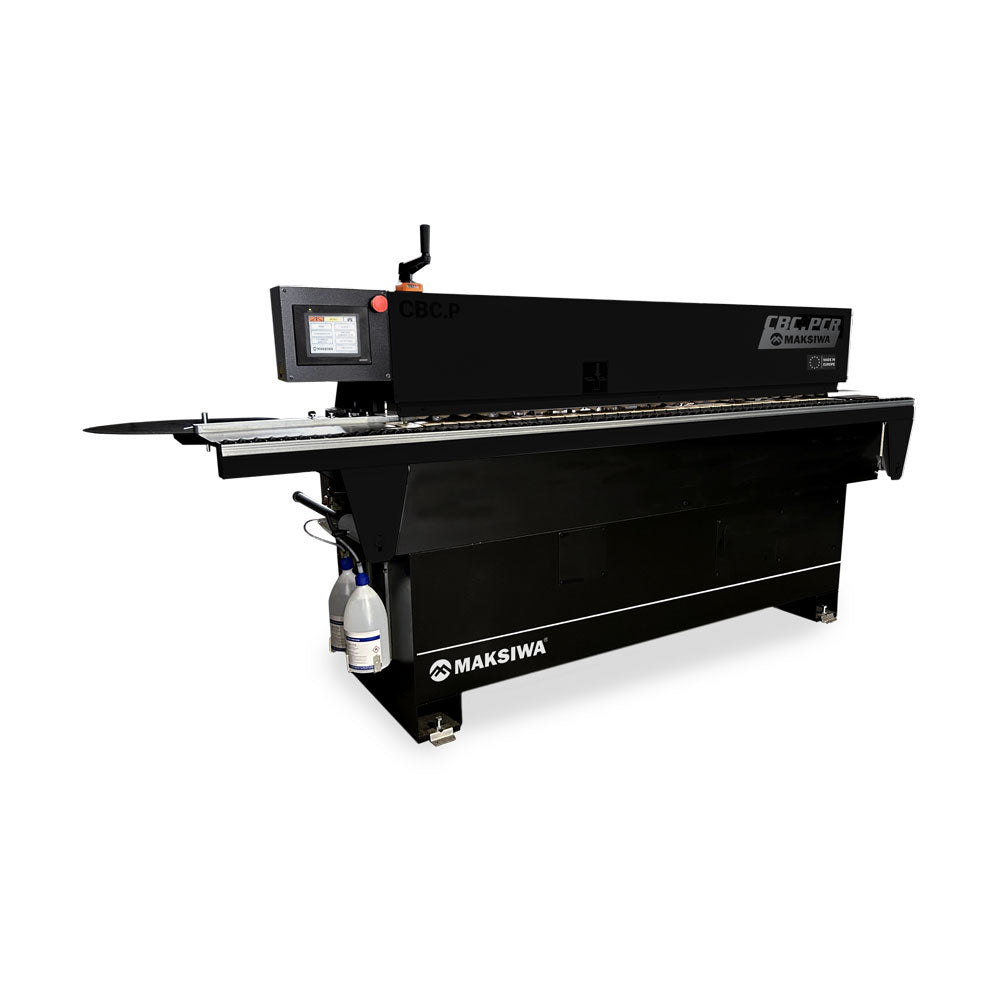

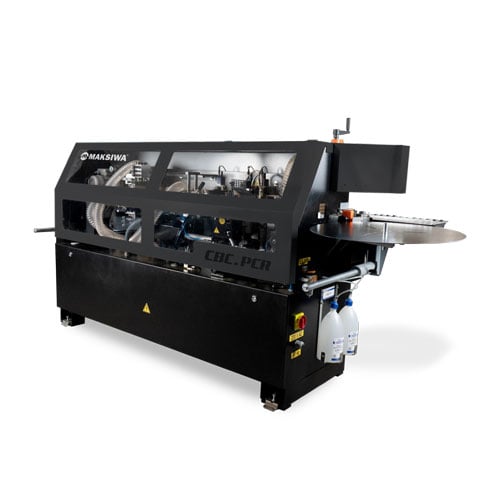

Maksiwa Automatic Edgebander Platinum Corner Rounding 1Ph 220V CBC.PCR

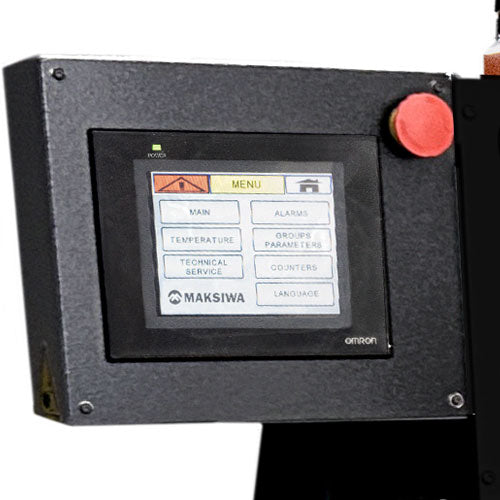

The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade performance with the highly requested corner rounding feature. It also includes pre-milling, trimming, glue scraping, and buffing for a premium finish. The XMELT glue pot system supports EVA and PUR adhesives. With a 8HP motor and user-friendly PCL touchscreen, it handles edge tapes of 0.4-3mm and panel thicknesses from 10-50mm.

Pre-milling & Corner Rounding in a small footprint

• Edge Tape: 0.4-3 mm
• Panel Thickness: 8-50mm
• 1 Phase 220V 60Hz
• Corner Rounding Unit
• Glue Scraper Unit
• Buffing Unit
• End Trimming HF Motor
• Pre-milling Unit 2 HF Motors with Diamond Cutters
• XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)

• C.A.S.S - Cleaning Agent Spraying System
• Glue Pot Capacity 1.5kg | 3.3lbs Teflon Coated
• Automatic feeding Speed 18 ft/min
• Conveyor Chain Feed System for optimum results.
• HF motors controlled by independent electronic converters
• Net Weight 1411 Lbs | 640 kgs
• Compact Design
• Melamine/PVC/ABS/PP

Specifications:

CBC.PCR	SAE	METRIC
Automatic Feeding speed	18 ft/min	5.5 m/min
Panel thickness Min/Max	21/64" - 1 31/32"	8 - 50 mm
Max Pre-milling Height	1"	30 mm
Edgebanding thickness	0.0157" - 0.118"	0.4-3mm
Glue Pot Capacity	3.3 lbs	1.5 kg
Max Edgebanding Height	2"	51 mm
Minimum panel width	3"	75 mm
Minimum panel length	7 7/8"	200 mm
Extendable Panel Support Rail Length	103"	2627 mm
Extension table Max Width	54"	1371 mm
Size of Dust Collector Ports	6"	150mm
Minimum Dust Collection Requirements	1236 CFM	2100 m3/h
Air Pressure Requirement	14 SCFM @ 87PSI	0.7 Mpa
Edgebanding coil Support Diameter	59"	1498 mm
Recommended Glue Temperature Range	356°F - 410°F	180°C - 210°C

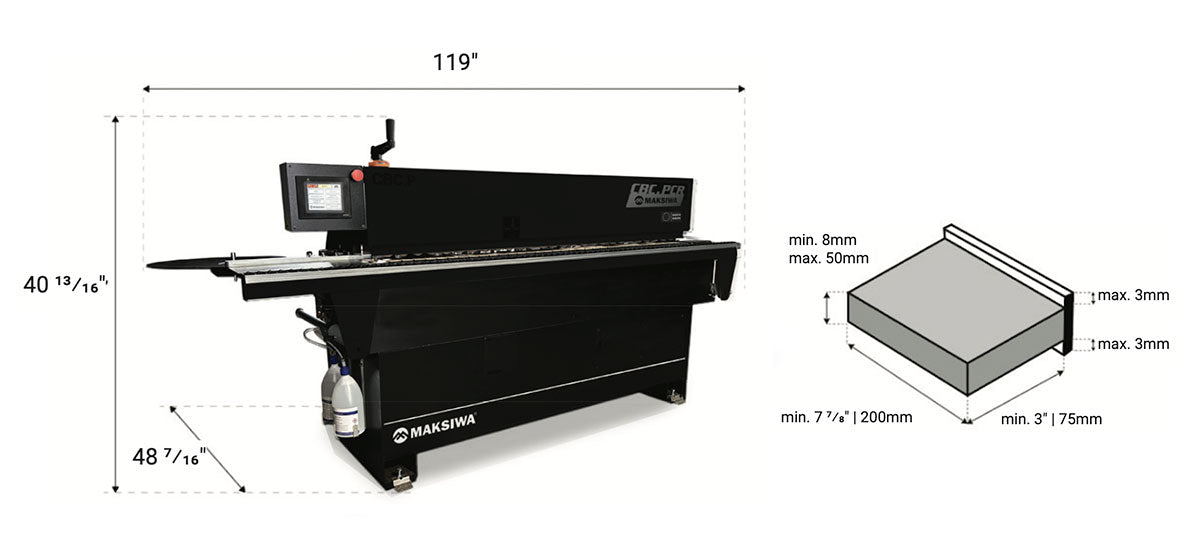

Max. machine dimensions (LxWxH)	119"x 40 16/16"x 48. 7/16"	3026 x 1036 x 1230 mm
Net weight	1411 LBS	640 KGS
Shipping dimensions (LxWxH)	111" x 30" x 57"	2820 x 760 x 1448 mm
Glue Type	Granulated Hot-Melt EVA / PUR	Granulated Hot-Melt EVA / PUR
Electrical Information	1 Phase 220V 30 Amps 60Hz	1 Phase 220V 30 Amps 60Hz

Motor/Electrical	Specs
Electrical Requirement	1 Phase 220V 30 Amps 60 Hz
Conveyer Motor	60 Hz 1390 RPM .66 kw
Top/Bottom Trimmer HFM	200 Hz 12,000 RPM .27kw
End/Corner Rounding Trimmer Motor	200 Hz 12,000 RPM .27kw
Front/Rear Pre-Milling HFM	150 Hz 9000 RPM .75/.25Kw
Top Buffing Motor	60 Hz 1680 RPM .11kw
Bottom Buffing Motor	60 Hz 1680 RPM .11kw
Sound Rating	80 dB

Technical Info	CBC Flex	CBC.E	CBC.MR	CBC/2.MR	CBC.T	CBC.TPM	CBC.PCR
Eletrical specs	1 Phase 110V 550W 60Hz	1 Phase 110V 1500W 60Hz	1 Phase 110V 1500W 60Hz	1 Phase 110V 1500W 60Hz	1 Phase 220V 60Hz 30A	1 Phase 220V 60Hz 30A	1 Phase 220V 60Hz 30A
Feeder Speed	0-19 ft/min	0-18 ft/min	0-26 ft/min	0-26 ft/min	0-16ft/min	21ft/min	18ft/min
Edgebanding Thickness	0.4 - 1mm	0.4 - 2mm	0.4 - 2mm	0.3 - 2mm	0.4 - 3mm	0.4 - 2mm	0.4 - 3mm
Glue Temperature	130° to 180° C	130° to 180° C	130° to 180° C	130° to 180° C	180° to 210° C	180° to 210° C	180° to 210° C
Glue Pot Type	Low Temp. Granulated Hot-Melt EVA	Low Temp. Granulated Hot-Melt EVA	Low Temp. Granulated Hot-Melt EVA	Low Temp. Granulated Hot-Melt EVA	High Temp. Granulated Hot-Melt EVA	Granulated Hot-Melt EVA	Granulated Hot-Melt EVA / PUR
Workarea	-	39 3/8" x 15 3/4"	101 3/4" x 15 3/4"	101 3/4" x 15 3/4"	78 3/4" x 10 2/5"	93 1/2" x 41"	119"x40"
Max Edgebanding Height	1/2" to 1 7/8"	3"	3"	3"	2"	1"	2"
Panel Thickness	1/2" to 1 7/8"	3"	3"	3"	12-45mm	10-45mm	8-50mm
Weight	21 Lbs	114 Lbs	242.5 Lbs	330 lbs	1025 Lbs	1191 Lbs	1411 Lbs
Machine Dimension	11" x 14" x 13 1/2"	47" x 31" x 42"	101 3/4" x 35 1/2 x 43"	(101 3/4") 58" x 43" x 43"	112" x 63" x 51"	93. 1/2" x 41" x 53"	119" x 41" x 49"
End Trim	-	Manual	Manual	Manual	Pneumatic	Pneumatic	Pneumatic

Technical Info	CBC Flex	CBC.E	CBC.MR
Eletrical specs	1 Phase 110V 550W 60Hz	1 Phase 110V 1500W 60Hz	1 Phase 110V 1500W 60Hz
Feeder Speed	0-19 ft/min	0-18 ft/min	0-26 ft/min
Edgebanding Thickness	0.4 - 1mm	0.4 - 2mm	0.4 - 2mm
Glue Temperature	130° to 180° C	130° to 180° C	130° to 180° C
Glue Pot Type	Low Temp. Granulated Hot-Melt EVA	Low Temp. Granulated Hot-Melt EVA	Low Temp. Granulated Hot-Melt EVA
Workarea	-	39 3/8" x 15 3/4"	101 3/4" x 15 3/4"
Max Edgebanding Height	1/2" to 1 7/8"	3"	3"
Panel Thickness	1/2" to 1 7/8"	3"	3"
Weight	21 Lbs	114 Lbs	242.5 Lbs
Machine Dimension	11" x 14" x 13 1/2"	47" x 31" x 42"	101 3/4" x 35 1/2 x 43"
End Trim	-	Manual	Manual

CBC/2.MR	CBC.T	CBC.TPM	CBC.PCR
1 Phase 110V 1500W 60Hz	1 Phase 220V 60Hz 30A	1 Phase 220V 60Hz 30A	1 Phase 220V 60Hz 30A
0-26 ft/min	0-16ft/min	21ft/min	18ft/min
0.3 - 2mm	0.4 - 3mm	0.4 - 2mm	0.4 - 3mm
130° to 180° C	180° to 210° C	180° to 210° C	180° to 210° C
Low Temp. Granulated Hot-Melt EVA	High Temp. Granulated Hot-Melt EVA	Granulated Hot-Melt EVA	Granulated Hot-Melt EVA / PUR
101 3/4" x 15 3/4"	78 3/4" x 10 2/5"	93 1/2" x 41"	119"x40"
3"	2"	1"	2"
3"	12-45mm	10-45mm	8-50mm
330 lbs	1025 Lbs	1191 Lbs	1411 Lbs
(101 3/4") 58" x 43" x 43"	112" x 63" x 51"	93. 1/2" x 41" x 53"	119" x 41" x 49"
Manual	Pneumatic	Pneumatic	Pneumatic
