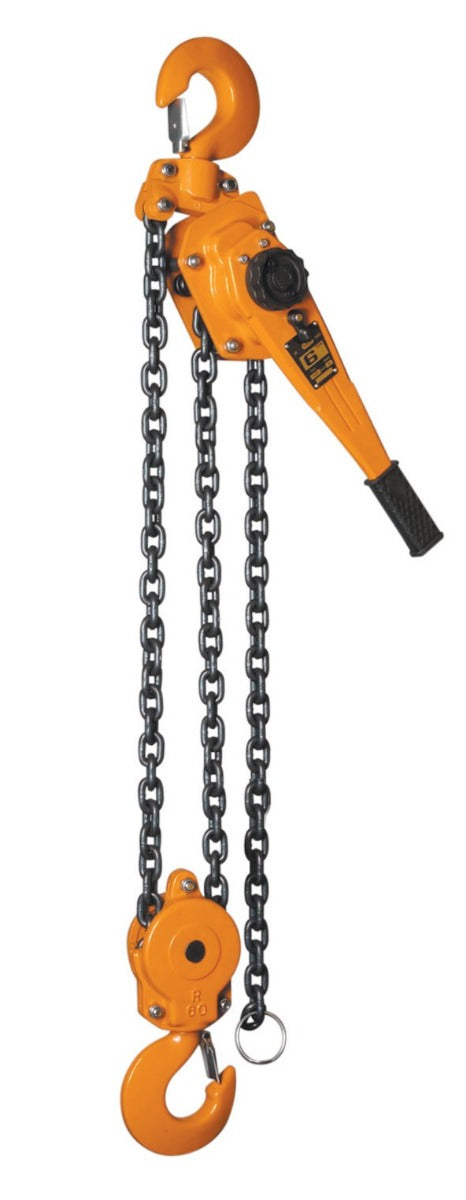

MAGNA 6 Ton Lever Hoist, 15 ft. Lift LH60015
The MAGNA LH60015 is a heavy-duty 6 Ton (13,200 lbs) lever hoist designed for major structural lifting and heavy equipment positioning. It features a 15-foot lift utilizing a double-fall configuration of Grade 100 alloy chain, ensuring maximum strength and stability. The rugged steel housing protects the dual-pawl braking system and gears from external damage, making it ideal for construction sites and mines.
This hoist is built for reliability in all conditions, pre-lubricated with grease that remains effective down to -45°C (-49°F). It features a completely repairable design, allowing maintenance crews to replace worn parts rather than scrapping the unit. Safety is verified through a 150% load test, ensuring the hoist can withstand significant stress. The ergonomic handle and smooth gearing make handling heavy loads manageable for operators.
Features & Benefits
- Massive Capacity: Lifts up to 13,200 lbs using a reliable 2-fall chain system.
- Grade 100 Alloy: Premium load chain provides exceptional strength and durability.
- Field Repairable: Easy access to internal components for maintenance and repair.
- Arctic Ready: Lubricated for performance in temperatures as low as -45°C (-49°F).
- Safety Factor: Load tested to 150% of rated capacity before leaving the factory.
- Positive Braking: Weston-style load brake ensures absolute load control.
Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR750 (7.5 Ton Plain Trolley), GTR750 (7.5 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamp)
Specifications
- Model Number: LH60015
- Working Load Limit (WLL): 6 Ton (13,200 lbs)
- Standard Lift: 15 ft.
- Load Chain Dimensions: 9.0 x 27.0 mm
- Load Chain Grade: Grade 100
- Number of Falls: 2
- Pull to Lift Full Load: 83 lbs
- Headroom (Dimension C): 21.65 in.
- Handle Length (Dimension D): 15.35 in.
- Hook Throat Opening (Dimension G): 1.81 in.
- Net Weight: 84.6 lbs
Specifications
Specifications
| MAGNA Lifting Products 6 Ton Lever Hoist, 15 ft. Lift LH60015 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 15 ft |
| LIFTING CAPACITY | 6 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Lever Hoists |
| TOOL TYPE | Hoists |
