MAGNA Lifting Products 6 Ton Lever Hoist, 10 ft. Lift LH60010
MAGNA Lifting Products 6 Ton Lever Hoist, 10 ft. Lift LH60010
Couldn't load pickup availability
Details
Details

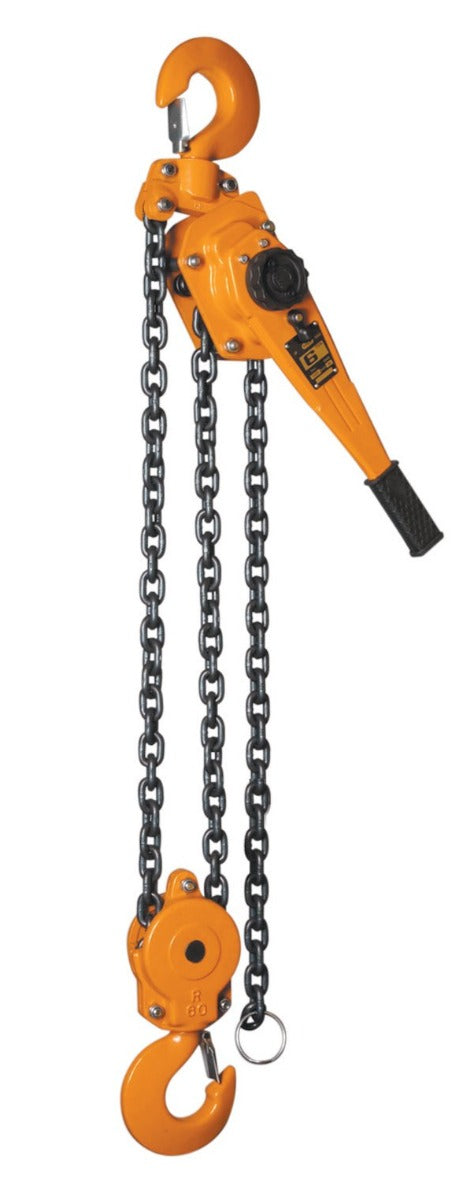

MAGNA 6 Ton Lever Hoist, 10 ft. Lift LH60010
The MAGNA LH60010 6 Ton Lever Hoist is a heavy industrial lifting tool designed for substantial loads requiring a 10-foot lift range. Capable of lifting 13,200 lbs, it uses a double-fall configuration of Grade 100 alloy chain to ensure maximum strength and safety. This hoist is commonly used in shipyards, power plants, and steel mills for positioning heavy components. The robust steel body protects the precision gearing, while the dual-pawl Weston brake guarantees the load stays put.
Despite its high capacity, the LH60010 is designed for manageability, with a handle pull force of 83 lbs. The large alloy hooks feature wide throat openings for easy attachment to rigging hardware. Tested to 150% of its rated capacity (19,800 lbs) and built to perform in -45°C temperatures, the LH60010 is a trusted tool for critical heavy lifts.
Features & Benefits
- High Capacity: 6-ton WLL for heavy industrial use.
- 10-Foot Lift: Extended reach for overhead positioning.
- Grade 100 Chain: Double-fall design for strength.
- 150% Proof Test: Tested to 19,800 lbs.
- Redundant Safety: Dual-pawl brake system.
- Cold Weather Ready: Rated for -45°C.
Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR750 (7.5 Ton Plain Trolley), GTR750 (7.5 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamp)
Specifications
- Model Number: LH60010
- Working Load Limit (WLL): 6 Ton (13,200 lbs)
- Standard Lift: 10 ft.
- Load Chain Dimensions: 9.0 x 27.0 mm
- Load Chain Grade: Grade 100 Alloy
- Number of Falls: 2
- Pull to Lift Full Load: 83 lbs
- Headroom (Dimension C): 21.7 in.
- Handle Length (Dimension D): 15.4 in.
- Hook Throat Opening (Dimension G): 1.81 in.
- Net Weight: 69.3 lbs
Specifications
Specifications
| MAGNA Lifting Products 6 Ton Lever Hoist, 10 ft. Lift LH60010 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 10 ft |
| LIFTING CAPACITY | 6 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Lever Hoists |
| TOOL TYPE | Hoists |
