MAGNA Lifting Products 6 Ton Lever Hoist, 5 ft. Lift LH60005
MAGNA Lifting Products 6 Ton Lever Hoist, 5 ft. Lift LH60005
Couldn't load pickup availability
Details
Details

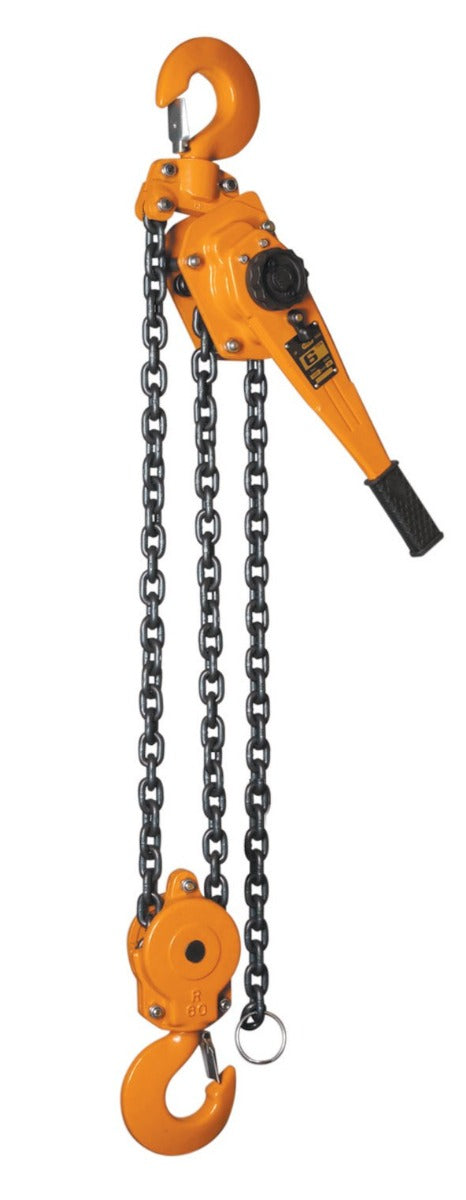

MAGNA 6 Ton Lever Hoist, 5 ft. Lift LH60005
The MAGNA LH60005 6 Ton Lever Hoist is a powerhouse lifting tool engineered for extreme industrial applications where reliability is critical. With a lifting capacity of 13,200 lbs, this hoist utilizes a double-fall configuration of 9.0mm Grade 100 alloy chain to handle massive loads while maintaining a compact form factor. The unit is encased in a heavy-duty steel shell that protects the precision-machined gears and brake mechanism from impact and debris. Despite its massive capacity, the hoist is surprisingly manageable, with a net weight of approximately 60 lbs, allowing for two-person transport and positioning.
Safety features on the LH60005 are extensive. It includes a dual-pawl Weston brake system that provides redundant locking security, essential when suspending heavy machinery or structural steel. The hooks are massive, forged alloy steel components with a 1.8-inch throat opening, designed to open slowly under extreme overload rather than snapping. Tested to 150% of its rated capacity (19,800 lbs) and rated for -45°C operation, this hoist is built for the harshest environments, from arctic oil fields to tropical shipyards.
Features & Benefits
- High Capacity: 6-ton (13,200 lb) WLL ideal for heavy equipment and structural work.
- Grade 100 Chain: Double-fall 9mm alloy chain configuration maximizes strength.
- Redundant Safety: Dual-pawl brake system ensures positive load security.
- 150% Proof Test: Rigorously tested to nearly 10 tons (19,800 lbs) to guarantee performance.
- Durability: All-steel construction with zinc-plated fasteners resists corrosion.
- Serviceable: Fully repairable design with available spare parts extends service life.
Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR750 (7.5 Ton Plain Trolley), GTR750 (7.5 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamp)
Specifications
- Model Number: LH60005
- Working Load Limit (WLL): 6 Ton (13,200 lbs)
- Standard Lift: 5 ft.
- Load Chain Dimensions: 9.0 x 27.0 mm
- Load Chain Grade: Grade 100 Alloy
- Number of Falls: 2
- Pull to Lift Full Load: 83 lbs
- Headroom (Dimension C): 21.7 in.
- Handle Length (Dimension D): 15.4 in.
- Hook Throat Opening (Dimension G): 1.81 in.
- Net Weight: 60.6 lbs
Specifications
Specifications
| MAGNA Lifting Products 6 Ton Lever Hoist, 5 ft. Lift LH60005 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 5 ft |
| LIFTING CAPACITY | 6 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Lever Hoists |
| TOOL TYPE | Hoists |
