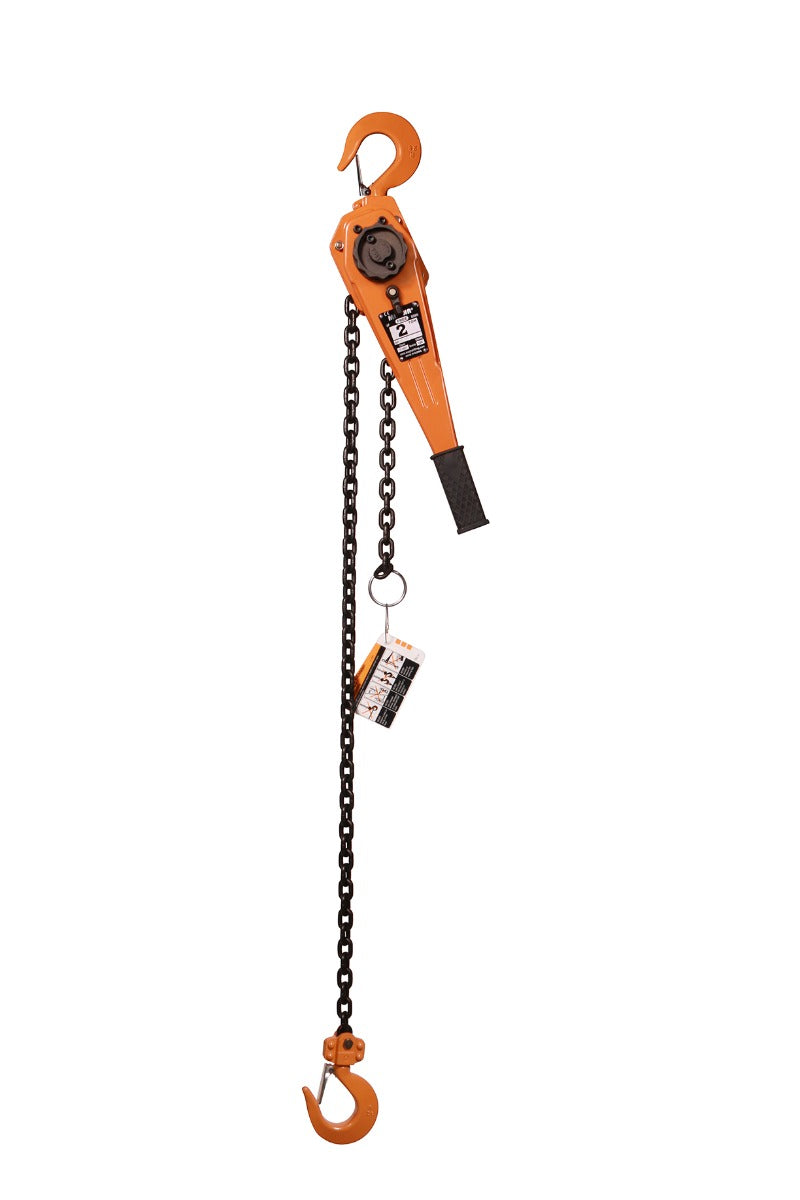

MAGNA 2 Ton Lever Hoist, 15 ft. Lift LH20015
The MAGNA LH20015 elevates manual lifting performance by utilizing premium Grade 100 alloy steel load chain. This advanced metallurgy allows the hoist to deliver a 2 Ton (4,400 lbs) working load limit while maintaining a compact and manageable weight. With a 15-foot lift, this unit is perfectly suited for heavy manufacturing, construction, and structural steel alignment where strength and portability are required.
Built in South Korea to rigorous standards, the LH20015 features a rugged steel housing that is completely repairable. It employs a Weston-style mechanical load brake for precise load positioning and holding. The unit is factory-tested to 150% of its rated capacity (6,600 lbs) and is lubricated with specialized grease that remains viscous down to -45°C (-49°F), ensuring the hoist performs reliably even in the harshest winter conditions.
Features & Benefits
- Grade 100 Chain: High-tensile alloy chain provides superior strength-to-weight ratio.
- Heavy-Duty Capacity: Lifts up to 4,400 lbs with a single chain fall.
- Extreme Environment Ready: Operates in temperatures as low as -45°C (-49°F).
- Fully Repairable: Bolted construction allows for complete servicing and part replacement.
- Safety Verified: Proof loaded to 150% of capacity to ensure safety margin.
- Robust Braking: Mechanical load brake provides positive, non-slip load holding.
Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)
Specifications
- Model Number: LH20015
- Working Load Limit (WLL): 2 Ton (4,400 lbs)
- Standard Lift: 15 ft.
- Load Chain Dimensions: 7.1 x 21.0 mm
- Load Chain Grade: Grade 100
- Number of Falls: 1
- Pull to Lift Full Load: 63 lbs
- Headroom (Dimension C): 13.00 in.
- Handle Length (Dimension D): 15.35 in.
- Hook Throat Opening (Dimension G): 1.30 in.
- Net Weight: 30.4 lbs
Specifications
Specifications
| MAGNA Lifting Products 2 Ton Lever Hoist, 15 ft. Lift LH20015 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 15 ft |
| LIFTING CAPACITY | 2 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Lever Hoists |
| TOOL TYPE | Hoists |
