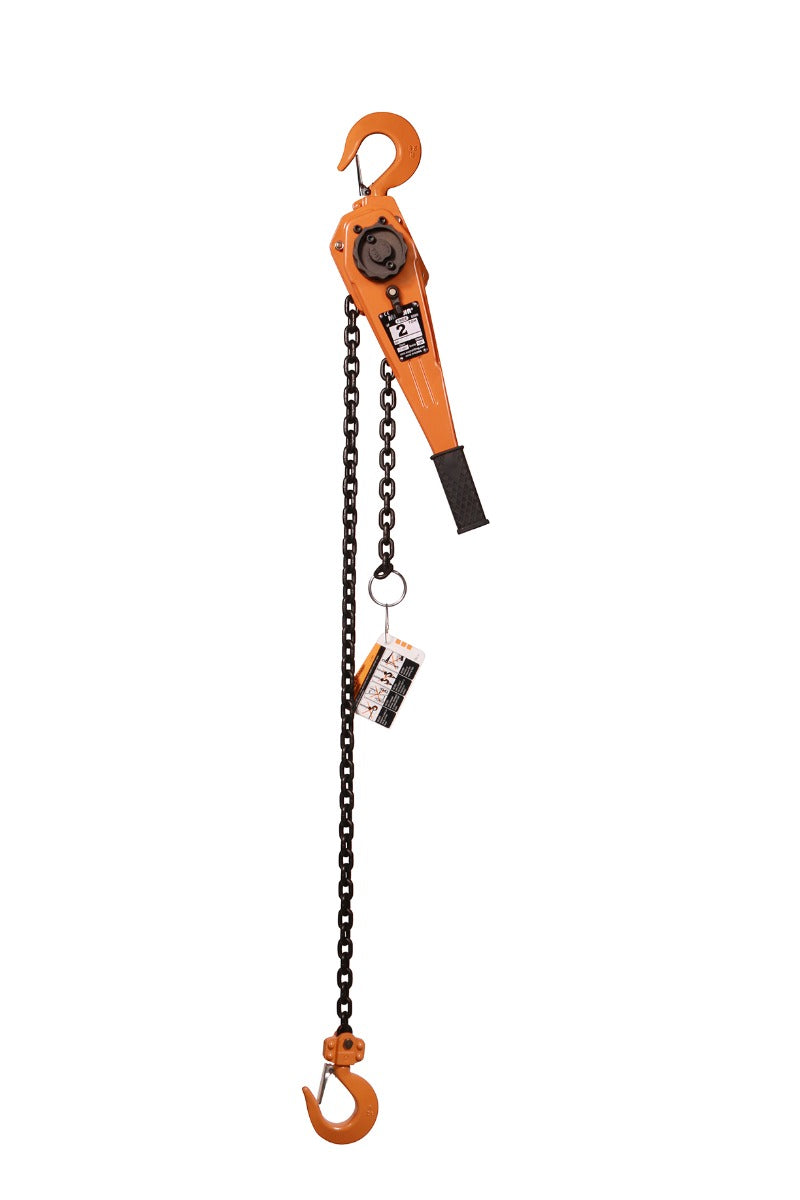

MAGNA Lifting Products 2 Ton Lever Hoist, 5 ft. Lift LH20005
MAGNA Lifting Products 2 Ton Lever Hoist, 5 ft. Lift LH20005
Couldn't load pickup availability
Details
Details
MAGNA 2 Ton Lever Hoist, 5 ft. Lift LH20005
The MAGNA LH20005 2 Ton Lever Hoist marks the transition into MAGNA's heavy-duty industrial line, distinguished by its use of premium Grade 100 alloy chain. By upgrading to Grade 100, MAGNA achieves a 2-ton (4,400 lb) capacity using the same 7.1mm chain diameter found on the 1.5-ton model. This engineering choice maintains a low unit weight (approximately 24 lbs) while providing a 33% increase in lifting capability. This high strength-to-weight ratio makes the LH20005 an exceptional tool for riggers who need to maximize lifting potential without hauling excessive equipment weight.
The hoist features a full-length 15.4-inch ergonomic handle with a non-slip rubber grip, allowing operators to lift the full 2-ton load with only 63 lbs of handle force. It is equipped with a dual-pawl Weston brake system for redundant safety and precise load control. The all-steel body is designed to withstand the harsh conditions of heavy construction and manufacturing. Tested to 150% of its rated capacity (6,600 lbs) and operational in extreme cold (-45°C), the LH20005 provides the reliability required for critical lifts.
Features & Benefits
- Grade 100 Chain Technology: High-tensile alloy allows for 2-ton capacity without increasing chain size or weight.
- Lightweight Powerhouse: Weighs only ~24 lbs while lifting 4,400 lbs, ideal for mobile crews.
- Redundant Safety: Dual-pawl Weston brake system ensures positive load holding at all times.
- 150% Proof Test: Individually tested to 6,600 lbs for a massive safety margin.
- Ergonomic Operation: Rubber grip handle and efficient gearing reduce operator fatigue (63 lbs pull).
- Durability: Impact-resistant steel housing and zinc-plated fasteners resist corrosion and damage.
Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)
Specifications
- Model Number: LH20005
- Working Load Limit (WLL): 2 Ton (4,400 lbs)
- Standard Lift: 5 ft.
- Load Chain Dimensions: 7.1 x 21.0 mm
- Load Chain Grade: Grade 100 Alloy
- Number of Falls: 1
- Pull to Lift Full Load: 63 lbs
- Headroom (Dimension C): 13.0 in.
- Handle Length (Dimension D): 15.4 in.
- Hook Throat Opening (Dimension G): 1.3 in.
- Net Weight: 24.0 lbs
Specifications
Specifications
| MAGNA Lifting Products 2 Ton Lever Hoist, 5 ft. Lift LH20005 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 5 ft |
| LIFTING CAPACITY | 2 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Lever Hoists |
| TOOL TYPE | Hoists |
