MAGNA Lifting Products 1.5 Ton Lever Hoist, 20 ft. Lift LH15020
MAGNA Lifting Products 1.5 Ton Lever Hoist, 20 ft. Lift LH15020
Couldn't load pickup availability
Details
Details

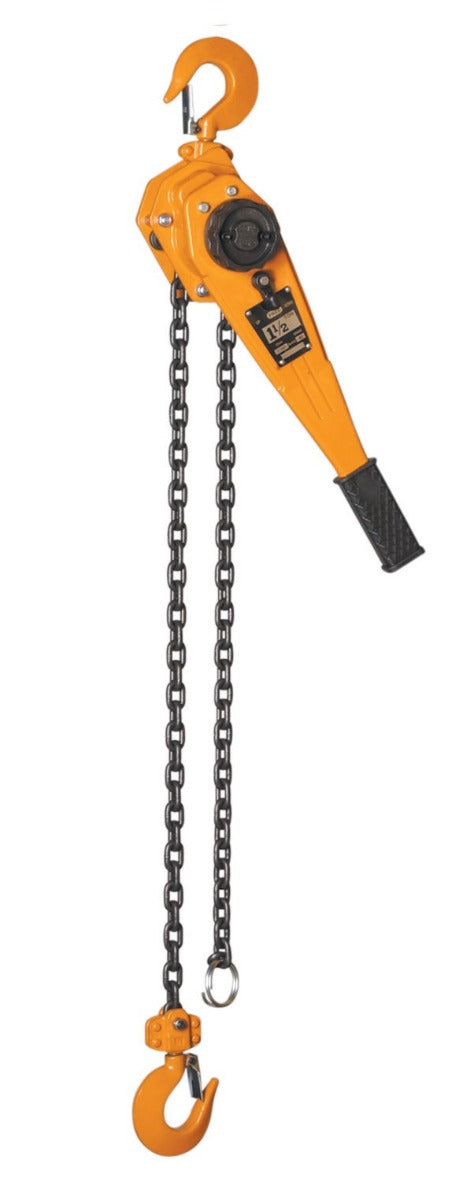

MAGNA 1.5 Ton Lever Hoist, 20 ft. Lift LH15020
The MAGNA LH15020 offers a versatile 1.5 Ton (3,300 lbs) capacity combined with a long 20-foot lift, perfect for general rigging and construction tasks. It features a rugged steel body and uses a single fall of Grade 80 alloy load chain for smooth operation. The hoist is designed to be fully repairable, ensuring that maintenance is straightforward and cost-effective.
This unit is ready for extreme environments, pre-lubricated with grease that functions down to -45°C (-49°F). It includes a Weston-style load brake for positive load control and a free-chaining function for rapid slack removal. Tested to 150% of its rated capacity, the LH15020 provides a high safety margin and reliable performance for heavy-duty lifting requirements.
Features & Benefits
- Extended Lift: 20-foot chain allows for operation in high or deep work zones.
- Repairable Design: Complete access to internal parts for easy servicing.
- Cold Weather Use: Grease rated for -45°C (-49°F) ensures reliability in winter.
- Certified Safety: Proof loaded to 150% of capacity (4,950 lbs).
- Durable Build: Steel housing and Grade 80 chain resist impact and wear.
- Secure Braking: Mechanical load brake holds loads firmly in place.
Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)
Specifications
- Model Number: LH15020
- Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
- Standard Lift: 20 ft.
- Load Chain Dimensions: 7.1 x 21.0 mm
- Load Chain Grade: Grade 80
- Number of Falls: 1
- Pull to Lift Full Load: 63 lbs
- Headroom (Dimension C): 13.00 in.
- Handle Length (Dimension D): 15.35 in.
- Hook Throat Opening (Dimension G): 1.30 in.
- Net Weight: 33.1 lbs
Specifications
Specifications
| MAGNA Lifting Products 1.5 Ton Lever Hoist, 20 ft. Lift LH15020 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 20 ft |
| LIFTING CAPACITY | 1.5 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Lever Hoists |
| TOOL TYPE | Hoists |
