Lamello Bisco P-10 P-System Alignment Elements, 300 Count 145305
The Lamello Bisco P-10 is a plastic alignment element designed for use in thinner materials within the P-System workflow. It fits perfectly into the same 7mm P-System groove as the Clamex P-10 and Tenso P-10 connectors, eliminating the need for cutter changes and streamlining production. Its primary function is to ensure perfect flush alignment of panels, especially in applications where a full structural connector is not required at every point. The Bisco P-10 can also be used for dry-fitting assemblies before final glue-up, or in conjunction with PVA glue to create a strong, fixed connection, increasing shear strength and stiffening the joint. This 300-count box is perfect for professional shops and production environments.
Features & Benefits
- Perfect Alignment for Thinner Panels: The smaller P-10 size is ideal for ensuring flush alignment of grooves and panels in materials less than 18mm thick.
- Streamlined Workflow: Fits the same P-System groove as P-10 connectors, eliminating the need to change cutters or machine settings.
- Cost-Effective Solution: Use in combination with Clamex or Tenso connectors as a less expensive way to maintain alignment and add strength.
- Self-Clamping Fit: A textured surface structure allows the Bisco P to hold itself securely in the groove during assembly.
- Versatile Use: Can be used for dry-fitting, as a gluing aid with PVA glue for a permanent bond, or to increase the shear strength of a joint.
Applications
- Maintaining flush alignment on panel joints in materials from 12mm thick.
- Used alternately with Clamex P-10 or Tenso P-10 connectors to provide alignment and stiffening.
- Dry-fitting assemblies to test joints before final gluing.
- Creating permanent glued joints as a modern alternative to traditional biscuits.
Specifications

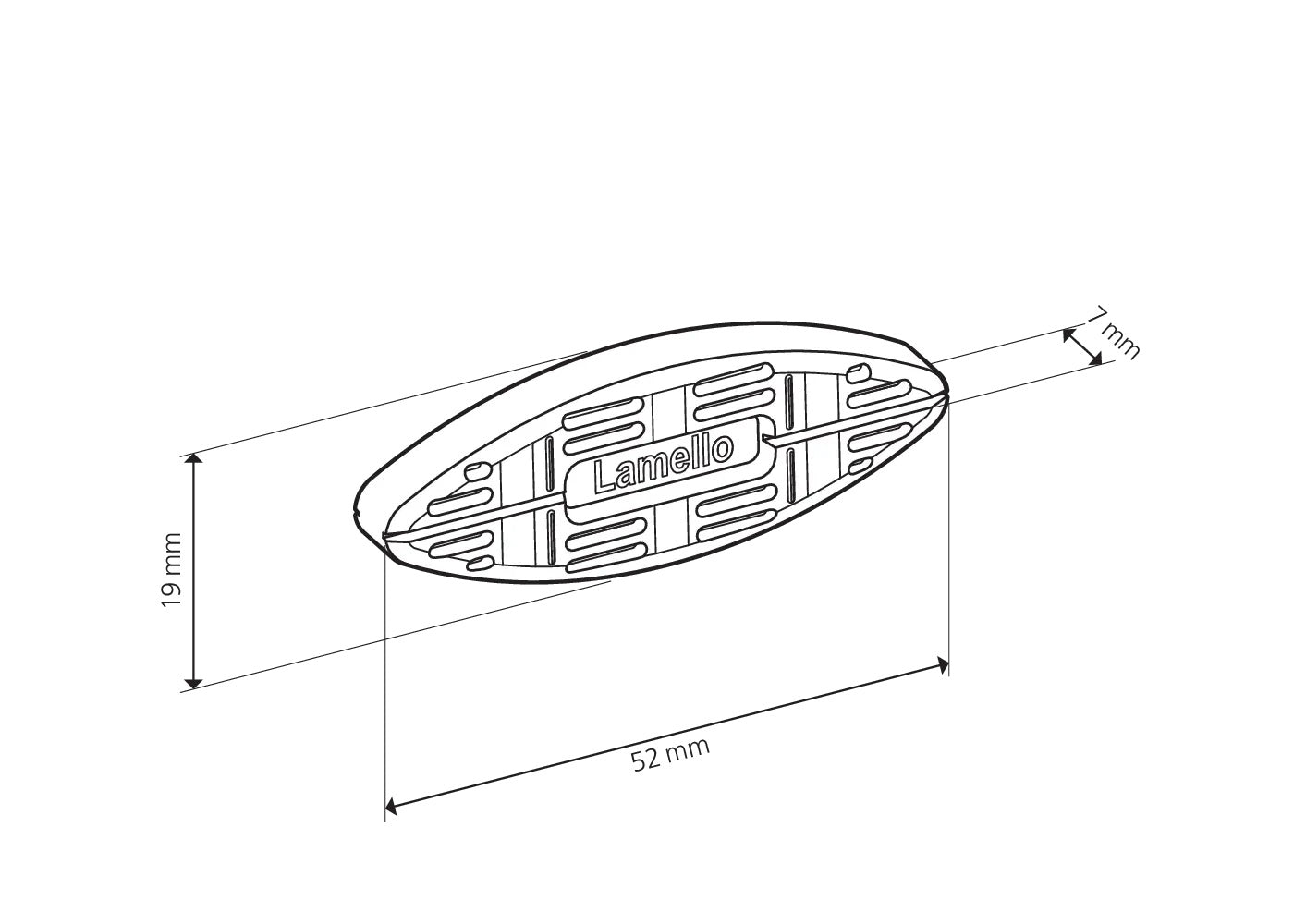

- Size: 52 x 19 x 7 mm
- Material: Plastic
- Installation Tolerance: Longitudinal ± 2 mm
- Minimum Material Thickness: 16 mm
- Quantity: 300 pieces
Specifications
Specifications
| Lamello Bisco P-10 P-System Alignment Elements, 300 Count 145305 | |
| Brand | Lamello |
