Laguna Tools 37x75" Pro Metal Widebelt Sander 1K 20HP 220V 3Ph MSANWB37X75-1K-20-0197-1
Laguna Tools 37x75" Pro Metal Widebelt Sander 1K 20HP 220V 3Ph MSANWB37X75-1K-20-0197-1
Couldn't load pickup availability
Details
Details

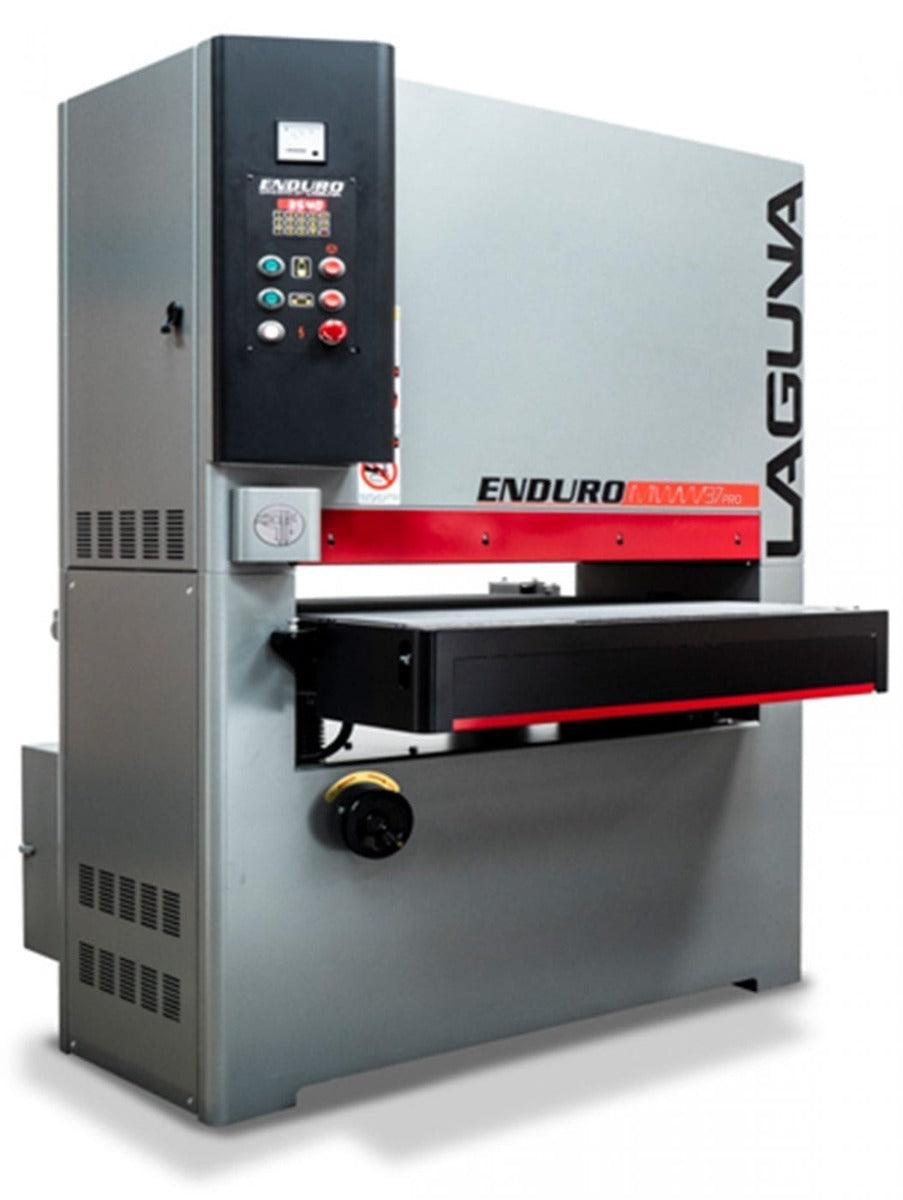

The Laguna MW37 Pro Metal Widebelt Sander brings the efficiency of widebelt sanding to the metalworking industry. Specifically engineered for deburring, graining, and surface conditioning, this machine features a large 8-inch diameter contact drum that provides the aggressive cutting action needed for metal surfaces. The 20 HP main motor ensures consistent power delivery, even under heavy load, making it suitable for stainless steel, aluminum, and mild steel applications.
Built with a heavy-duty steel frame to minimize vibration, the MW37 Pro includes an advanced digital control panel for precise height adjustments and load monitoring. The variable speed conveyor allows operators to fine-tune the finish quality, while the automatic thickness measuring system streamlines setup for production runs. Safety features such as an emergency stop bar and air-operated braking system are standard.
Features & Benefits
- Optimized for Metal: Designed specifically for deburring laser-cut parts, removing dross, and creating grained finishes on sheet metal and plate.
- 8" Contact Drum: Large diameter drum provides a larger contact area for effective metal removal and cooler running temperatures.

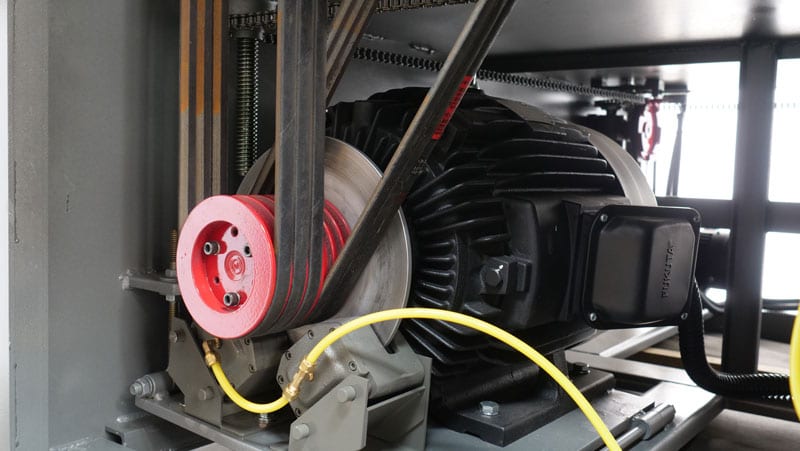

- 20 HP Industrial Motor: Provides ample power for grinding and finishing tough metals like stainless steel.
- Digital Control Panel: Features logic controls for belt oscillation, table positioning, and load monitoring (Amperage).
- Auto-Height Adjustment: Automatically detects material thickness and sets the table position, reducing setup time and errors.
- Variable Feed Speed: Conveyor adjusts from 12 to 60 FPM, allowing for precise control over the finish pattern.
- Heavy-Duty Hold Downs: Double infeed and outfeed rollers keep metal parts securely flat against the conveyor during sanding.
Applications
- Deburring laser-cut, plasma-cut, or waterjet-cut metal parts
- Removing rust, scale, and dross
- Graining and surface finishing of stainless steel and aluminum
Specifications
- Main Motor: 20 HP, 220V, 3-Phase
- Conveyor Motor: 1 HP (Variable Speed)
- Max Sanding Width: 36-1/2"
- Max Sanding Thickness: 6"
- Min Sanding Thickness: ~1/32" (26 Gauge)
- Sanding Belt Size: 37" x 75"
- Contact Drum Diameter: 8"
- Conveyor Speed: 12 - 60 FPM
- Dust Ports: 3 x 4" (Requires Wet Collector or Metal-Safe Extraction)
- Air Pressure Requirement: 60 PSI
- Net Weight: 2,430 lbs
What's Included: MW37 Pro Metal Sander, Control Panel, Manual. (Wet dust collector sold separately).
Specifications
Specifications
| Laguna Tools 37x75" Pro Metal Widebelt Sander 1K 20HP 220V 3Ph MSANWB37X75-1K-20-0197-1 | |
| APPLICATION | Metal Working |
| Brand | Laguna Tools |
| HORSEPOWER | 20 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Sanders - Belt Sanders |
| TOOL TYPE | Sanders |
| VOLTAGE | 208V-240V 3Ph |
