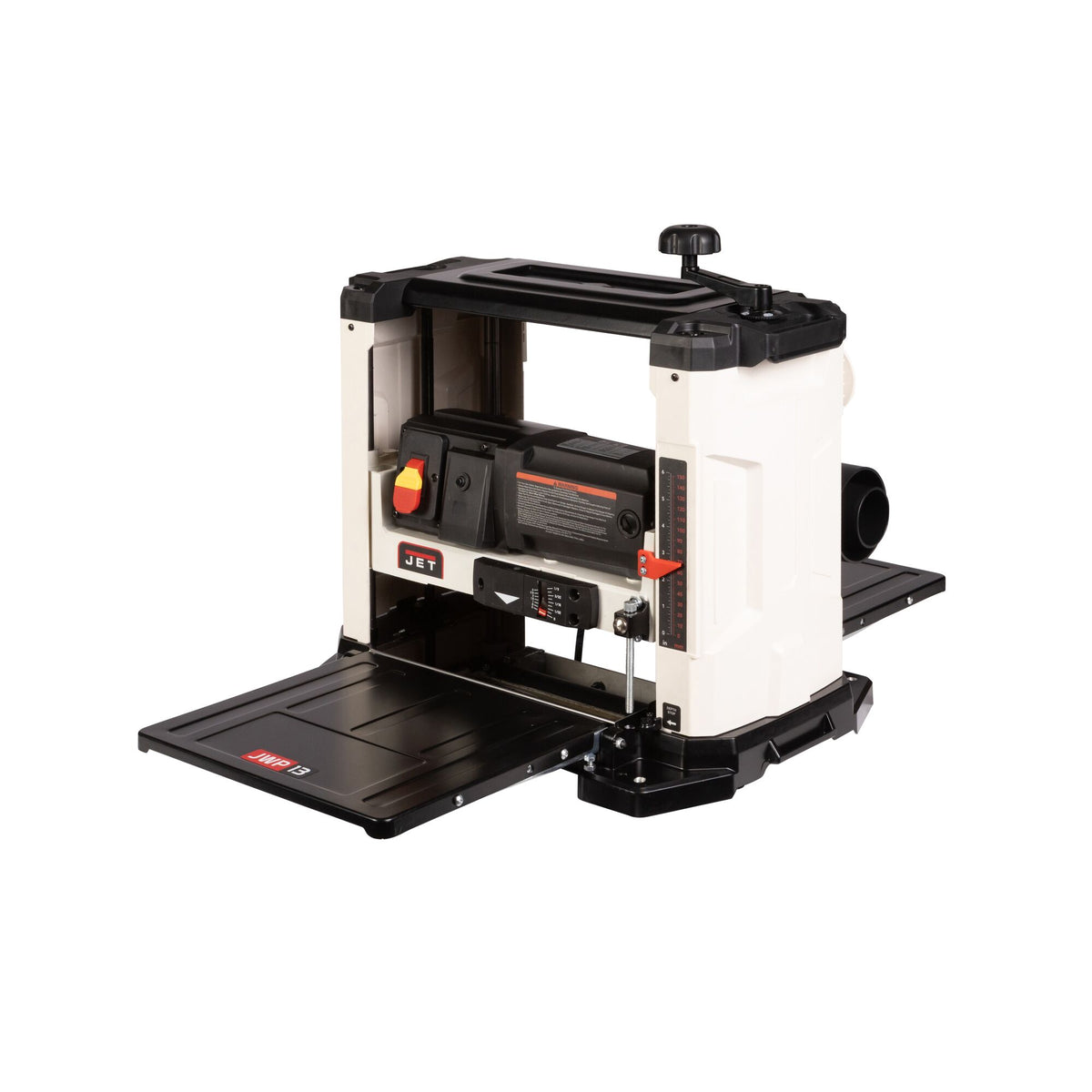

Jet JWP-13BTK 13 in. Benchtop Thickness Planer, 3-Knife Cutterhead, 120V, 1-Phase JT1-2988
Jet JWP-13BTK 13 in. Benchtop Thickness Planer, 3-Knife Cutterhead, 120V, 1-Phase JT1-2988
Couldn't load pickup availability
Details
Details
The JET JWP-13BTK 13 in. Benchtop Thickness Planer (Stock No. JT1-2988) delivers powerful surface planing performance in a compact, portable design built for jobsite mobility and shop space efficiency. Driven by a 15A motor powering a 9,500 RPM 3-knife cutterhead, this machine processes boards up to 13 in. wide and 6 in. thick. Designed for small-shop craftsmen, finish carpenters, and serious hobbyists, the JWP-13BTK provides fast cutting action and reliable board sizing without requiring the footprint or dedicated circuit of a large stationary machine.
Equipped with three high-speed steel double-sided knives, each blade features two razor-sharp cutting edges that can be reversed when dull, extending blade utility and minimizing setup time. A 24.6 FPM feed rate and 1/16 in. table movement per handwheel turn allow precise, controlled material removal across both softwoods and hardwoods. Integrated depth stop presets let operators return quickly to standard board thickness settings for batch processing consistency. Built-in carrying handles and folding support tables allow one person to move, set up, or store the sub-70 lb. unit effortlessly.

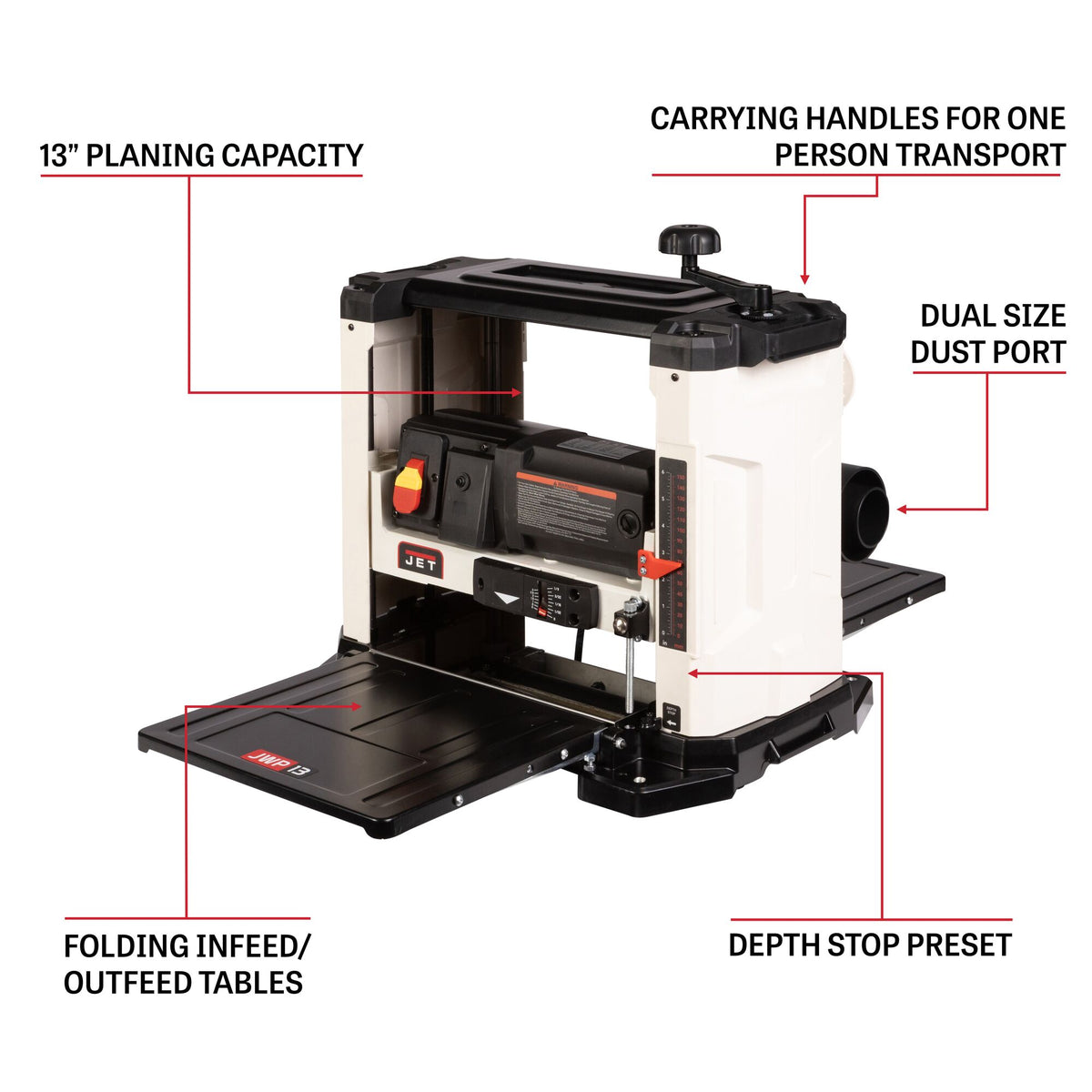

Features & Benefits

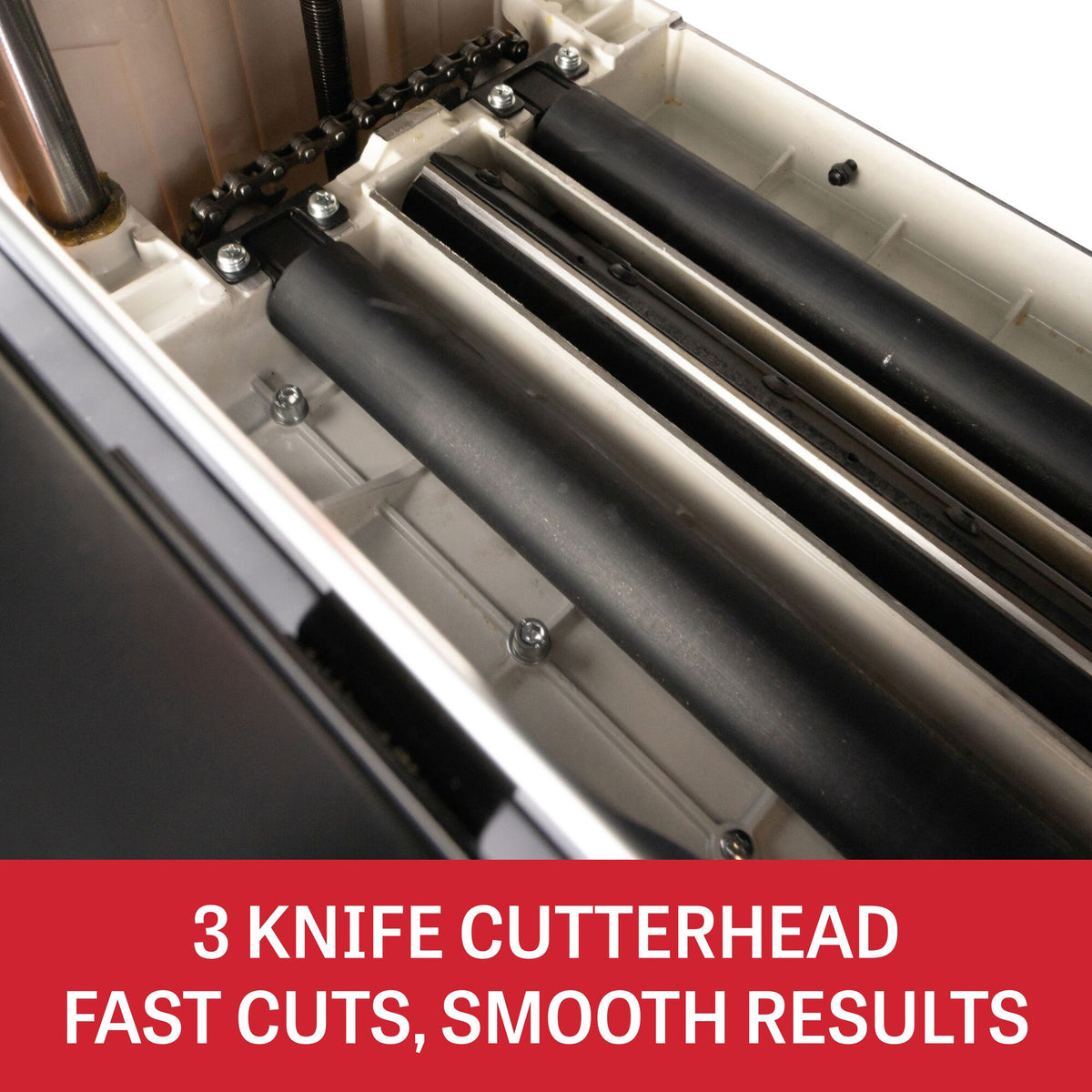

- 3-Knife Cutterhead: Operates at 9,500 RPM with three double-sided knives for fast material removal and smooth surface cutting.

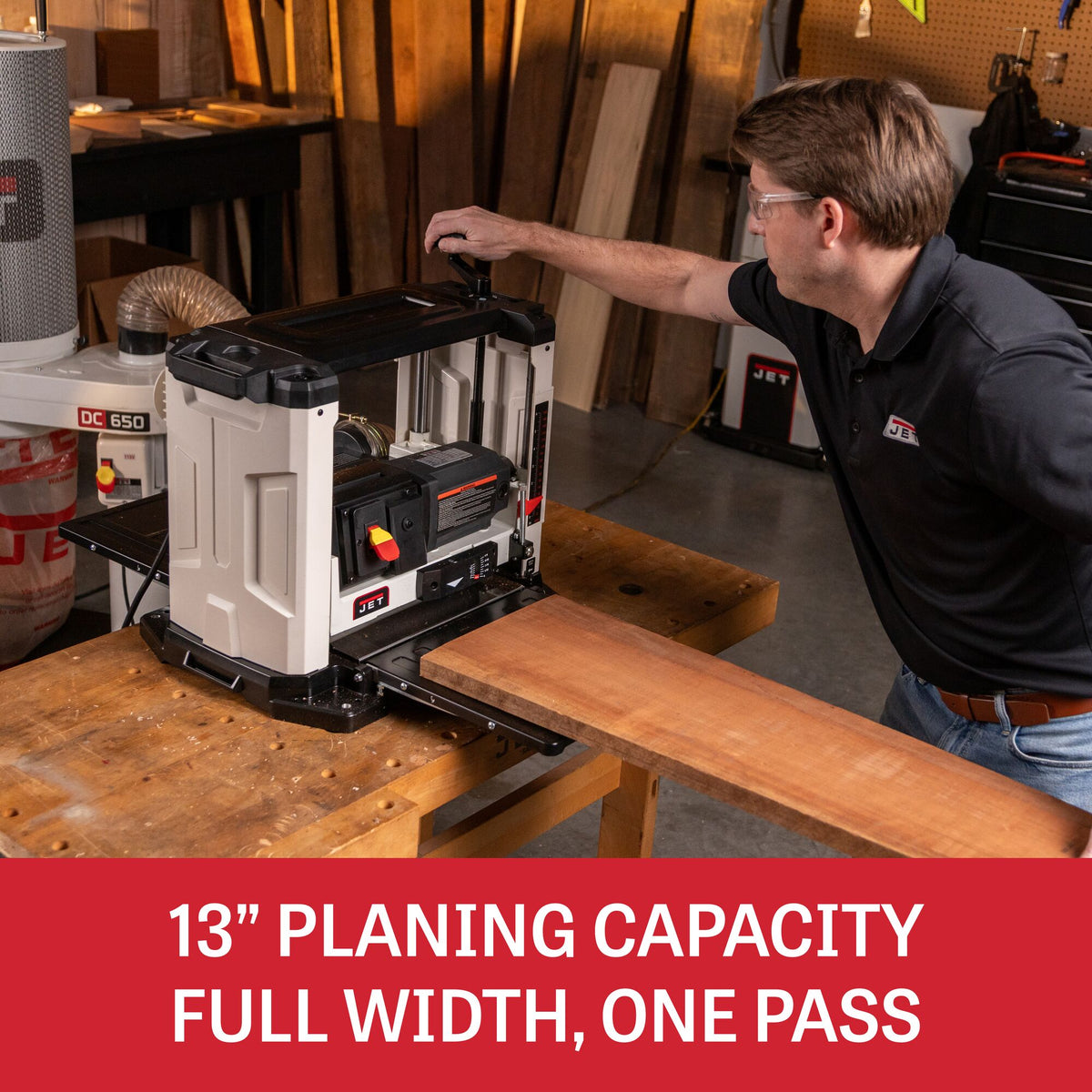

- 13 in. Planing Capacity: Surfaces full-width lumber up to 13 in. wide and 6 in. thick in a portable benchtop configuration.
- Reversible Knives: Double-edged knives can be turned 180 degrees to use the second sharp cutting edge before requiring blade replacement.

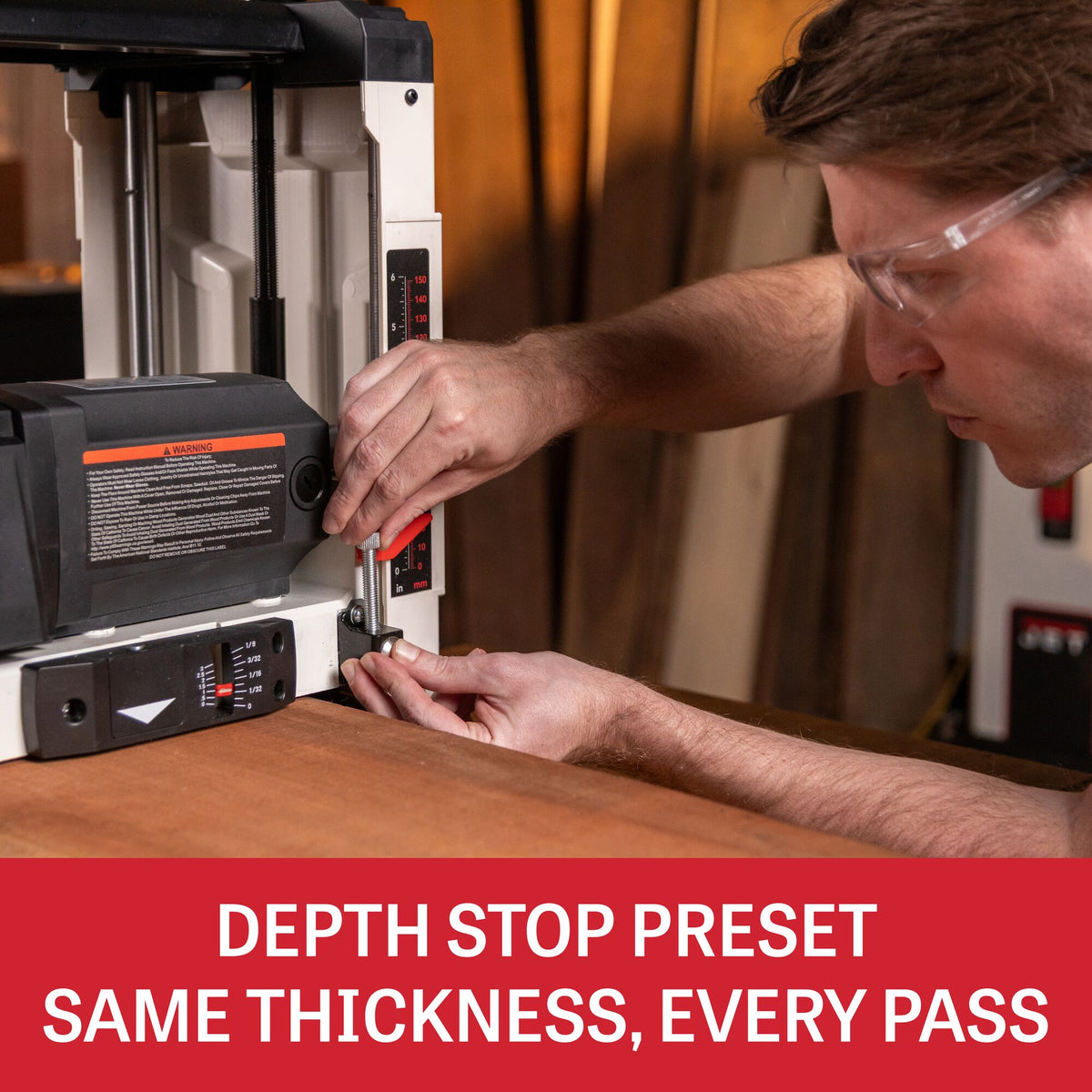

- Depth Stop Preset: Provides rapid, repeatable returns to standard thickness dimensions for consistent multi-pass board processing.

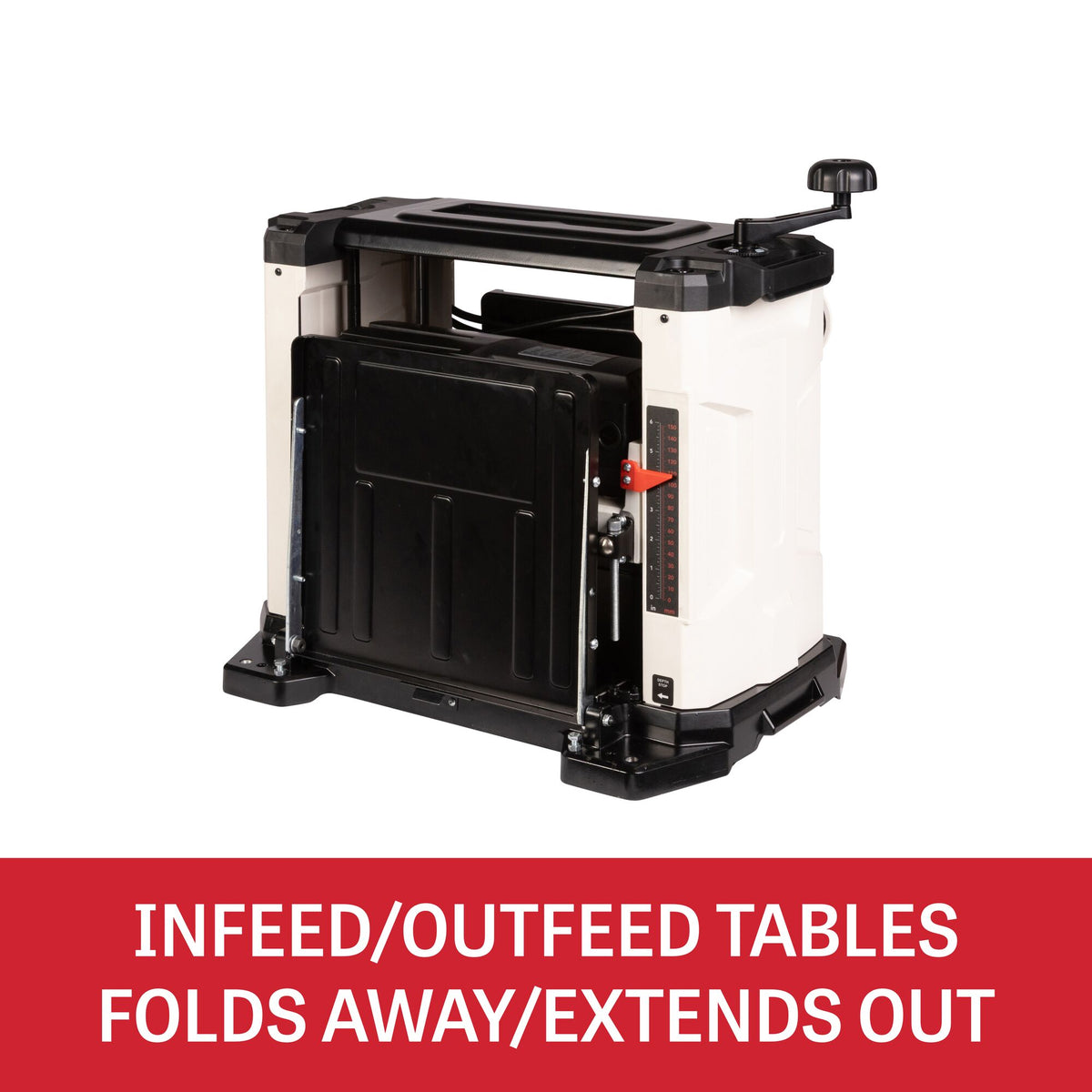

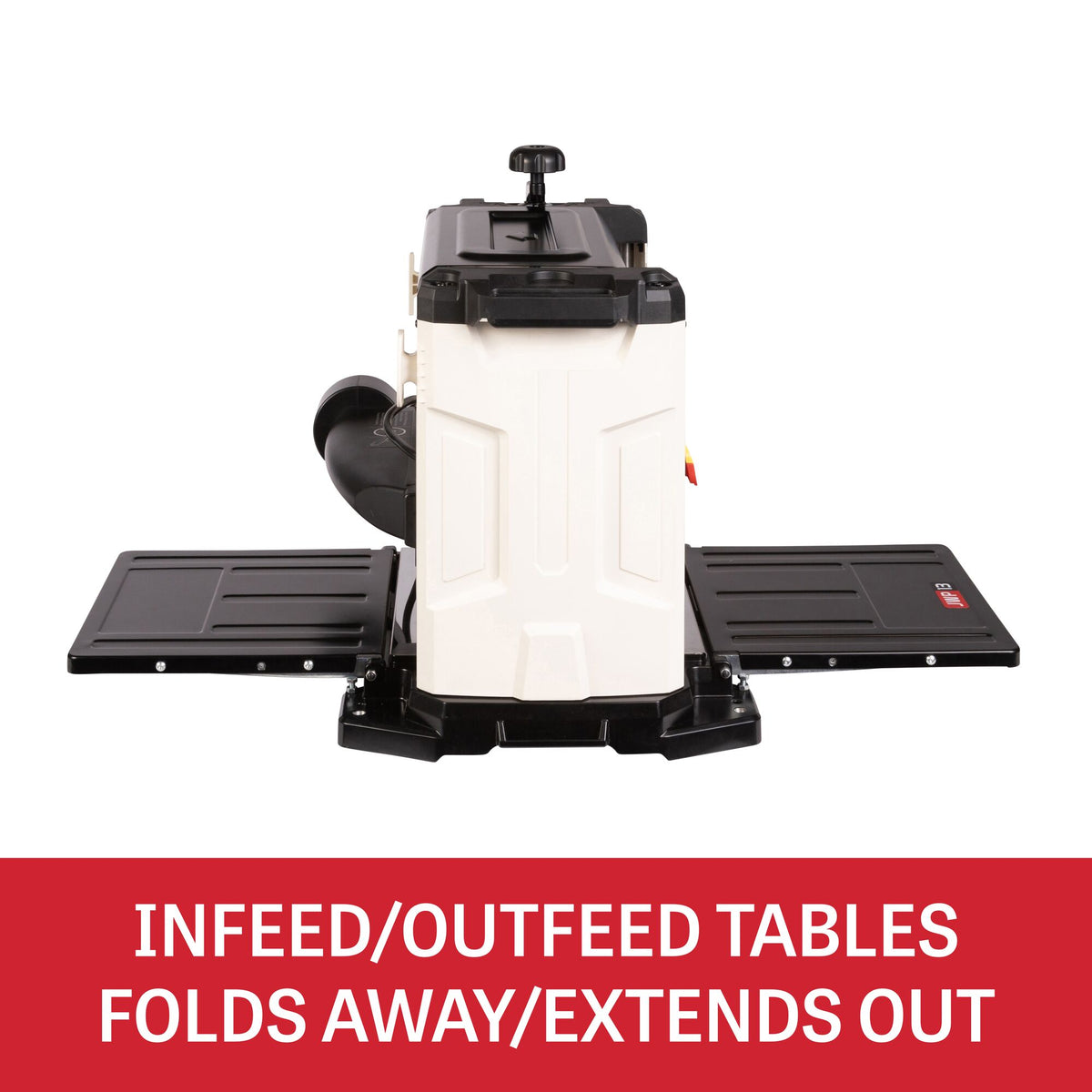

- Folding Infeed and Outfeed Tables: Support long boards during feeding (13.1 in. x 11.8 in. extension tables) and fold upright for compact storage and transport.

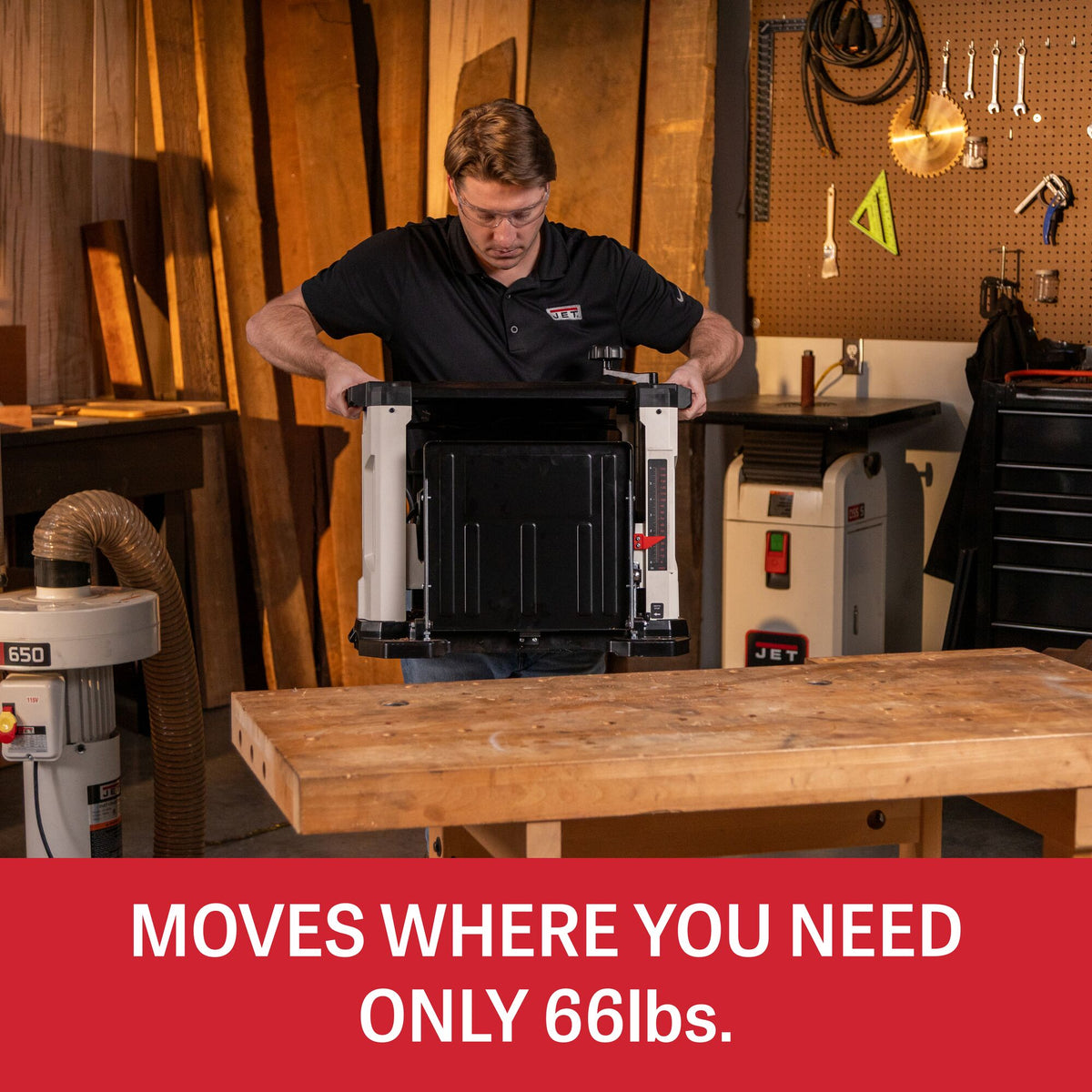

- One-Person Portability: Integrated carrying handles and a 66 lb. net weight allow straightforward lifting and transport around the shop or jobsite.

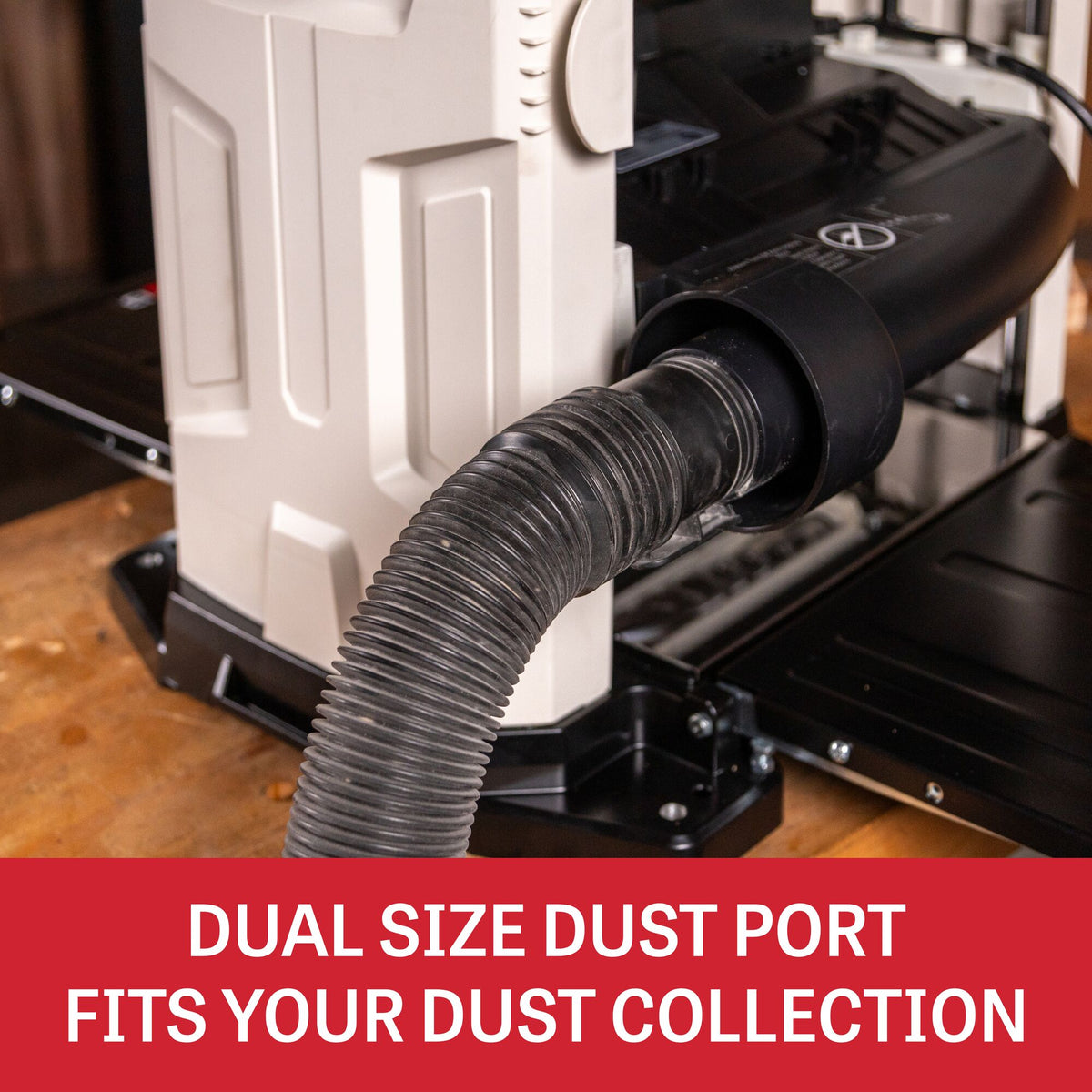

- Dual-Size Dust Port: Accommodates 4 in. outer or 2-1/2 in. inner vacuum and dust collection hoses for efficient chip extraction (550 CFM minimum recommended).
- Cutterhead Locking Lever: Secures the cutterhead in position to allow safe blade inspection, reversal, or replacement.
- Onboard Tool Storage: Snap-in mounting prongs on the cutterhead cover keep essential hex tools accessible for routine adjustments.

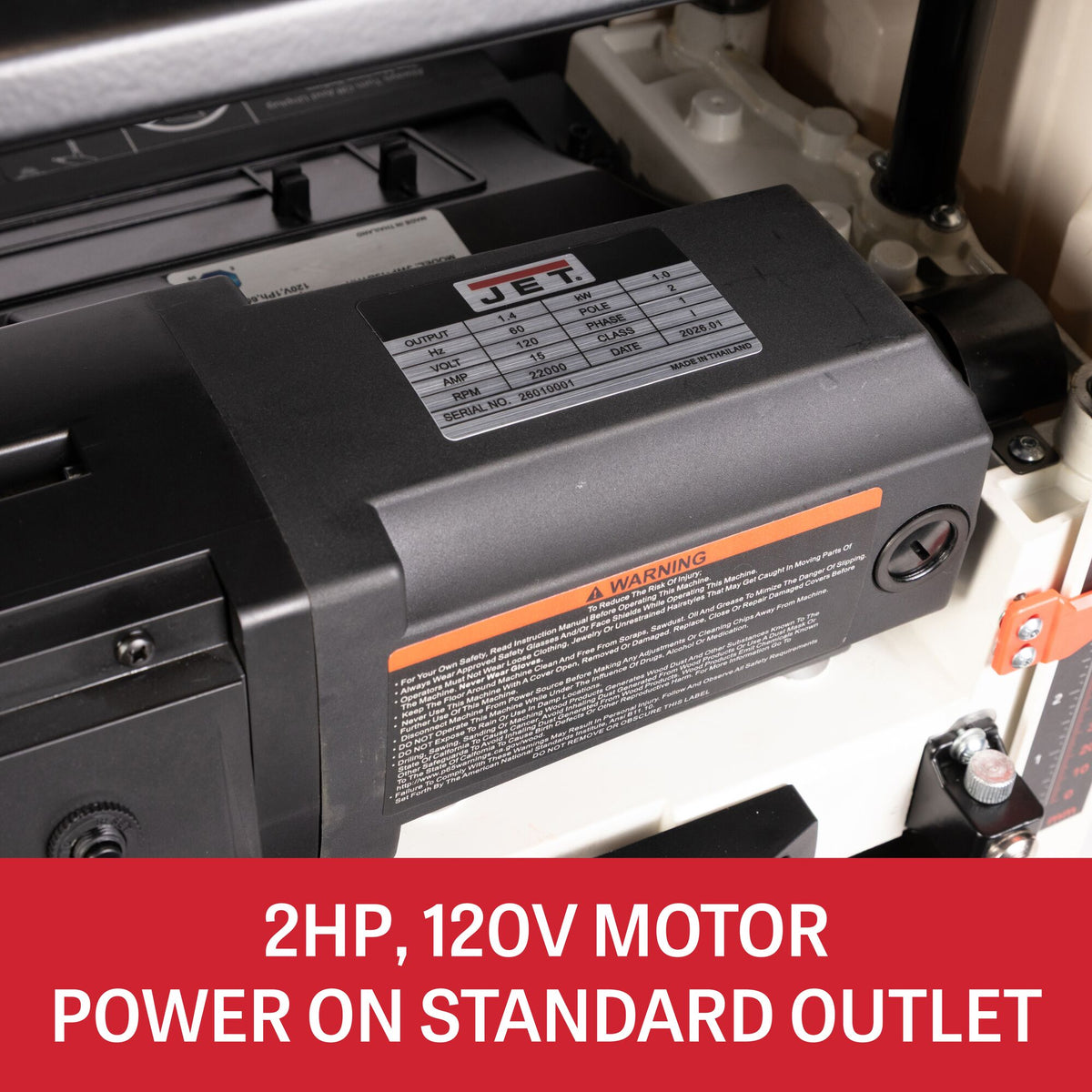

- Motor Overload Protection: Includes an 18A overload protector with a front-mounted reset button to safeguard the 15A motor.
Specifications
Specifications
| Specification | Value |
|---|---|
| Model | JWP-13BTK |
| Manufacturer Part Number | JT1-2988 |
| Product Type | Benchtop Thickness Planer |
| Primary Capacity (Max Planing Width) | 13 in. (330 mm) |
| Maximum Planing Thickness | 6 in. (150 mm) |
| Minimum Planing Length | 14 in. (356 mm) |
| Minimum Planing Width | 3/4 in. (19 mm) |
| Minimum Planing Thickness | 3/16 in. (5 mm) |
| Cutterhead Type | 3-Knife Head |
| Number of Knives | 3 Knives |
| Cutterhead Diameter | 1.84 in. (46.74 mm) |
| Cutterhead Speed | 9,500 RPM |
| Motor Speed | 22,000 RPM |
| Maximum Depth of Cut (Up to 6 in. Width) | 1/8 in. (3.17 mm) |
| Maximum Full Width Depth of Cut | 1/16 in. (1.58 mm) |
| Feed Rate | 24.6 FPM |
| Table Movement Per Revolution | 1/16 in. (1.58 mm) |
| Table Size (L x W) | 13 x 12 in. (330.2 x 304.8 mm) |
| Extension Table Size (L x W) | 13.1 x 11.8 in. (332.74 x 299.72 mm) |
| Motor Input Power (P1) | 1.65 kW |
| Motor Output Power (P2) | 1.00 kW |
| Voltage | 120V |
| Phase | 1-Phase |
| Full Load Amperage | 15 A |
| Frequency | 60 Hz |
| Recommended Minimum Dust Extraction | 550 CFM |
| Dust Port Diameter | 4 in. Outside / 2-1/2 in. Inside |
| Sound Emission | 93 dB |
| Net Weight | 66 lbs. (30 kg) |
| Shipping Weight | 71 lbs. (32 kg) |
| Warranty | 5 Year Limited |
