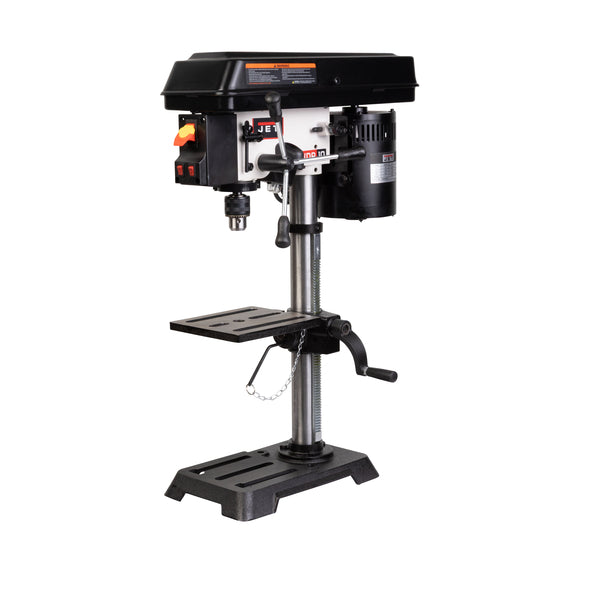

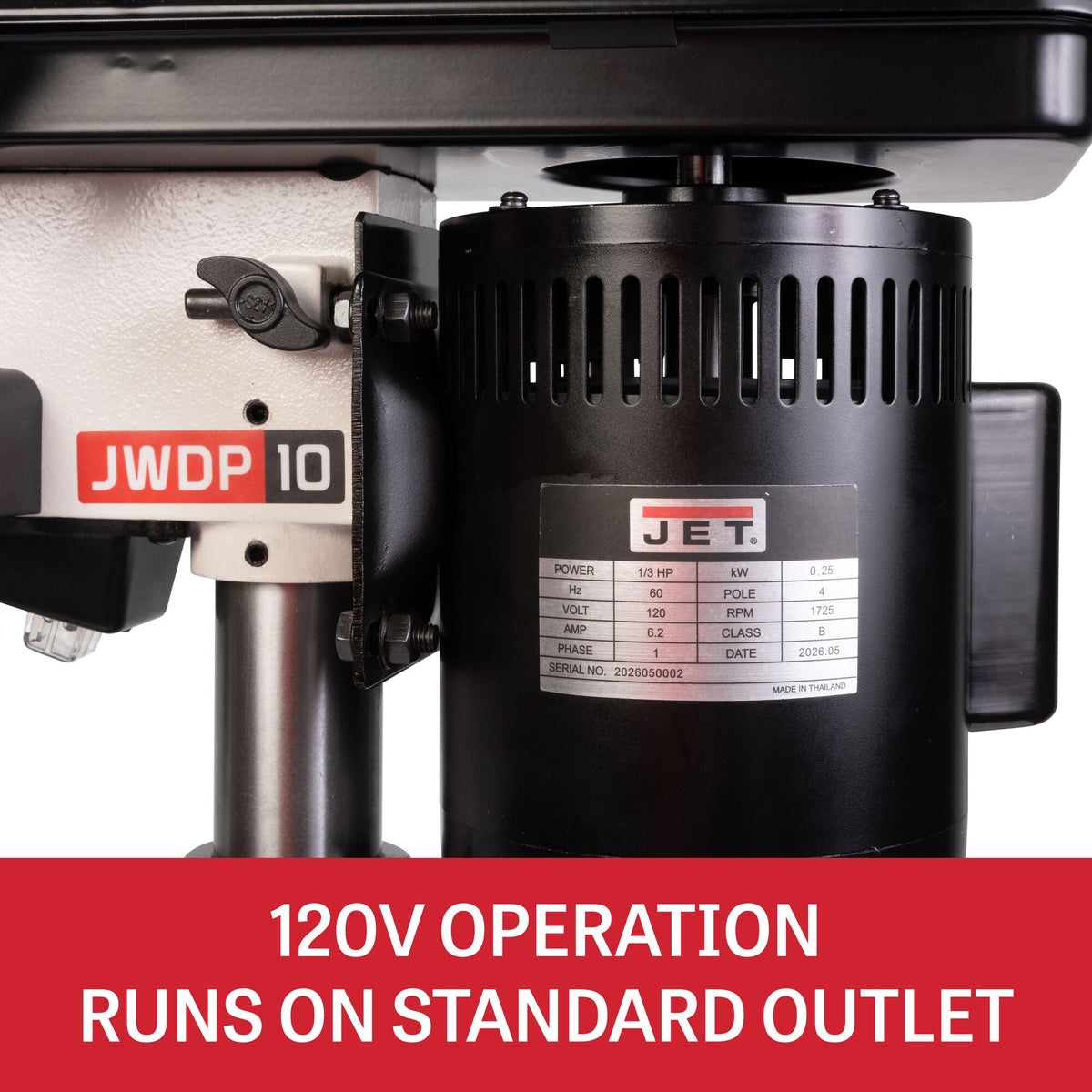

The JET JWDP-10 10 in. 5-Speed Benchtop Drill Press (Stock No. JT1-3162) delivers reliable drilling performance in a compact footprint designed for woodworkers, makers, finish carpenters, and trade school shops. Powered by a 1/3 HP, 120V single-phase motor drawing 6.2 amps, this drill press handles everyday woodworking and light metalworking applications without taking over valuable shop bench space.

A 5-speed stepped pulley system provides a range from 630 to 3,300 RPM, enabling operators to select the optimal spindle speed for wood, aluminum, brass, and mild steel. Precision hole placement is simplified by the dual crosshair laser alignment system and built-in LED work light, which illuminate the workpiece and indicate exact entry points. For consistent production work, an adjustable depth stop rod with dual locking nuts allows setting repeatable drilling depths up to the full 2 in. spindle travel.

The 7-1/2 in. x 6-1/2 in. cast iron worktable tilts 45 degrees left and right for bevel drilling and rotates 360 degrees around the column. Table height is controlled via a rack-and-pinion elevation handle, offering up to 10-7/16 in. of vertical travel. The drill press mounts directly to a workbench using three mounting holes in the column base for rigid, wobble-free operation.

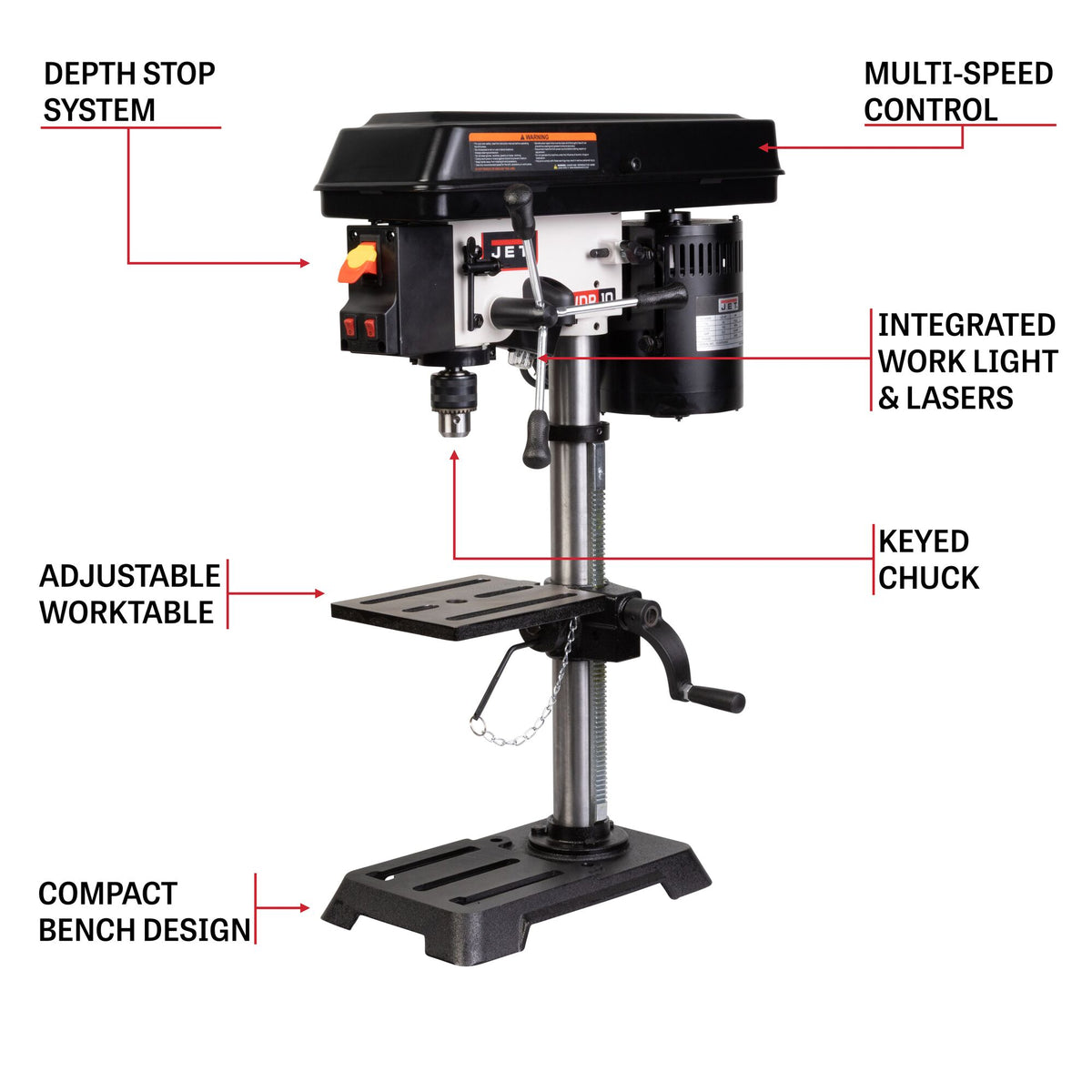

Features & Benefits

• 5-Speed Pulley System: Delivers spindle speeds from 630 to 3,300 RPM to match material drilling requirements across wood, plastics, and metals.
• Laser Alignment & LED Light: Factory-aligned crosshair lasers pinpoint hole centers, while the integrated LED illuminates dark work areas.

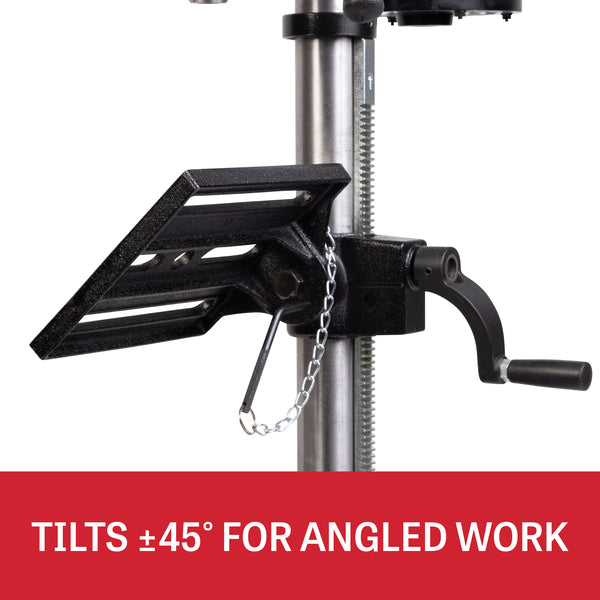

• Tilting Cast Iron Worktable: Tilts up to 45 degrees left or right and rotates 360 degrees around the column for versatile angle drilling.
• Rack-and-Pinion Height Adjustment: Provides smooth, controlled table elevation with 10-7/16 in. of total travel.

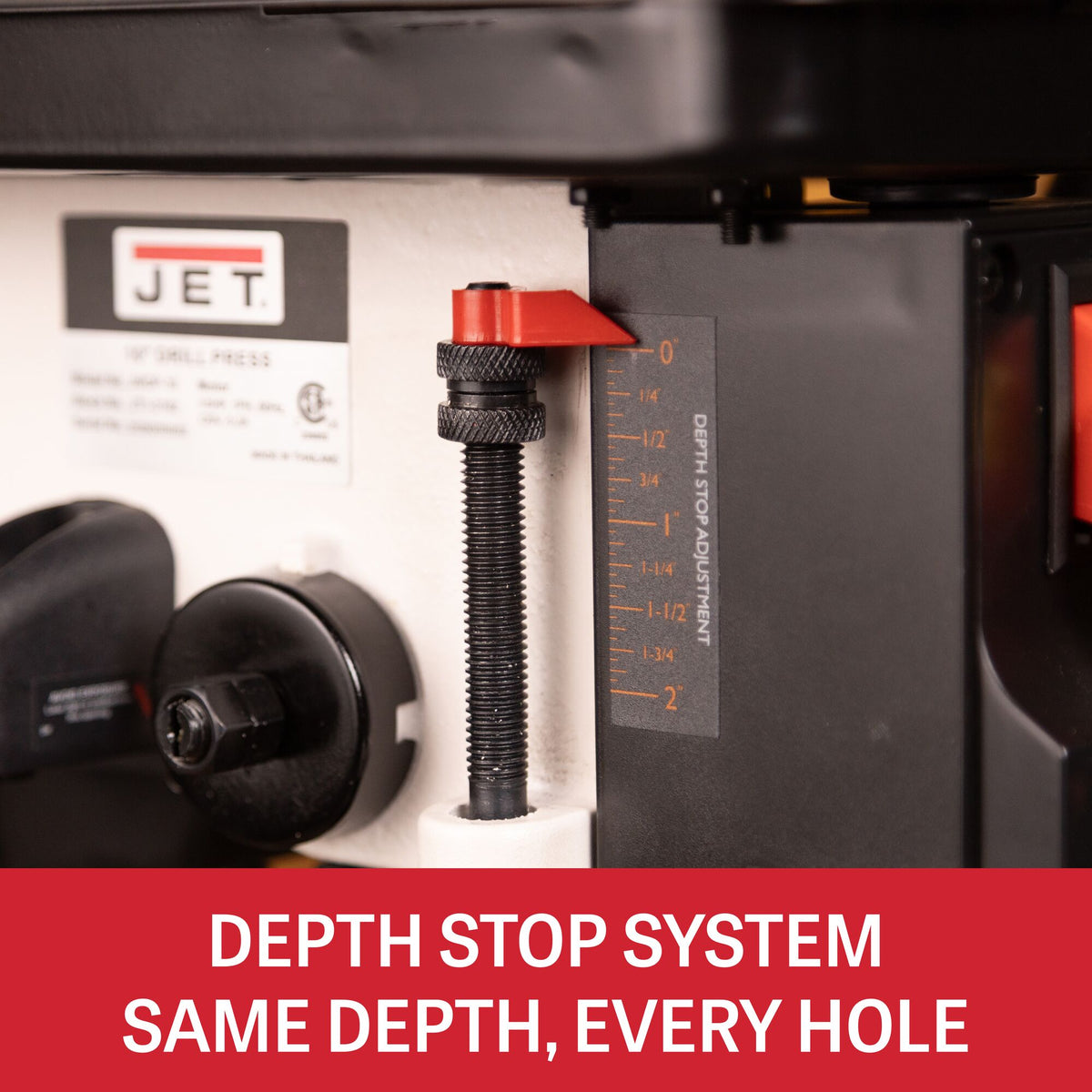

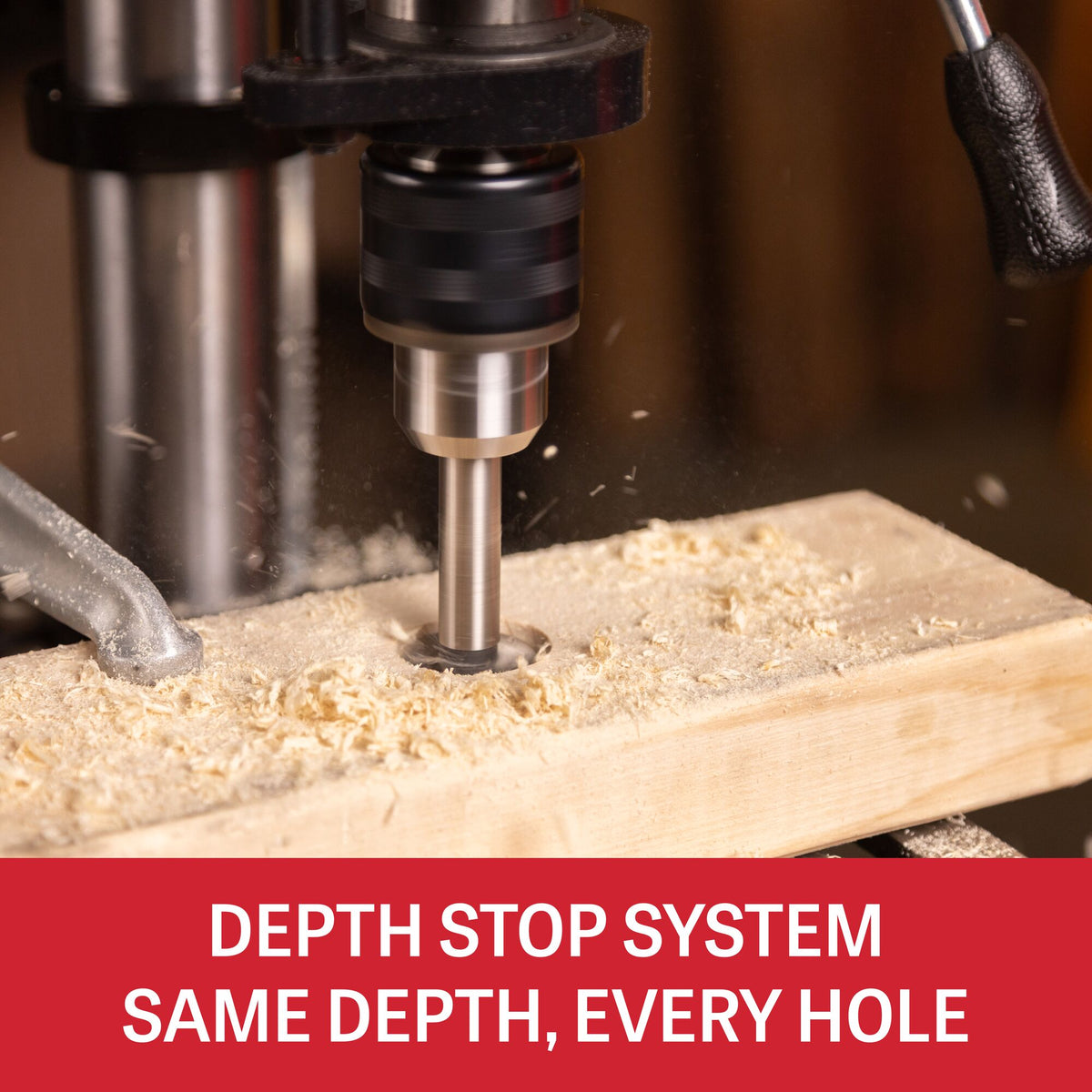

• Repeatable Depth Stop: Threaded stop rod with dual locking nuts enables accurate, consistent drilling depths.
• 1/2 in. Keyed Chuck: Accepts bit shank sizes from 1/16 in. to 1/2 in. on a JT33 spindle taper for a secure grip.
• Safety Start/Stop Switch: Features a removable yellow safety key to prevent unauthorized tool startup.
• Compact Benchtop Format: Stable 48.5 lb. frame enables one-person positioning and easy placement in tight shop layouts.
