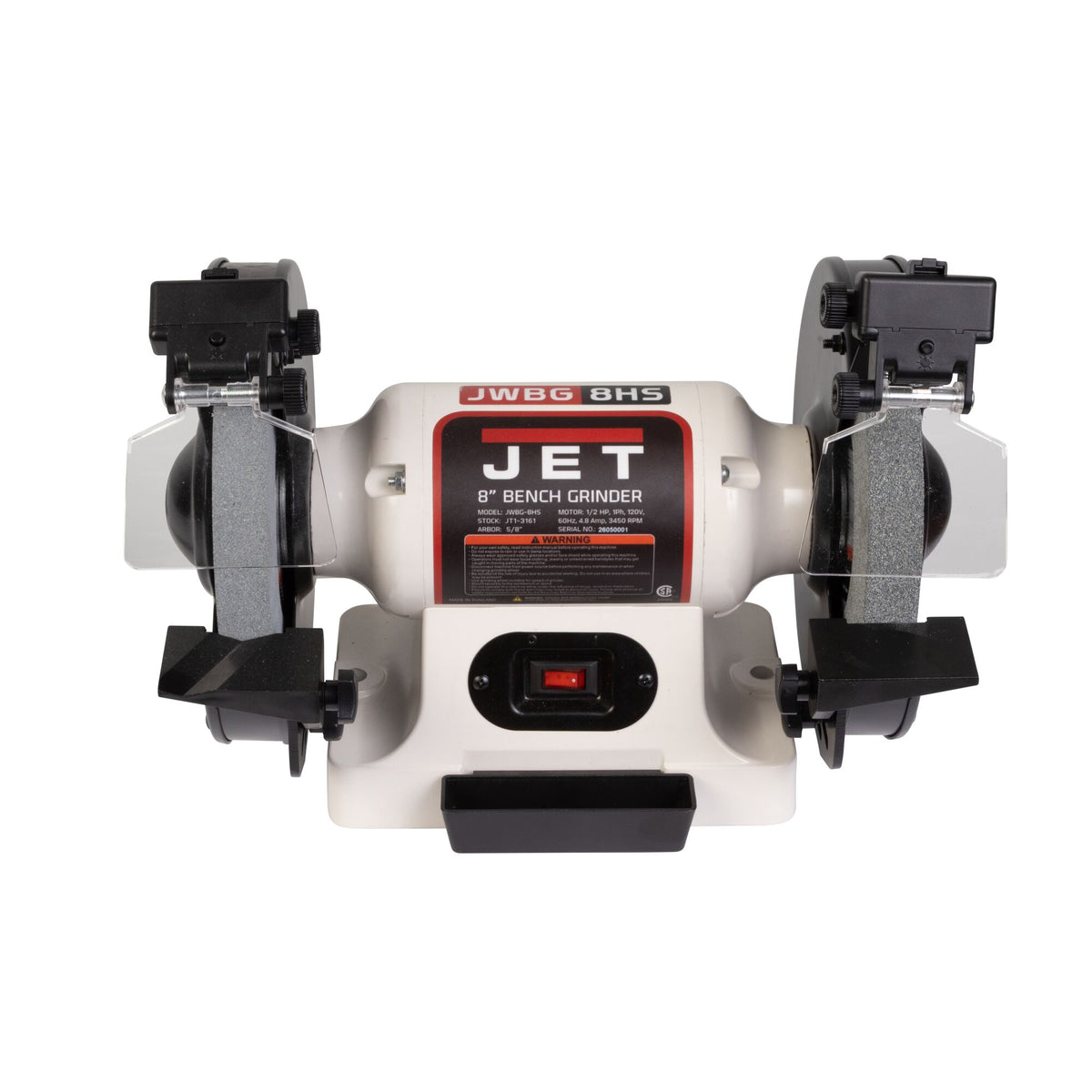

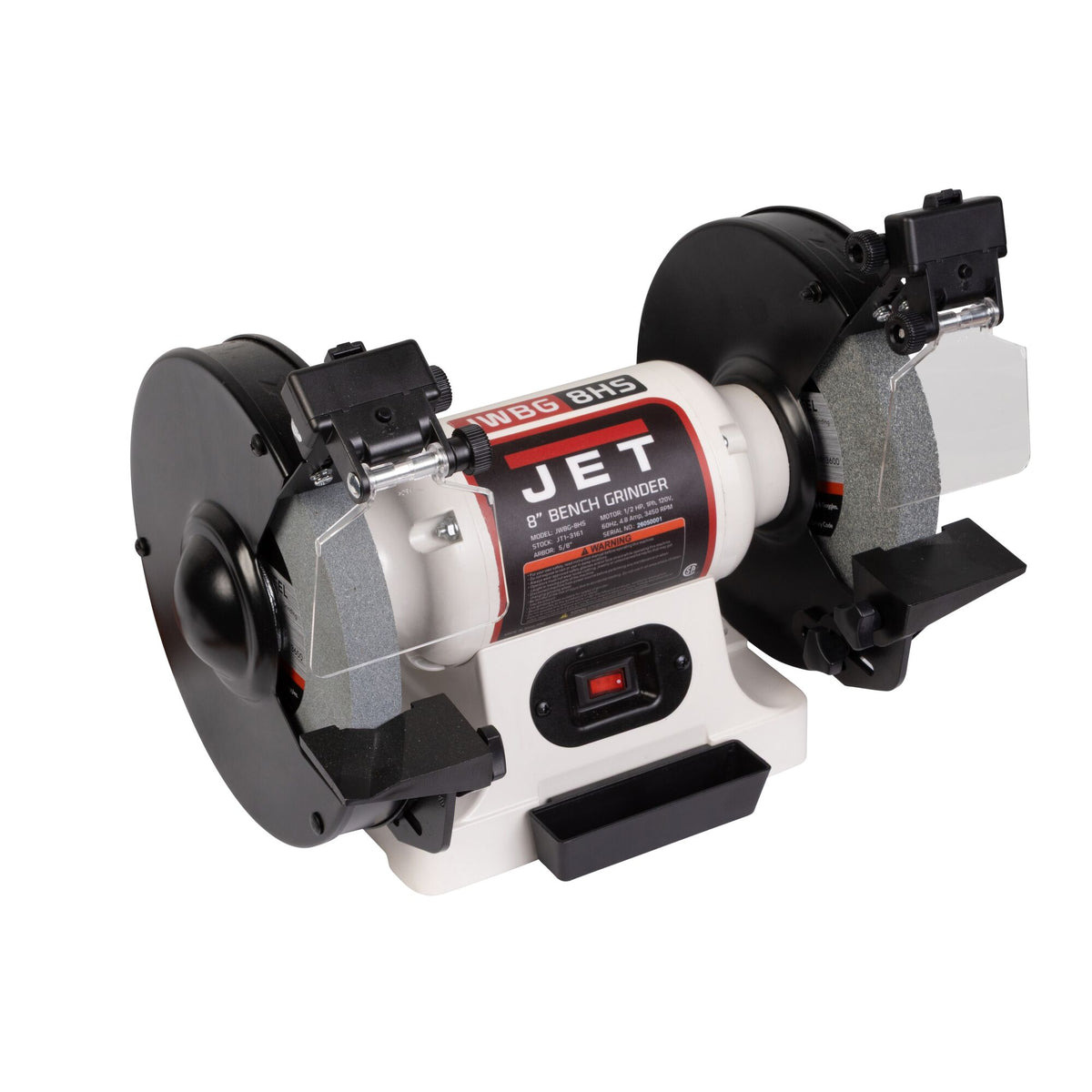

Jet JWBG-8HS 8 in. Benchtop Grinder with LED Lights, 1/2 HP, 120V 1-Phase JT1-3161
Jet JWBG-8HS 8 in. Benchtop Grinder with LED Lights, 1/2 HP, 120V 1-Phase JT1-3161
Couldn't load pickup availability
Details
Details

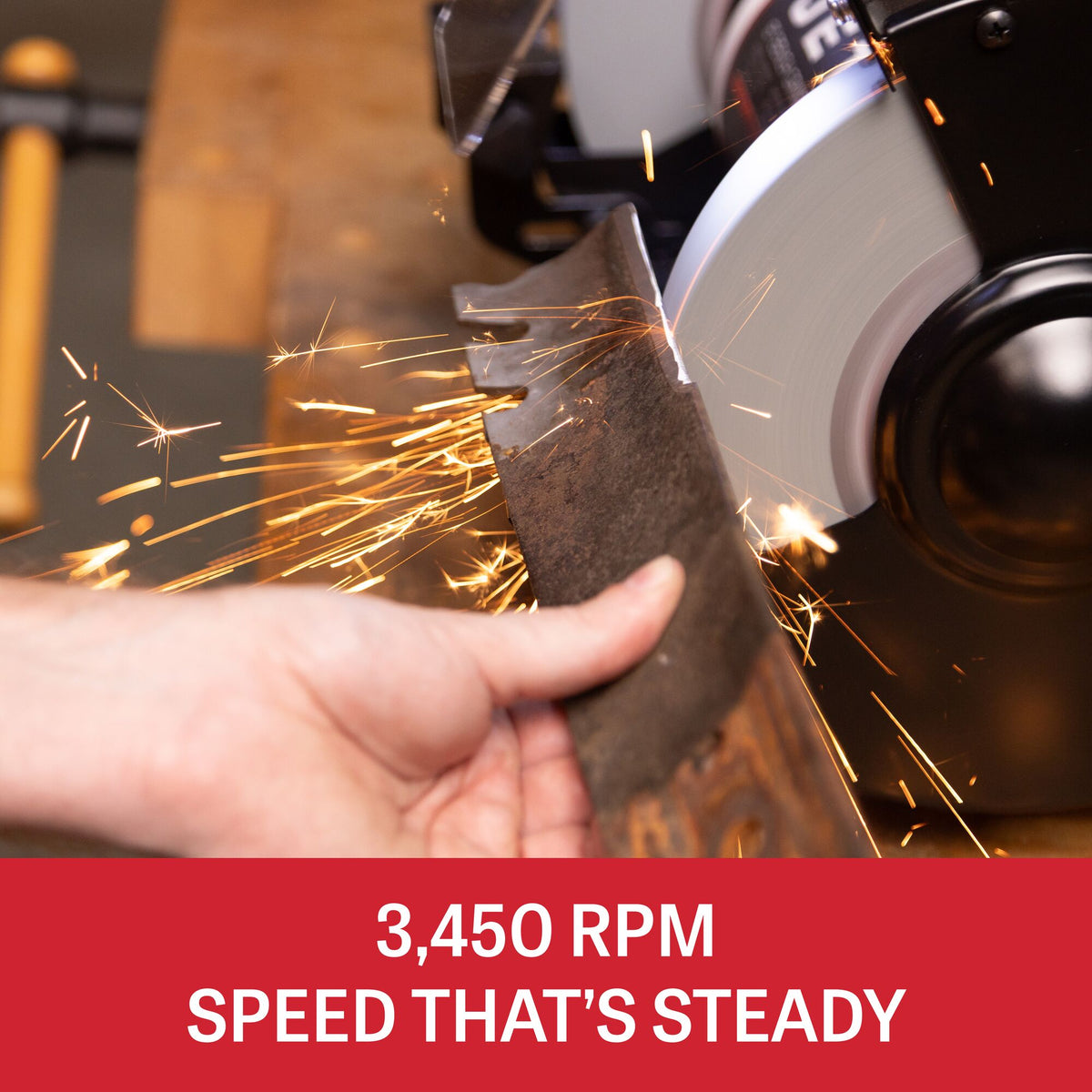

The JET JWBG-8HS 8-inch Benchtop Grinder delivers dependable grinding, sharpening, and material preparation performance in a compact, easy-to-place format. Powered by a 1/2 HP induction motor operating on standard 120V single-phase power, it provides smooth 3,450 RPM wheel speed for woodworkers, mechanics, fabricators, trade schools, and small-shop craftsmen needing 8-inch grinding capacity without taking over workbench space.

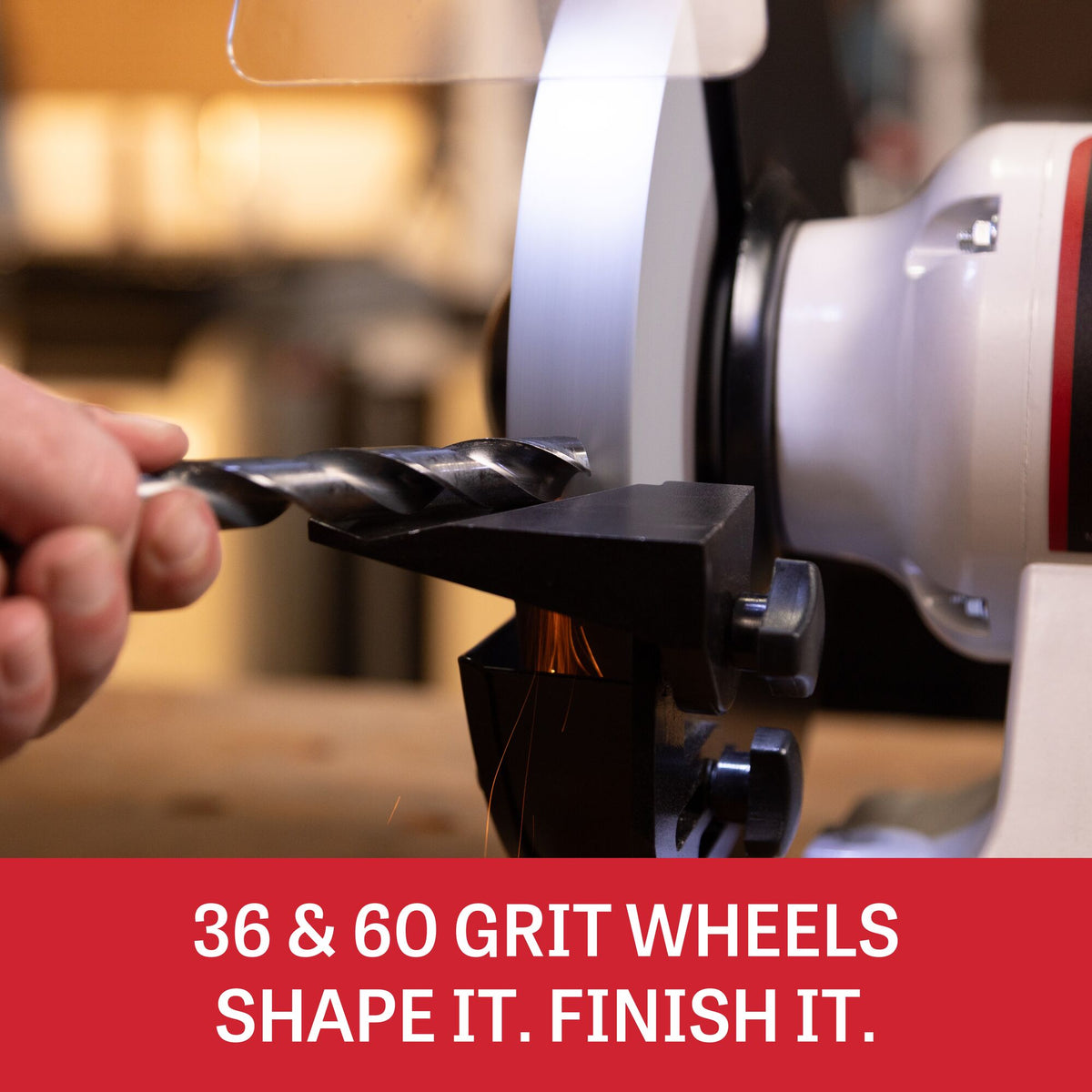

Equipped with dual 8-inch brown fused alumina wheels, the machine features a 36-grit wheel for rapid material removal and tool reshaping, alongside a 60-grit wheel for fine sharpening. Adjustable aluminum work rests provide stable support across various tools, featuring a dedicated grooved rest on the left side to hold drill bits at the proper angle during sharpening. An integrated removable coolant tray allows operators to quench hot workpieces regularly, preserving tool temper during grinding sessions.
Designed for safety and direct illumination, the grinder includes dual top-mounted LED work lights over each wheel, adjustable polycarbonate eye shields, and steel spark deflectors. Its compact 9 in. x 6-1/8 in. aluminum base features vibration-dampening rubber feet and built-in 7/16 in. mounting holes for secure attachment to a workbench or pedestal stand.

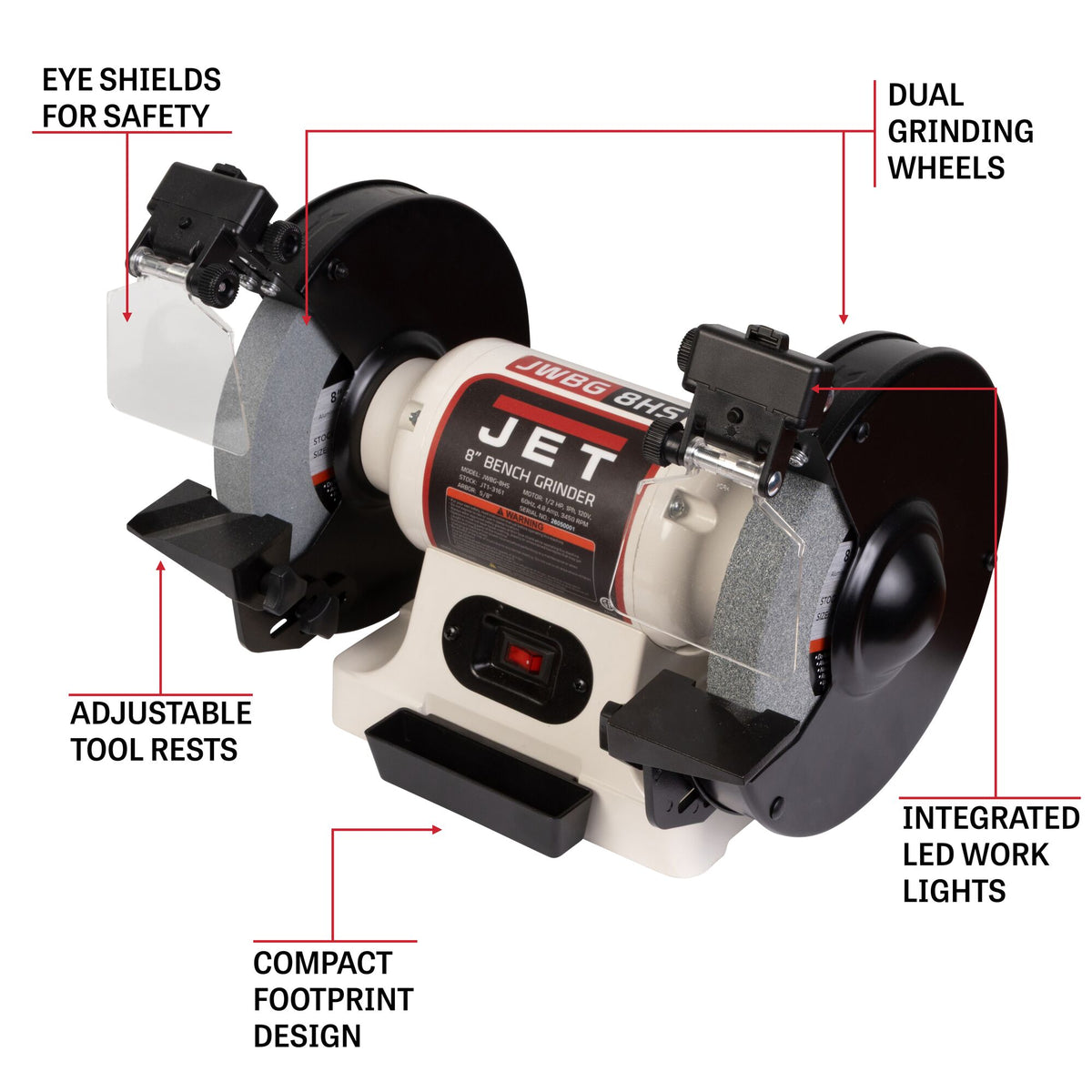

Features & Benefits

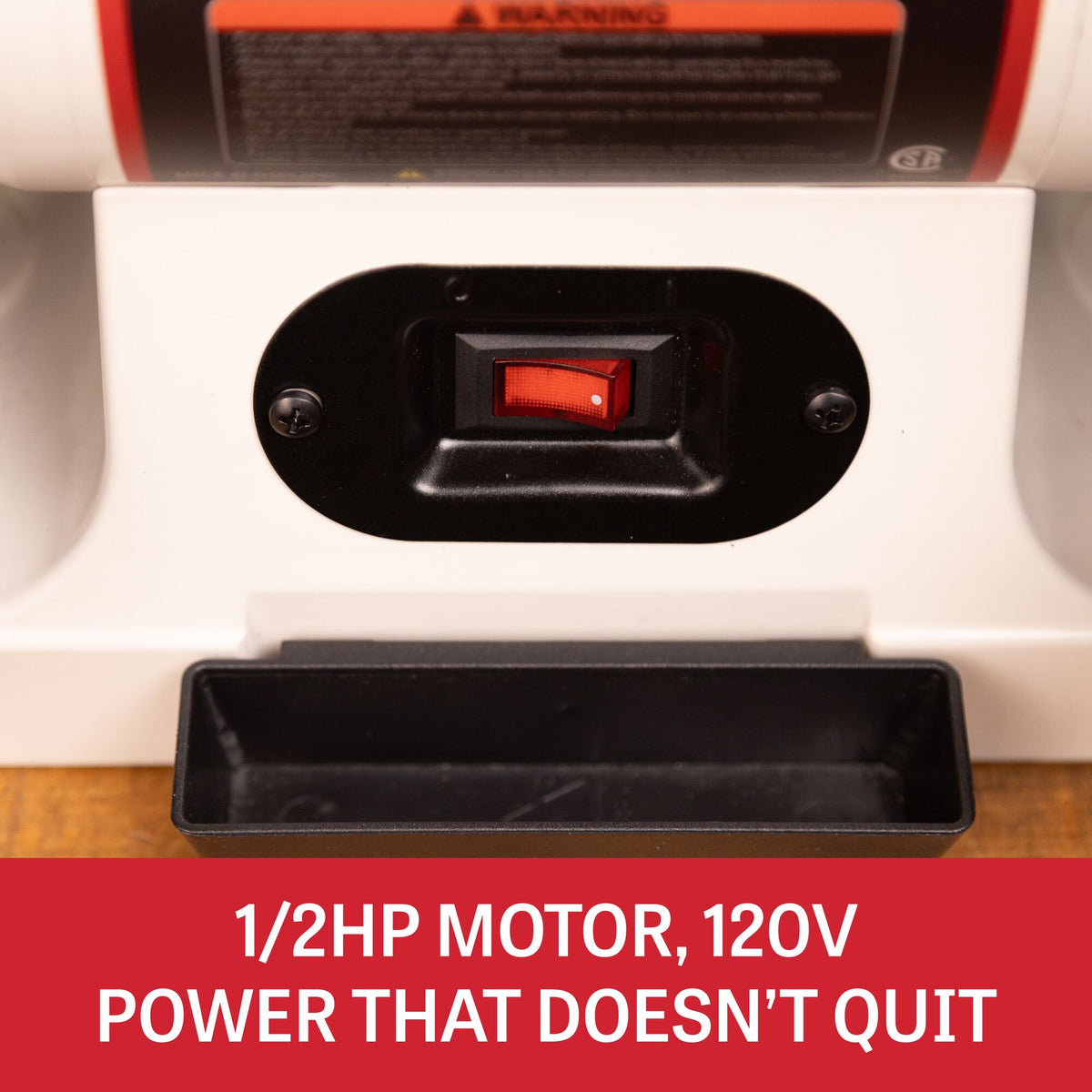

- 1/2 HP Motor: TEFC induction motor operates at 3,450 RPM on standard 120V 1-phase power for steady material removal.
- Dual 8 in. Wheels: Includes 36-grit coarse and 60-grit fine brown fused alumina wheels for coarse shaping and precision sharpening.

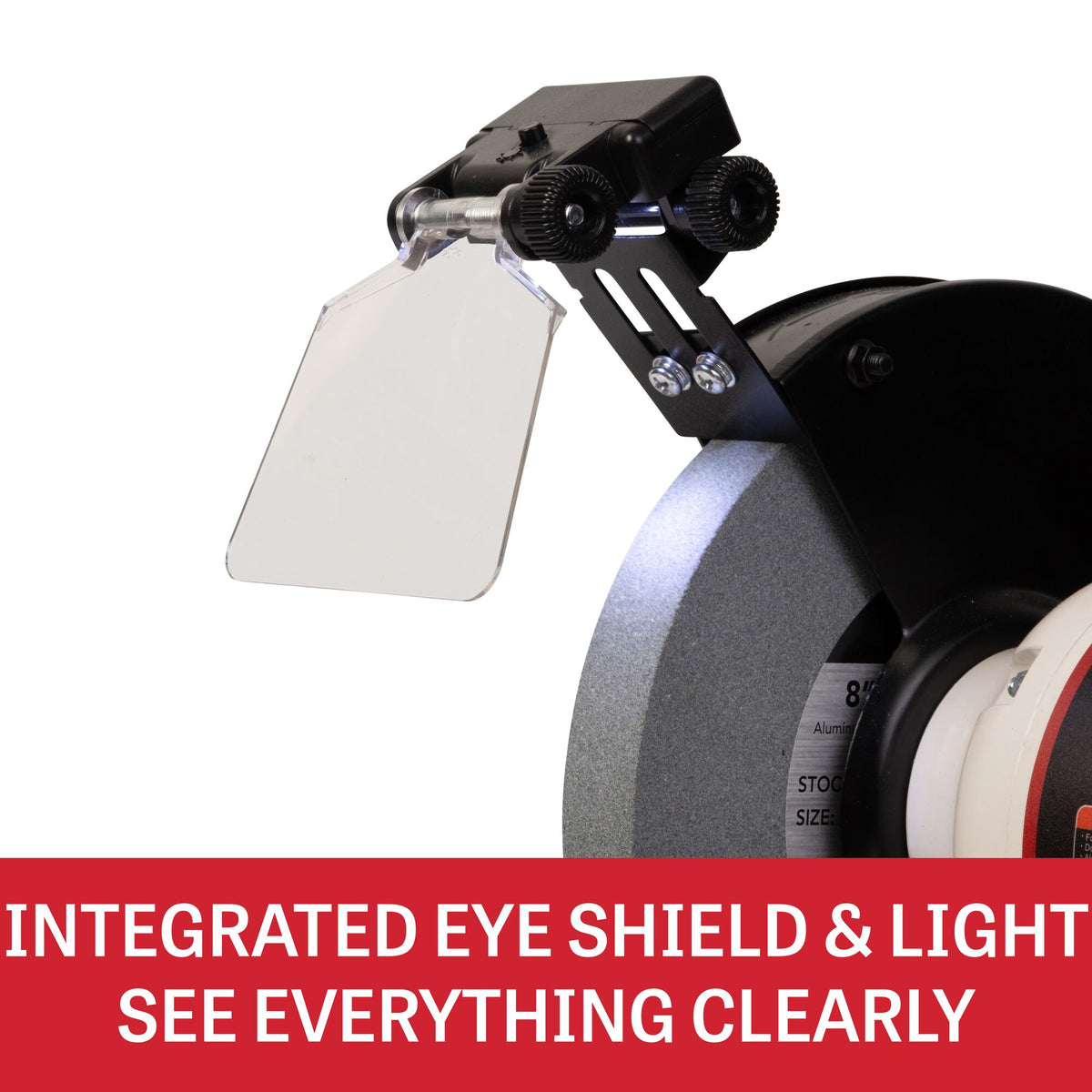

- Integrated LED Work Lights: Independent top-mounted LED lights provide direct illumination over both grinding areas.
- Adjustable Work Rests: Dual aluminum rests ensure sturdy workpiece support, featuring an angled groove on the left rest for drill bit sharpening.
- Safety Shields & Deflectors: Clear polycarbonate eye shields and steel spark deflectors protect operators while maintaining clear visibility.
- Removable Coolant Tray: Front-mounted tray holds water or coolant to quench overheated tools and prevent temper loss.

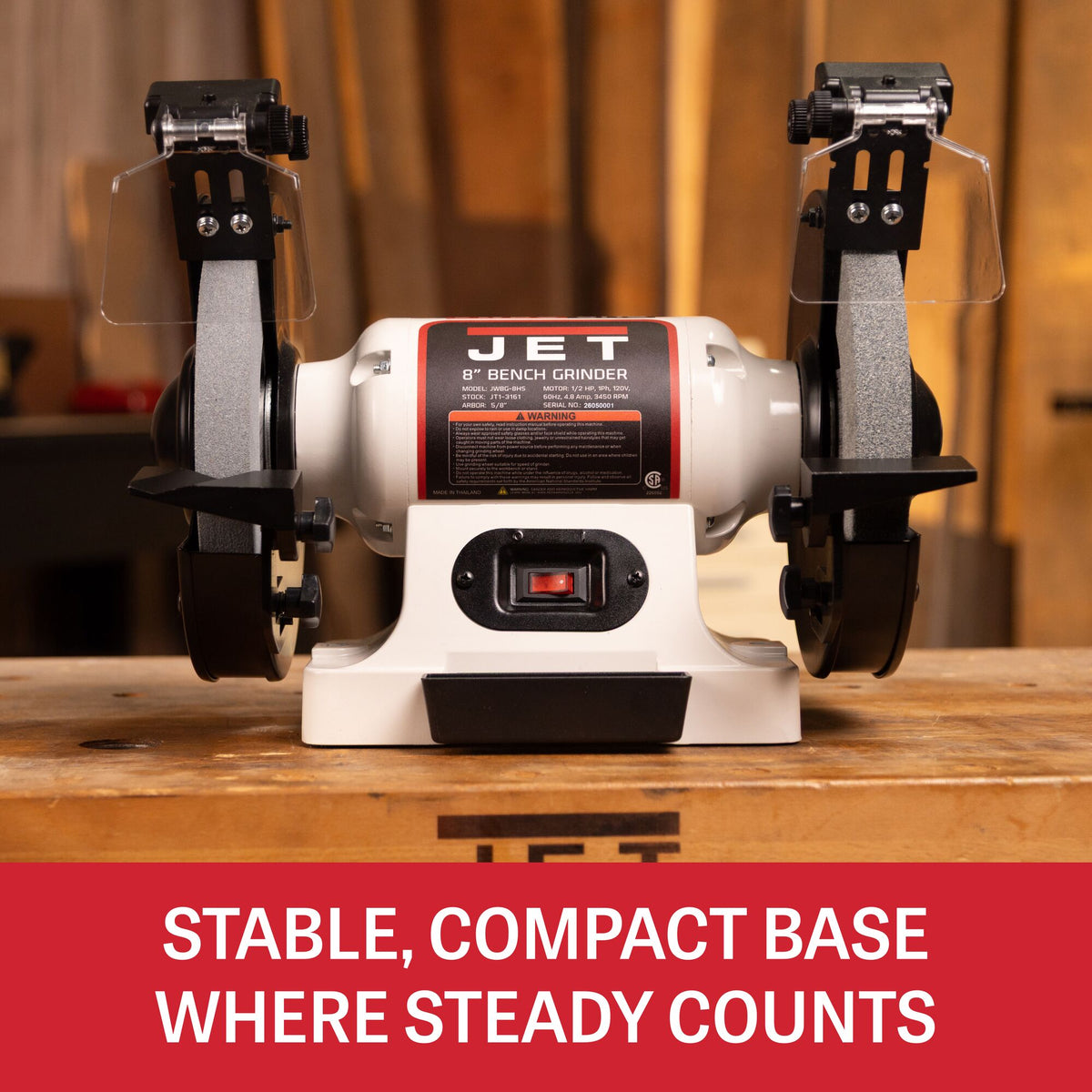

- Compact Footprint: 9 in. x 6-1/8 in. aluminum base with rubber feet fits easily on crowded benches and minimizes movement.
- Durable Construction: Built with steel motor housing, steel wheel guards, and a 1/2 HP motor for long-term reliability.
This benchtop grinder can be mounted directly to a workbench or paired with the optional JET Pedestal Stand (Stock No. JT577172, sold separately). Replacement 36-grit (Stock No. JTJBG8B-018) and 60-grit (Stock No. JTJBG8B-021) wheels are available separately.
Specifications
Specifications
| Specification | Value |
|---|---|
| Model | JWBG-8HS |
| Manufacturer Part Number | JT1-3161 |
| Product Type | Benchtop Grinder |
| Primary Capacity | 8 in. Grinding Wheel Diameter |
| Tooling Size (O.D. x W x Bore) | 8 x 1 x 5/8 in. (200 x 25 x 15.88 mm) |
| Grinding Wheel Grits | 36 Grit and 60 Grit |
| Grinding Wheel Material | Brown Fused Alumina |
| Arbor Size | 5/8 in. (15.88 mm) |
| Motor Speed | 3,450 RPM |
| Work Rest Clearance | 1/16 to 1/8 in. |
| Sound Level | 75 dB at 3 ft. (Without Load) |
| Base Dimensions (W x D) | 9 x 6-1/8 in. (228 x 155 mm) |
| Mounting Hole Diameter | 7/16 in. (11 mm) |
| Distance Between Mounting Holes | 8 in. (204 mm) |
| Motor Type | TEFC Induction, Capacitor Start |
| Motor Power | 1/2 HP |
| Voltage | 120V |
| Phase | 1 Ph |
| Amperage | 4.8 A |
| Frequency | 60 Hz |
| Recommended Circuit Size | 15 A |
| Overall Dimensions (L x W x H) | 14 x 10 x 11-3/4 in. (355.6 x 254 x 298.45 mm) |
| Net Weight | 30 lbs. (13.5 kg) |
| Shipping Weight | 32 lbs. (14.5 kg) |
| Warranty | 5 Years |
