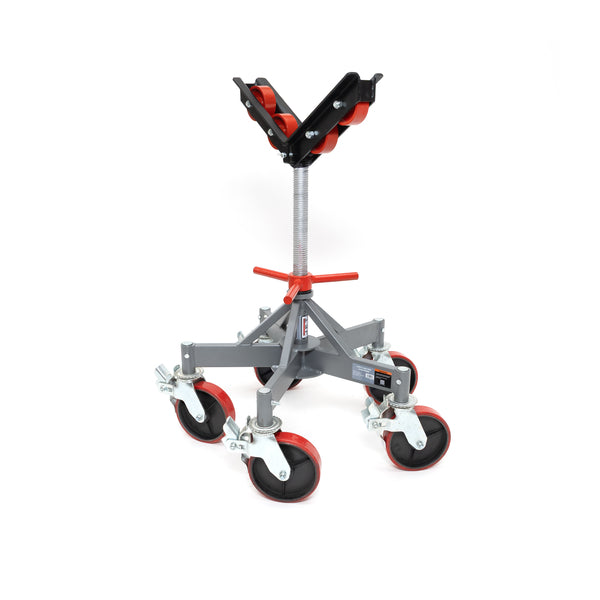

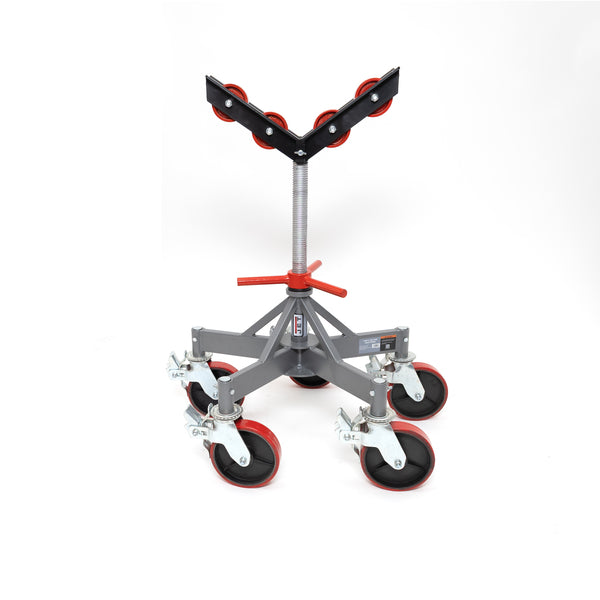

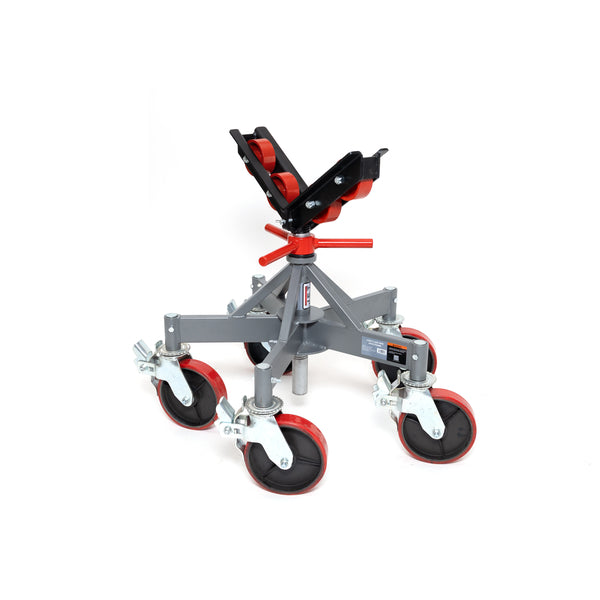

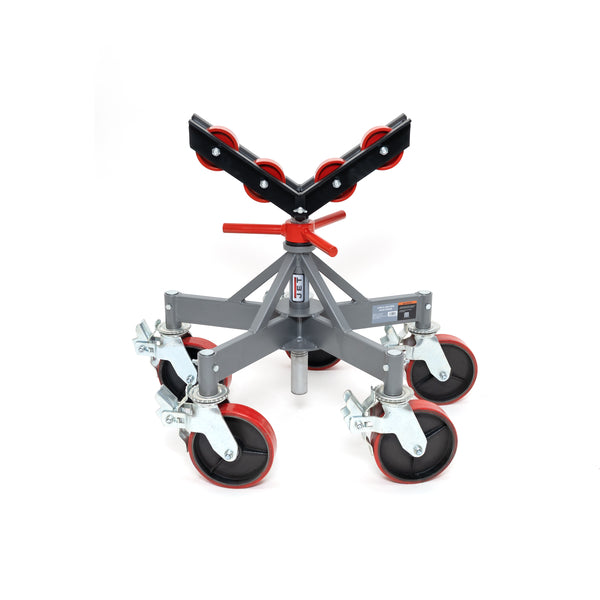

The JET JPJ-L5L-SR (JT1-3808) is a low-profile 5-leg rolling pipe jack stand engineered to support steel pipe up to 36 in. in diameter with a maximum load capacity of 5,000 lbs. Designed for heavy-duty industrial welding, pipe fit-up, and mechanical fabrication, this mobile stand features a low working height range of 24 to 37 in., providing enhanced stability and ergonomic working positioning when handling large, heavy pipe sections.

Built with a reinforced 5-leg star frame, the stand utilizes five heavy-duty 8 in. diameter x 2 in. wide casters constructed with solid steel cores and non-marking PVC treads. Each caster is equipped with a dual locking mechanism that locks both swivel rotation and wheel rolling to ensure complete stability during alignment and welding. Caster installation is simplified through a thru-bolt and nylock lock nut mounting design. The roller head assembly features four oversized steel rollers (4 in. diameter x 1-1/2 in. wide) fitted with grease zerk axles for smooth pipe rotation during layout and fit-up. Fine elevation adjustments are controlled via a 3-spoke spanner nut riding on a large 1-3/4 in. ACME threaded screw shaft. An integrated attachment point at the base of the roller head is designed to accept an optional hold-down device for securing workpieces prior to rolling transit across smooth, level shop floors.

Features & Benefits

• 5,000 lbs. Load Capacity: Delivers heavy-duty mobile support for large-diameter steel pipe and heavy round stock up to 36 in. in diameter.
• 24 to 37 in. Height Range: Low-profile height adjustment offers improved center-of-gravity stability for large-diameter workpieces.
• 5-Leg Reinforced Frame: Five-point base design with gusseted plates distributes heavy loads evenly across jobsite floors.

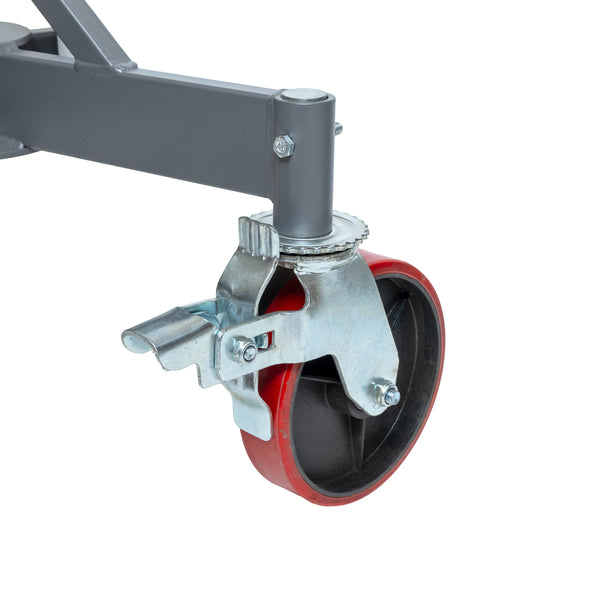

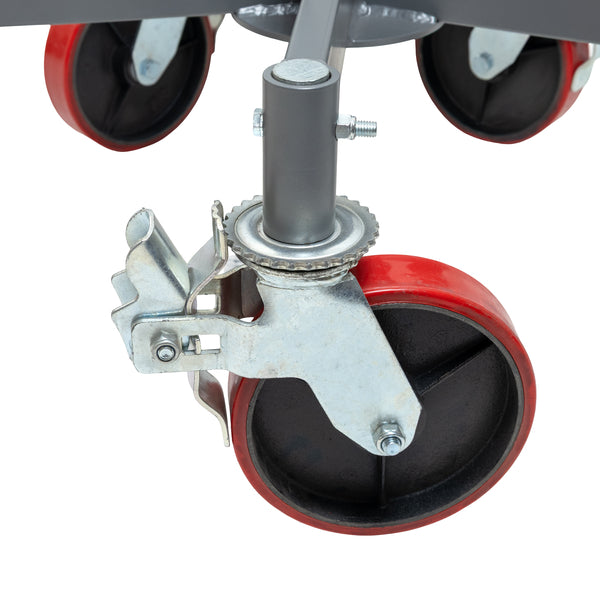

• 8 in. Steel-Core Casters: Large 8 x 2 in. swivel casters feature high-strength steel cores with PVC outer treads for quiet, non-marking mobility.
• Dual-Locking Caster Brakes: Casters lock both swivel movement and wheel rotation to hold the stand firmly stationary during fit-up.
• Oversized Steel Rollers: Four 4 in. diameter x 1-1/2 in. wide steel rollers offer broad contact area for smooth workpiece rotation.
• Grease Zerk Axles: Integrated grease fittings on roller axles allow simple routine lubrication and long service life.
• 1-3/4 in. ACME Screw Shaft: Large-diameter threaded shaft with 3-spoke spanner nut enables smooth, controlled height fine-tuning.
• Thru-Bolt Caster Mounting: Secure bolt and lock nut attachment simplifies initial caster assembly and maintenance.
• Hold-Down Device Attachment Point: Integrated bracket allows quick connection of an optional hold-down chain for safe pipe transportation.

What's Included

• (1) Low 5-Leg Pipe Stand Frame
• (1) Roller Head Assembly with (4) Steel Rollers
• (5) 8 in. x 2 in. Steel-Core Swivel Casters with Locking Brakes
• (5) Caster Mounting Bolts and Nylock Lock Nuts
