Jet 20" Smart Drill Press JDP-20S JT1-2060

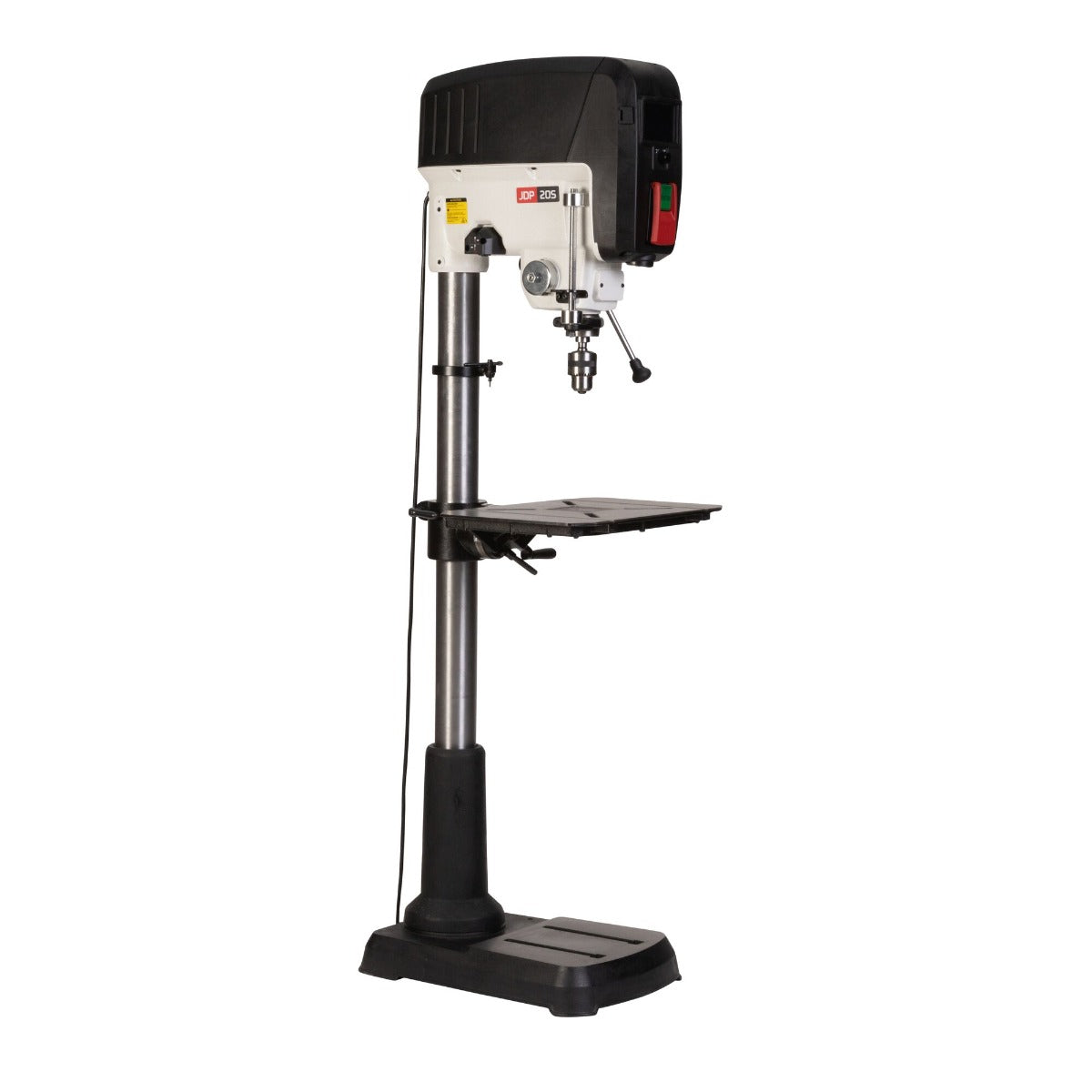

Introducing the JET JDP-20S, 20” Smart Drill Press. From its powerful 1.5HP Brushless, Motor, to the intuitive touch-screen interface, this drill press takes performance to the next level. Featuring a 6-inch spindle travel, 20-inch capacity, electronic or manual depth stop, and customizable presets, the JDP-20S is built for accuracy and convenience. Control speeds either electronically or with the variable speed dial. The built-in motor load monitoring ensures optimal performance, while the 20" x 14" work table offers ample support for every project. With the auto start function, LED work light, crosshair lasers, and password locking option, it’s a machine designed for the modern shop and every type of woodworker.
Features & Benefits

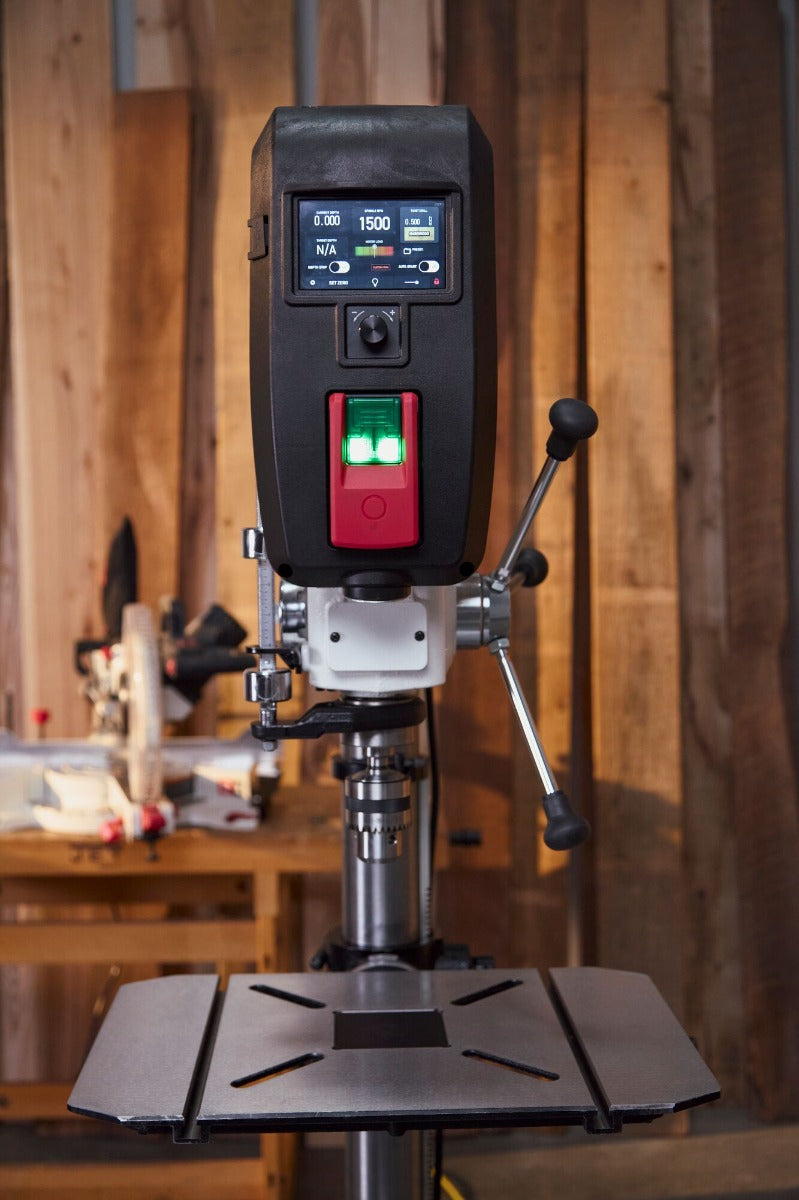

- 5" Intuitive Touch-Screen Interface: Control at your fingertips for seamless operation.
- Versatile Performance: 20" capacity and 6" quill travel to tackle any project.
- Customizable Efficiency: Save up to 15 preset settings for project repeatability.
- Optimal RPM Settings: 7 material types and 22 tool selections guide you to the best performance.
- Powerful Brushless Motor: 1.5HP motor with 120V/240V options for consistent power.

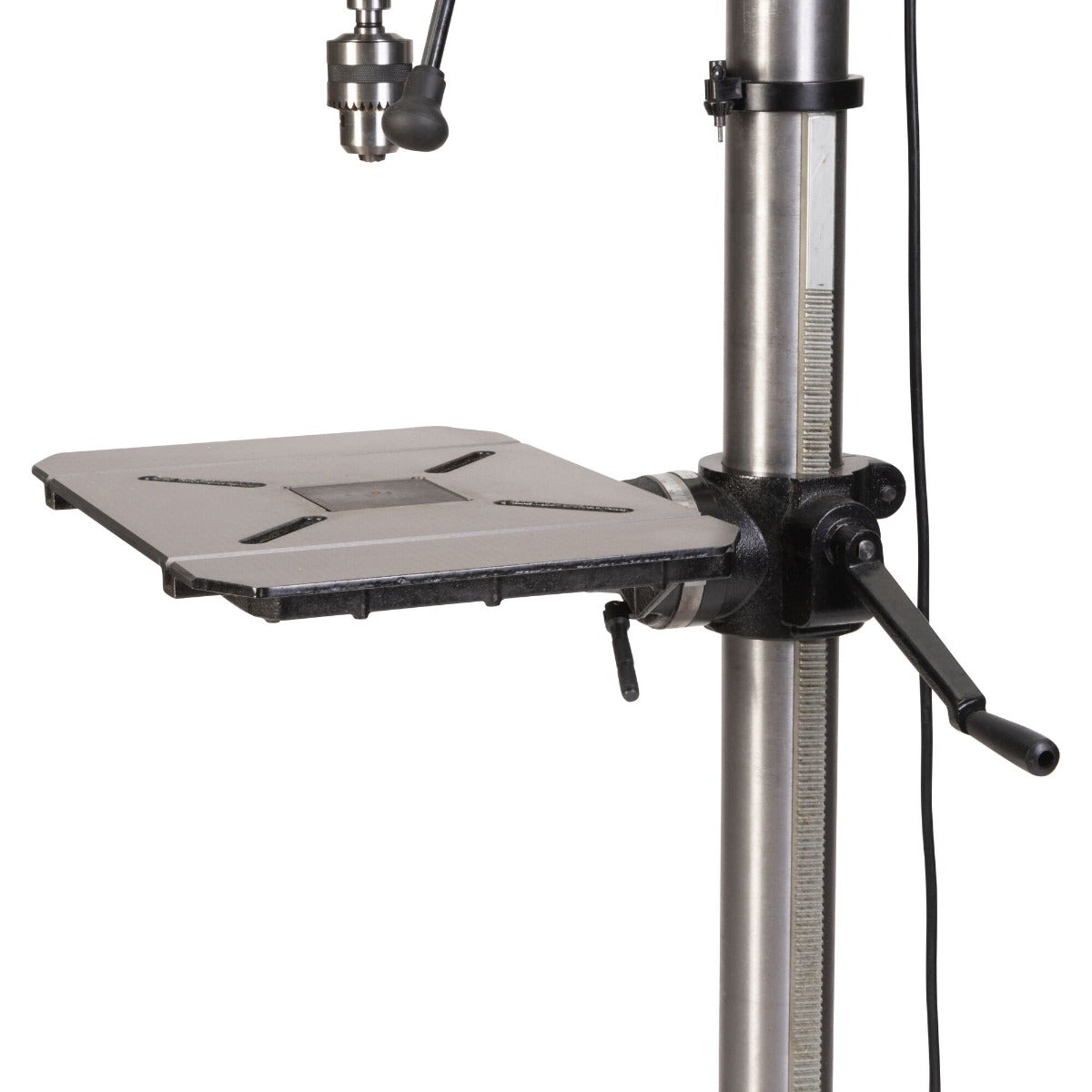

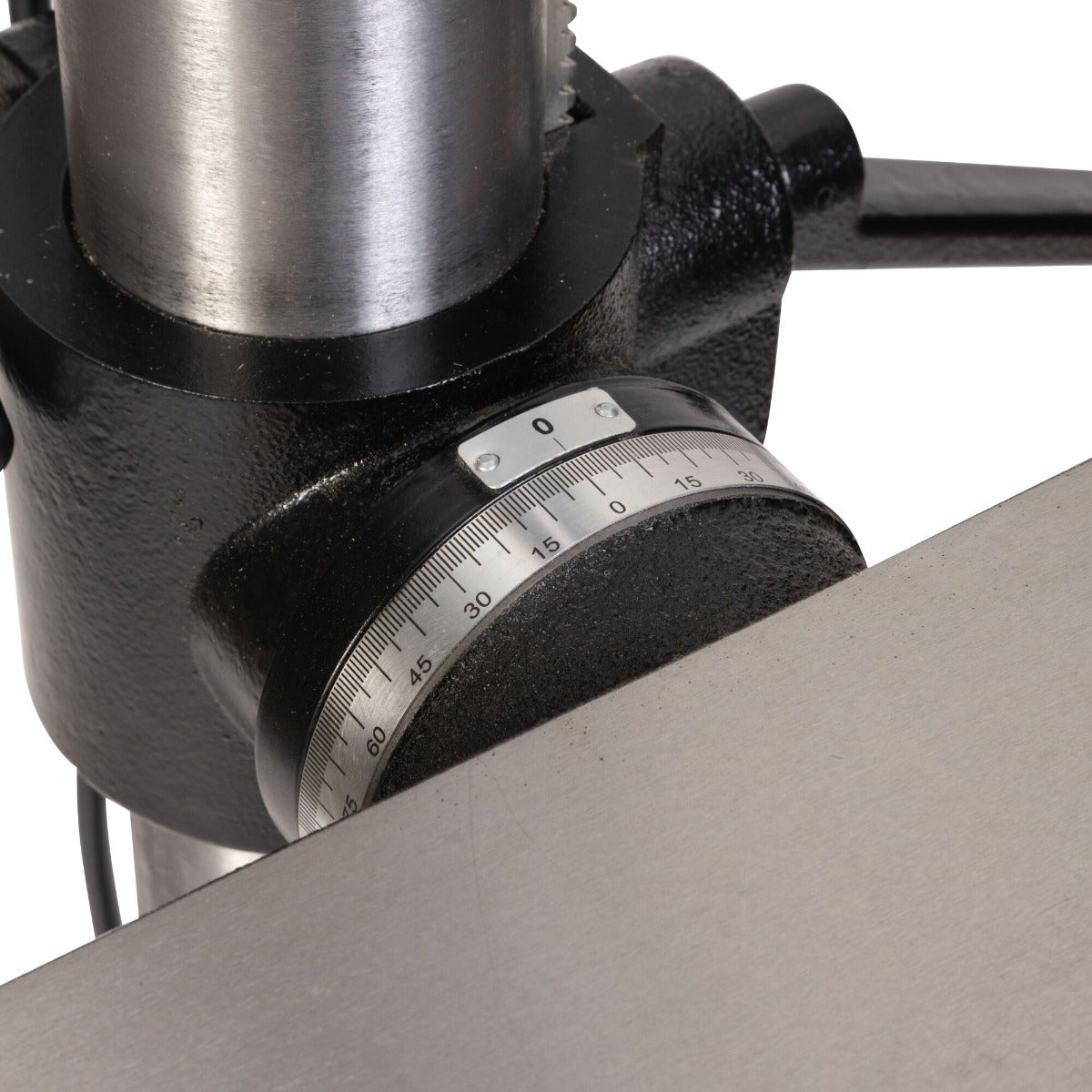

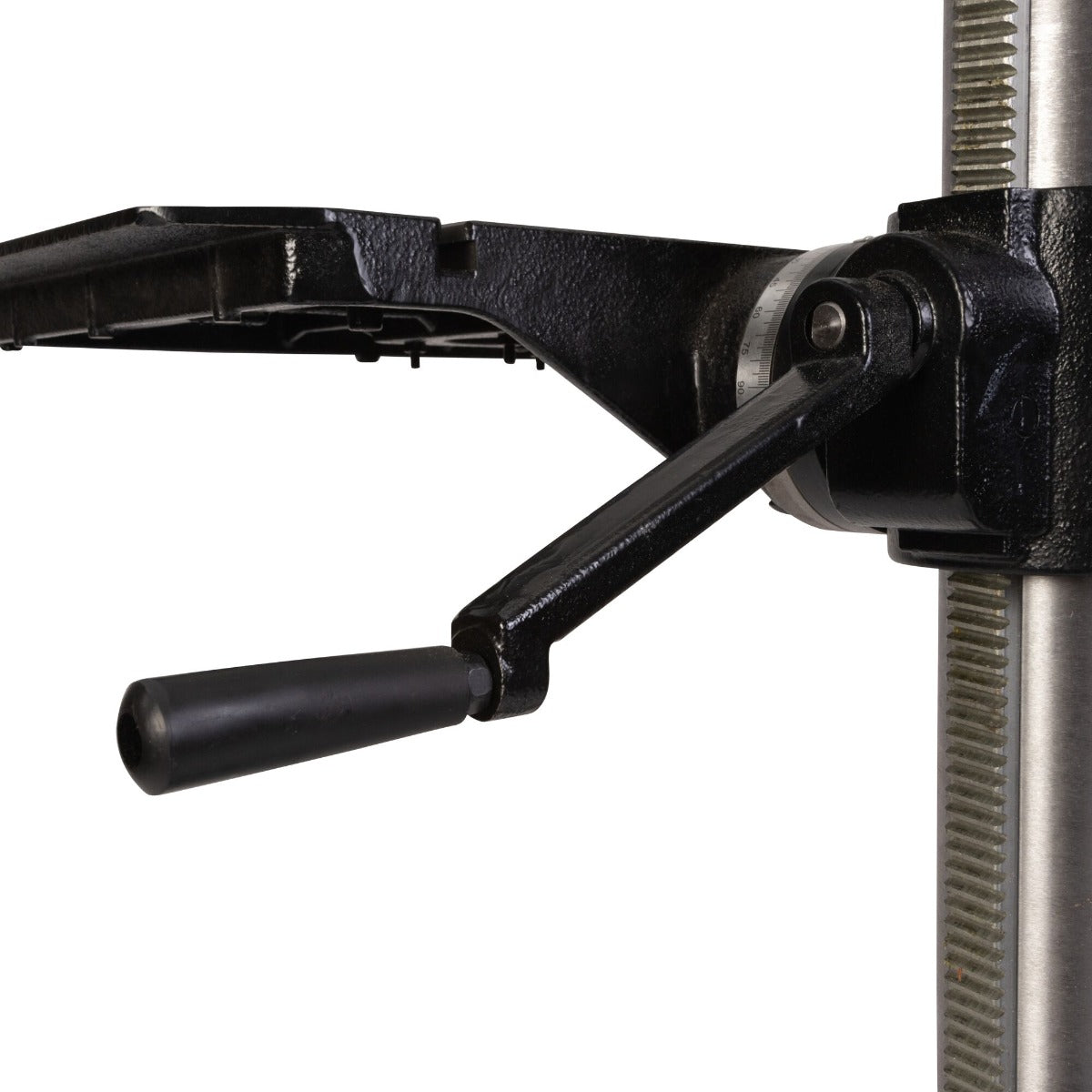

- Durable and Adjustable Work Surface: 20" x 14" cast iron table tilts 90° left and right.

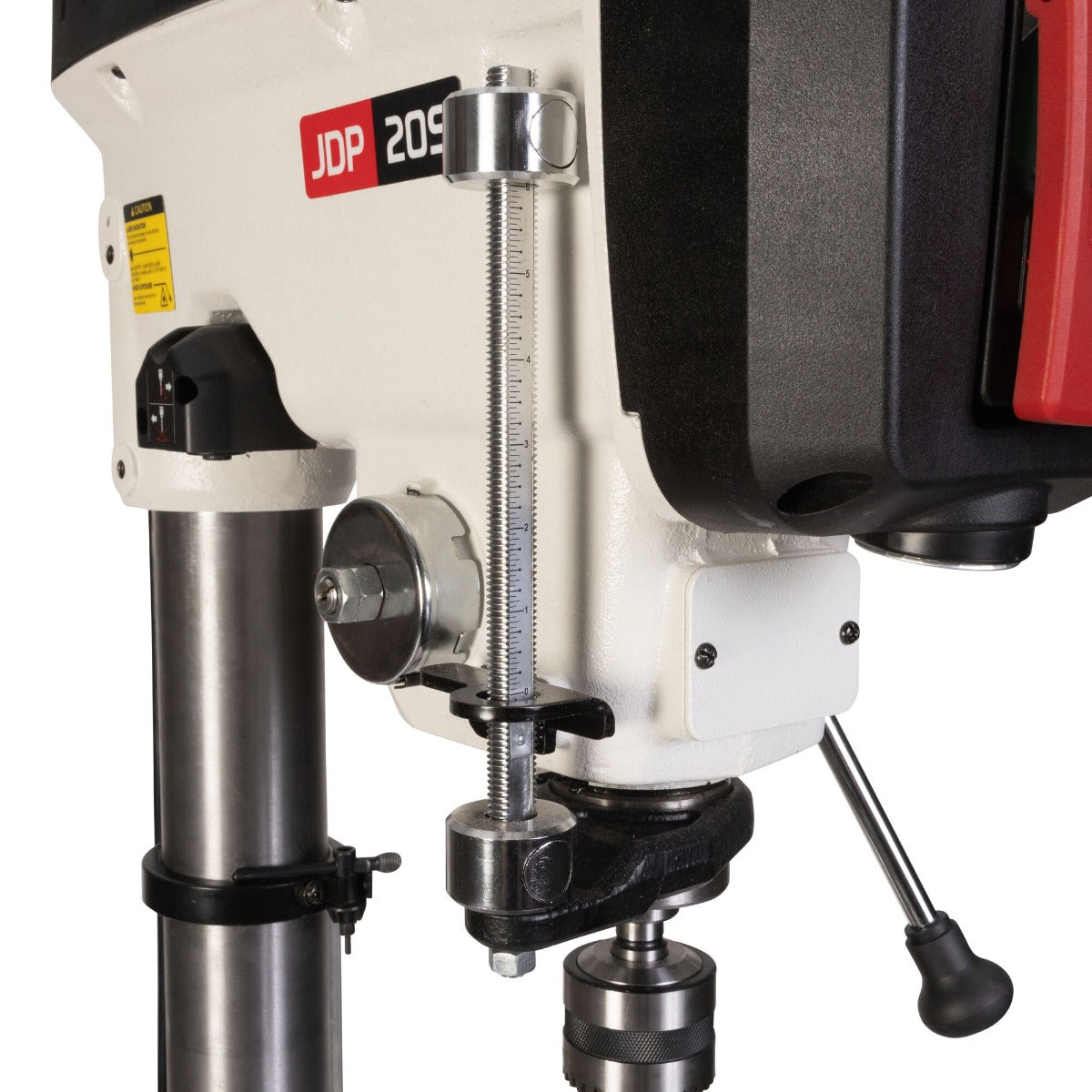

- Precision Depth Control: Integrated electronic and manual depth stops ensure consistent results.
- Speed Adjustments: Adjust RPM from 150 to 3000 with ease using rouchscreen or variable speed knob.

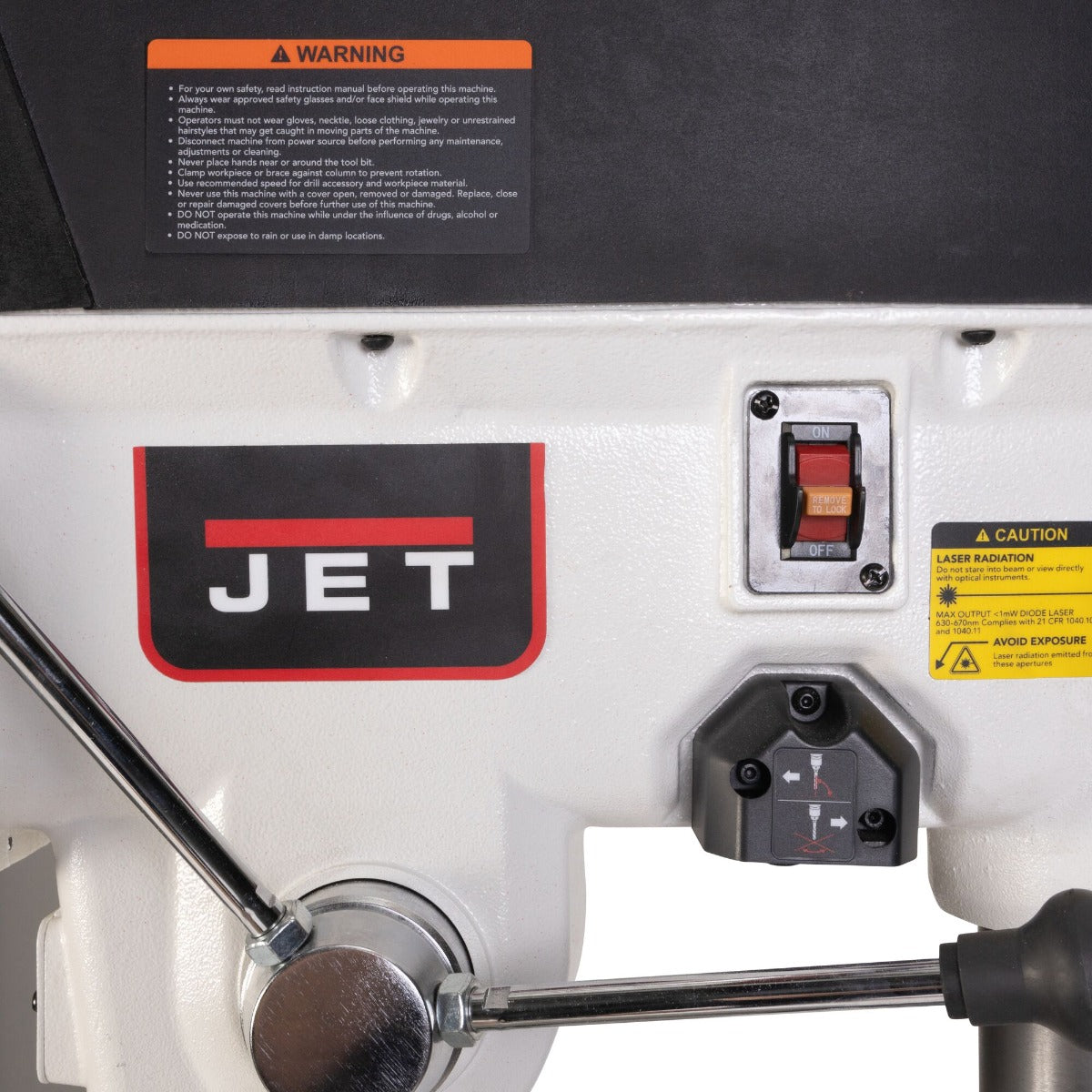

- Enhanced Safety Features: A safety-key main switch and paddle-style on/off button offer peace of mind.

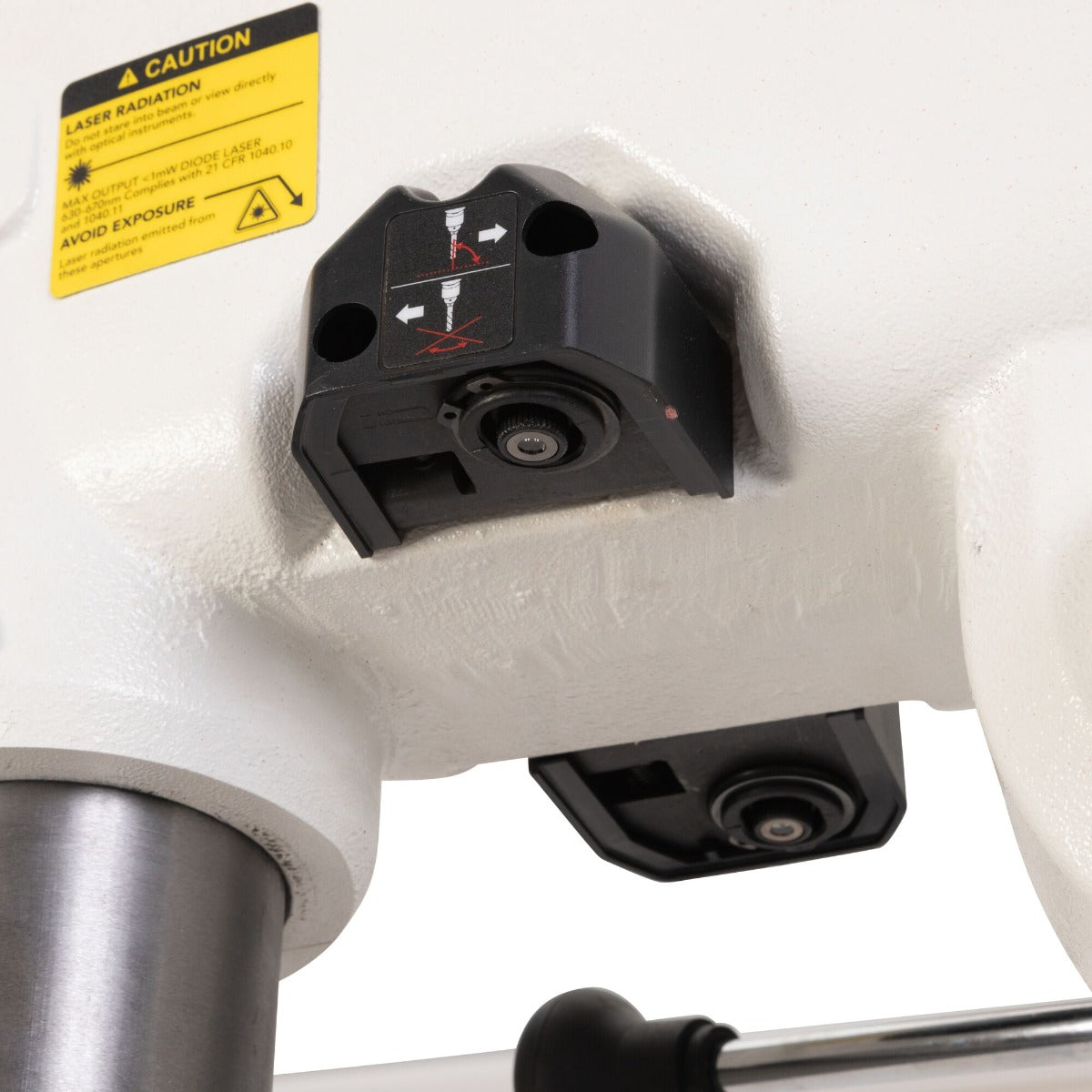

- Visibility and Accuracy: Equipped with crosshair lasers and LED lighting for perfect alignment
- Convenient Auto-Start: Simplify your workflow with automatic functionality.
- Reverse Spindle Rotation: Effortlessly reverse spindle direction for specialized tasks.
- Password Protection: Restrict access with a built-in password feature for added security
- Multiple Measurement Options: Use decimals, fractions, or a combination of both for inches, or switch to millimeters.
- Trusted Durability: Backed by JET’s 5-year warranty.
Specifications
- Model Number: JDP-20S
- Stock Number: JT1-2060
- Motor Type: Brushless (BLDC)
- HP: 1.5HP
- Amps: 13 / 6.5
- Power Frequency (HZ): 60
- RPM: 150-3,000 Variable Speed
- Spindle Travel: 6"
- Spindle Taper: MT2
- Chuck Arbor Taper: MT2 to JT3
- Chuck Size: 5/8"

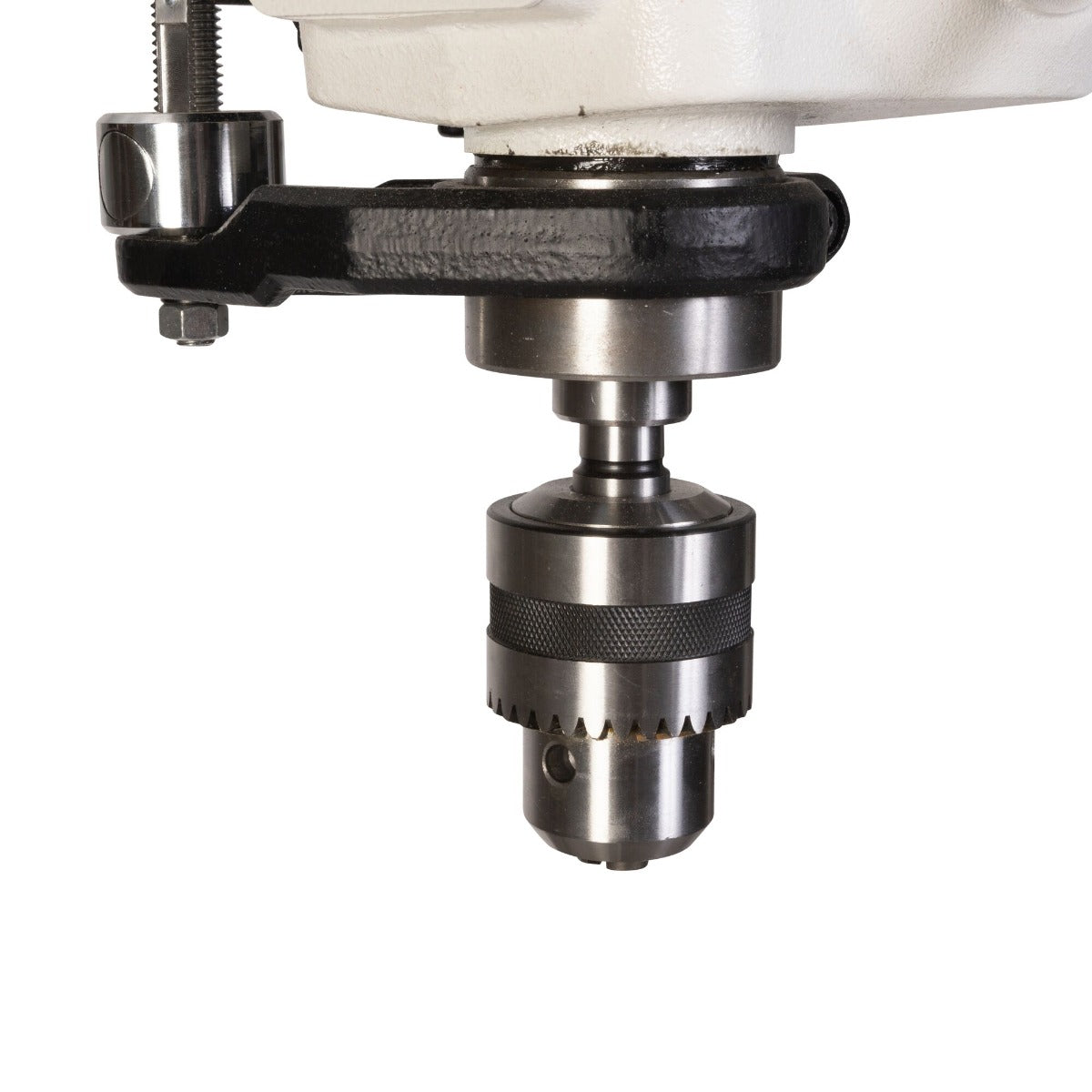

- Chuck: Keyed Chuck
- Quill Diameter: 2.6"
- Swing: 20"
- Distance From Spindle to Column: 10"
- Max. Spindle Distance to Table: 27.6"
- Min. Spindle Distance to Base: 46.5"
- Max. Distance Chuck to Table: 24"
- Min. Distance Chuck to Table: 1-1/2"
- Max. Distance Chuck to Base: 42.9"
- Adjustable Depth Stop: Manual & Electronic
- Table Size (L x W): 20" x 14"
- Base Size (L x W): 15.75" x 23.6"
- 360° Swivel: Yes
- Laser: Yes
- LED: Yes
- Assembled Dimensions (L x W x H): 24" x 25.5" x 71.5"
- Carton Dimensions with Pallet (L x W x H): 58.7" x 30.3" x17.7"
- Net Weight: 218lbs
- Gross Weight: 275lbs
Specifications
Specifications
| Jet 20" Smart Drill Press JDP-20S JT1-2060 | |
| APPLICATION | Wood Working |
| Brand | Jet |
| HORSEPOWER | 1.5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Drills - Drill Presses |
| TOOL TYPE | Drills |
| VARIABLE SPEED | Yes |
