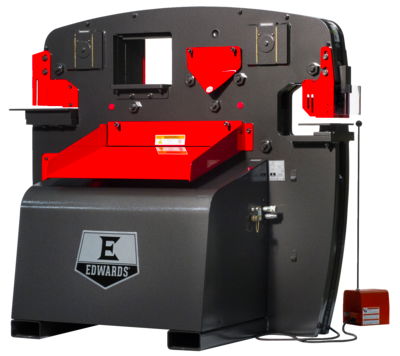

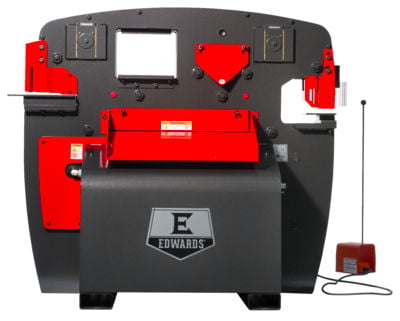

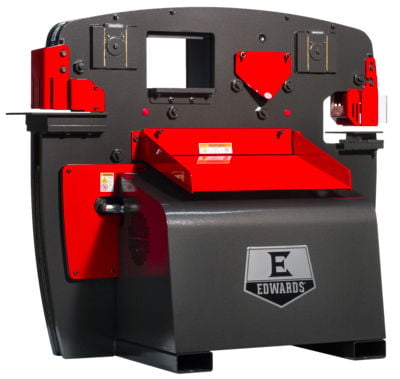

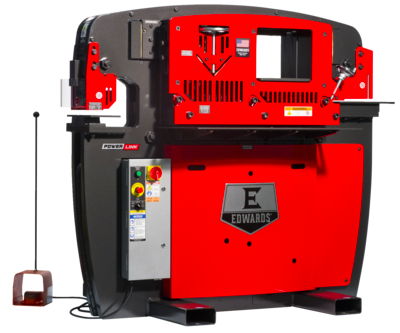

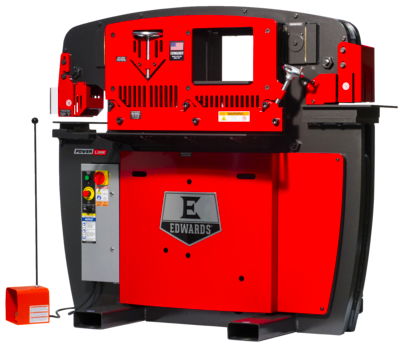

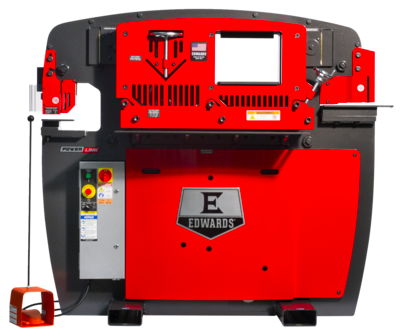

Edwards Ironworkers 65 Ton Ironworker 3 Phase, 230 Volt with PowerLink IW65-3P230-AC600
Edwards Ironworkers 65 Ton Ironworker 3 Phase, 230 Volt with PowerLink IW65-3P230-AC600
Couldn't load pickup availability
Details
Details
IW65-3P230-AC600, Edwards 65T Ironworker 3PH, 230V ACC Pack
The five workstations of the Edwards 65 Ton JAWS Ironworker give you the power to handle any size job and the flexibility to tailor it to your specific needs. Standard features include a Punch Assembly with Pedestal Die Table, 24" wide Flat Bar Shear, Angle Shear, Coper Notcher and a universal open tooling station designed for optional Tooling Accessories.
The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
Features:
- Five Available Workstations
- Universal Open Tooling Station
- 24" Flat Bar Shear
- Dedicated Coper Notcher
- Electric Stroke Control
- ANSI B11.5-1988R(02) Compliant
- ETL/UL Approved Controls
Specifications:
PUNCH
- Rating 65 Tons
- Max. Capacity 1-1/16" Dia. in 3/4" A36 (65,000 PSI Tensile)
- Stroke 1-13/16"
- Throat Depth 9-3/4"
- Open Height 8-3/4"
- Shut Height 6-15/16"
- Work Height 36-9/16"
FLAT BAR SHEAR
- Max. Capacity 3/8" x 24”, 1/2” x 14”, 1” x 4"
- Max. Round 1"
- Max. Square 1"
- Work Height 34-1/2"
ANGLE SHEAR
- Max. Capacity 5" x 5" x 3/8"
- Work Height 43-1/2"
COPER NOTCHER
- Max. Capacity 2-1/2" x 5" x 3/8"
- Work Height 39-1/2"
OPEN CAVITY
- Height 8-3/4"
- Width 12"
- Work Height 43"
GENERAL SPECIFICATIONS
- Standard Motor 7.5 HP 3~ 208 V or 230 V, 1765 RPM 22 A
- Optional Motors 7.5 HP 3~ 460 V, 1765 RPM 11 A
- 7.5 HP 3~ 575 V, 1770 RPM 8 A
- 5 HP 1~ 230 V, 1725 RPM 23 A
- *7.5 HP 1~ 230 V, 1765 RPM 36 A
- *Required for 1~ Hydraulic Accessory Pack
- Hydraulic Pump 10-1/2 GPM - 2 Stage
- Valve Pressure 3500 PSI
- Reservoir 17 Gallons
- Cylinder 3-1/2" Ram
DIMENSIONS
- Height 57"
- Width 62-1/8"
- Depth 45"
- Shipping Weight 4750 lb
Specifications
Specifications
| Edwards Ironworkers 65 Ton Ironworker 3 Phase, 230 Volt with PowerLink IW65-3P230-AC600 | |
| APPLICATION | Metal Working |
| Brand | Edwards Ironworkers |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Metal Forming - Ironworkers |
| TOOL TYPE | Metal Forming |
| VOLTAGE | 208V-240V 3Ph |
