MAGNA Lifting Products 5 Ton Geared Trolley GTR500
MAGNA Lifting Products 5 Ton Geared Trolley GTR500
Couldn't load pickup availability
Details
Details

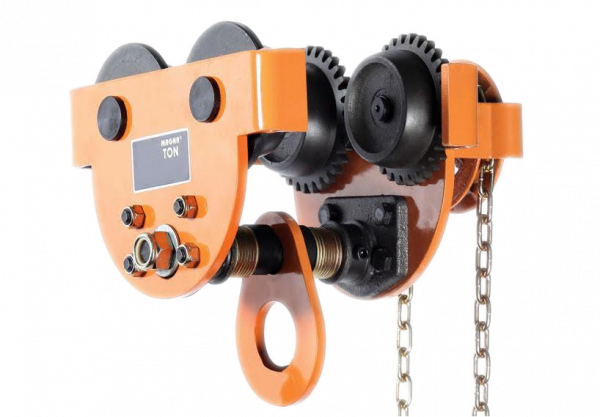

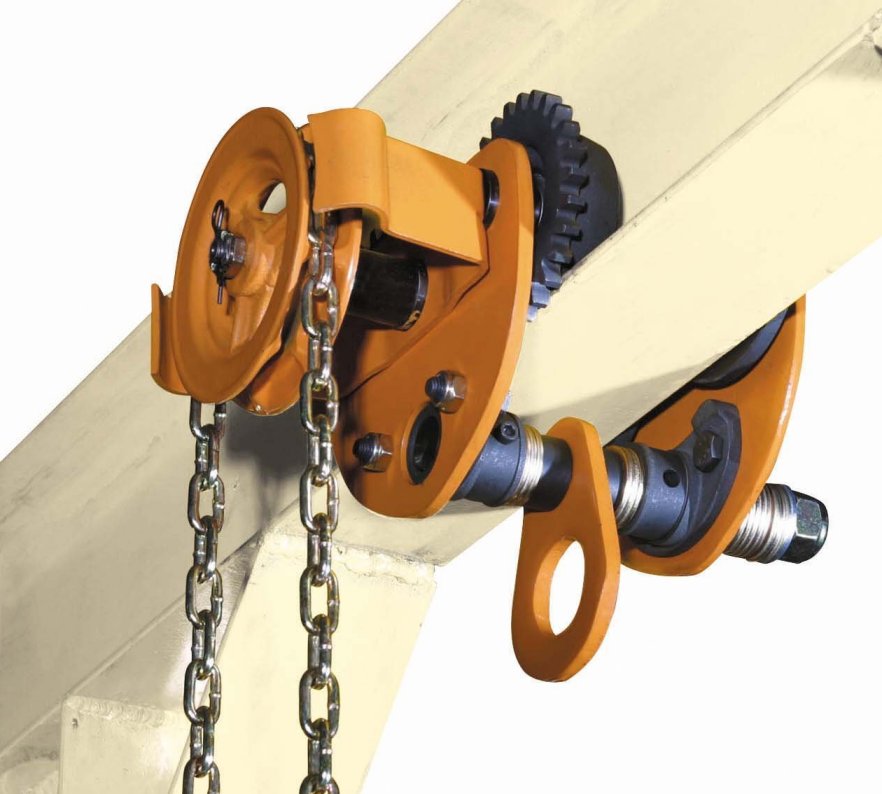

MAGNA 5 Ton Geared Trolley GTR500
The MAGNA GTR500 Geared Trolley offers a powerful 5 Ton (11,000 lbs) capacity combined with the precision of a geared drive system. This allows for the safe and controlled transport of heavy loads across workspaces, essential for tasks requiring accurate alignment.
Built to withstand heavy industrial use, the GTR500 features hardened steel wheels with sealed ball bearings for maintenance-free reliability. The trolley is adjustable to fit a variety of beam flange widths and includes anti-drop lugs for enhanced safety. Its rugged design ensures it performs consistently under maximum load conditions.
Features & Benefits
- High Capacity Control: Geared drive for precise handling of 11,000 lbs loads.
- Maintenance Free: Sealed ball bearings eliminate the need for wheel greasing.
- Beam Compatibility: Adjustable for flange widths from 5.0 to 8.0 inches.
- Safety First: Integrated anti-drop lugs and bumpers protect against failure.
- Proven Strength: Load tested to 150% of rated capacity.
Specifications
- Model Number: GTR500
- Working Load Limit (WLL): 5 Ton (11,000 lbs)
- Trolley Type: Geared
- Fits Flange Width: 5.0 - 8.0 in.
- Minimum Radius Curve: 114 in.
- Headroom: 8.7 in.
- Standard Hand Chain Drop: 10 ft.
- Net Weight: 117 lbs
Specifications
Specifications
| MAGNA Lifting Products 5 Ton Geared Trolley GTR500 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| CAPACITY | 5 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Material Handling/Lifting - Trolleys |
| TOOL TYPE | Material Handling/Lifting |
| TROLLEY TYPE | Geared Trolley |
